Add patchworklib.yml

[ponnhide]

PR Summary

I developed patchworklib inspired by the patchwork library for R.
Patchworklib allows users to freely arrange multiple matplotlib plots with "|" and "/" operators, as follows.

import seaborn as sns
import patchworklib as pw
fmri = sns.load_dataset("fmri")

ax1 = pw.Brick("ax1", figsize=(3,2))
sns.lineplot(x="timepoint", y="signal", hue="region", style="event", data=fmri, ax=ax1)
ax1.move_legend(new_loc='upper left', bbox_to_anchor=(1.05, 1.0))
ax1.set_title("ax1")

ax2 = pw.Brick("ax2", figsize=(1,2))
sns.barplot(x="sex", y="survived", hue="class", data=titanic, ax=ax2)
ax2.move_legend(new_loc='upper left', bbox_to_anchor=(1.05, 1.0))
ax2.set_title("ax2")

ax3 = pw.Brick("ax3", (5,2))
sns.histplot(diamonds, x="price", hue="cut", multiple="stack", palette="light:m_r", edgecolor=".3", linewidth=.5, log_scale=True, ax = ax3)
ax3.move_legend(new_loc='upper left', bbox_to_anchor=(1.0, 1.0))
ax3.set_title("ax3")

((ax1 | ax2) / ax3).savefig()

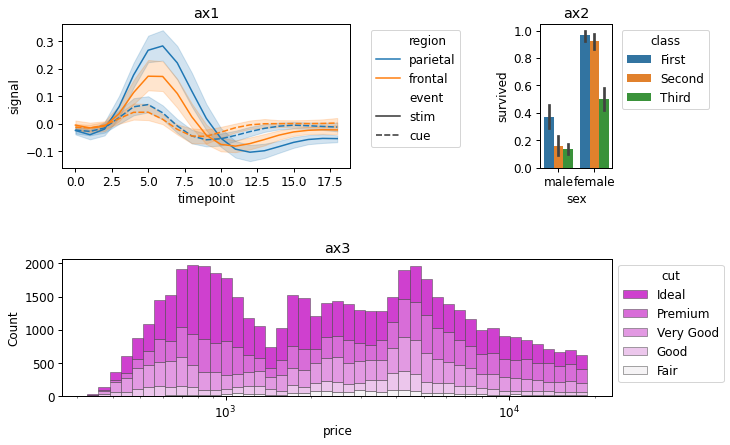

Also, you can quickly test another layout.

ax3.change_aspectratio((5,2))
ax2.change_aspectratio((1,3))
((ax1 / ax3) | ax2).savefig()

I hope you will add patchworklib to the mpl-third-party list.
Thank you.

[jklymak]

I'll merge, but only the auto doc build didn't run?

[jklymak]

Thanks @ponnhide - also looks like a cool package!
