Lighthouse

A fully modular, parametric, and customizable case design for home-made ESP8266/Arduino/Raspberry Pi projects, like temperature or motion sensors, information monitors, and more.

Built with OpenSCAD.

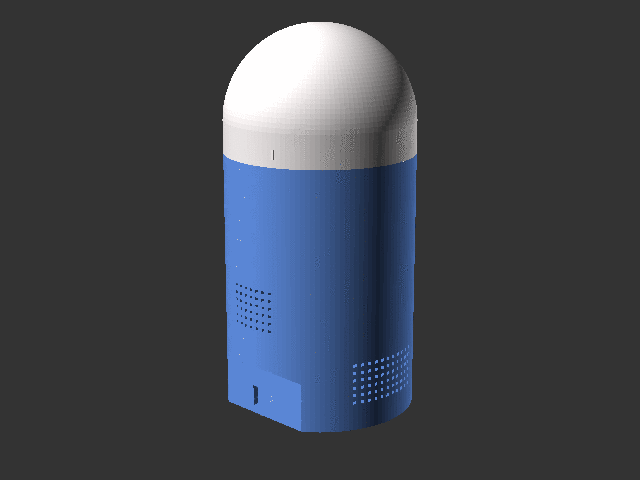

assembly animation

Modules

Bases

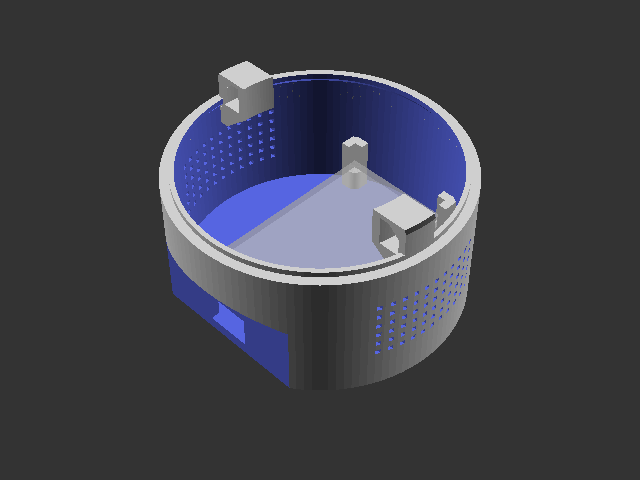

base animation

Download the SCAD source to customize your own version.

NodeMCU v2, e.g. https://www.amazon.de/dp/B06Y1LZLLY

NodeMCU v3, e.g. https://www.amazon.de/dp/B06Y1ZPNMS

OLED Module

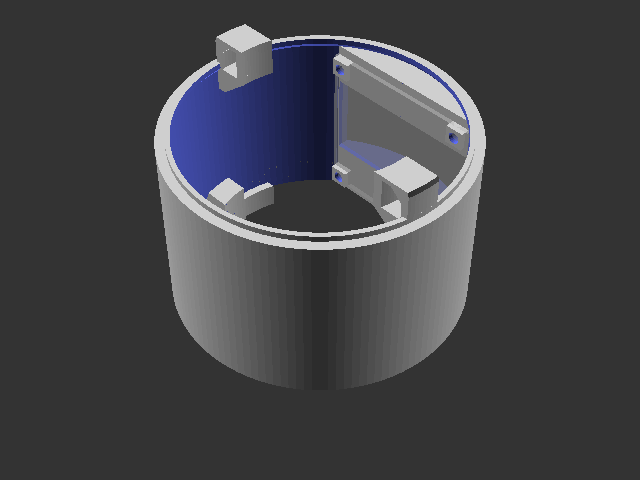

OLED module animation

Download the SCAD source to customize your own version.

OLED 0.96", e.g. https://www.amazon.de/dp/B01L9GC470

OLED 1.3", e.g. https://www.amazon.de/dp/B078J78R45

PIR Motion Sensor Module

HC-SR501, e.g. https://www.amazon.de/dp/B07CNBYRQ7

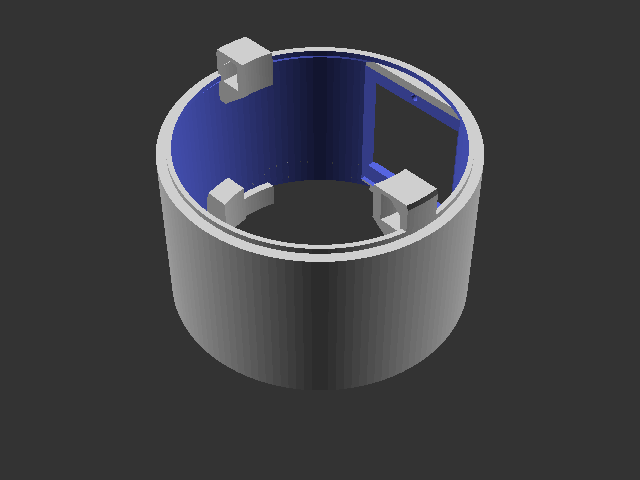

PIR motion sensor module animation

Download the SCAD source to customize your own version.

Sensor Enclosure Module

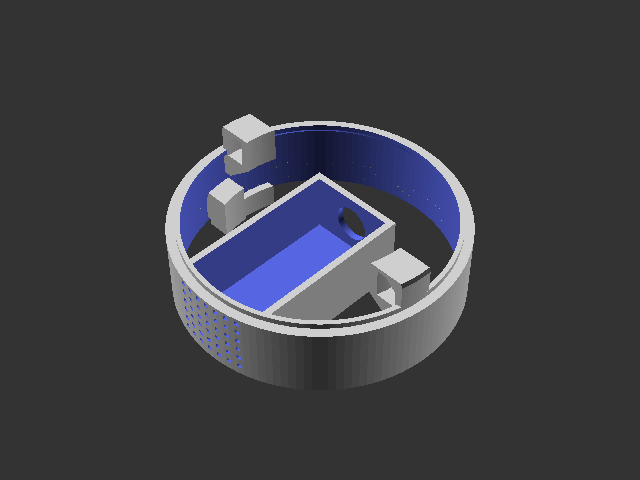

enclosure module animation

Download the SCAD source to customize your own version.

Empty Spacer Module

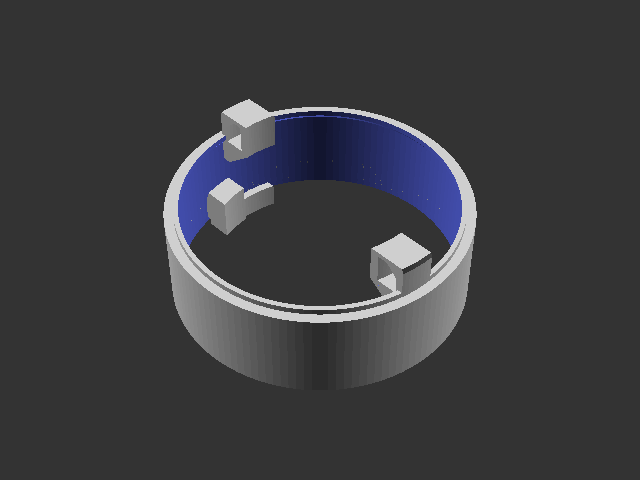

empty module animation

Download the SCAD source to customize your own version.

Caps

Flat

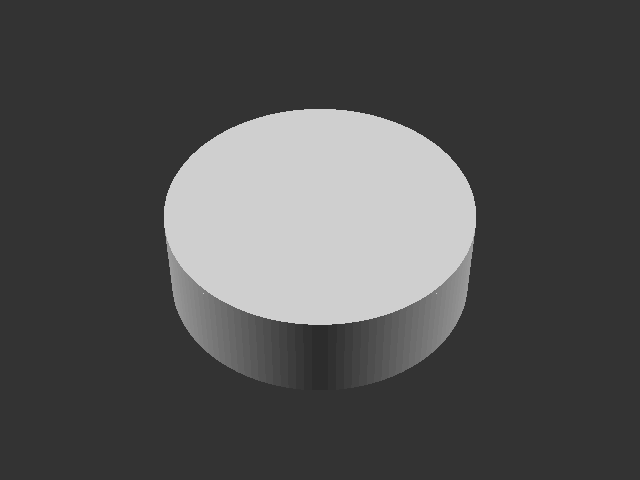

flat cap animation

Download the SCAD source to customize your own version.

Dome

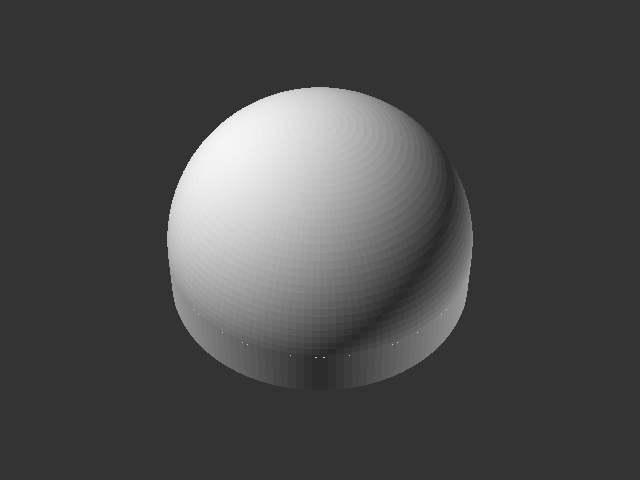

dome cap animation

Download the SCAD source to customize your own version.

Further ideas

  • The node MCU and other boards as well have mounting holes, use them for better support in the base
  • The PCB modules could be fit a little bit tighter into their respective casing making it easier e.g. to push a button from the outside
  • Conversion modules between the large and small diameters

Precursor of this design

This design is inspired by https://www.thingiverse.com/thing:2627220.
