ESP32 Pico board is not recognized by VS Extension

[devbotas]

Details about Problem

nanoFramework area: ( Visual Studio extension )

**VS version: **

VS extension version: (The only) stable

Target: ESP32 Pico

Firmware image version: 1.6.5.3 (others are also affected)

Device capabilities output:

Description

ESP32 Pico kit is not recongnized by VS extension and never appears on the Device list.

Detailed repro steps so we can see the same problem

1. Take a virgin Pico.
2. Flash 1.6.5.3 using nanoff.
3. Done. VS extension never finds it, although flashing is reported successful.

Other suggested things

Expected behaviour

VS Extension should recognize the board.

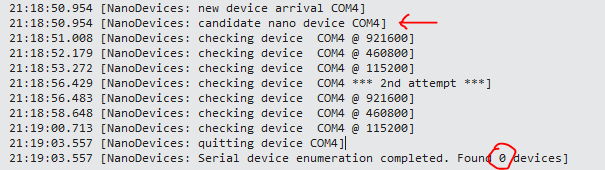

Screenshot

Additional context

Adrian confirmed the issue. He suspects VS extension, because the board itself does send debug information. See message on Discord:
https://discord.com/channels/478725473862549535/481782754674212867/871609660354998343

Make an effort to fix the bug

[andreboom]

I have exactly the same issue with my ESP32 Lilygo board, which is also flashed with 1.6.5.3 firmware.

[Ellerbach]

Have you try to unplug after flash and replug or use the rescan button in the extension?
I have a lilygo and no issue, and it is well recognized.

[andreboom]

Hi Laurent, It did not work, but I later discovered it was because I used the ESP32_LILYGO target. When I checked the chip I saw that it was an ESP32-WROVER-B and I then tried the ESP32_WROOM_32 and ESP_WROVER_KIT targets, both work and the board then showed up in the explorer. For what chips are the ESP32_LILYGO target supposed to work?

[Ellerbach]

All ESP32 targets will show up as ESP32_WROOM_32.
The Lilygo ones are those

[Ellerbach]

And closing the issue as it seems solved. Please don't hesitate to reopen if needed.

[andreboom]

This is the Lilygo I used, that did not show up.

[josesimoes]

All ESP32 targets will show up as ESP32_WROOM_32.

@Ellerbach this is where? In Device Explorer in VS? If that's the case, then something is wrong with some targets, because they are supposed to show with their PackageName. There and when looking at the device capabilities output.

Like here:

And here:

Please confirm.

[andreboom]

Yes, in Visual Studio after I flashed the board with LILYGO target, (stable and preview) does not show in Explorer. But does show if I flush with the other 2 targets.

[devbotas]

And closing the issue as it seems solved. Please don't hesitate to reopen if needed.

How is it solved?..

[Ellerbach]

How is it solved?..

with this comment:

both work and the board then showed up in the explorer

Reopening it.

[devbotas]

I can't use my 769 Discovery board, too... Due to exact same reasons:
