plot_l1c

Development code for the plotting of AVHRR Easy FCDR L1C orbits from H2020 FIDUCEO.

Contents

• plot_l1c.py - main script to be run with Python 3.6+

The first step is to clone the latest plot_l1c code and step into the check out directory:

$ git clone https://github.com/patternizer/plot_l1c.git
$ cd plot_l1c

Using Standard Python

The code should run with the standard CPython installation and was tested in a conda virtual environment running a 64-bit version of Python 3.6+.

plot_l1c can be run from sources directly, once the following module requirements are resolved to cater for plotting with cartopy:

• optparse
• numpy
• xarray
• matplotlib
• cartopy

Run with:

$ python plot_l1c.py l1c.nc <options>

options: proj varstr vmin vmax

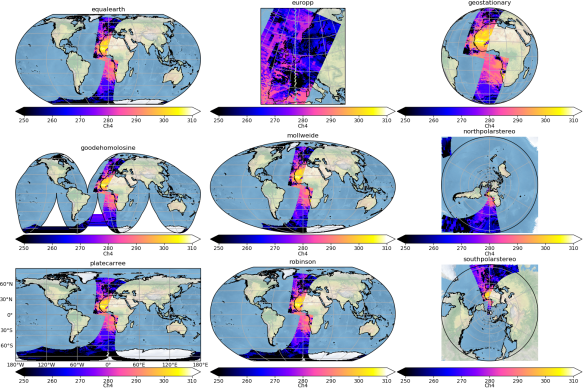

example: $ python plot_l1c.py l1c.nc 0 Ch4 250 310

proj == 0 -> PlateCarree
proj == 1 -> Molleweide
proj == 2 -> Robinson
proj == 3 -> EqualEarth
proj == 4 -> Geostationary
proj == 5 -> GoodeHomolosine
proj == 6 -> EuroPP
proj == 7 -> NorthPolarStereo
proj == 8 -> SouthPolarStereo
proj == 9 -> LambertConformal

l1c.nc

• l1c.nc - netCDF-4 file containing latitude, longitude and data variable to be plotted

Available on request from https://github.com/patternizer

License

The code is distributed under terms and conditions of the MIT license.

Contact information

• Michael Taylor
