Button support and FieldSetter derive macro

[sreenathkrishnan]

Thank you for this wonderful crate. I have personally found it much easier to make a plotly chart using this crate aided by the Rust type system as opposed to other options. Excited to contribute to this repository.

This PR introduces two changes:

Change 1: FieldSetter derive marco

There are a number of structs defined in this crate that have private fields and public functions to set the value for each of these fields. The FieldSetter procedural marco, when applied on a struct, auto-derives the public setter functions for each of the fields in the struct. The setter functions have a small number of distinct signatures based on the type of the field. Types such as Dim, String, Color, NumOrString get a special syntax. The procedural macro is defined in the plotly_derive crate. I have updated the traces and layout modules to use the procedural macro (resulting in a lot of code deletions). The macro also proved two attributes

• #[field_setter(box_self)] - The setter functions return Box<Self> instead of Self if applied to the struct
• #[field_setter(skip)] - To skip generating setter function for a specific field

The procedural macro is not fully general to cover type aliasing etc, but works in practice for this crate.

Pros

• Consistent setter API across all structs
• Minimal code required to define new structs

Cons

• Additional dependencies
• Slightly slower compilation due to proc macro expansion

Change 2: Support for Buttons (update menu)

I have defined the structs required to support buttons in a plotly chart (https://plotly.com/javascript/reference/layout/updatemenus/) in a new module layout/update_menu.rs.

Using these structs we can add buttons with this crate. However the button API (https://plotly.com/python/dropdowns/) is not strongly-typed and needs lots of "stringy" arguments. Instead, I have added a new approach to help create buttons. There are three button methods that I have focused on:

• restyle: modify traces
• relayout: modify layout
• update modify traces and layout

Restyles

First I have defined a Restyle marker trait. The FieldSetter macro defines a new enum for each struct if it is marked as #[field_setter(kind = "trace")]. As an example, say we are deriving FieldSetter on the (simplified) SimpleBar struct

#[serde_with::skip_serializing_none]
#[derive(Serialize, Debug, Clone, FieldSetter)]
#[field_setter(box_self, kind = "trace")]
pub struct SimpleBar
{
    name: Option<String>,
    visible: Option<Visible>,
}

The derived enum would look like

pub enum RestyleSimpleBar {
  ModifyName { name: Option<Dim<String>> },
  ModifyVisible { name: Option<Dim<Visible>> },
}

i.e it contains one enum variant for modifying each of the struct fields. The reason each field is wrapped with a Dim is that plotly provide option to modify all the traces in the plot using a scalar argument or control what to modify in each trace using a list argument. This enum implements the Restyle trait.

Additionally we also define helper functions for SimpleBar

impl Bar {
  pub fn modify_all_name(value: impl AsRef<str>) -> RestlyeSimpleBar {
    RestlyeSimpleBar::ModifyName { name: Some(Dim::Scalar(value.as_ref().into())) }
  }
  pub fn modify_name(values: vec![impl AsRef<str>]) -> RestlyeSimpleBar {
    RestlyeSimpleBar::ModifyName { name: ... }
  }
  // .... similarly for visible
}

Coupled with this we have a ButtonBuilder struct that has a push_restyle() function which accepts any struct that implements Restyle trait. On invoking the ButtonBuilder::build() function, the builder sets up the Button correctly with the arguments in the right form.

So for example, if we have two bar plots and we want a button to alternate between them, we can create the button using

let buttons = vec![
      ButtonBuilder::new()
          .label("Chart1")
          .push_restyle(SimpleBar::modify_visible(vec![Visible::True, Visible::False]))
          .build(),
      ButtonBuilder::new()
          .label("Chart2")
          .push_restyle(SimpleBar::modify_visible(vec![Visible::False, Visible::True]))
          .build(),
  ]

Relayout

Similar to Restyle we have a Relayout trait. We derive a new enum which implements Relayout if the struct is annotated with #[field_setter(kind = "layout")]. Since you only have a single layout per plot, we don't do the Dim wrapping here. The ButtonBuilder also has a push_relayout function.

Examples

cargo r --example=buttons

Three plots that demonstrate the use of UpdateMenu to create buttons:

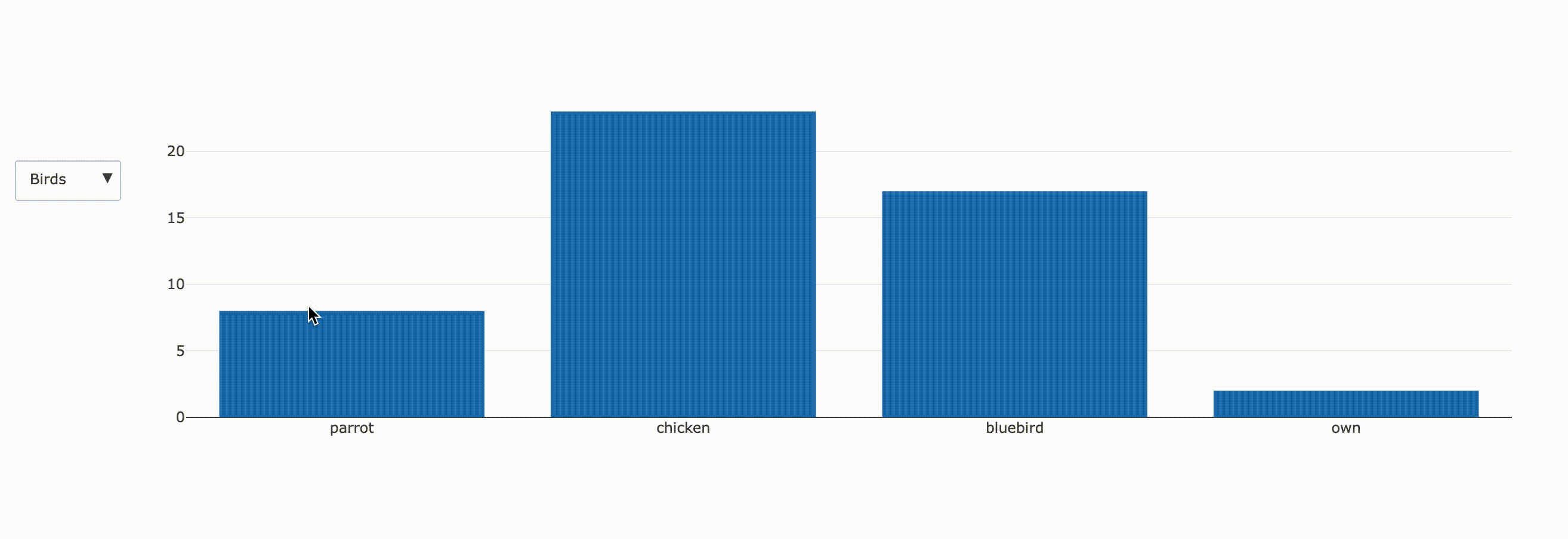

• Dropdown to alternate between two bar plots (restyle)

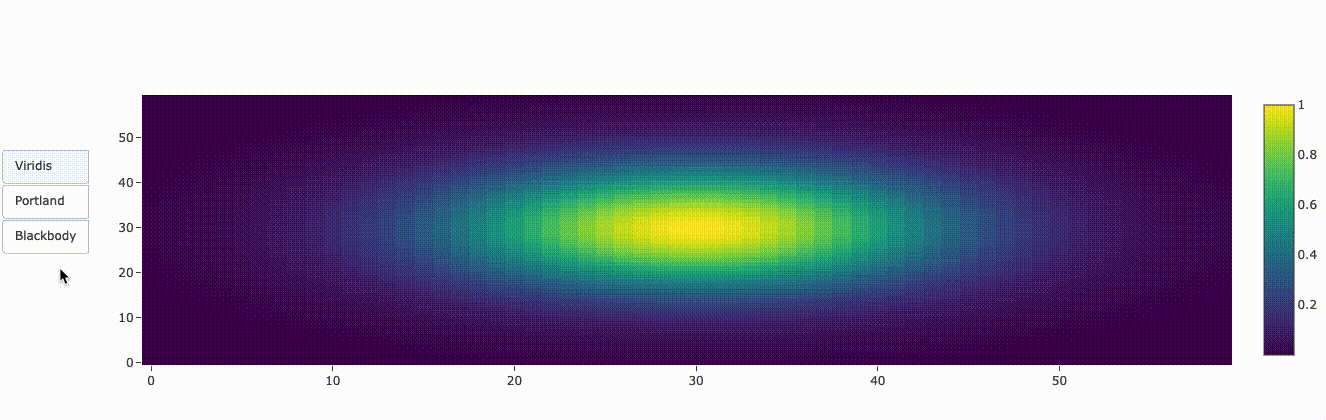

• Heatmap with buttons to choose colorscale (restyle)

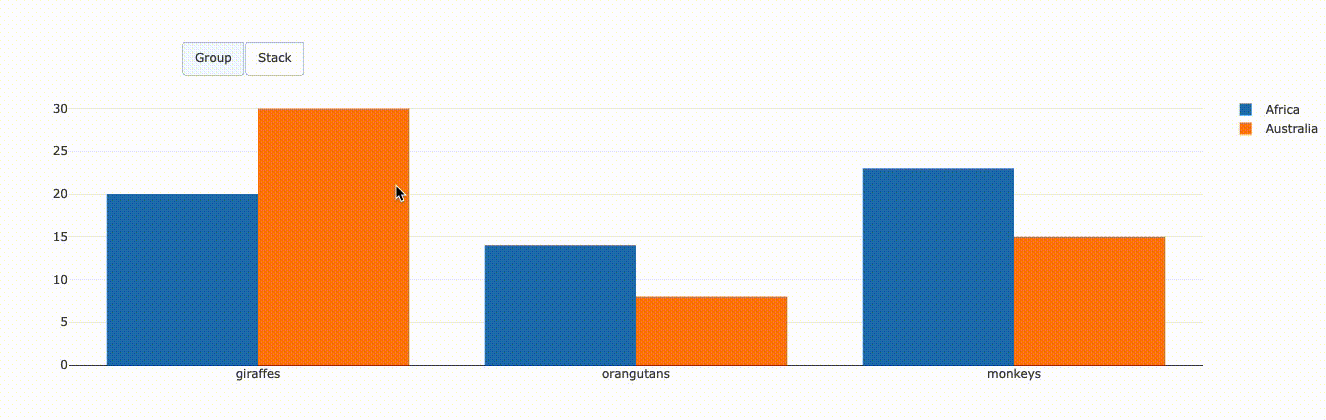

• Button to change barmode (relayout)


[mfreeborn]

Thank you for this effort! It was something that I was thinking about implementing, but I have no experience with writing macros.

I'll review these changes fully as soon as I can, which will be early next week at the latest.
