Wrong image width and height on upload

[Toutouwai]

Short description of the issue

Image that demonstrates the problem:

When this image is uploaded to a PW images field the width and height are wrongly transposed.

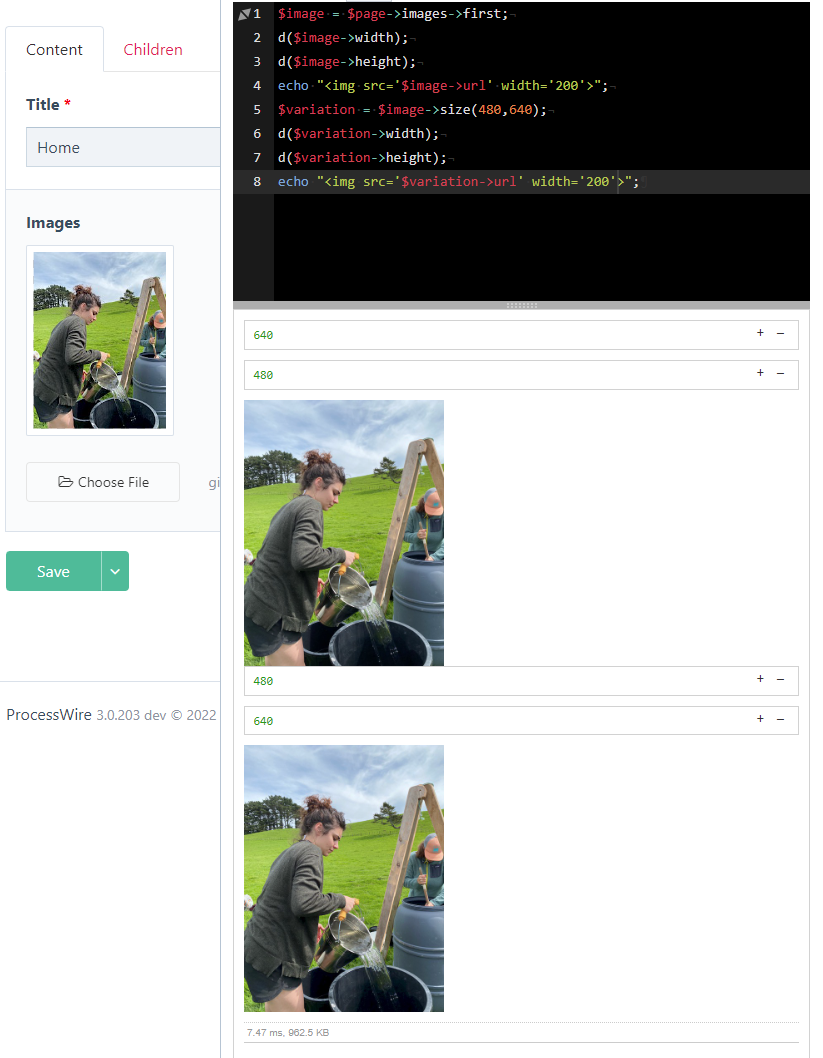

If an image variation is created at the same dimensions as the original then the width and height are calculated correctly.

I'm guessing this has something to do with the auto-rotation of uploaded images, like PW is calculating the width and height before the uploaded image has been auto-rotated?

Setup/Environment

• ProcessWire version: 3.0.203

[Toutouwai]

After looking at this some more I don't think it's related to auto-rotation on upload but is instead due to PHP's getimagesize() not being smart enough to correct the width and height info when the embedded EXIF data indicates a portrait orientation.

A modification to Pageimage::getImageInfo() fixes it for me. After line 509...

if(function_exists('exif_read_data')) {
   $exif = $filename ? @exif_read_data($filename) : @exif_read_data($this->filename);
   if(!empty($exif['Orientation']) && (int) $exif['Orientation'] > 4) {
   	// Image has portrait orientation so reverse width and height info
   	$imageInfo['width'] = $info[1];
   	$imageInfo['height'] = $info[0];
   }
}

The whole modified method...

public function getImageInfo($reset = false) {

    $imageInfo = $this->imageInfo;
    $filename = is_string($reset) && file_exists($reset) ? $reset : '';

    if(!$reset && $imageInfo['width'] && !$filename) {
        return $imageInfo;
    }

    if($this->ext == 'svg') {
        $imageInfo = array_merge($imageInfo, $this->getImageInfoSVG($filename));
    } else {
        if($filename) {
            $info = @getimagesize($filename);
        } else {
            $info = @getimagesize($this->filename);
        }
        if((!$info || empty($info[0])) && !empty($this->sizeOptions['_width'])) {
            // on fail, fallback to size options that were requested for the image (if available)
            $imageInfo['width'] = $this->sizeOptions['_width'];
            $imageInfo['height'] = $this->sizeOptions['_height'];
        } else if($info) {
            $imageInfo['width'] = $info[0];
            $imageInfo['height'] = $info[1];
            if(function_exists('exif_read_data')) {
                $exif = $filename ? @exif_read_data($filename) : @exif_read_data($this->filename);
                if(!empty($exif['Orientation']) && (int) $exif['Orientation'] > 4) {
                    // Image has portrait orientation so reverse width and height info
                    $imageInfo['width'] = $info[1];
                    $imageInfo['height'] = $info[0];
                }
            }
        }
    }

    if(!$filename) $this->imageInfo = $imageInfo;

    return $imageInfo;
}

For existing images the incorrect data could still be stored in the width and height database columns after the method is fixed. Is there a way to tell PW to rebuild that stored width/height data in the DB?

[ryancramerdesign]

Thanks @Toutouwai good find there, I have added your suggested fix
