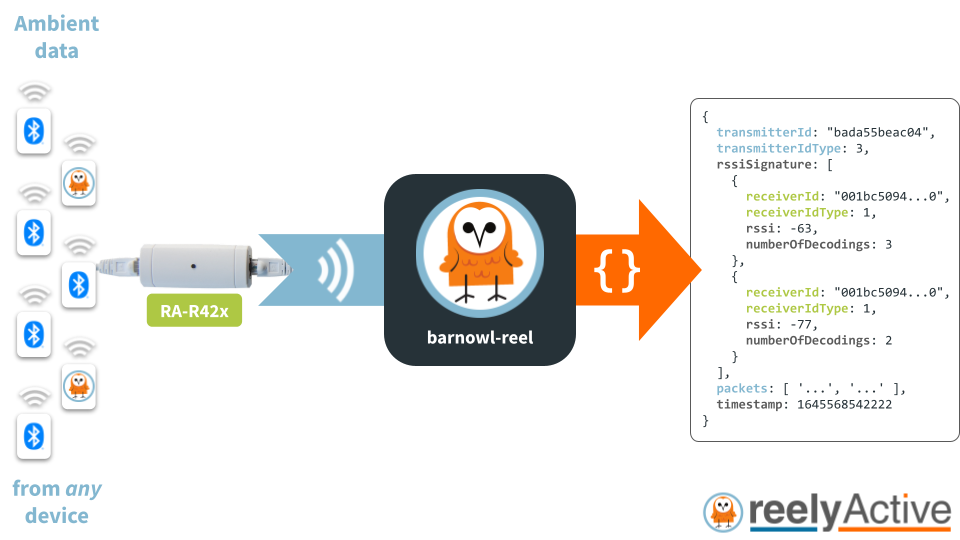

barnowl-reel converts RF decodings from reelyActive reels into software-developer-friendly JSON: a real-time stream of raddec objects which facilitate any and all of the following applications:
- RFID: what is present, based on the device identifier?
- RTLS: where is it relative to the receiving devices?
- M2M: how is its status, based on any payload included in the packet?
barnowl-reel is a lightweight Node.js package that can run on resource-constrained edge devices as well as on powerful cloud servers and anything in between. It is typically run behind a barnowl instance which is included in the Pareto Anywhere open source middleware suite.
npm install barnowl-reel
The following code will listen to simulated hardware and output packets to the console:
const BarnowlReel = require('barnowl-reel');
let barnowl = new BarnowlReel();
barnowl.addListener(BarnowlReel.TestListener, {});
barnowl.on("raddec", function(raddec) {
console.log(raddec);
});
barnowl.on("infrastructureMessage", function(message) {
console.log(message);
});As output you should see a stream of raddec objects similar to the following:
{
transmitterId: "fee150bada55",
transmitterIdType: 3,
rssiSignature: [
{
receiverId: "001bc50940810000",
receiverIdType: 1,
rssi: -83,
numberOfDecodings: 1
},
{
receiverId: "001bc50940810001",
receiverIdType: 1,
rssi: -91,
numberOfDecodings: 1
}
],
packets: [ '421655daba50e1fe0201050c097265656c79416374697665' ],
timestamp: 1547693457133
}Regardless of the underlying RF protocol and hardware, the raddec specifies what (transmitterId) is where (receiverId & rssi), as well as how (packets) and when (timestamp).
While barnowl-reel may suffice standalone for simple real-time applications, its functionality can be greatly extended with the following software packages:
- advlib to decode the individual packets from hexadecimal strings into JSON
- barnowl to combine parallel streams of RF decoding data in a technology-and-vendor-agnostic way
These packages and more are bundled together as the Pareto Anywhere open source middleware suite, which includes several barnowl-x listeners.
The following listener interfaces are supported.
barnowl.addListener(BarnowlReel.UdpListener, { path: '0.0.0.0:50000' });Manually install the serialport package, taking care to first meet any prerequisites for the target platform:
npm install serialport
barnowl.addListener(BarnowlReel.SerialListener, { path: 'auto' });Note that barnowl-reel v0.2 is adapted to work with serialport v10.x. If errors are encountered, try forcing an install of serialport 10 with npm install serialport@10.4.0
On Ubuntu, it may be necessary to add the user to the dialout group in order to have the necessary permissions to access the device, which can be accomplished with the command sudo usermod -a -G dialout $USER and made to take effect by logging out and back in to the user account.
Listen for reel data as an EventEmitter's "data" events. Either Buffer or hexadecimal string data is accepted.
barnowl.addListener(BarnowlReel.EventListener,
{ path: eventEmitterInstance });Provides a steady stream of simulated reel packets for testing purposes.
barnowl.addListener(BarnowlReel.TestListener, {});barnowl-reel includes a script to forward serial/USB data to a local Pareto Anywhere instance as UDP raddecs with target localhost:50001. Manually install the serialport dependency with npm install serialport and then start this script with the command:
npm run serial-forwarder
Each listener interface supports decodingOptions with the following properties:
| Property | Default | Description |
|---|---|---|
| maxReelLength | 254 | Ignore packets that (spuriously) exceed the given reel length |
| minPacketLength | 0 | Ignore radio packets with less than the given number of bytes length |
| maxPacketLength | 255 | Ignore radio packets with more than the given number of bytes length |
For example, the decoding options for a UDP listener expecting a single reelceiver and BLE packets would be specified as follows:
let options = { maxReelLength: 1, minPacketLength: 8, maxPacketLength: 39 };
barnowl.addListener(BarnowlReel.UdpListener,
{ path: '0.0.0.0:50000', decodingOptions: options });In most cases, explicit decodingOptions are not required. In cases where the reel serial data stream is susceptible to corruption, explicit decodingOptions can limit occurrences of spurious/missed packets.
Discover how to contribute to this open source project which upholds a standard code of conduct.
Consult our security policy for best practices using this open source software and to report vulnerabilities.
