This is a code submission for the NITR- Hackathon

Image2codeCompiler

A COMPILER THAT COMPILES YOUR CODES ON THE RUN . JUST SCAN YOUR CODES AND RUN IT AS IT IS

System Requirements

Node,Mongodb,Docker,RAM >2GB

Steps for setting up server

1.open rec-src
2. run command

cd rec-src
npm i
node index.js

3.open docker desktop

Steps to run the worker

you can setup multiple workers by simply writing this command

node worker.js

go to "localhost:5000/" to access the compiler.
you dont need to build the image files as their copies are uploaded on dockerHub still you can view the content of the images under c++img , javaImage , pyImage directories

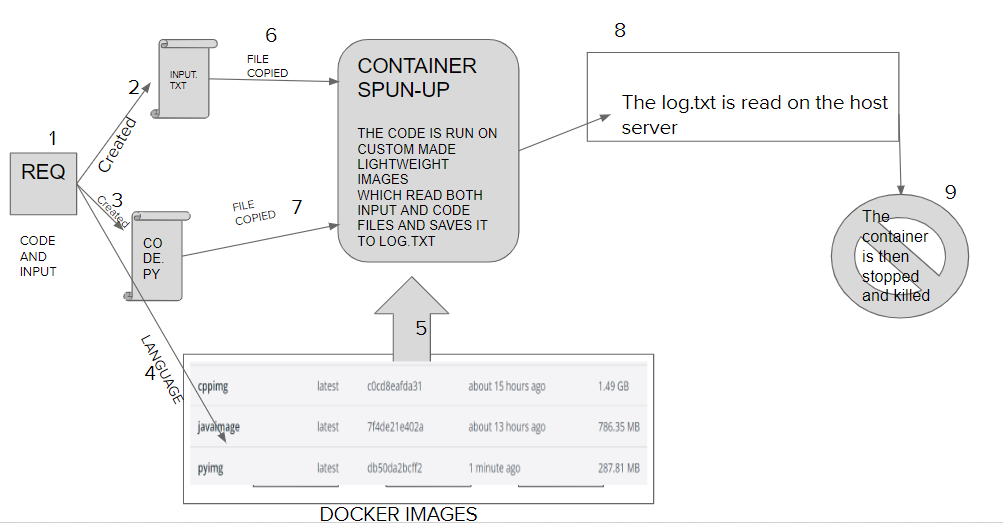

Architecture of the platform

this is the main architecture of the compiler service

The process

1.Over the request of the user a UID is generated and 2 text files are created at the server being stdInput and code files.

2.Now after this, a container is spun up with the name same as the UID.

3.The docker image has its language related environments along with a log.txt and a js file for code execution scripts

4.The code is then run in that container and the output is saved in the log.txt file

5.Now this log.txt is read and the output stream is stored and sent as a response. This doesn't complete here.

6.Now the docker containers are stopped and deleted along with both input and code files.

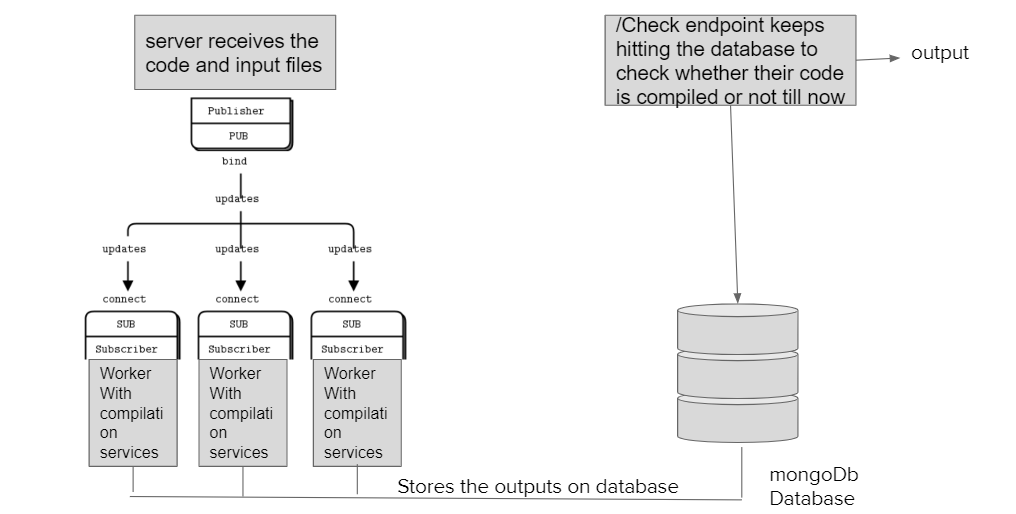

Scalable architecture made using zeromq

this is the architecture when we implement asynchronous message queuing service to distribute the comming requests
