Decade Resistance Box - KIT-13006

Decade Resistance Box KIT-13006

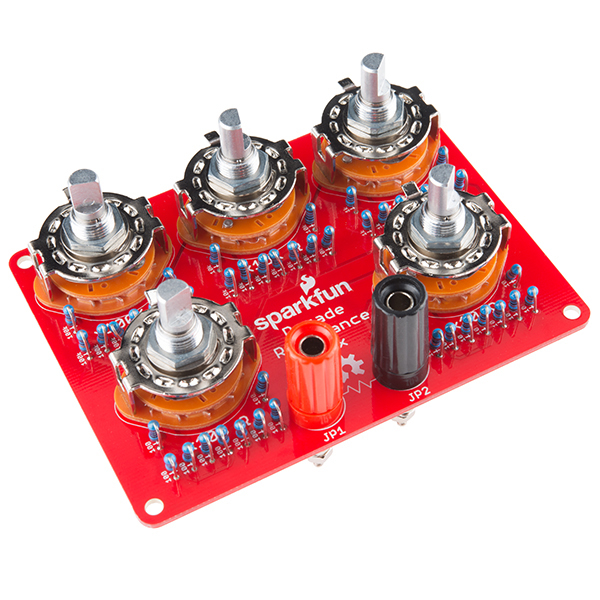

This repository is for a decade resistance box kit, adjustable between 0 Ohms and 999,990 Ohms in 10 Ohm steps. More information can be found here.

Detailed information about building and using the decade resistance can be found it it's hookup guide.

This part was created in Eagle v6.5.0.
The front panel etching/overlay was created with Inkscape 0.48.

Repository Contents

  • /Hardware - All Eagle design files (.brd, .sch, .STL)
  • /case-label - The front panel markings in PDF and multi-layer SVG formats.
  • /tutorial-images - the sources for the images in the hookup guide.

Product Versions

  • KIT-13006- Initial version of the kit PCBs.

Version History

License Information

The hardware is released under Creative Commons ShareAlike 4.0 International.

Distributed as-is; no warranty is given.
