STM32F405 Thing Plus, PCB errors about SD card detection

[dombru54]

Hello,

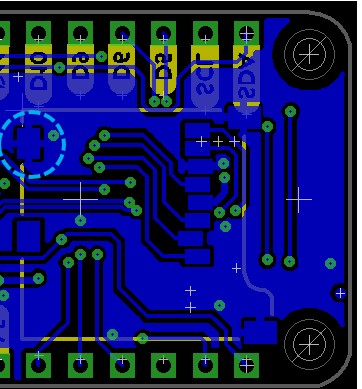

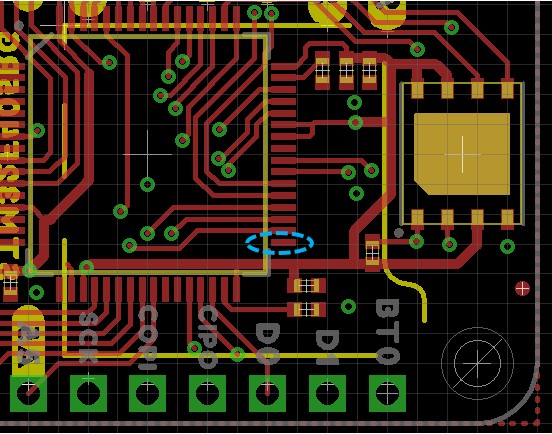

1. With your SparkFunThingPlus-STM32F405 card, the PB12 pin (cardDetect) is not connected to reader card pin 10.


2. There is a short circuit with the card reader double pin 10

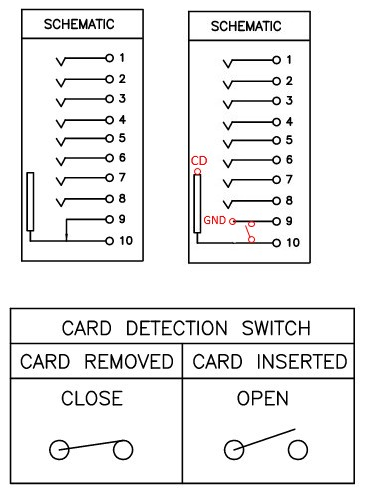

Error in the card reader manufacturer's datasheet and red correction

Erase thermal-break, pin 10 will no longer be grounded

Thanks to make a revision of this board
