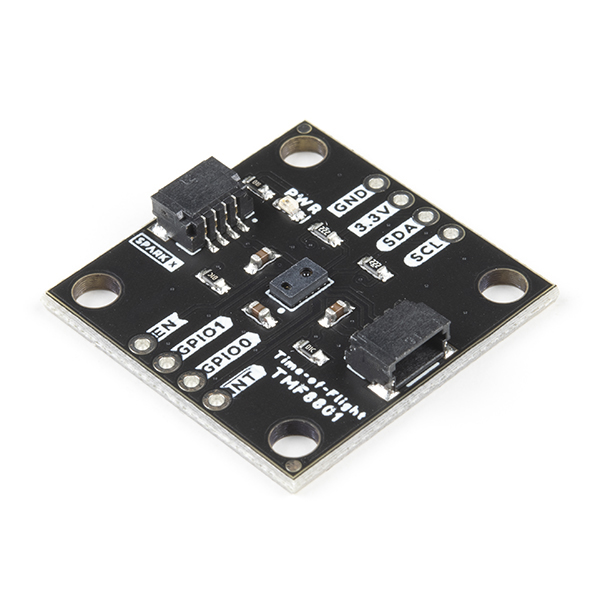

SparkFun Qwiic Time-of-Flight Sensor TMF8801

SparkX ToF TMF8801 (SPX-17716)

TMF8801 is a Time-of-Flight sensor capable of measuring distances up to 98.4 inches (2500 mm) using infrared laser light, based on SPAD, TDC and histogram technology.

The device meets Class 1 laser safety limits including single faults in compliance with IEC / EN 60825-1:2014 per the manufacturer's datasheet.

Repository Contents

• /documents - Datasheet, application notes, etc.
• /examples - Example sketches for the library (.ino). Run these from the Arduino IDE.
• /src - Source files for the library (.cpp, .h).
• keywords.txt - Keywords from this library that will be highlighted in the Arduino IDE.
• library.properties - General library properties for the Arduino package manager.

Library

• Arduino Library - Library for performing measurements and optional device calibration.

License Information

This product is open source!

Please review the LICENSE.md file for license information.

If you have any questions or concerns on licensing, please contact techsupport@sparkfun.com.

Please use, reuse, and modify these files as you see fit. Please maintain attribution to SparkFun Electronics and release anyThing Development Board derivative under the same license.

Distributed as-is; no warranty is given.
