spring-boot application get warning: CONSOLE_LOG_PATTERN_IS_UNDEFINED

[kuchaguangjie]

There is a spring-boot (2.0.0.RELEASE) application as part of the spring-cloud (Finchley.M9) cluster.
On startup, it always print following line:

CONSOLE_LOG_PATTERN_IS_UNDEFINEDCONSOLE_LOG_PATTERN_IS_UNDEFINEDCONSOLE_LOG_PATTERN_IS_UNDEFINED

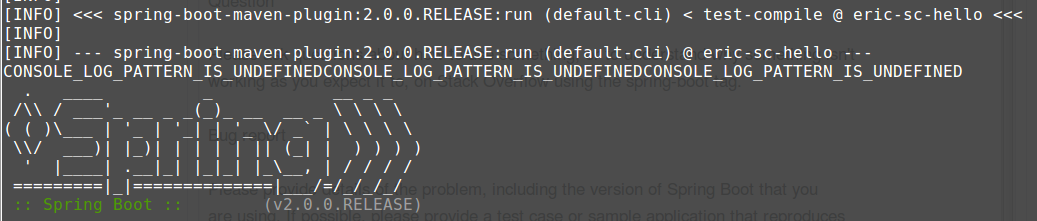

Screenshot:

---

(following are the configuration)

application.yml:

## spring-boot configuration,

# logging
logging:
  file: "log/hello.log"
  pattern:
    console: "[%d{yyyy-MM-dd HH:mm:ss.SSS}] %-5level [%t] [%logger - %line]: %m%n"
    file: "[%d{yyyy-MM-dd HH:mm:ss.SSS}] %-5level [%t] [%logger - %line]: %m%n"
  level:
    root: INFO

spring:
  application:
    name: eric-sc-hello

server:
  port: 9191

management:
  endpoints:
    web:
      exposure:
	include: "*"

eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:8761/eureka/

eric-sc-hello:
  ribbon:
    eureka:
      enabled: false
    listOfServers: localhost:9191,localhost:9192,localhost:9193
    ServerListRefreshInterval: 15000

logback-spring.xml:

<?xml version="1.0" encoding="UTF-8"?>
<configuration>
  <appender name="CONSOLE" class="ch.qos.logback.core.ConsoleAppender">
    <encoder>
      <charset>UTF-8</charset>
      <Pattern>${CONSOLE_LOG_PATTERN}</Pattern>
    </encoder>
  </appender>
  <appender name="FILE"
    class="ch.qos.logback.core.rolling.RollingFileAppender">
    <encoder>
      <pattern>${FILE_LOG_PATTERN}</pattern>
    </encoder>
    <file>${LOG_FILE}</file>
    <rollingPolicy
      class="ch.qos.logback.core.rolling.FixedWindowRollingPolicy">
      <fileNamePattern>${LOG_FILE}.%i</fileNamePattern>
      <minIndex>1</minIndex>
      <maxIndex>10</maxIndex>
    </rollingPolicy>
    <triggeringPolicy
      class="ch.qos.logback.core.rolling.SizeBasedTriggeringPolicy">
      <MaxFileSize>10MB</MaxFileSize>
    </triggeringPolicy>
  </appender>

  <root level="INFO">
    <appender-ref ref="CONSOLE" />
    <appender-ref ref="FILE" />
  </root>
</configuration>

---

The warning says CONSOLE_LOG_PATTERN is undefined for 3 times.

But logging.pattern.console is defined in application.yml, and the log lines in console is printed in the specified format.

So, why the warning pop-up, and how can I remove it?

(I asked this on stackoverflow several days ago, but didn't get any respond yet: https://stackoverflow.com/questions/49879518)

[snicoll]

Please do no need to cross-post. The template in this issue you've created mentioned that we don't use the tracker for questions. See also the guidelines for contributing.

[kuchaguangjie]

No matter whether it's asked on SO, this is a bug, right? Not just a question I guess.

[snicoll]

there is nothing that indicates a bug at this point, and there's nothing that indicates it's related to Spring Boot to me. If that proves to be wrong, we can of course reopen.

[kuchaguangjie]

According to spring-boot document https://docs.spring.io/spring-boot/docs/2.0.0.RELEASE/reference/html/boot-features-logging.html#boot-features-custom-log-configuration, with logging.pattern.console defined in application config file, CONSOLE_LOG_PATTERN should be available for the logback-spring.xml.

This works in spring-boot 1.5.8, but after upgrading to spring-boot (2.0.0.RELEASE) and spring-cloud (Finchley.M9), the warning line appear, so I guess it's related to spring-boot, and seems to be a bug.

[snicoll]

@kuchaguangjie don't you think if it would have been a good idea to indicate the exact same setup works with a previous version?

The documentation you referenced mentions "Only supported with the default Logback setup". You have a custom logback config so I would expect this not to be the default.

Please share a sample that reproduces the problem and that works with 1.5

[kuchaguangjie]

I just did more test, and here is the details:

(1) There is an old pure spring-boot application, without spring-cloud, that use spring-boot 1.5.8, it use the same logback-spring.xml and same logging config in application.yml mentioned in the post above, and on startup it will print:

It says it found logging.pattern.console and logging.pattern.file, in the console output.

And, it don't have any warning about logging config.

Here is it's application.yml:

## spring-boot configuration,

# logging
logging:
  file: "log/api.log"
  pattern:
    console: "[%d{yyyy-MM-dd HH:mm:ss.SSS}] %-5level [%t] [%logger - %line]: %m%n"
    file: "[%d{yyyy-MM-dd HH:mm:ss.SSS}] %-5level [%t] [%logger - %line]: %m%n"
  level:
    root: INFO

# tomcat
server:
  port: 9200

(2) Then I got another project, use spring-boot 2.0.0 RELEASE and spring-cloud Finchley.M9, with exactly the same logback-spring.xml and logging config in application.yml, then it complains CONSOLE_LOG_PATTERN_IS_UNDEFINED, and create a file named LOG_FILE_IS_UNDEFINED at application root on startup.

(3) Then I though maybe it's spring-cloud's issue, so I take the old application in (1), and upgrade the spring-boot from 1.5.8.RELEASE to 2.0.0.RELEASE, and start it with spring-boot maven plugin, and there is no warning, but it also didn't say it found logging.pattern.console.

So, maybe also might be caused by spring-boot maven plugin? I am not sure.

Above are the test results, a bit confused for me, need your experts to check that. Now, I am not sure is this directly related to spring-boot, or it's caused by spring-boot maven plugin, or spring-cloud.
