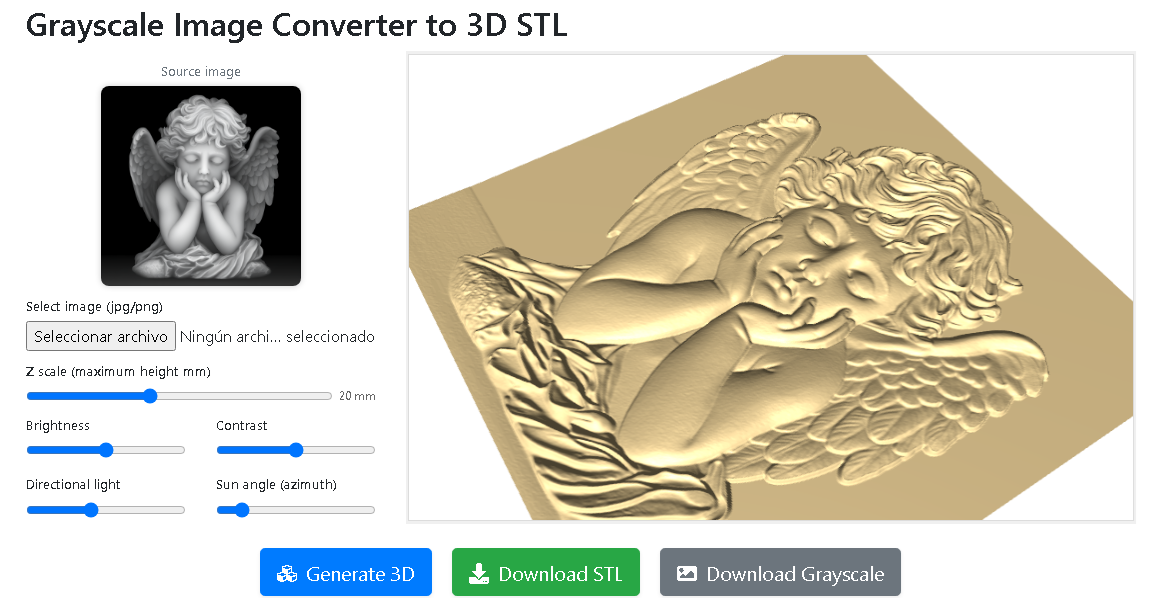

🏔️ Heightmap Grayscale → STL Generator

Convert any grayscale image into a 3D STL model directly in your browser.
This tool runs 100% client-side using Three.js — no server uploads, no registration, and no data tracking.

It’s ideal for creating reliefs and heightmaps for CNC milling, 3D printing, or artistic bas-reliefs.

---

🌐 Live Demo

👉 Try it now:
https://online-tools.muisca.co/en/tools/generators/heightmap-grayscale-to-stl

---

✨ Features

• 🖼️ Load JPG or PNG images directly from your computer
• 🎚️ Adjust height scale, brightness, and contrast before generating
• 💡 Real-time lighting and material preview using Three.js
• 🎨 Change the color of the model interactively
• 💾 Export your creation as an STL file ready for printing or CNC
• 🧠 All processing is done locally in your browser — your images never leave your device
• ⚡ Built with performance and simplicity in mind

---

🧩 How It Works

1. Select an image in grayscale (white = high, black = low).
2. Adjust parameters such as height, brightness, and contrast.
3. Click Generate 3D — the tool creates a heightmap mesh in real-time.
4. Download the resulting STL file for CNC or 3D printing.

Under the hood, the tool:

• Converts the image to grayscale (if not already).
• Maps pixel luminance to Z-axis displacement.
• Uses a custom Three.js plane geometry to create the relief mesh.

---

🛠️ Built With

• Three.js — 3D rendering engine
• JavaScript ES Modules
• Bootstrap 4.4.1 — UI layout
• ❤️ Pure client-side logic — no backend required

---

🚀 Quick Start (for developers)

If you want to host your own version locally:

git clone https://github.com/YOUR_USERNAME/heightmap-grayscale-to-stl.git
cd heightmap-grayscale-to-stl
# Open index.html in your browser
