Problem with OLE_COLOR and OleCreatePropertyFrame #392

@Kr00l

Description

@Kr00l

Describe the bug
There seems to be a difference between tB OLE_COLOR and VBx OLE_COLOR.
Maybe OLE_COLOR is only treated as Long in tB and in VBx something different?
Because a color property page is blank in tB as can be proofed in below code.

To Reproduce

Module MainModule
    Private Type CLSID
        Data1 As Long
        Data2 As Integer
        Data3 As Integer
        Data4(0 To 7) As Byte
    End Type
    Private Declare Function OleCreatePropertyFrame Lib "olepro32" (ByVal hWndOwner As Long, ByVal X As Long, ByVal Y As Long, ByVal lpszCaption As Long, ByVal cObjects As Long, ByRef pUnk As IUnknown, ByVal cPages As Long, ByRef pPageCLSID As Any, ByVal LCID As Long, ByVal dwReserved As Long, ByVal pvReserved As Long) As Long
    Private Declare Function CLSIDFromString Lib "ole32" (ByVal lpszProgID As Long, ByRef pCLSID As Any) As Long
    Private Const CLSID_StandardColorPage As String = "{7EBDAAE1-8120-11CF-899F-00AA00688B10}"

    Public Sub Main()
        Dim This As ColorProps = New ColorProps
        This.FInit vbRed, vbBlue
        Dim CLSID As CLSID, OldColor As OLE_COLOR
        CLSIDFromString StrPtr(CLSID_StandardColorPage), CLSID

        OleCreatePropertyFrame 0, 0, 0, StrPtr("test color properties"), 1, This, 1, CLSID, 0, 0, 0

        MsgBox This.BackColor & "/" & This.ForeColor

    End Sub

End Module

Class ColorProps
    Attribute VB_Name = "ColorProps"
    Attribute VB_GlobalNameSpace = False
    Attribute VB_Creatable = False
    Attribute VB_PredeclaredId = False
    Attribute VB_Exposed = False
    Option Explicit
    Private PropBackColor As OLE_COLOR, PropForeColor As OLE_COLOR

    Friend Sub FInit(ByVal BackColor As OLE_COLOR, ByVal ForeColor As OLE_COLOR)
    PropBackColor = BackColor
    PropForeColor = ForeColor
    End Sub

    Public Property Get BackColor() As OLE_COLOR
    Attribute BackColor.VB_Description = "Returns/sets the background color used to display text and graphics in an object."
    BackColor = PropBackColor
    End Property

    Public Property Let BackColor(ByVal Value As OLE_COLOR)
    PropBackColor = Value
    End Property

    Public Property Get ForeColor() As OLE_COLOR
    Attribute ForeColor.VB_Description = "Returns/sets the foreground color used to display text and graphics in an object."
    ForeColor = PropForeColor
    End Property

    Public Property Let ForeColor(ByVal Value As OLE_COLOR)
    PropForeColor = Value
    End Property
End Class

Expected behavior

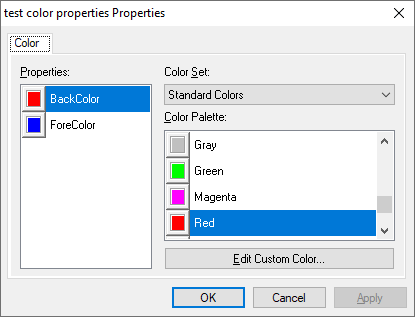

in VB6 the following window appears:

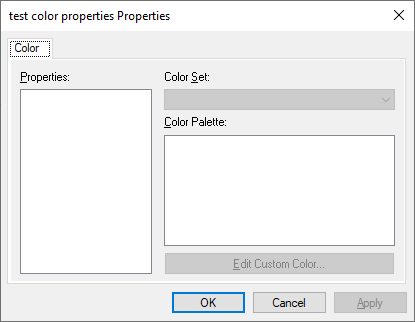

whereas tB is blank:

Desktop (please complete the following information):

  • OS: [e.g. Windows 10]
  • twinBASIC compiler version [e.g. 0.10.5021]

Additional context
n/a
