v1.7.0 — Idle hold and a sharper classic dial

Added

• Idle hold. When generation stops, the number keeps the last turn's average speed and the unit reads 均速 / avg; the needle still drops to zero. On by default; turn it off under Settings → 空闲读数 (hold in prefs:v3).
• Turn-average marker. A small triangle outside the scale marks the current turn's running average, or the last turn's once idle. Classic and VU draw a triangle; Swiss draws a hollow square on the rule. It glides to its new position (no motion when reduced motion is on).

Changed

• Classic dial: tapered needle with a counterweight tail and an accent pivot cap (muted when idle); 12 minor ticks between the four majors; the over-range glow that the README described now exists (--rg-over drives a drop-shadow on the rate arc).
• Classic readout is right-aligned: the units digit and tok/s share a fixed right edge, so a growing number extends left instead of pushing the sub dial. The over-range + is a superscript that takes no width. An idle 0 is muted instead of being the brightest thing on the gauge.
• CTX shows % like HIT. The HIT label is tinted teal so it doubles as a legend for the inner ring.
• Lamps: unlit lamps are solid, faint lenses instead of outline rings; lit lamps get a soft halo, with brighter green and amber in the dark theme (VU keeps its light-face colours).
• Settings: the context-lamps switch is visibly disabled on Chart and Swiss, where it does nothing.

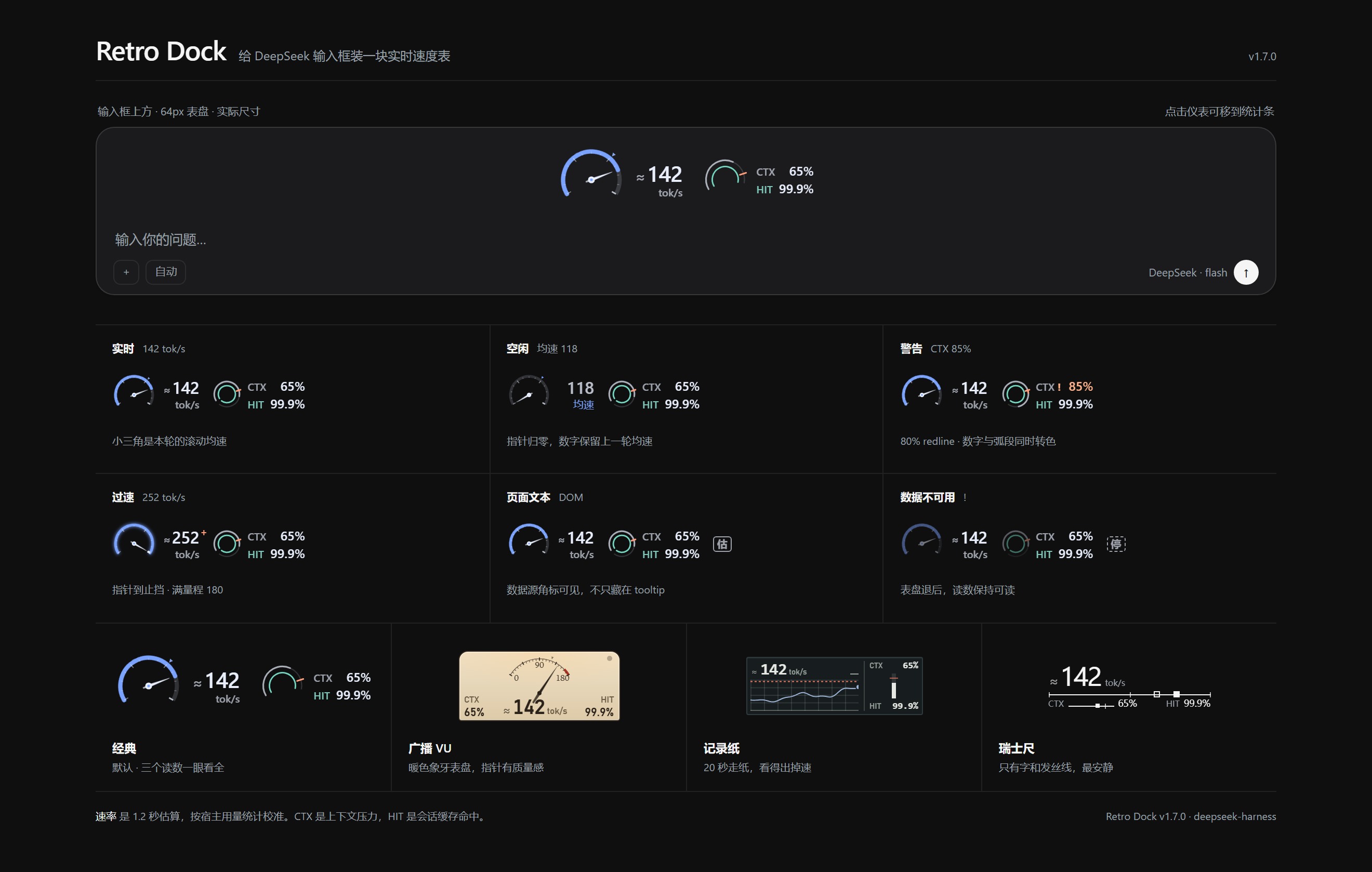

• README, README.en and package summary describe the four looks that ship; specimen sheets are regenerated for 1.7.0 with a four-look strip. The stale seven-style hero is no longer referenced or packed.

Fixed

• A blue dot sat at the start of the classic speed arc at 0 tok/s (a zero-length round line cap). The arc now fades out as the needle reaches zero.

v1.1.0 — Four instruments, one measurement contract

Changelog

1.1.0 — 2026-10-26

视觉、设置与测量核心的一次完整升级。旧的 1.0.0 包只有单一样式，测量与文档也停留在初版。

Added

• Four high-quality styles: Heritage, Neon HUD, Minimal, Terminal, with independent light/dark palettes that follow body[data-ds-dark-theme].
• Settings popover anchored to a gear button: style, placement, density, full scale, CTX warning threshold, sub-readout switch, language and calibration reset.
• Full settings.section page with the same controls and live full/minimal previews.
• Chinese/English UI, including style names, descriptions, tooltips, aria labels and the settings page.
• Style gallery and screenshots in docs/ (styles-*.jpg, settings-*.jpg, popover-*.jpg, per-style cards), generated by Playwright.
• src/ module layout with an esbuild bundle; client.js is now a build artifact.
• 43 tests: measurement, incremental stream counting, rate/calibration, preference migration, i18n, SSR rendering of all styles, jsdom mount/toggle/popover integration, and the built bundle's ModuleLoader contract.
• GitHub Actions CI (npm ci && npm run build && npm test).
• Package compatibility metadata: engines.dsh, dsh.compatibility release map, peer dependency range, repository/homepage/bugs/author.
• .gitattributes (LF), README.en.md, CHANGELOG.md, rewritten MEASUREMENT.md.

Changed

• Rate accounting is incremental: only the appended slice of each streaming block is tokenized. Long generations no longer pay O(n²).
• Calibration compares host sessionStats token deltas against estimated token deltas within the same interval, instead of comparing a session average with a single generation average.
• Calibration has explicit states: pending, available (with sample count) and unavailable; the tooltip no longer claims ×1.00 when no sample exists.
• HIT formatting follows the host's exact formatter: integer while integer rounding stays below 100, otherwise the minimum honest precision (e.g. 99.9, 99.99).
• Layout, size and density are per gauge instance and driven by a ResizeObserver; switching placement can no longer carry the other variant's size over.
• Preferences moved to dsh-retro-dock:prefs:v2; rg-gauge-placement is migrated and removed.
• The runtime no longer uses window.__dsh* globals as a data bus. A module-scoped engine owns state; window.__retroDock is a read-only debug mirror.
• rAF stops after the needle settles; the body MutationObserver is attached only when the chat stream is unavailable.
• Heritage dial gains a 25-tick scale, metallic bezel ring, redline arc and a brighter face; Neon gains a real gradient arc and aligned endpoint; Minimal CTX tracks use the warning colour; endpoint dot geometry is aligned to the 240° sweep.

Fixed

• Marker dots in Neon and Minimal were 90° out of phase with the arc.
• Heritage/Neon tick rings were rotated 90° off the 8 o'clock start.
• Minimal density could inherit the other placement's dial size.
• Sub-dial SVG overflowed its 68% face on some sizes.
• Settings had duplicate “Show CTX / HIT” labels and a duplicated notice.
• HIT could under-report 99.95 as 99.9; it now matches the host.
• The popover could be clipped by the composer; it is portaled to body, closes on Escape/outside pointerdown and restores focus.
• A stale v1.0.0 tarball link and a JPEG saved as preview.png were removed from the docs.

Known limitations

• A real-session trace of window.__retroDock against host sessionStats is still pending; measured accuracy is not claimed yet.
• sessionStats missing → calibration unavailable; DOM fallback is less trustworthy than projections.
• The 1.2 s window can show a spike when tool arguments arrive in one burst.
• HIT is whole-session cumulative, not the current request.

v1.0.0 — Composer Instrument Dials

Two instrument dials for the DeepSeek Harness composer.

• Live tokens/sec on a 240-degree dial (0-180 tok/s) with spring-damped needle; past the ceiling the needle rattles and the ring brightens from blue to cyan.
• Secondary dial: amber ring = context pressure, teal ring = cache hit rate.
• Click the cluster to dock it above the composer or in the stats bar (remembered in localStorage).
• Density adapts to the container: full / compact / minimal (sub dial folds into text).
• Reads streamed blocks from the chat store; calibrates against sessionStats decodeTokens/decodeMs.

Install: download the attached tarball and add it to your DSH profile, or use pnpm add github:usermbzlj/dsh-retro-dock.
