lwIP: Enable TCP out-of-order processing #6882

Merged
merged 1 commit into from May 14, 2018

Conversation

Projects
None yet
6 participants
@kjbracey-arm
Contributor

kjbracey-arm commented May 11, 2018

Description

Our config file for lwIP had TCP_QUEUE_OOSEQ disabled - this can
cause significant performance problems, as observed during testing.

One lost packet can lock an input stream into a mode where the
transmitter keeps thinking packets are being lost, so keeps slowing
down. This caused test failures - a transfer that would normally
take 10s hit a 60s timeout.

Turning this on increases code size, but doesn't significantly increase
static memory use. The memory used for out-of-order packets comes from
the same pbuf pool as for outgoing TCP segments, so there is contention
when running bidirectionally.

Out-of-order processing is on by default for lwIP - this seems to be
another example of us excessively paring it back.

Pull request type

[ ] Fix
[ ] Refactor
[ ] New target
[X] Feature
[ ] Breaking change
lwIP: Enable TCP out-of-order processing
Our config file for lwIP had TCP_QUEUE_OOSEQ disabled - this can
cause significant performance problems, as observed during testing.

One lost packet can lock an input stream into a mode where the
transmitter keeps thinking packets are being lost, so keeps slowing
down. This caused test failures - a transfer that would normally
take 10s hit a 60s timeout.

Turning this on increases code size, but doesn't significantly increase
static memory use. The memory used for out-of-order packets comes from
the same pbuf pool as for outgoing TCP segments, so there is contention
when running bidirectionally.

Out-of-order processing is on by default for lwIP - this seems to be
another example of us excessively paring it back.

@kjbracey-arm kjbracey-arm requested a review from SeppoTakalo May 11, 2018

@kjbracey-arm

This comment has been minimized.

Contributor

kjbracey-arm commented May 11, 2018

This is intended to solve a problem observed here: #6665

@kjbracey-arm

This comment has been minimized.

Contributor

kjbracey-arm commented May 11, 2018

@kjbracey-arm

This comment has been minimized.

Contributor

kjbracey-arm commented May 11, 2018

Static memory change with this, for development build.

Current build:

Total Static RAM memory (data + bss): 59196 bytes
Total Flash memory (text + data): 141450 bytes

Enabling TCP_QUEUE_OOSEQ

Total Static RAM memory (data + bss): 59212 bytes (+16)
Total Flash memory (text + data): 142538 bytes (+1,088)

This increase is only for images using lwIP with TCP enabled.

@cmonr cmonr added the needs: CI label May 14, 2018

@cmonr

This comment has been minimized.

Contributor

cmonr commented May 14, 2018

/morph build

@mbed-ci

This comment has been minimized.

mbed-ci commented May 14, 2018

Build : SUCCESS

Build number : 1990
Build artifacts/logs : http://mbed-os.s3-website-eu-west-1.amazonaws.com/?prefix=builds/6882/

Triggering tests

/morph test
/morph uvisor-test
/morph export-build
/morph mbed2-build

@mbed-ci

This comment has been minimized.

@VeijoPesonen

This comment has been minimized.

Contributor

VeijoPesonen commented May 14, 2018

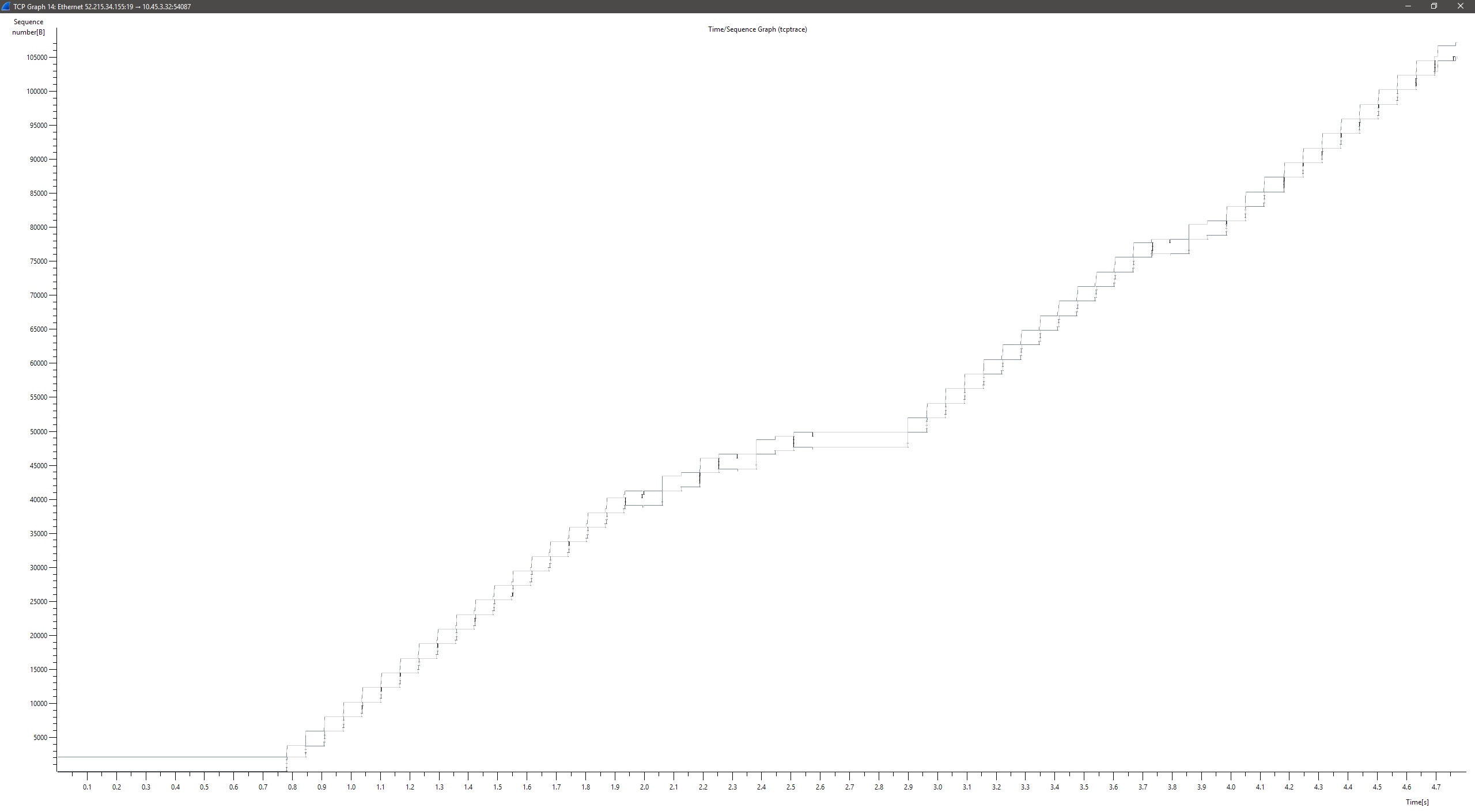

100 KB download, artificial 2% packet loss.

Disabled

TCP_QUEUE_OOSEQ disabled. Gave up after 2mins and 70KB.
tcp_queue_ooseq_disabled

Enabled

TCP_QUEUE_OOSEQ enabled. Took about 4secs.
tcp_queue_ooseq_enabled

@mbed-ci

This comment has been minimized.

@0xc0170 0xc0170 added ready for merge and removed needs: CI labels May 14, 2018

@cmonr cmonr merged commit 506f9a8 into ARMmbed:master May 14, 2018
