SSR Improvement #1928

skhiat · 2020-09-17T16:39:11Z

SSR Improvement

The improvement:

Uses the VNDF Importance Sampling
Temporal accumulation controllable with the new parameter 'Accumulation Amount' (0 No accumulation, 1 Accumulation uses multiple frames). More accumulation generate more ghosting

Better match:

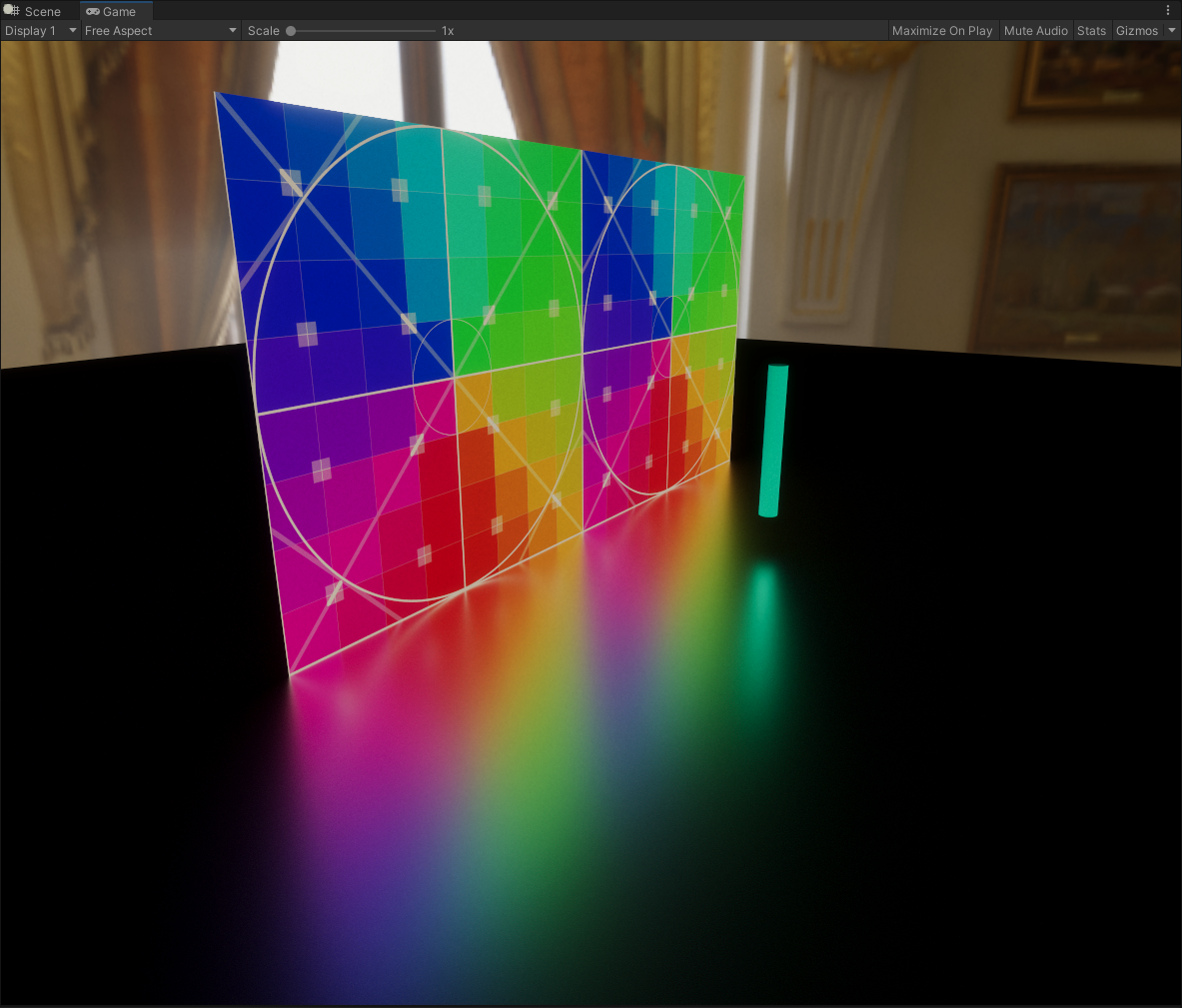

New SSR:

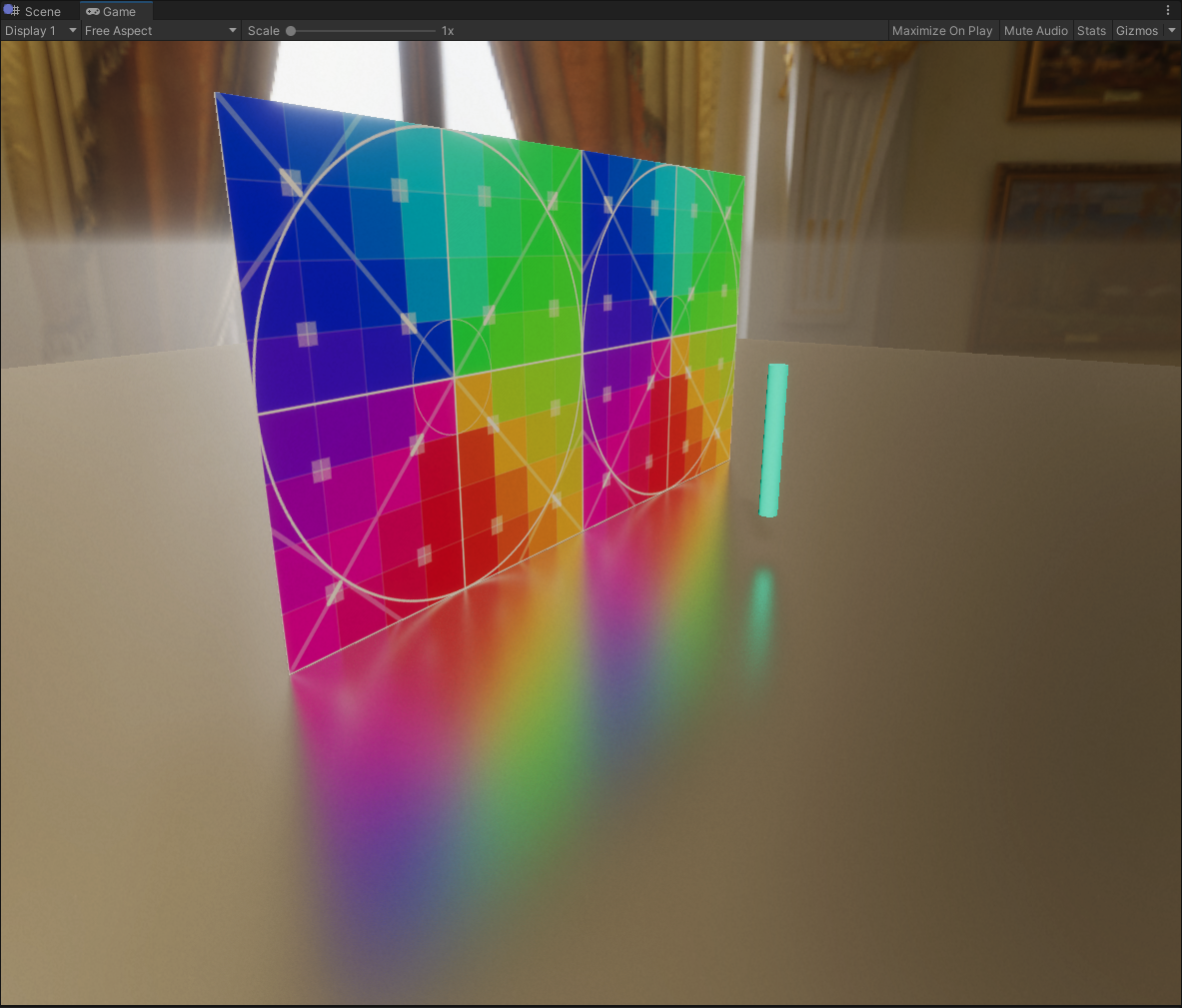

Pathtracer (Bounce == 2):

Checklist for PR maker

Docs team contacts sheet.

Have you added a graphic test for your PR (if needed)? When you add a new feature, or discover a bug that tests don't cover, please add a graphic test.

Purpose of this PR

SSR will give us a better match with Pathtracer.

Blurriness (blur radius)
With the adjustment of "Accumulation Amount" will be "override" by the code depending of the motion vector (of the original point and the hit point).

Testing status

On the scene add a moving object for example a cylinder and move it, note the motion vector for objects are only available in the GameView:
` public float speed = 5.0f;

// Update is called once per frame
void Update()
{
    transform.Rotate(Vector3.right * speed * Time.deltaTime);
}`

For rough surface, we will have more noise even with large accumulation, on region of this cylinder.
Ref:
https://drive.google.com/file/d/1zyrvVWU-bzVqYOyOERe7OMvnZXtjbxzI/view?usp=sharing

Parameters to consider during a test:
Object thickness, which allow the ray to pass behind thin object:

Correct value: scene dependents

Allow more accumulation with multiple frame:

Yamato: (Select your branch):
https://yamato.prd.cds.internal.unity3d.com/jobs/902-Graphics

Comments to reviewers

Notes for the reviewers you have assigned.

… into HDRP/ssr_improvement

… into HDRP/ssr_improvement # Conflicts: # com.unity.render-pipelines.high-definition/Runtime/RenderPipeline/HDRenderPipeline.cs

… into HDRP/ssr_improvement # Conflicts: # com.unity.render-pipelines.high-definition/Runtime/RenderPipeline/HDStringConstants.cs

… into HDRP/ssr_improvement

… into HDRP/ssr_improvement # Conflicts: # com.unity.render-pipelines.high-definition/Runtime/Lighting/ScreenSpaceLighting/ScreenSpaceReflections.compute

… into HDRP/ssr_improvement # Conflicts: # com.unity.render-pipelines.high-definition/CHANGELOG.md # com.unity.render-pipelines.high-definition/Runtime/Debug/DebugDisplay.cs.hlsl

… into HDRP/ssr_improvement

anisunity · 2020-09-25T12:20:02Z

...ipelines.high-definition/Runtime/Lighting/ScreenSpaceLighting/ScreenSpaceReflections.compute

+    // Pick which subpixel we will be launching our effects from
+    float subPixelSample = GetBNDSequenceSample(positionSS, globalSampleIndex, 3);
+    int subPixel = clamp((int)(subPixelSample * 4.0), 0, 3);
+    uint2 shift = HalfResIndexToCoordinateShift[subPixel];


This is code picked from RayTracingReflection.compute is meant to handle BSDF data info fetch in half res mode, in the current state SSR doesn't have half res mode. This is a copy paste mistake i guess.

We switched to an algorithm that does temporal accumulation this shift help for quality. I am open to discuss that.

This usage of the code, if on purpose, increases the variance and biases the signal even more, I am sure of that.

That help on the edges & very close hit (corners: Wall vs Floor/Ceilling)

…HDRP/ssr_improvement # Conflicts: # com.unity.render-pipelines.high-definition/CHANGELOG.md

…HDRP/ssr_improvement

…HDRP/ssr_improvement # Conflicts: # com.unity.render-pipelines.high-definition/CHANGELOG.md

sebastienlagarde · 2020-10-24T10:46:18Z

com.unity.render-pipelines.high-definition/Runtime/RenderPipeline/ShaderPass/VertMesh.hlsl

@@ -1,3 +1,6 @@
+#include "Packages/com.unity.render-pipelines.high-definition/Runtime/Debug/DebugDisplay.cs.hlsl"


Why do you need those hearders here? it is not expected that we put such header in VertMesh.hlsl

sebastienlagarde · 2020-10-24T10:47:09Z

com.unity.render-pipelines.high-definition/Runtime/RenderPipeline/HDRenderPipeline.cs

+            if (hdCamera.isFirstFrame || hdCamera.cameraFrameCount <= 2)
+                cb._SsrAccumulationAmount = 1.0f;
+            else
+                cb._SsrAccumulationAmount = Mathf.Pow(2, Mathf.Lerp(-0.0f, -7.0f, volumeSettings.accumulationFactor.value));


typo, there is a -0.0 here

…Graphics into HDRP/ssr_improvement

…HDRP/ssr_improvement

sebastienlagarde · 2020-10-25T21:31:50Z

com.unity.render-pipelines.high-definition/Runtime/RenderPipeline/HDRenderPipeline.LightLoop.cs

+                        passData.ssrAccum = builder.WriteTexture(ssrAccum);
+                        passData.ssrAccumPrev = builder.WriteTexture(ssrAccumPrev);
+                        passData.lightingTexture = builder.CreateTransientTexture(new TextureDesc(Vector2.one, true, true)
+                        { colorFormat = GraphicsFormat.R16G16B16A16_SFloat, clearBuffer = true, clearColor = Color.clear, enableRandomWrite = true, name = "SSR_Lighting_Texture" });


this must be of color buffer format (i.e 101010f or 16f depends on the option of hdrp asset)

I see it is not related to your PR, I will take care of it separately

sebastienlagarde · 2020-10-25T21:54:43Z

com.unity.render-pipelines.high-definition/Runtime/RenderPipeline/HDRenderPipeline.cs

+
+            if (!usePBRAlgo)
+            {
+                CoreUtils.SetKeyword(cmd, "SSR_APPROX", false);


I don't understand why you do this at the end. You must no do this but instead do:

CoreUtils.SetKeyword(cmd, "SSR_APPROX", !usePBRAlgo); at the beginning.

oh unless it is for the transparent case?

…HDRP/ssr_improvement

sebastienlagarde · 2020-10-25T22:06:33Z

com.unity.render-pipelines.high-definition/Runtime/RenderPipeline/HDRenderPipeline.cs

                cmd.DispatchCompute(cs, parameters.reprojectionKernel, HDUtils.DivRoundUp(parameters.width, 8), HDUtils.DivRoundUp(parameters.height, 8), parameters.viewCount);
+
+                if (parameters.transparentSSR)
+                    CoreUtils.SetKeyword(cmd, "DEPTH_SOURCE_NOT_FROM_MIP_CHAIN", false);


you don't need to reset keyword at the end (unless you reuse the shader, you should setup

CoreUtils.SetKeyword(cmd, "DEPTH_SOURCE_NOT_FROM_MIP_CHAIN", parameters.transparentSSR); at the beginning

oh unless it is for the transparent case?
