[HDRP] density volumes improvements #2751
Conversation
# Conflicts: # com.unity.render-pipelines.high-definition/Editor/RenderPipeline/HDRenderPipelineUI.cs # com.unity.render-pipelines.high-definition/Runtime/Lighting/VolumetricLighting/Texture3DAtlas.cs # com.unity.render-pipelines.high-definition/Runtime/RenderPipelineResources/HDRenderPipelineResources.asset
alelievr
requested review from
EvgeniiG,
JordanL8,
Wadarass and
sebastienlagarde
| { | ||
| volumes.Remove(volume); | ||
| } | ||
| if (!volumeAtlas.AddTexture(volumeTexture)) |
There was a problem hiding this comment.
I might have missed it but does this mean the atlas is updated every frame now? How do we detect if something has changed if not?
There was a problem hiding this comment.
This only happens when the density volume texture is registered so no. Otherwise the it's the atlas that internally checks if the textures needs to be updated with a hash:
https://github.com/Unity-Technologies/Graphics/pull/2751/files#diff-9452a7b53ae106d6e8115c2ce8966e7dec933f97ce8d7241a18130cc5d9d4af7R373
|
There will be a volumetric lighting performance test in the automated performance test project soon, we can wait for it to be merged and then see the perf impact with the dashboards |
There was a problem hiding this comment.
Looks good! I was hitting only one issue though:
Setting Max Density Volume Size to Resolution 256 throws the following:
D3D11: Failed to create render texture resource (3D, 2048x8192x256 mips=14 dxfmt=27, hr=0x30), checking with Antoine a user could be informed with a warning notifying that gpu memory limit is reached
Went through settings, debug modes, exponential/linear settings. No other issues found.
| ## Creating a Density Mask Texture | ||
|
|
||
| 4. Click Apply. | ||
| 1. In image-editing software of your choice, prepare a grayscale flipbook texture and [import it as a 3D texture](https://docs.unity3d.com/2020.2/Documentation/Manual/class-Texture3D.html). For example, a texture of size 1024x32 describes a 3D texture of size 32x32x32 with 32 slices laid out one after another. |
There was a problem hiding this comment.
guess it need to be rewrite as it is not grayscale anymore, we handle RGB
com.unity.render-pipelines.high-definition/Documentation~/whats-new-11.md
Outdated
Show resolved
Hide resolved
...er-pipelines.high-definition/Runtime/RenderPipelineResources/HDRenderPipelineResources.asset
Show resolved
Hide resolved
…m/Unity-Technologies/Graphics into HDRP/density-volumes-improvements
|

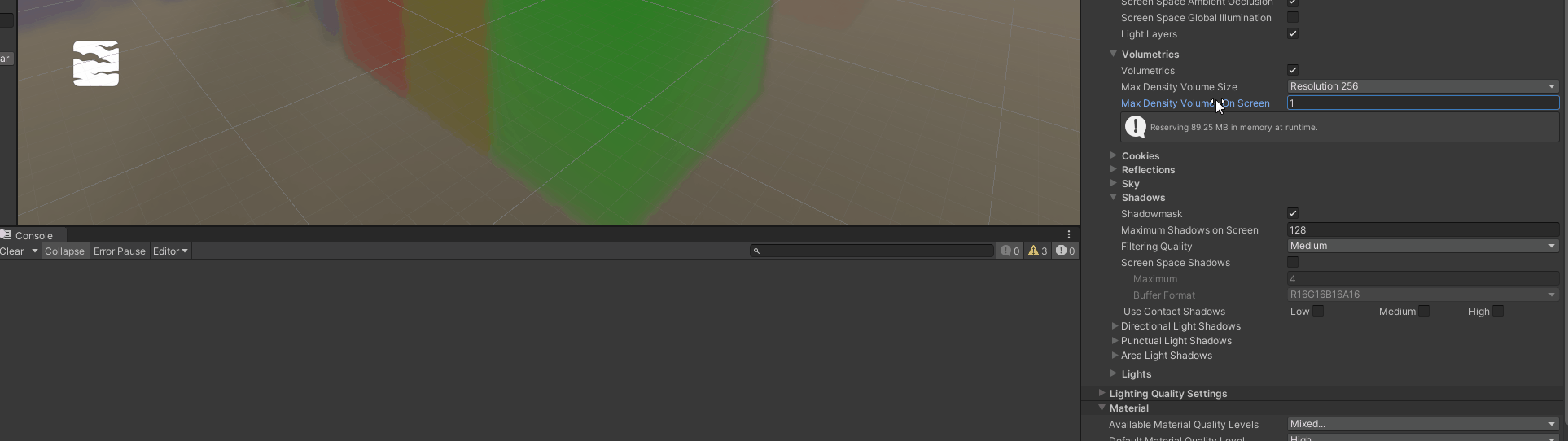

@TomasKiniulis I fixed the texture failed to create issue
|
Thanks! Seems like a nice way to avoid the issue |
...der-pipelines.high-definition/Runtime/Lighting/VolumetricLighting/VolumeVoxelization.compute
Outdated
Show resolved
Hide resolved
...unity.render-pipelines.high-definition/Runtime/RenderPipeline/Utility/Texture3DAtlas.compute
Outdated
Show resolved
Hide resolved
...pipelines.high-definition/Runtime/Lighting/VolumetricLighting/DebugDensityVolumeAtlas.shader
Outdated
Show resolved
Hide resolved
6 participants
Purpose of this PR
Also, improve the 3D Texture atlas to support different 3D texture resolutions and RGBA 3D textures and real-time GPU copy for 3D render textures.

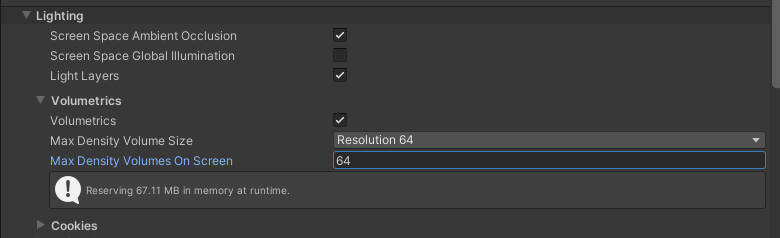

New volumetric settings in the HDRP asset:

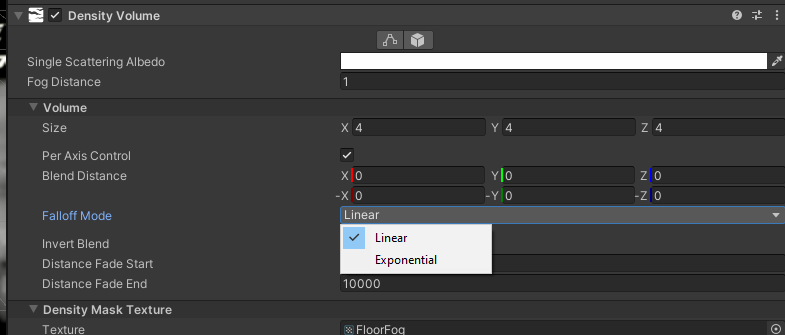

Falloff mode:
Note that the falloff mode doesn't affect the Fade Distance interpolation (which is always linear).

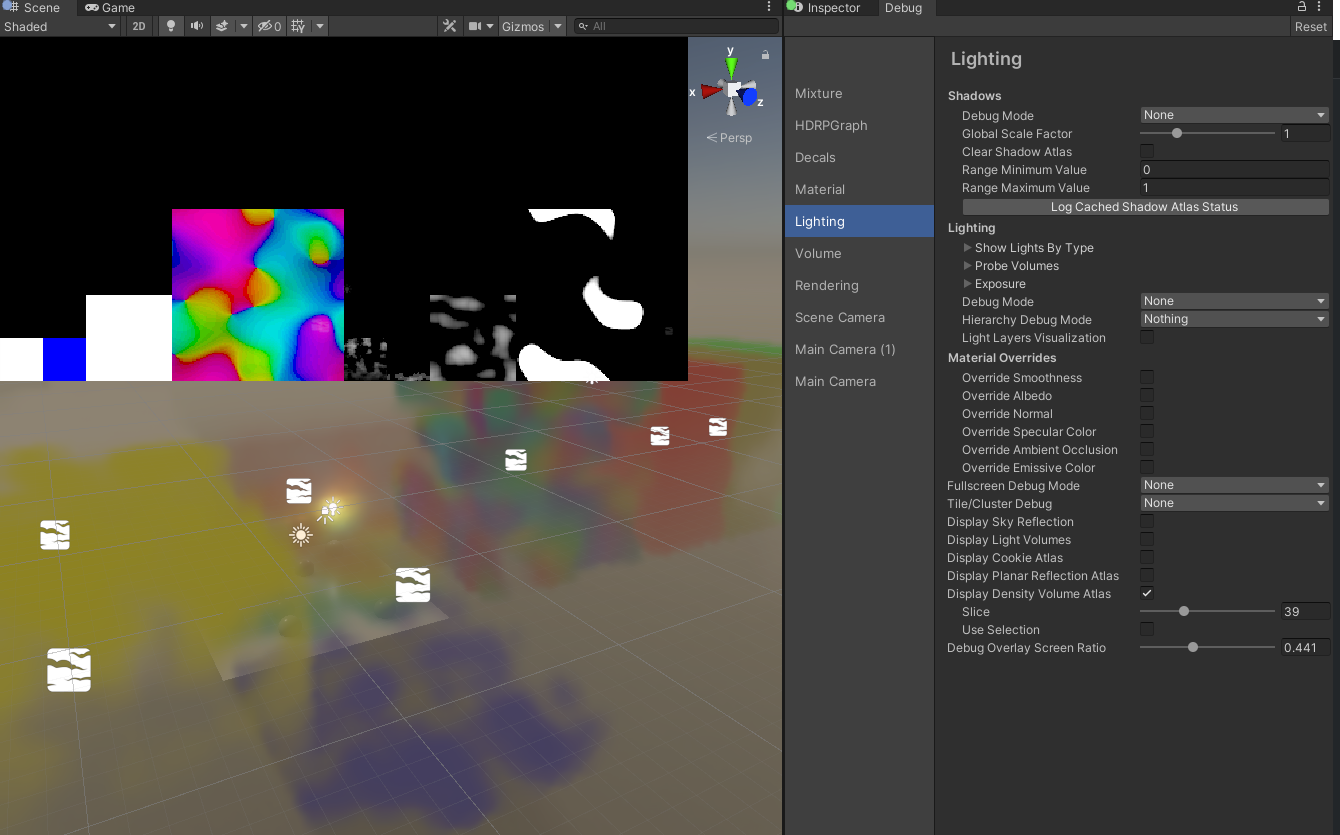

Also added a debug mode to visualize the density volume 3D atlas:

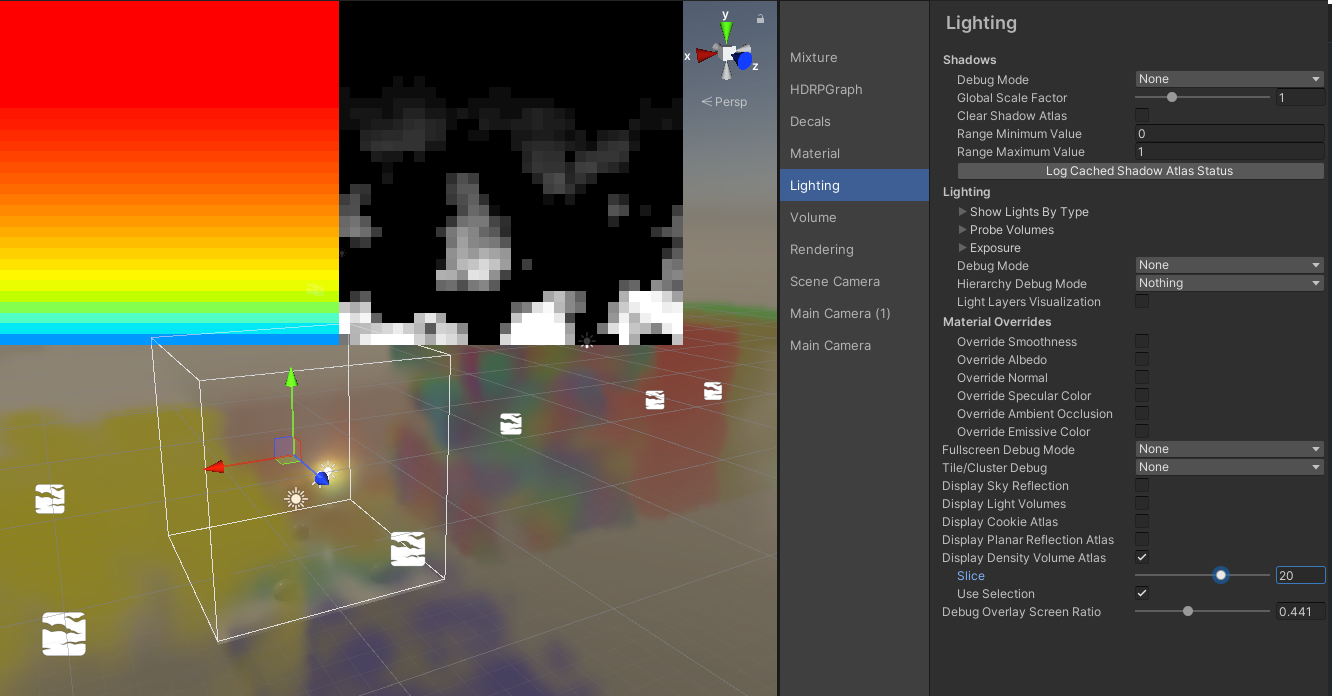

With selection support:
Testing status

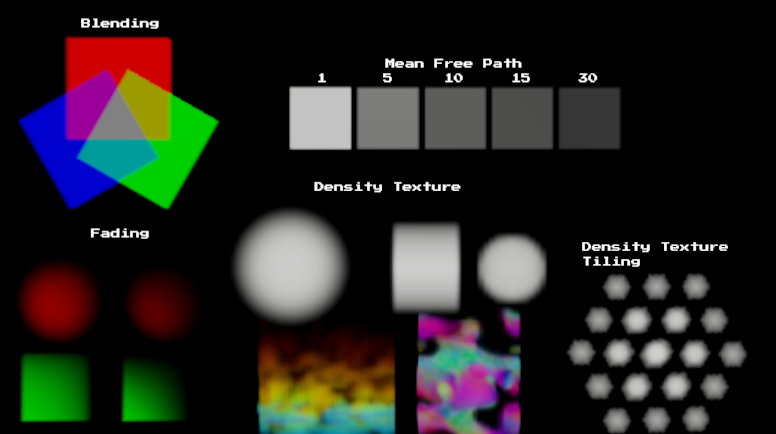

Modified the fog volume test with 3D textures of different resolutions and colors:
https://yamato.cds.internal.unity3d.com/jobs/902-Graphics/tree/HDRP%252Fdensity-volumes-improvements/.yamato%252Fall-hdrp.yml%2523PR_HDRP_trunk/4610582/job/full-pipeline
Note:
If you want to author texture 3D in unity I recommend this tool: https://github.com/alelievr/Mixture.
You can ask me for installation :)
