Implementation of SRP Global Settings for HDRP #3054

jenniferd-unity · 2021-01-11T16:58:17Z

Purpose of this PR

Presentation powerpoint here
This is the first implementation of HDRP Global Settings as an asset separate from the HDRPAsset. Further development is planned.

[UI updated on Feb 26th]

I have moved from the HDRenderPipeline.defaultAsset various settings:

Resources (Editor/RayTracing/Player)
Default Volume Profile for Scenes and LookDev
Layer names
Shader Variant Log level
Default Frame Settings for Camera, Reflection Probes
Lens Attenuation
Diffusion Profile Settings List
Custom Post Processes Lists

No behaviors should be changed on any HDRP project with those changes except:

the HDRPAsset no longer contains settings that were duplicated for the default asset
there is always a HDRenderPipelineGlobalSettings asset active

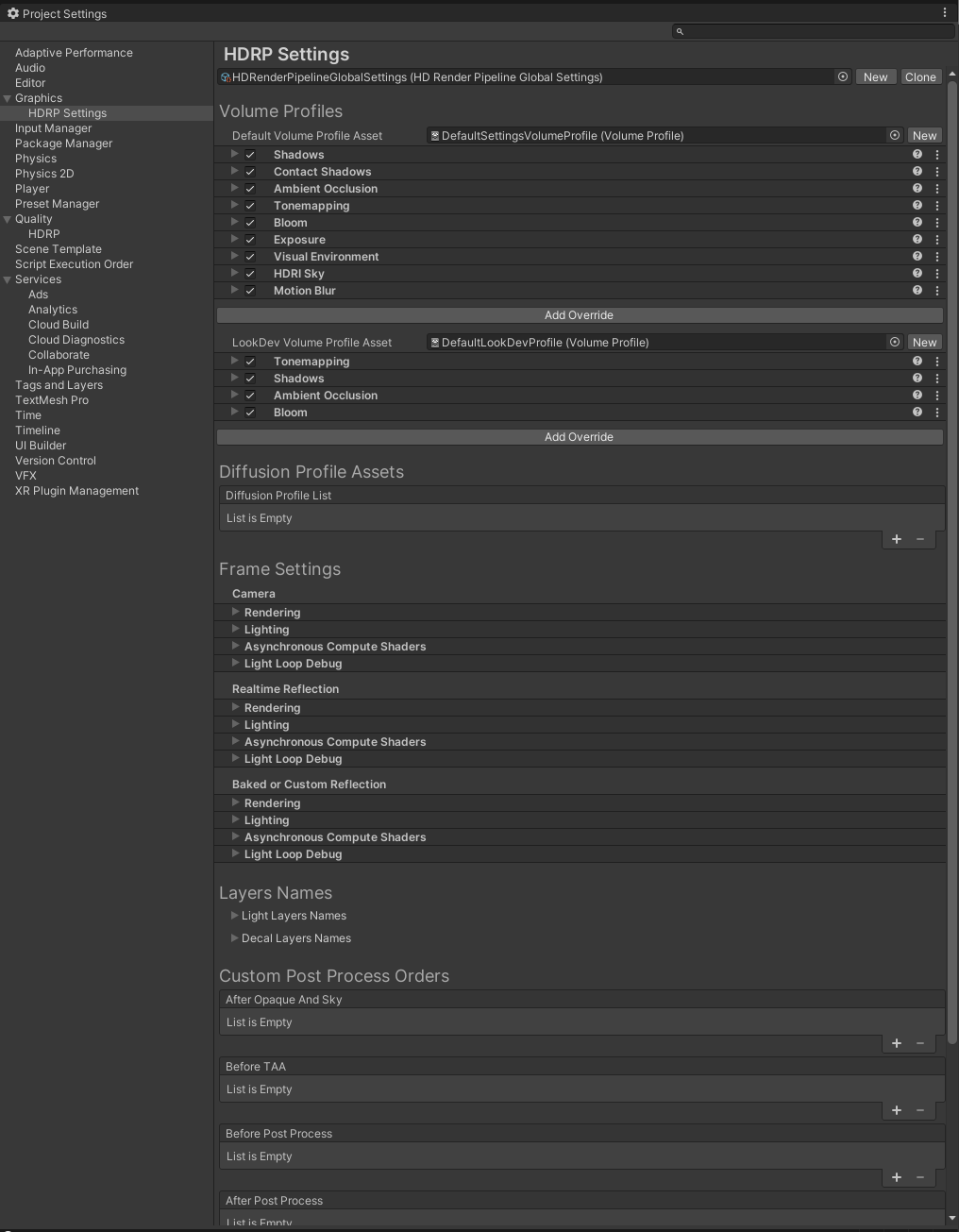

this asset can be viewed from the Project Settings > Graphics window
individual HDRenderPipelineGlobalSettings assets have their own inspector.

When upgrading to this new version:

a new asset should be created in the HDDefaultResources folder called HDRenderPipelineGlobalSettings .asset
values of the HDRPAsset saved in GraphicsSettings compatible are migrated to this new asset

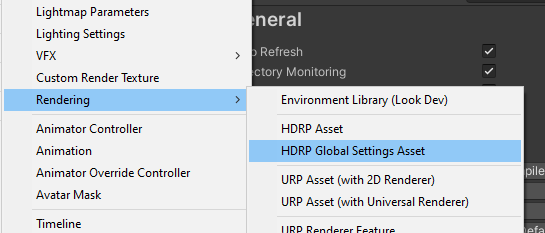

The create menu can be found here:

When deleting the active Global Settings asset, a new one will be created and an error message displayed:
https://user-images.githubusercontent.com/71718938/108837110-145aa980-75d2-11eb-8a70-6c66236f2941.mp4

Asset creation workflow: set as active Asset if created from the HDRP Settings menu only.
https://user-images.githubusercontent.com/71718938/108840941-4faba700-75d7-11eb-853e-0cb2d87876d8.mp4

Testing status

Tried the following locally - on Windows only:

Editor: upgrading HDRP template, Spaceship demo, small local projects,
Creating new project from Hub,
Creating players for some projects (template HD and spaceship demo),
Running HDRP tests, RayTracing tests.

Comments to reviewers

This is the first implementation of HDRP Global Settings as an asset separate from the HDRPAsset. Further development is planned.

JIRA

https://jira.unity3d.com/browse/XPIPELINE-38
https://unity3d.atlassian.net/browse/UR-1967

This reverts commit c4a0df6.

# Conflicts: # com.unity.render-pipelines.high-definition/Runtime/RenderPipeline/Raytracing/HDRaytracingReflection.cs # com.unity.render-pipelines.high-definition/Runtime/RenderPipeline/Settings/FrameSettingsHistory.cs # com.unity.render-pipelines.high-definition/Runtime/Sky/StaticLightingSky.cs

alelievr

Left a few comments, probably worth it to write an upgrade guide too (I think you can put it here: https://github.com/Unity-Technologies/Graphics/blob/master/com.unity.render-pipelines.high-definition/Documentation~/Upgrading-from-2021.1-to-2021.2.md)

com.unity.render-pipelines.high-definition/Editor/RenderPipeline/HDAssetFactory.cs

com.unity.render-pipelines.high-definition/Editor/RenderPipeline/HDDefaultSettingsEditor.cs

com.unity.render-pipelines.high-definition/Editor/RenderPipeline/HDEditorUtils.cs

...ity.render-pipelines.high-definition/Editor/RenderPipeline/Settings/EditorDefaultSettings.cs

...ines.high-definition/Runtime/Material/DiffusionProfile/DiffusionProfileSettings.Migration.cs

com.unity.render-pipelines.high-definition/Runtime/RenderPipeline/HDDefaultSettings.cs

...ines.high-definition/Runtime/Material/DiffusionProfile/DiffusionProfileSettings.Migration.cs

com.unity.render-pipelines.high-definition/Runtime/RenderPipeline/HDDefaultSettings.cs

alex-vazquez

Good clean up :) Minor comments.

...y.render-pipelines.high-definition/Runtime/RenderPipeline/Settings/RenderPipelineSettings.cs

...y.render-pipelines.high-definition/Editor/RenderPipeline/Settings/SerializedFrameSettings.cs

RSlysz

Sadly, hard to read due to the amount of change but seams globally good.

com.unity.render-pipelines.high-definition/Editor/RenderPipeline/HDDefaultSettingsEditor.cs

RSlysz · 2021-01-20T14:30:54Z

...nity.render-pipelines.high-definition/Editor/RenderPipeline/Settings/DefaultSettingsPanel.cs

            {
                case Kind.Default:
-                    hdrpAsset.defaultVolumeProfile = profile;
+                    if (settings != null)


Perhaps you should check this first things in this method and exit quickly if not true then. (or you will try letter to EditorUtility.SetDirty(null); )

This is still valid. Verify if you can dirty null.

I changed this in the last commit.

...ity.render-pipelines.high-definition/Editor/RenderPipeline/Settings/EditorDefaultSettings.cs

...ity.render-pipelines.high-definition/Runtime/RenderPipeline/Settings/FrameSettingsHistory.cs

…decal layer names to exist on DefaultSettings

alex-vazquez

Really minor thinks. Nice PR :)

com.unity.render-pipelines.high-definition/Editor/BuildProcessors/HDRPPreprocessShaders.cs

com.unity.render-pipelines.high-definition/Editor/RenderPipeline/HDAssetFactory.cs

...ender-pipelines.high-definition/Editor/RenderPipeline/Settings/SerializedHDGlobalSettings.cs

# Conflicts: # com.unity.render-pipelines.high-definition/CHANGELOG.md # com.unity.render-pipelines.high-definition/Editor/Wizard/HDWizard.Configuration.cs # com.unity.render-pipelines.high-definition/Runtime/Compositor/CompositionManager.cs # com.unity.render-pipelines.high-definition/Runtime/Lighting/LightLoop/LightLoop.cs # com.unity.render-pipelines.high-definition/Runtime/Material/SubsurfaceScattering/SubsurfaceScatteringManagerRT.cs # com.unity.render-pipelines.high-definition/Runtime/RenderPipeline/Raytracing/HDRaytracingAmbientOcclusion.cs # com.unity.render-pipelines.high-definition/Runtime/RenderPipeline/Raytracing/HDRaytracingReflection.cs

…yles.globalSettingsIcon)

…iew suggestions

RSlysz · 2021-03-08T16:28:10Z

...s.high-definition/Editor/RenderPipeline/Settings/SerializedHDRenderPipelineGlobalSettings.cs

+        public SerializedProperty renderPipelineResources;
+        public SerializedProperty renderPipelineRayTracingResources;
+
+        public SerializedFrameSettings defaultFrameSettings;


Could be better if contain Camera in this name (distinguish from other default)

RSlysz · 2021-03-08T16:35:40Z

...s.high-definition/Editor/RenderPipeline/Settings/SerializedHDRenderPipelineGlobalSettings.cs

+            defaultFrameSettings = new SerializedFrameSettings(serializedObject.FindProperty("m_RenderingPathDefaultCameraFrameSettings"), null); //no overrides in HDRPAsset
+            defaultBakedOrCustomReflectionFrameSettings = new SerializedFrameSettings(serializedObject.FindProperty("m_RenderingPathDefaultBakedOrCustomReflectionFrameSettings"), null); //no overrides in HDRPAsset
+            defaultRealtimeReflectionFrameSettings = new SerializedFrameSettings(serializedObject.FindProperty("m_RenderingPathDefaultRealtimeReflectionFrameSettings"), null); //no overrides in HDRPAsset


Be sure that TitleDrawingScope comply with the null value.

RSlysz · 2021-03-08T16:43:56Z

...y.render-pipelines.high-definition/Runtime/RenderPipeline/HDRenderPipelineAsset.Migration.cs

+        void OnEnable()
+        {
+            k_Migration.Migrate(this);
+        }


[Beeing picky] why this change?

reverted it :)

RSlysz · 2021-03-08T16:47:28Z

com.unity.render-pipelines.high-definition/Runtime/Compositor/CompositionManager.cs

            SetupLayerPriorities();
        }

+        static HDRenderPipelineGlobalSettings m_globalSettings;


If I understand well, there is case where we want to change the global settings (using Unity in dofferent context). If it is registered as static here, it will not adapt except if a domain reload occures. Can we assert this is the case?

this adapts as in RegisterCustomPasses we are checking the value. (lines 937 - 950). Could you confirm it works for you?

# Conflicts: # com.unity.render-pipelines.core/Editor/CoreEditorStyles.cs # com.unity.render-pipelines.high-definition/CHANGELOG.md # com.unity.render-pipelines.high-definition/Documentation~/Upgrading-from-2021.1-to-2021.2.md # com.unity.render-pipelines.high-definition/Editor/RenderPipeline/Settings/FrameSettingsUI.Drawers.cs # com.unity.render-pipelines.high-definition/Editor/Wizard/HDWizard.Configuration.cs # com.unity.render-pipelines.high-definition/Runtime/PostProcessing/PostProcessSystem.RenderGraph.cs # com.unity.render-pipelines.high-definition/Runtime/RenderPipeline/PathTracing/PathTracing.cs # com.unity.render-pipelines.high-definition/Runtime/RenderPipeline/Raytracing/HDRaytracingIndirectDiffuse.cs # com.unity.render-pipelines.high-definition/Runtime/RenderPipeline/Raytracing/HDRaytracingRecursiveRenderer.cs

…tings

remi-chapelain

As agreed with HDRP Team, go for merge ! ✔️
There's still a few minor issues referenced in the test document.

Those shouldn't impact upgrade process and new users from doing anything and have an obvious workaround and/or are easily dismissible by users.
Once the PR is merged, they'll be converted into bugs to prevent them from lingering too long in alpha versions !

# Conflicts: # com.unity.render-pipelines.high-definition/Documentation~/Upgrading-from-2021.1-to-2021.2.md # com.unity.render-pipelines.high-definition/Runtime/RenderPipeline/HDRenderPipelineAsset.cs

kroatoa · 2021-03-12T13:10:47Z

Hi @jenniferd-unity
You write

Further development is planned.
Does that refer to the rest of the work to get the URP/HDRP compatibilty, or is that work needed to make the feature in this PR complete?

jenniferd-unity · 2021-03-12T13:43:51Z

Hi, yes the follow up is here: https://jira.unity3d.com/browse/XPIPELINE-97.
Also i synced latest master this morning and will fix yamato today :)

kroatoa

thank you for the clarification.

Made sure HDRenderPipelineGlobalSettings are loaded before pulling its setting for shadervariantloglevel.

…or (cannot create an asset while building a player)
