Minimal enclosing sphere fix #4436

nigeljw-unity · 2021-05-04T20:13:18Z

Chicken bit for the minimal enclosing sphere frustum cascade culling stabilization fix, and also user control over the number of iterations for the iterative method for finding the minimal enclosing sphere from the 8 frustum cascade points. This fix makes it so that the culling spheres appropriately fully enclose the cascade. Since this is an iterative method, it is conservative. This fixes URP so there are not false positives when culling shadows.

https://jira.unity3d.com/browse/URP-782

Checklist for PR maker

Have you added a backport label (if needed)? For example, the need-backport-* label. After you backport the PR, the label changes to backported-*.
Have you updated the changelog? Each package has a CHANGELOG.md file.
Have you updated or added the documentation for your PR? When you add a new feature, change a property name, or change the behavior of a feature, it's best practice to include related documentation changes in the same PR. If you do add documentation, make sure to add the relevant Graphics Docs team member as a reviewer of the PR. If you are not sure which person to add, see the Docs team contacts sheet.
Have you added a graphic test for your PR (if needed)? When you add a new feature, or discover a bug that tests don't cover, please add a graphic test.

Purpose of this PR

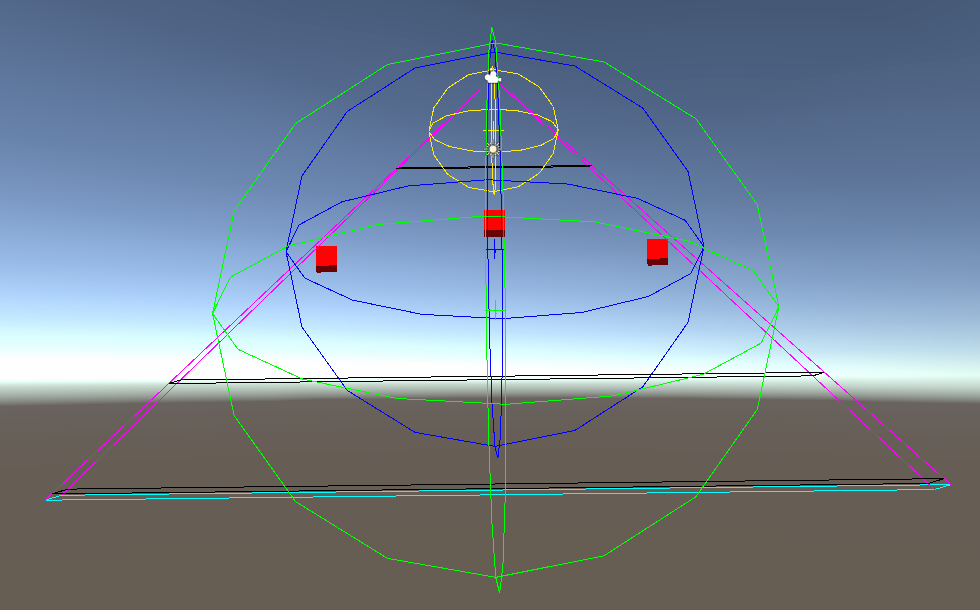

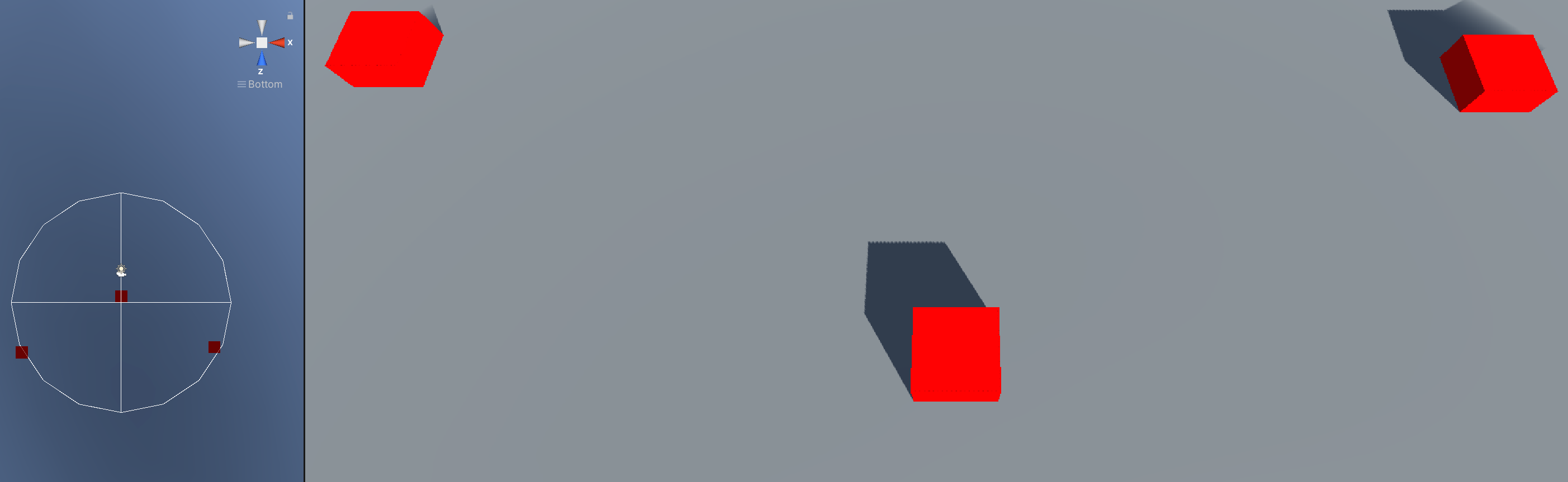

Fixes bug where shadows disappear in the frustum corners from false positives in the shadow culling.
https://fogbugz.unity3d.com/f/cases/1153151

Also fixes inherent bug with shadow fade where the shadows will be culled with a hard line across the fade which is due to the same problem.

Testing status

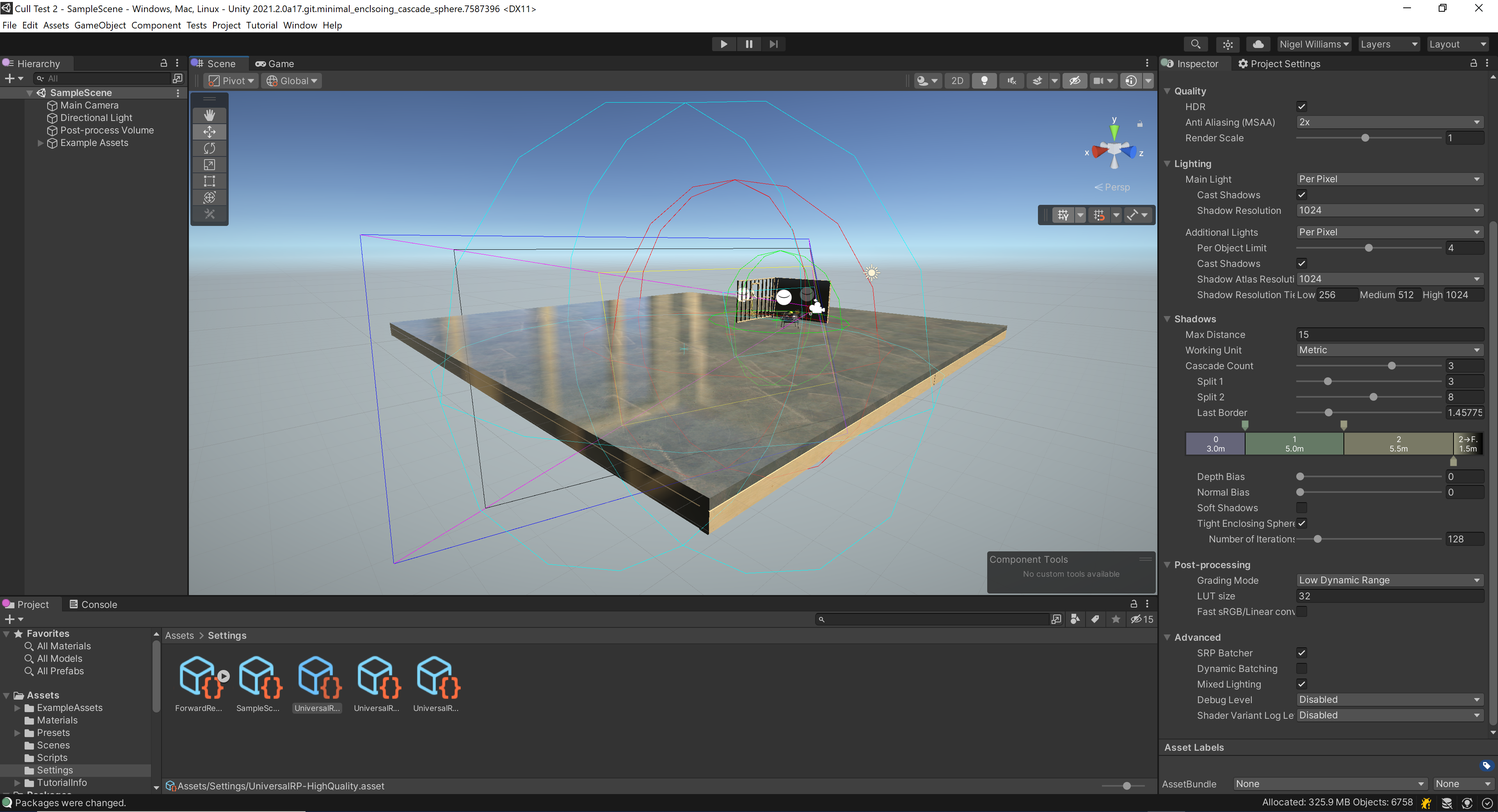

Tested with URP default template and custom cascade positioning.

Comments to reviewers

This PR is dependent on the following change to trunk:
https://github.cds.internal.unity3d.com/unity/unity/pull/2418

Design doc:
https://docs.google.com/document/d/10YxFKdA8YFS7QS8Owg2dvnYaM-t9tsLXWQLtiEXZQvQ

…universal/debug-cull-features

github-actions · 2021-05-04T20:13:56Z

It appears that you made a non-draft PR!
Please convert your PR to draft (button on the right side of the page)
and cancel any jobs that started on Yamato.
See the PR template for more information.
Thank you!

…universal/debug-cull-features

…universal/tight_enclosing_sphere

nigeljw-unity · 2021-07-07T13:13:34Z

@Unity-Technologies/gfx-qa-urp could I get a performance analysis of this change? I am curious if this potentially improves the rendering time of shadows due to the cascade culling sphere overlap removal.

erikabar

URP QA got re-added again, approving

nigeljw-unity · 2021-07-23T12:55:39Z

Adding the test results doc:
https://docs.google.com/document/d/1Sa5mLkJ8_NyBT9dh8hMlJnaVri1sQMtxKsbpxlv6no4

…universal/tight_enclosing_sphere

github-actions · 2021-08-19T14:03:45Z

Hi! This comment will help you figure out which jobs to run before merging your PR. The suggestions are dynamic based on what files you have changed.
Link to Yamato: https://yamato.cds.internal.unity3d.com/jobs/902-Graphics
Search for your PR branch using the sidebar on the left, then add the following segment(s) to the end of the URL (you may need multiple tabs depending on how many packages you change)

URP
/.yamato%252Fall-urp.yml%2523PR_URP_2021.2

Depending on the scope of your PR, you may need to run more jobs than what has been suggested. Please speak to your lead or a Graphics SDET (#devs-graphics-automation) if you are unsure.

nigeljw-unity · 2021-08-19T14:06:45Z

@simon-engelbrecht-soerensen @erikabar would either of you be able to do a quick sanity test of this latest PR? None of the logic changed so no need to test in depth, but there was a big merge conflict that I had to resolve.

Could you also verify that creating a new project has this enabled, and when upgrading old project, this is disabled?

nigeljw-unity · 2021-08-19T15:01:05Z

com.unity.render-pipelines.universal/Runtime/Data/UniversalRenderPipelineAsset.cs

            instance.m_EditorResourcesAsset = instance.editorResources;

+            // Only enable for new URP assets by default
+            instance.m_ConservativeEnclosingSphere = true;


@Verasl @phi-lira @eh-unity This is how I am enabling it only for new projects. Let me know if this is the right approach.

…universal/tight_enclosing_sphere

eh-unity

lgtm.

oleks-k · 2021-09-17T07:30:27Z

...pelines.universal/Editor/UniversalRenderPipelineAsset/UniversalRenderPipelineAssetUI.Skin.cs

            public static GUIContent shadowDepthBias = EditorGUIUtility.TrTextContent("Depth Bias", "Controls the distance at which the shadows will be pushed away from the light. Useful for avoiding false self-shadowing artifacts.");
            public static GUIContent shadowNormalBias = EditorGUIUtility.TrTextContent("Normal Bias", "Controls distance at which the shadow casting surfaces will be shrunk along the surface normal. Useful for avoiding false self-shadowing artifacts.");
            public static GUIContent supportsSoftShadows = EditorGUIUtility.TrTextContent("Soft Shadows", "If enabled pipeline will perform shadow filtering. Otherwise all lights that cast shadows will fallback to perform a single shadow sample.");

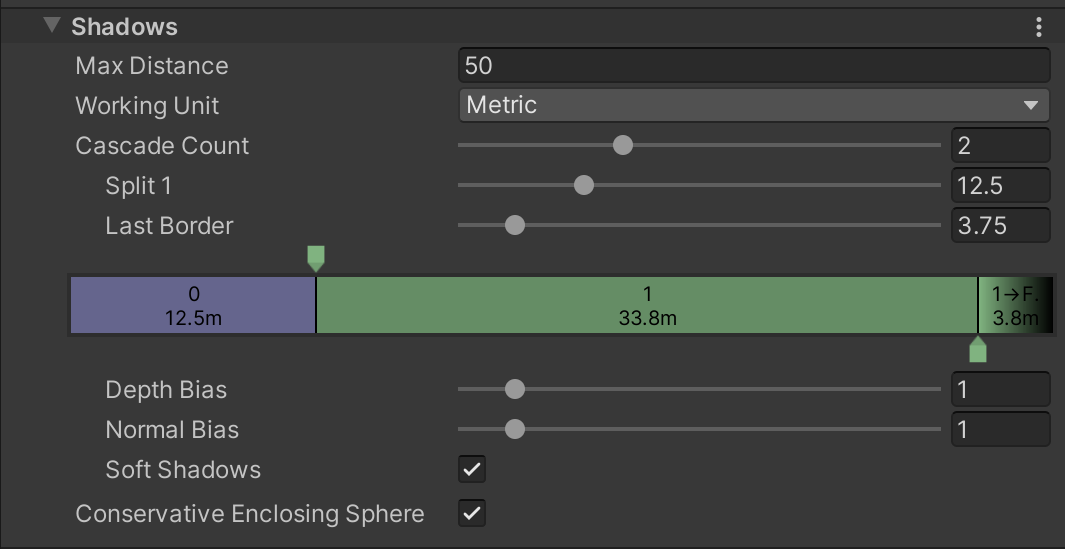

+            public static GUIContent conservativeEnclosingSphere = EditorGUIUtility.TrTextContent("Conservative Enclosing Sphere", "If enabled, a conservative enclosing sphere is used. If disabled, the sphere will be smaller than the cascade size, and shadows will be culled in the corners of the cascades.");


My suggestion:
EditorGUIUtility.TrTextContent("Conservative Enclosing Sphere", "Enable this option to improve shadow frustum culling. Enabling this option prevents Unity from excessively culling shadows in the corners of the shadow cascades. Disable this option only for compatibility purposes of projects created in previous Unity versions.");

…universal/tight_enclosing_sphere

…echnologies/Graphics into universal/tight_enclosing_sphere

oleks-k

Looks good!

Backport of minimal enclosing sphere solution for shadow frustum culling. #4436 Co-authored-by: Erik Hakala <erik.hakala@unity3d.com> Co-authored-by: Oleksandr Kokoshyn <oleksandr.kokoshyn@unity3d.com>

sandy-carter-unity · 2021-09-23T17:33:16Z

com.unity.render-pipelines.universal/Runtime/Data/UniversalRenderPipelineAsset.cs

+            set { m_ConservativeEnclosingSphere = value; }
+        }
+
+        public int numItertionsEnclosingSphere


A bit late to the party but there's a small spelling mistake here:

numItertionsEnclosingSphere -> numIterationsEnclosingSphere
