Gonna be a vaguely long PR description, so
TL;DR:
Temporal Upscaling
Added an option to perform temporal upscaling as Dynamic resolution upscaling filter. Similarly to DLSS it happens in place of TAA.
Specifically this pass is a modification of the TAA shader, most notable differences is to map the incoming input into an output resolution, the resampling strategy is a very sharp gaussian filter (see For Honor XFest presentation) and a confidence filter at the end for accumulating the history only on pixels we are confident about.
Generally there is a bit more of details, but the gist is the above.
The variance clipping corners are also a bit contracted as acting on lower resolutions will lead to possibly more ghosting.
Visual results
Full resolution images are available upon requests.
The following 2 images are with a zoom into the image
I suggest opening in a new tab, also note that even though representative, slight quality improvements have been made since I took the images (so actual result is slightly better)
Comparison including also DLSS with 50% scale (25% amount of pixels). DLSS quality is still better (I suspect mostly due to better sharpening), but the quality is in that ballpark according to first tests with QA.

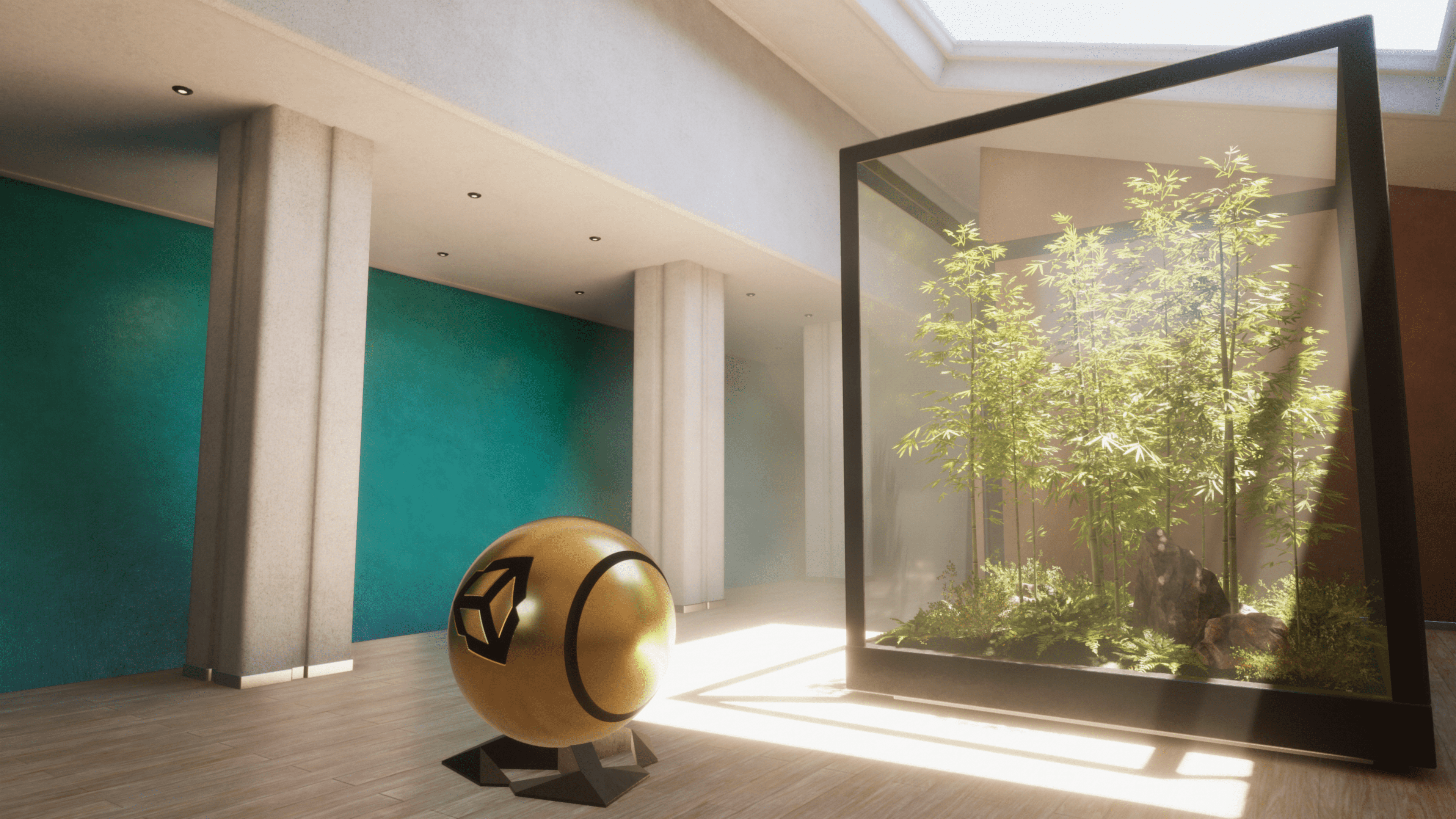

124583688-a1045680-de53-11eb-8e84-b49cb57d5814.mp4
Native 4k (sadly compressed)

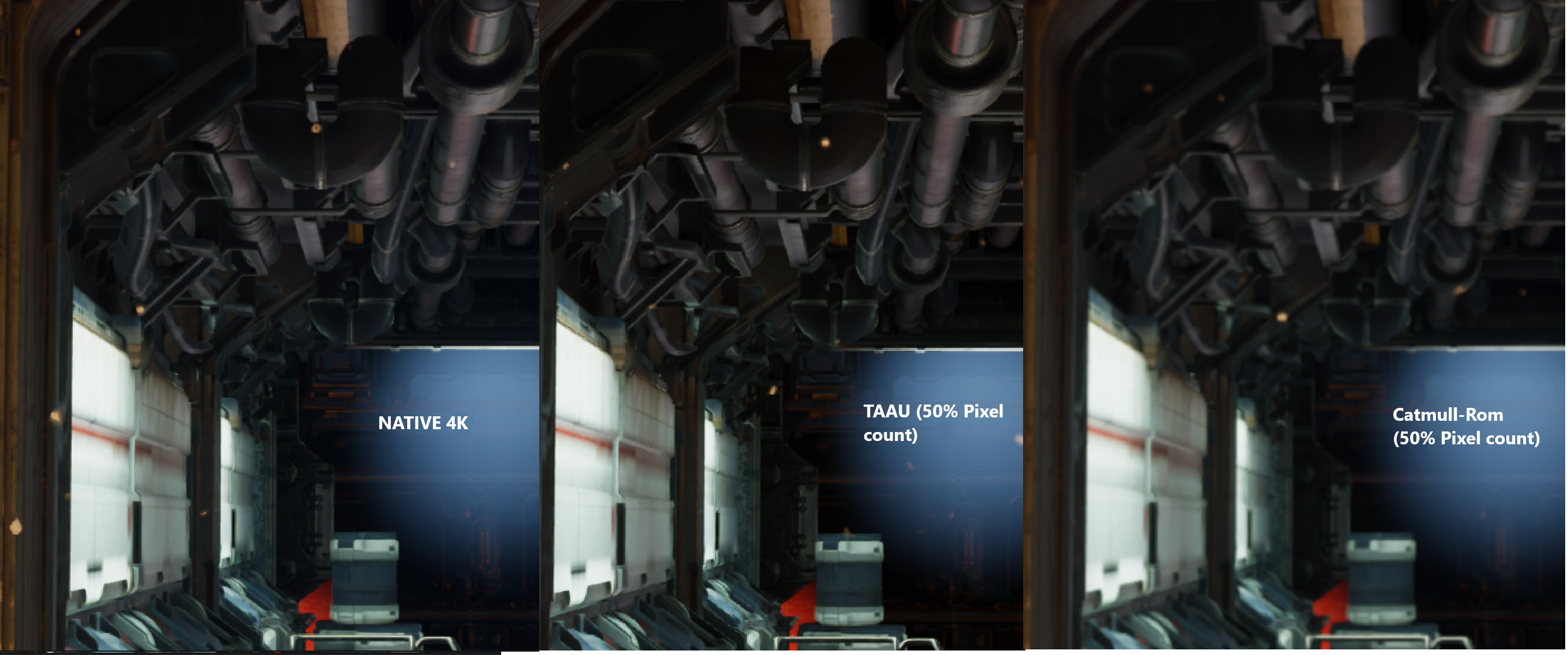

Catmull-Rom 70% (50% amount of pixels)
DLSS 70% (50% amount of pixels)
TAAU 70% (50% amount of pixels)
Uncompressed images https://drive.google.com/drive/u/1/folders/130RVIBqFfpuwKyiWb6ipPK76203x9OO4
I have many more images if desired.

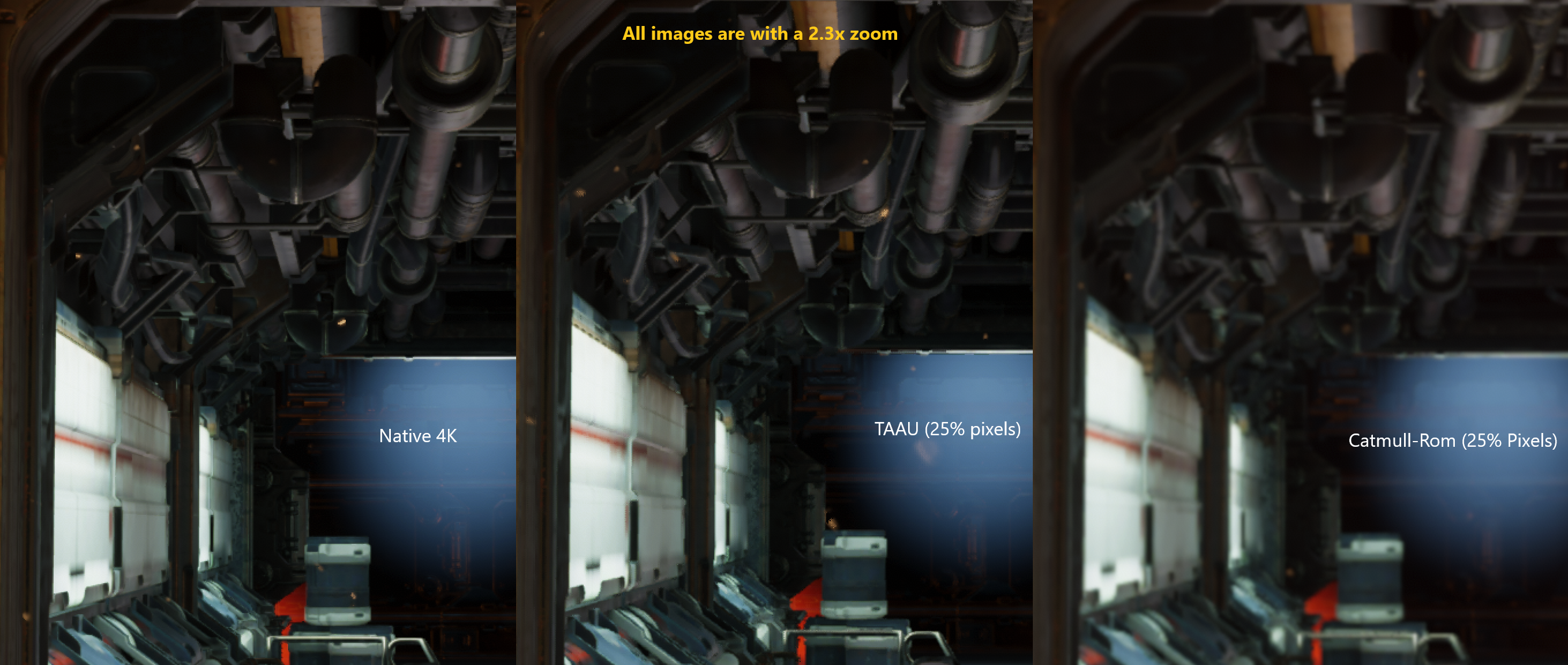

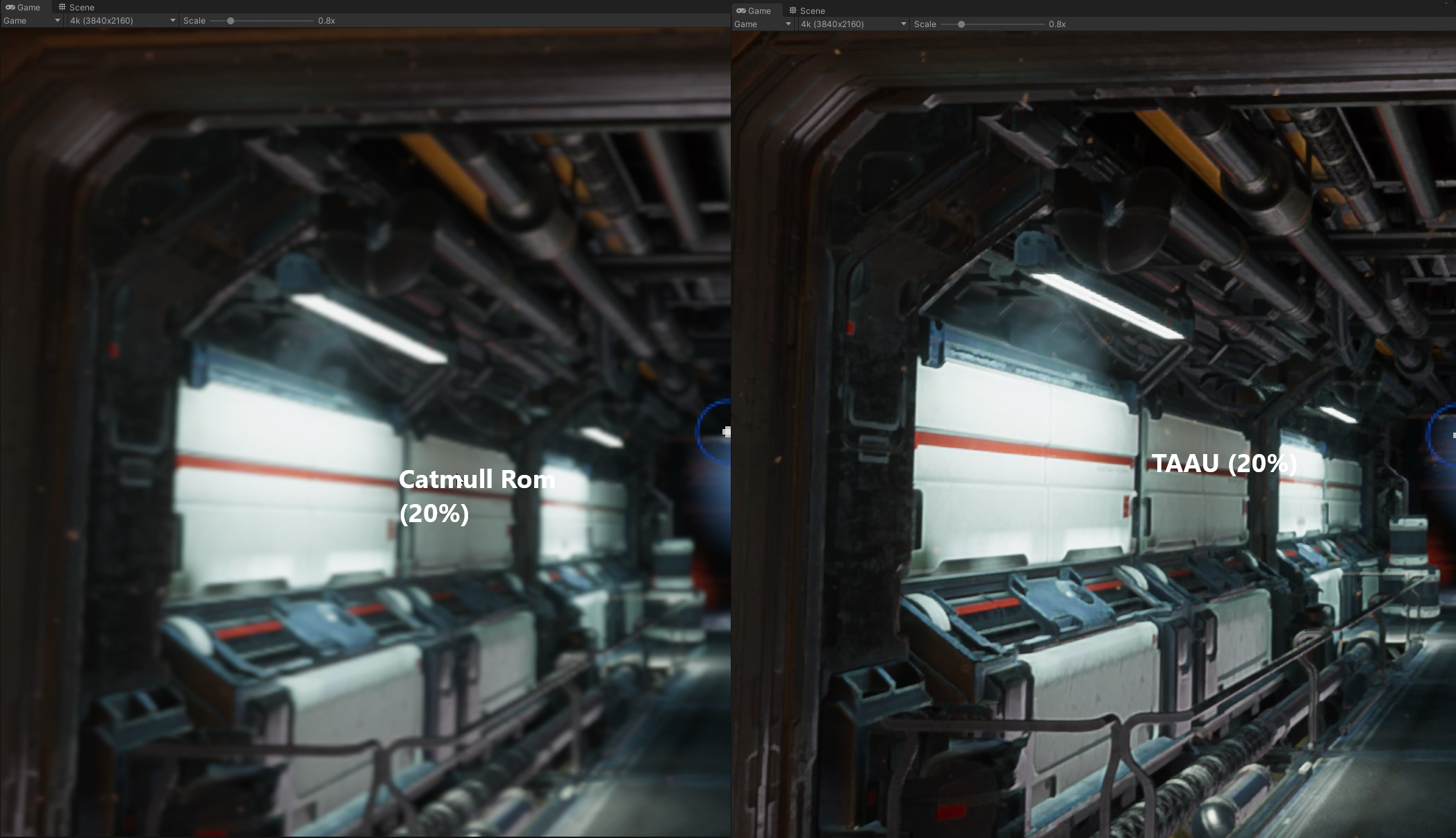

Random silly one with very low scale to have a more dramatic comparison
Performance impact
The cost of the pass is very similar to TAA high quality, the actual cost depends on how big the output resolution is. It is roughly similar (though a bit cheaper) than running said TAA high quality on the destination output.
PS4 Pro
VERY BASIC tests on template (I don't have a pro devkit, this was provided by Jans)
PC
Of course PC numbers are what they are, but @remi-chapelain helped getting some numbers. The PC in question is fairly beefy, so more numbers are needed to be collected.

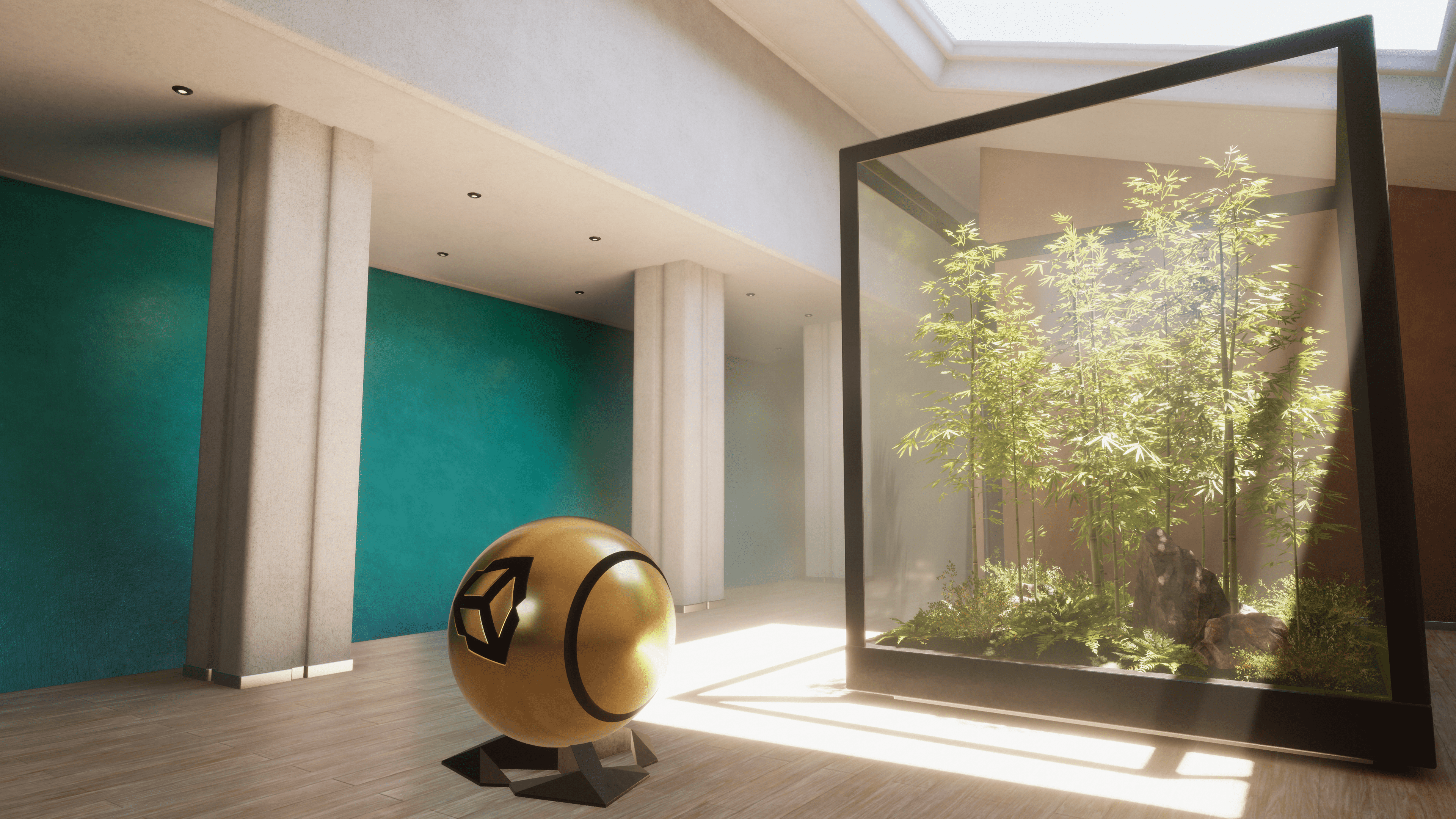

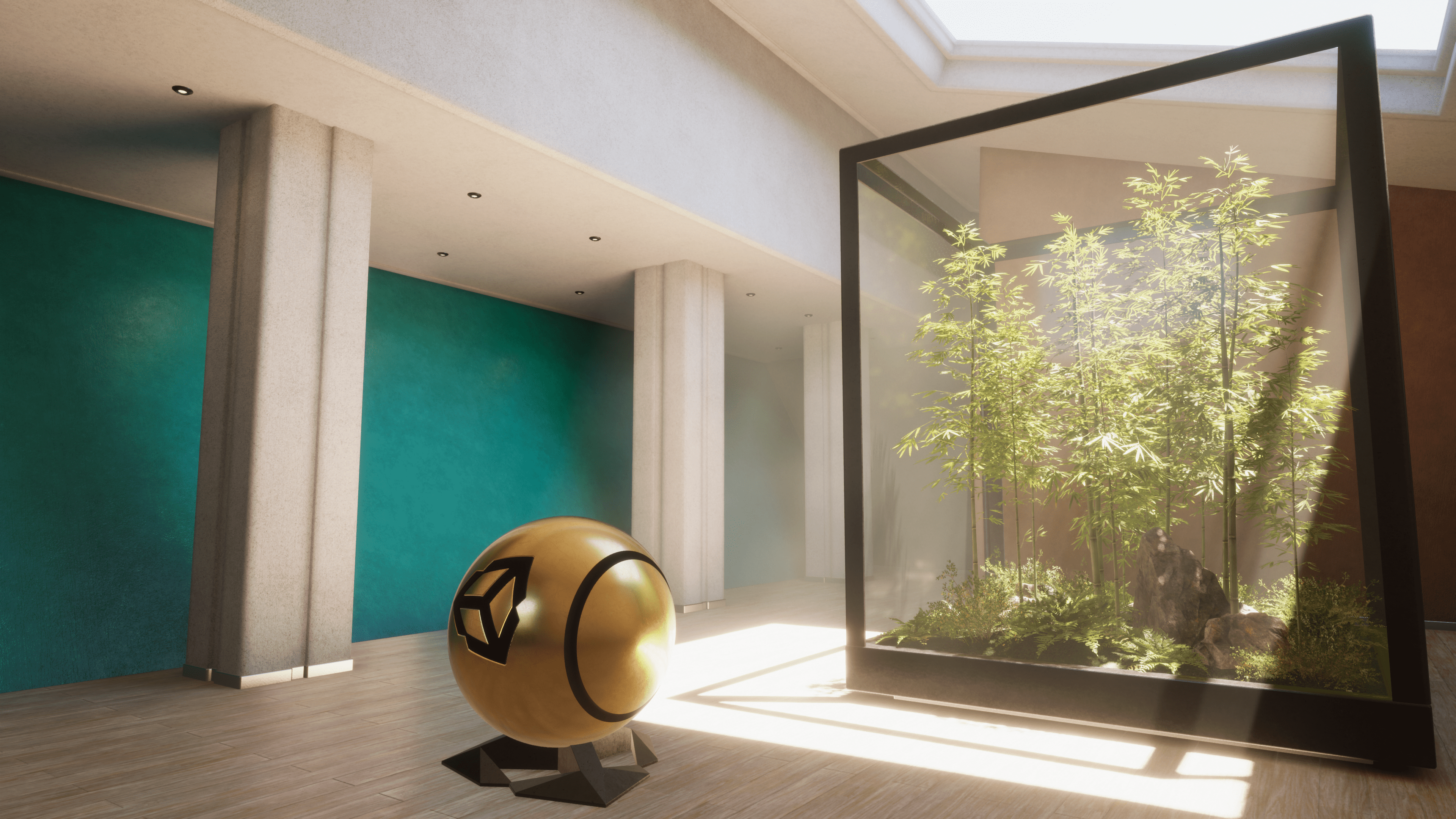

The template shot above
Spaceship benchmark (1440p, 4K hopefully to come. Here differences are less dramatic as bottlenecks with lower start resolution shift).
Known issues / missing things
Generally another iteration wouldn't necessarily hurt. I'd like to get some feedback first, hence the (Experimental)
Normal TAA changes
This PR also introduces a couple of TAA improvements.
Fix TAA High quality filtering

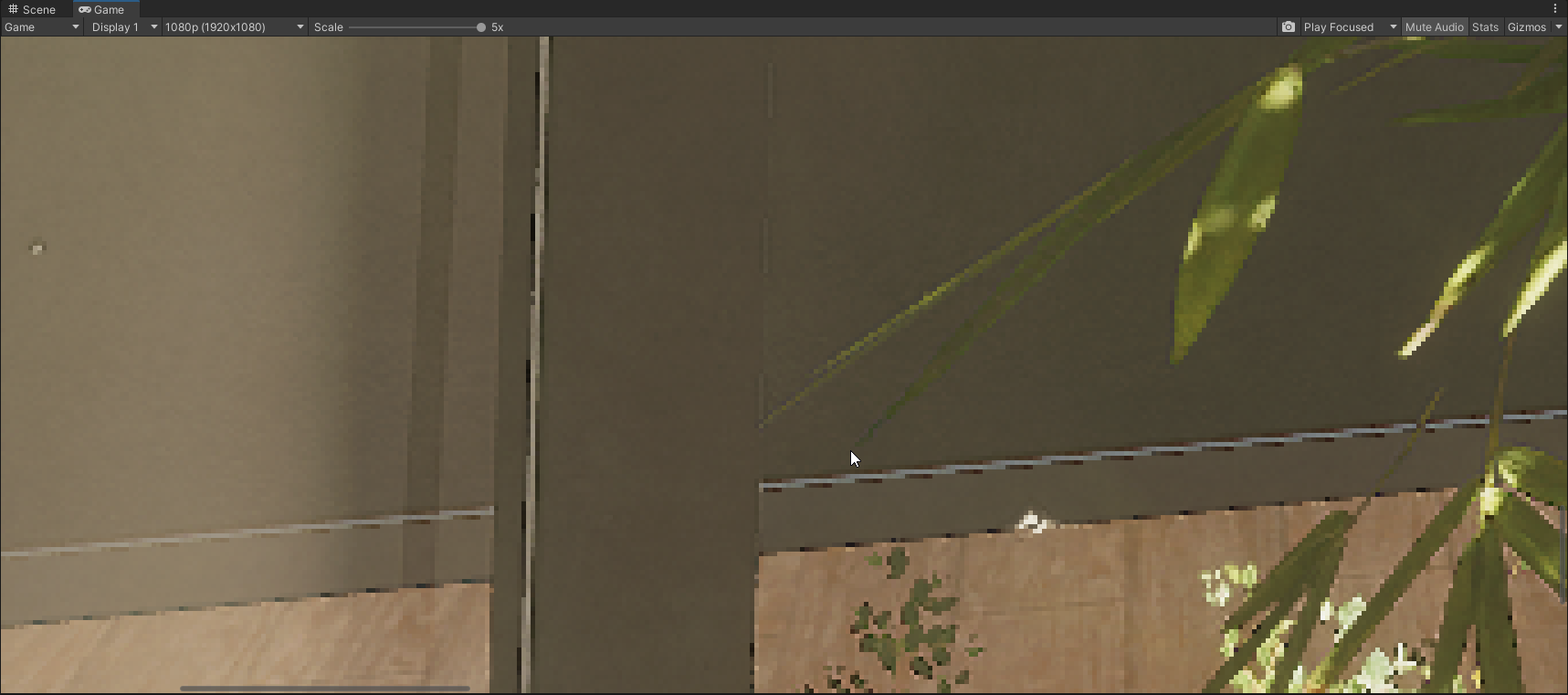

Finally taking jittering into account, on screenshots here might be subtle, if interested I suggest opening in separate tabs and switch back and forth.
Before
After
Expose base blend factor
To control how much history is taken each frame, the trade off is aliasing vs ghosting.
(NOTE: Ghosting is exaggerated in gifs, this way just to show the parameter impact)
blendfactor.mp4
Such parameter is only in advanced parameters since I don't expect non-power user need to touch this.

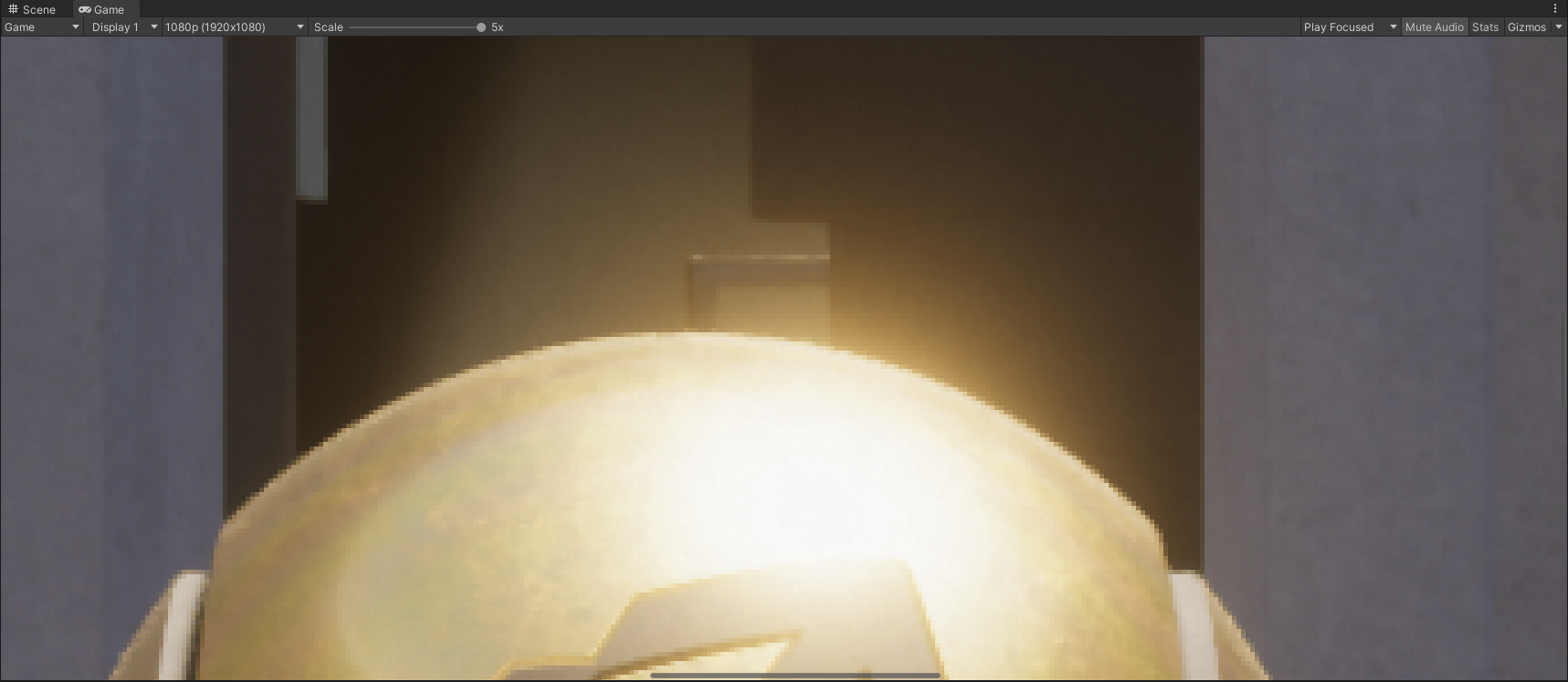

Reducing ringing in sharpening filter
Before
After
Both for TAAU and normal TAA we can and should do an optimization pass (now that we can sample stencil in compute, we can move TAA to compute and leverage LDS) which should simplify a few things as well.
