[Fogbugz # 1363291] Fix lens flare position for celestials

[kecho]

Purpose of this PR

Celstials lens flare was not position correctly when the camera was very far from the origin. This was caused because the relative position trick only works well when the camera is very close to a light source. If something is far enough it will incurr into small precision issues that might accumulate (due to the light position being so far away).

https://fogbugz.unity3d.com/f/cases/1363291/

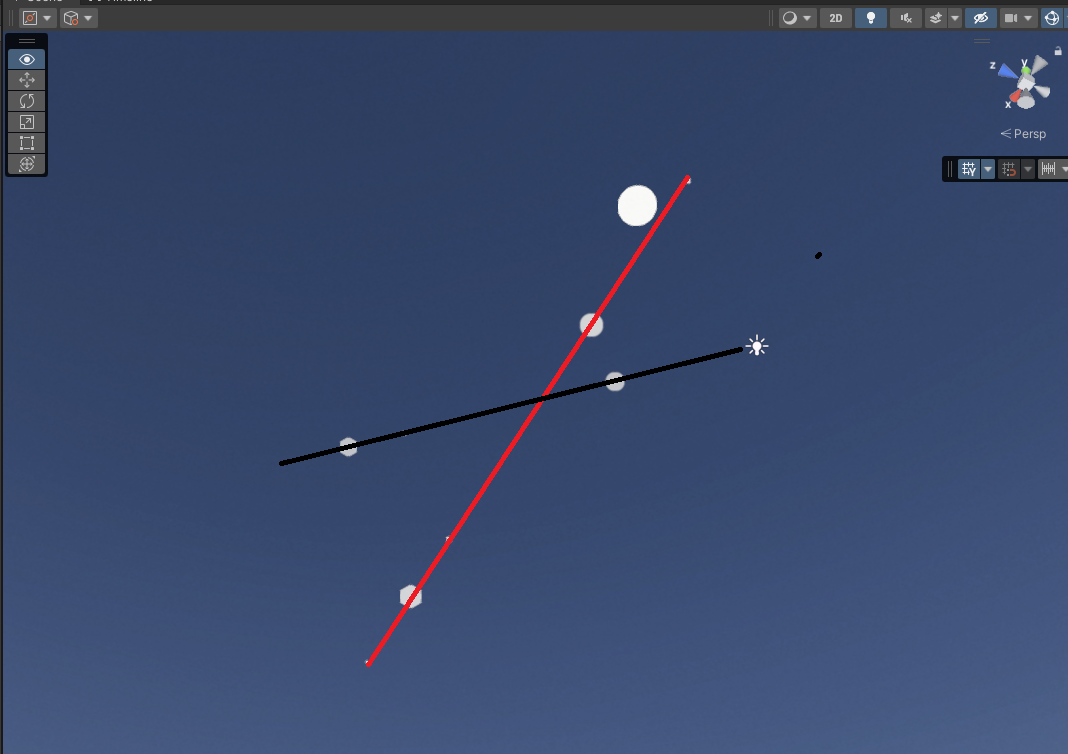

Before:

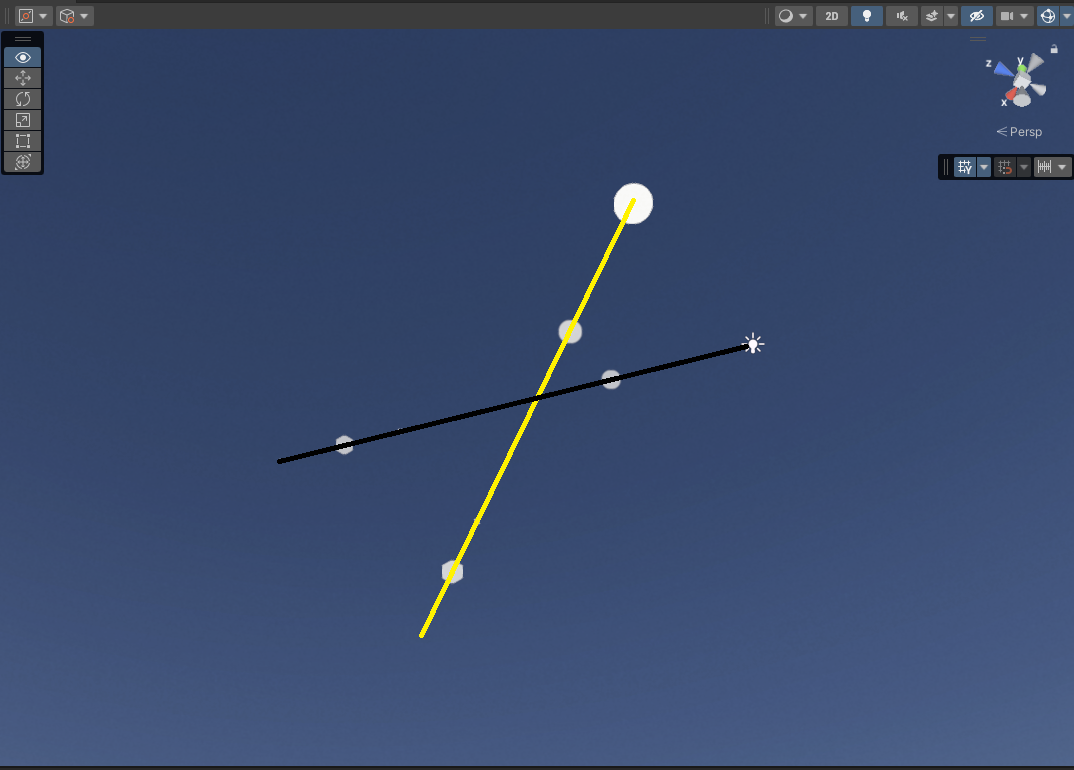

After:

---

Testing status

Tested the fogbugz scene.

---

Comments to reviewers

@Unity-Technologies/gfx-qa-hdrp Change has been verified by Sean Puller

[github-actions]

Hi! This comment will help you figure out which jobs to run before merging your PR. The suggestions are dynamic based on what files you have changed.
Link to Yamato: https://yamato.cds.internal.unity3d.com/jobs/902-Graphics
Search for your PR branch using the sidebar on the left, then add the following segment(s) to the end of the URL (you may need multiple tabs depending on how many packages you change)

SRP Core
You could run ABV on your branch before merging your PR, but it will start A LOT of jobs. Please be responsible about it and run it only when you feel the PR is ready:
/.yamato%252F_abv.yml%2523all_project_ci_trunk
Be aware that any modifications to the Core package impacts everyone in the Graphics repo so please discuss the PR with your lead.

Depending on the scope of your PR, you may need to run more jobs than what has been suggested. Please speak to your lead or a Graphics SDET (#devs-graphics-automation) if you are unsure.

[Aydindeveloper]

Lens flare in URP does not work properly with Render scale.
For the solution, I applied the change in universal/decal-fixes to DoLensFlareDatadriven.

postprocess.cs

void DoLensFlareDatadriven(Camera camera, CameraData camdata, CommandBuffer cmd, RenderTargetIdentifier source, bool usePanini, float paniniDistance, float paniniCropToFit)
{
var gpuView = camera.worldToCameraMatrix;
var gpuNonJitteredProj = GL.GetGPUProjectionMatrix(camera.projectionMatrix, true);
// Zero out the translation component.
gpuView.SetColumn(3, new Vector4(0, 0, 0, 1));
var gpuVP = gpuNonJitteredProj * camera.worldToCameraMatrix;
float renderScale = camdata.isSceneViewCamera ? 1f : camdata.renderScale;
float scaledCameraWidth = (float)camera.pixelRect.width * renderScale;
float scaledCameraHeight = (float)camera.pixelRect.height * renderScale;

        LensFlareCommonSRP.DoLensFlareDataDrivenCommon(m_Materials.lensFlareDataDriven, LensFlareCommonSRP.Instance, camera, scaledCameraWidth, scaledCameraHeight,

[kecho]

Lens flare in URP does not work properly with Render scale.
For the solution, I applied the change in universal/decal-fixes to DoLensFlareDatadriven.

postprocess.cs

void DoLensFlareDatadriven(Camera camera, CameraData camdata, CommandBuffer cmd, RenderTargetIdentifier source, bool usePanini, float paniniDistance, float paniniCropToFit)
{
var gpuView = camera.worldToCameraMatrix;
var gpuNonJitteredProj = GL.GetGPUProjectionMatrix(camera.projectionMatrix, true);
// Zero out the translation component.
gpuView.SetColumn(3, new Vector4(0, 0, 0, 1));
var gpuVP = gpuNonJitteredProj * camera.worldToCameraMatrix;
float renderScale = camdata.isSceneViewCamera ? 1f : camdata.renderScale;
float scaledCameraWidth = (float)camera.pixelRect.width * renderScale;
float scaledCameraHeight = (float)camera.pixelRect.height * renderScale;

        LensFlareCommonSRP.DoLensFlareDataDrivenCommon(m_Materials.lensFlareDataDriven, LensFlareCommonSRP.Instance, camera, scaledCameraWidth, scaledCameraHeight,

@Aydindeveloper I believe this has been fixed already. Check this PR #5373
It should be available in 12.x soon

[Aydindeveloper]

Sorry, I was referring to URP's Render Scale lens flare issues but the PR you linked seems to for HDRP

[kecho]

All tests pass, only a few fails due to unrelated issues.

[kecho]

NOTE
@Unity-Technologies/gfx-qa-hdrp Change has been verified by Sean Puller

[kecho]

@Aydindeveloper

Sorry, I was referring to URP's Render Scale lens flare issues but the PR you linked seems to for HDRP

I recommend you open a bug, ill notify the URP team on our side. Cheers
