RP Workflows - Adding the capability to revert a single override of a Volume Component

[alex-vazquez]

Purpose of this PR

JIRA: https://jira.unity3d.com/browse/XPIPELINE-343

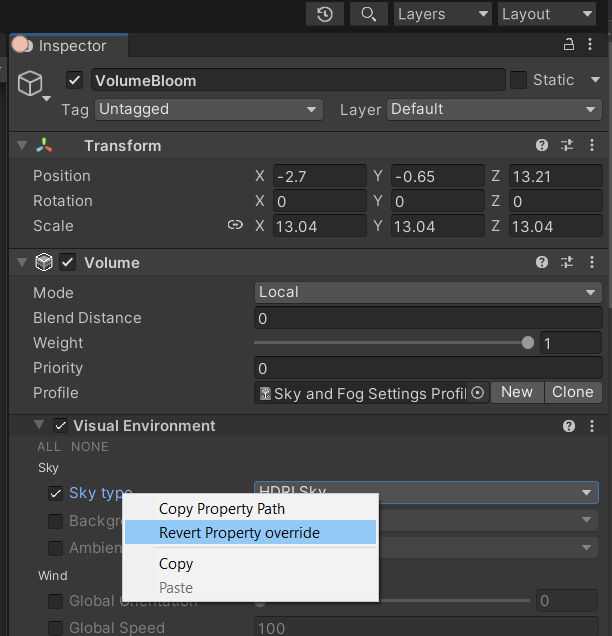

Adding a context menu "Revert Property Override" for Property Fields of Volume Components

---

Testing status

Check that the restore of the values works fine.
Check that the override is NOT restored, this should only be applied when Resetting the full Volume Component.

---

Comments to reviewers

I've used the system from IApplyRevertPropertyContextMenuItemProvider, unfortunatelly we could not replace the name of the context menu as this is generated from the "Revert + GetSourceTerm() + override". As this system is already working, and well tested, I think counterproductive to implement a new system just to remove the override, in this scenario makes sense and we won't need to touch trunk code for this PR.

[github-actions]

Hi! This comment will help you figure out which jobs to run before merging your PR. The suggestions are dynamic based on what files you have changed.
Link to Yamato: https://unity-ci.cds.internal.unity3d.com/project/902/
Search for your PR branch using the search bar at the top, then add the following segment(s) to the end of the URL (you may need multiple tabs depending on how many packages you change)

HDRP
/jobDefinition/.yamato%2Fall-hdrp.yml%23PR_HDRP_trunk
With changes to HDRP packages, you should also run
/jobDefinition/.yamato%2Fall-lightmapping.yml%23PR_Lightmapping_trunk

SRP Core
You could run ABV on your branch before merging your PR, but it will start A LOT of jobs. Please be responsible about it and run it only when you feel the PR is ready:
/jobDefinition/.yamato%252F_abv.yml%2523all_project_ci_trunk
Be aware that any modifications to the Core package impacts everyone in the Graphics repo so please discuss the PR with your lead.

Depending on the scope of your PR, you may need to run more jobs than what has been suggested. Please speak to your lead or a Graphics SDET (#devs-graphics-automation) if you are unsure.

[alex-vazquez]

Float fields do not implement the context menu, just property fields.

[alex-vazquez]

Yeah, I think is nasty, but the interface is defined on editor, only for MonoBehaviours, I've not seen any other place where is being used, if you know a better way of doing this

[arttu-peltonen]

Hey, could you check if this works with prefab instances & variants? I have some concerns because I checked how the the interface is used and it's invoked with this condition:

// Only display the custom apply/revert menu for GameObjects/Components that are not part of a Prefab instance & variant.
var shouldDisplayApplyRevertProviderContextMenuItems = targetObject is IApplyRevertPropertyContextMenuItemProvider
   && PrefabUtility.GetPrefabInstanceHandle(targetObject) == null;

It's good to reuse existing code but if this interface doesn't work in all cases, you might need to modify trunk after all...

[alex-vazquez]

@arttu-peltonen I've checked the Prefab, and the instances, it works as expected.

[arttu-peltonen]

In that case, it should be fine. Tagging @RSlysz to be aware.

[JMargevics]

Hey, found a some generic volume component overrides and some specific ones that don't have a revert function.

All color pickers. I think it is very important to bring the revert feature to color pickers as well!

All texture pickers.

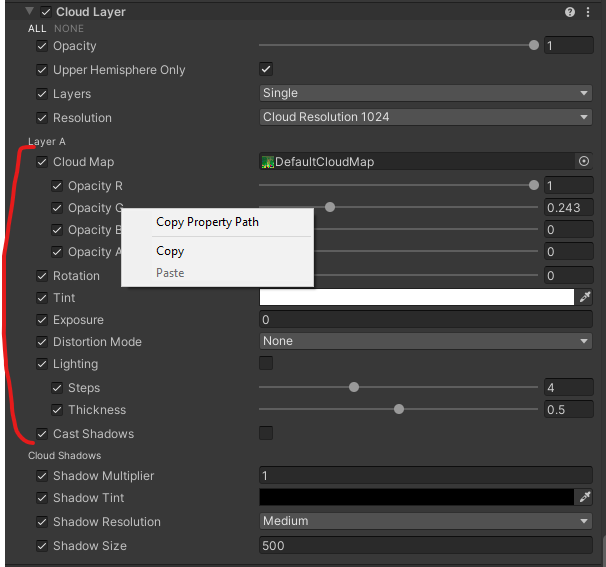

Cloud Layer. Anything in Layer A section.

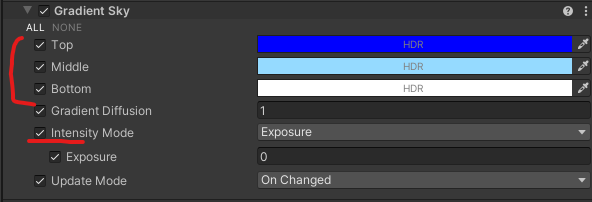

Gradient, HDRI, PBR skies. All intensity modes.

And the final issue is that any Revert action is not undoable.: if you revert a value you stick to it and there's no way to return to previous one.

[alex-vazquez]

@JMargevics I think all parameters can be reset now :)

[JMargevics]

@JMargevics I think all parameters can be reset now :)

All those fields work perfectly now ✔👍

Reposting my other issue for visibility:

Lil1Bcv2oL.mp4

Quality levels and underlying parameters should be connected when we revert them.

[JMargevics]

All perfect now 👍✔
