Convolutional Autoencoder for Image Denoising

AIM

To develop a convolutional autoencoder for image denoising application.

Problem Statement and Dataset

Convolution Autoencoder Network Model

Include the neural network model diagram.

DESIGN STEPS

STEP 1:

Download and split the dataset into training and testing datasets

STEP 2:

rescale the data as that the training is made easy

STEP 3:

create the model for the program , in this experiment we create to networks , one for encoding and one for decoding Write your own steps

PROGRAM

from tensorflow import keras
from tensorflow.keras import layers
from tensorflow.keras import utils
from tensorflow.keras import models
from tensorflow.keras.datasets import mnist
import numpy as np
import matplotlib.pyplot as plt

(x_train, _), (x_test, _) = mnist.load_data()

x_train.shape

(60000, 28, 28)

x_train_scaled = x_train.astype('float32') / 255.
x_test_scaled = x_test.astype('float32') / 255.
x_train_scaled = np.reshape(x_train_scaled, (len(x_train_scaled), 28, 28, 1))
x_test_scaled = np.reshape(x_test_scaled, (len(x_test_scaled), 28, 28, 1))

noise_factor = 0.5
x_train_noisy = x_train_scaled + noise_factor * np.random.normal(loc=0.0, scale=1.0, size=x_train_scaled.shape)
x_test_noisy = x_test_scaled + noise_factor * np.random.normal(loc=0.0, scale=1.0, size=x_test_scaled.shape)

x_train_noisy = np.clip(x_train_noisy, 0., 1.)
x_train_noisy = np.clip(x_train_noisy, 0., 1.)
x_test_noisy = np.clip(x_test_noisy, 0., 1.)

n = 10
plt.figure(figsize=(20, 2))
for i in range(1, n + 1):
    ax = plt.subplot(1, n, i)
    plt.imshow(x_test_noisy[i].reshape(28, 28))
    plt.gray()
    ax.get_xaxis().set_visible(False)
    ax.get_yaxis().set_visible(False)
plt.show()

input_img = keras.Input(shape=(28, 28, 1))

x = layers.Conv2D(32, (3, 3), activation='relu', padding='same')(input_img)
x = layers.MaxPooling2D((2, 2), padding='same')(x)
x = layers.Conv2D(32, (3, 3), activation='relu', padding='same')(x)
encoded = layers.MaxPooling2D((2, 2), padding='same')(x)


# Encoder output dimension is ## Mention the dimention ##

# Write your decoder here
x = layers.Conv2D(32, (3, 3), activation='relu', padding='same')(encoded)
x = layers.UpSampling2D((2, 2))(x)
x = layers.Conv2D(32, (3, 3), activation='relu', padding='same')(x)
x = layers.UpSampling2D((2, 2))(x)
decoded = layers.Conv2D(1, (3, 3), activation='sigmoid', padding='same')(x)

autoencoder = keras.Model(input_img, decoded)

autoencoder.summary()

Model: "model"
_________________________________________________________________
 Layer (type)                Output Shape              Param #
=================================================================
 input_2 (InputLayer)        [(None, 28, 28, 1)]       0

 conv2d_3 (Conv2D)           (None, 28, 28, 32)        320

 max_pooling2d_2 (MaxPooling  (None, 14, 14, 32)       0
 2D)

 conv2d_4 (Conv2D)           (None, 14, 14, 32)        9248

 max_pooling2d_3 (MaxPooling  (None, 7, 7, 32)         0
 2D)

 conv2d_5 (Conv2D)           (None, 7, 7, 32)          9248

 up_sampling2d (UpSampling2D  (None, 14, 14, 32)       0
 )

 conv2d_6 (Conv2D)           (None, 14, 14, 32)        9248

 up_sampling2d_1 (UpSampling  (None, 28, 28, 32)       0
 2D)

 conv2d_7 (Conv2D)           (None, 28, 28, 1)         289

=================================================================
Total params: 28,353
Trainable params: 28,353
Non-trainable params: 0
_________________________________________________________________

autoencoder.compile(optimizer='adam', loss='binary_crossentropy')

autoencoder.fit(x_train_noisy, x_train_scaled,
                epochs=2,
                batch_size=128,
                shuffle=True,
                validation_data=(x_test_noisy, x_test_scaled))

Epoch 1/2
469/469 [==============================] - 153s 324ms/step - loss: 0.1643 - val_loss: 0.1186
Epoch 2/2
469/469 [==============================] - 147s 313ms/step - loss: 0.1148 - val_loss: 0.1103

decoded_imgs = autoencoder.predict(x_test_noisy)

313/313 [==============================] - 6s 20ms/step

n = 10
plt.figure(figsize=(20, 4))
for i in range(1, n + 1):
    # Display original
    ax = plt.subplot(3, n, i)
    plt.imshow(x_test_scaled[i].reshape(28, 28))
    plt.gray()
    ax.get_xaxis().set_visible(False)
    ax.get_yaxis().set_visible(False)

    # Display noisy
    ax = plt.subplot(3, n, i+n)
    plt.imshow(x_test_noisy[i].reshape(28, 28))
    plt.gray()
    ax.get_xaxis().set_visible(False)
    ax.get_yaxis().set_visible(False)

    # Display reconstruction
    ax = plt.subplot(3, n, i + 2*n)
    plt.imshow(decoded_imgs[i].reshape(28, 28))
    plt.gray()
    ax.get_xaxis().set_visible(False)
    ax.get_yaxis().set_visible(False)
plt.show()

Include your code here

OUTPUT

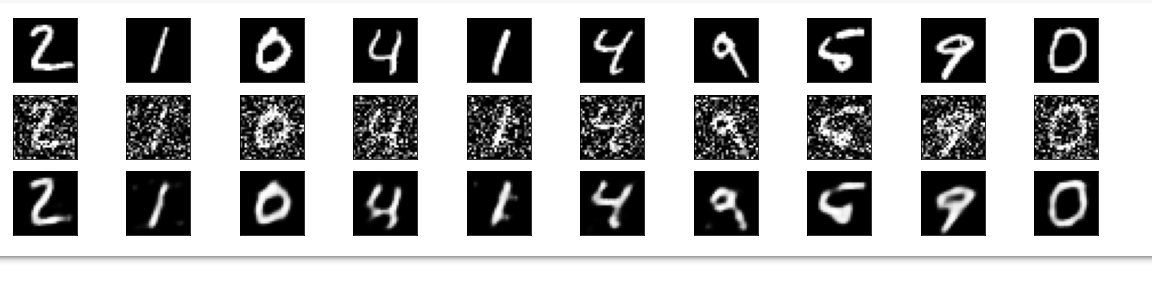

Original vs Noisy Vs Reconstructed Image

RESULT

Thus we have successfully developed a convolutional autoencoder for image denoising application.
