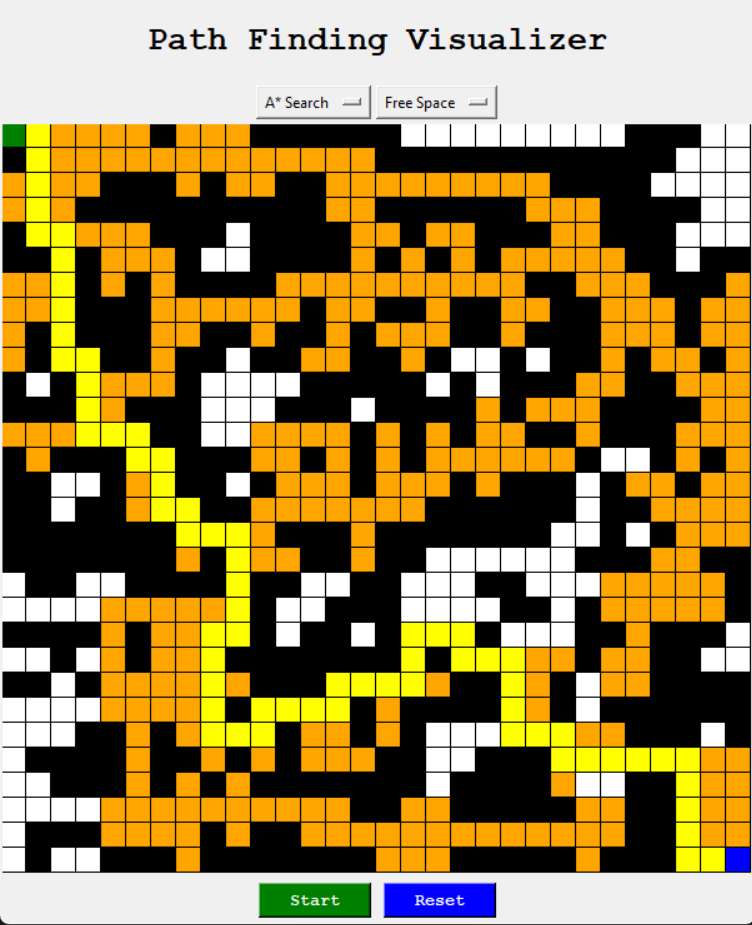

🧭 Pathfinding Visualizer (Tkinter)

A Python-based visualizer for popular pathfinding algorithms, built with Tkinter. Allows interactive drawing of obstacles, start and end points, and visual demonstration of pathfinding logic.

---

✨ Features

• Drag to draw/remove walls
• Click to place start/end points
• Real-time visualization of various popular path finding algorithms like BFS, DFS, etc.
• Reset Board options

---

🛠 Requirements

• Python 3.x
• No external libraries required (only Tkinter)

---

🚀 How to Run

1. Clone the repository:

   git clone https://github.com/your-username/pathfinding-visualizer.git
   cd pathfinding-visualizer

2. Run Program:

    python main.py

🧑‍💻 How to use

• Dropdowns : Select algorithm and block type (Source, Destination, Wall, Free Space)
• Left Click + Drag: Place or remove blocks based on selected type
• Start Button: Runs the selected pathfinding algorithm
• Reset Button: Clears the entire grid and resets the board

🧠 Algorithms Implemented

• ⚡ A-Star Search
  An informed search using heuristics to find the shortest path more efficiently.

• 🔍 Best First Search
  Chooses the next node based solely on heuristic estimate to the goal (greedy approach).

• 📈 Breadth-First Search (BFS)
  Explores all neighbors level-by-level; finds the shortest path in unweighted graphs.

• 📉 Depth-First Search (DFS)
  Explores as far as possible along each branch before backtracking; not guaranteed shortest.

🤝 Contributing

Feel free to fork and submit pull requests if you'd like to add new features, implement new searching algorithms or fix bugs.
