@AMDphreak AMDphreak released this 21 Oct 00:12
· 3 commits to main since this release
v0.1.0
0786612

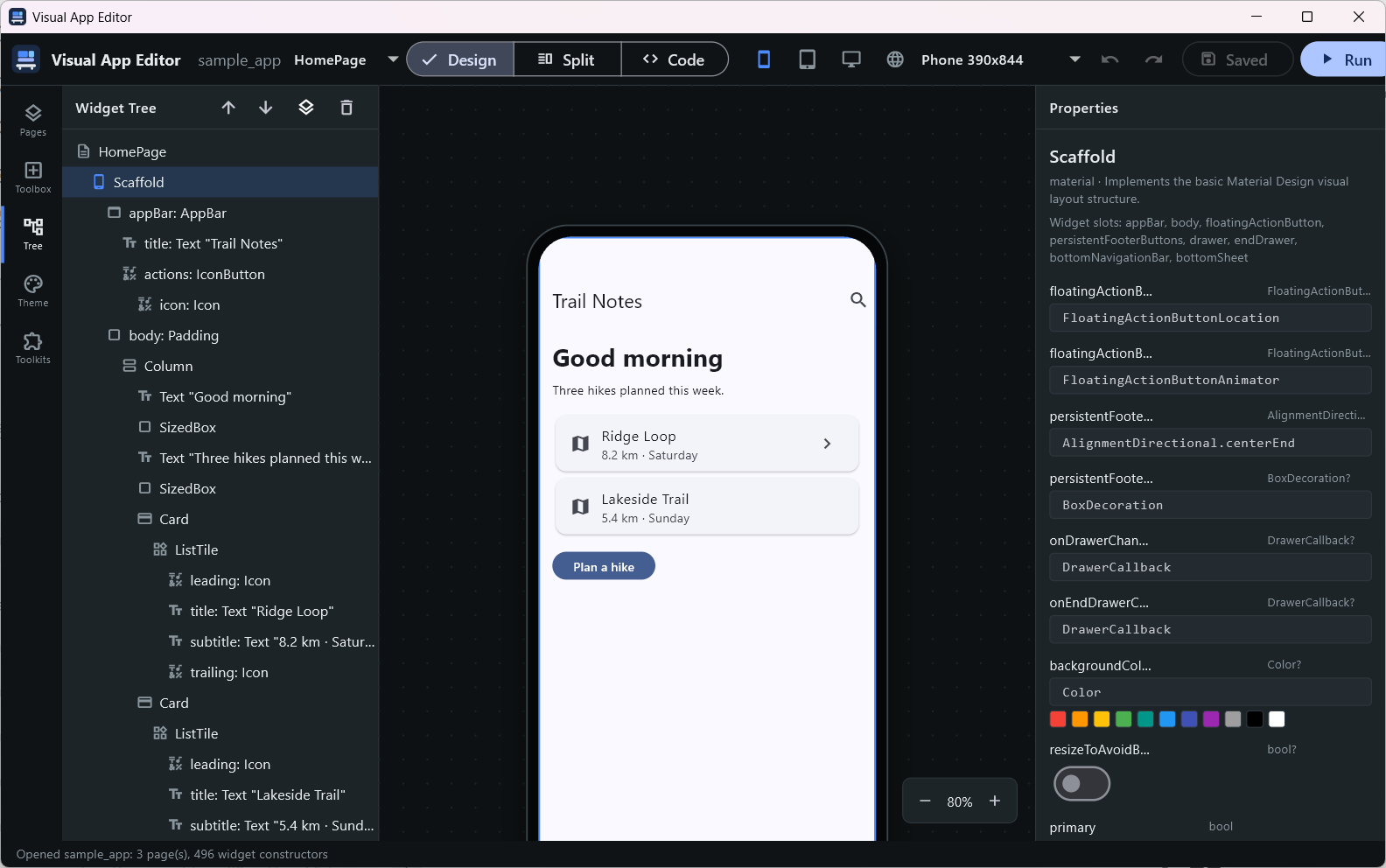

Visual App Editor editing a sample Flutter project: widget tree on the left, phone canvas in the middle, properties on the right

First release of Visual App Editor: a visual editor for Flutter (and React / React Native) UIs that edits your real source code.

VS Code extension: devcentr.visual-app-editor on the Visual Studio Marketplace, or install visual-app-editor-0.1.0.vsix below with code --install-extension visual-app-editor-0.1.0.vsix.

What's in 0.1.0

Desktop editor

  • Open a Flutter project and edit pages visually with source round-trip; the toolbox is generated from Material, Cupertino and third-party packages; in-process preview; flutter run with hot reload on save.
  • Framework-neutral core, a headless JSON-RPC editing service, and Dart and React / React Native language adapters; the desktop app is a client of the service.
  • Device mode switcher (phone / tablet / desktop / web).
  • Project file visual_app_editor.sdl (the older widget_bench.sdl is still read).

IDE plugins

  • IntelliJ IDEA / Android Studio 2026.2+ (visual-app-editor-intellij-0.1.0.zip, install from disk): tool window with widget tree, properties, toolbox, device switcher and wireframe; undoable edits via the service.
  • VS Code 1.100+: Widget Tree view and Inspector (properties, toolbox, device switcher); each edit is one undo step.
  • New document/sync protocol method so editors push unsaved buffer text.

Fixes

  • Adapter process failures are reported (error -32040 with the adapter's stderr) instead of showing an empty page list.
  • Empty property fields no longer show type names such as Color; only real defaults appear as hints.

Downloads

Platform File
Windows x64 VisualAppEditor-0.1.0-windows-x64-setup.exe
Windows arm64 VisualAppEditor-0.1.0-windows-arm64-setup.exe
Linux x64 VisualAppEditor-0.1.0-x64.AppImage, visual-app-editor_0.1.0_amd64.deb
Linux arm64 VisualAppEditor-0.1.0-arm64.AppImage, visual-app-editor_0.1.0_arm64.deb
macOS arm64 VisualAppEditor-0.1.0-macos-arm64.dmg (unsigned: right-click > Open the first time)
IntelliJ / Android Studio visual-app-editor-intellij-0.1.0.zip
VS Code visual-app-editor-0.1.0.vsix (the exact package published to the Marketplace)

The IDE plugins drive the editing service; until compiled service binaries ship, point them at dart run <checkout>/packages/service/bin/vae_service.dart. Full changelog: CHANGELOG.adoc.
