Search autocomplete #985

archdragon · 2019-03-26T22:50:38Z

Add autocomplete (drop-down with suggestions) to search

Demo: [ Demo link ]

Additional demos:

Description

Adds a drop-down with search suggestions
- Suggestions update as you type
- If suggestion belongs to a model (i.e. a function) it will display the module name under it.
- Marks callbacks/types with a special label.
- Searches through regular modules, behaviours, mix tasks, regular functions, callbacks and types
- Supports up/down arrow shortcuts and CTRL+ENTER shortcut for opening the result page in new window
- Handles special characters (ie. searching for ++ or @)
- Displays max 5 results
- suggestion spec file describes the autocomplete logic in depth
Layout updates
- Night mode button moved to the footer
- Also in the footer, added a button for displaying keyboard shortcuts help
- Search box now has a background and is located at the very top of the page

Full text search compatibility

This feature is fully compatible with the full-text search. I've brought back the findIn function in the search.js. While the search page no longer needs it, autocomplete still uses the basic module/function search.

TODO (in scope of this PR):

Ensure that 'x' always clears the autocomplete.
Move findIn to the 'suggestions.js'.
Ensure that Module.function syntax works
Refactor findIn to cleanup and simplify the remaining 'old search' code

assets/js/search.js

assets/test/search.spec.js

wojtekmach · 2019-03-26T23:05:58Z

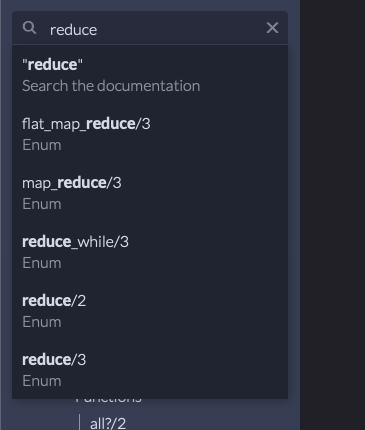

How are we sorting results? I think it'd be good if in this case reduce/2 is towards top of the list. Sorting search results is not an easy problem; I recently saw an article with some heuristics and I'll try to find the link.

Seems we're only autocompleting a module or a function/type/callback/etc, what do you think about something like above?

josevalim · 2019-03-26T23:13:32Z

Awesome job @archdragon!

I have dropped two comments and I have one last question: should clicking on the "X" clean up the autocomplete/search field? That was my expectation but I am not sure if it is rooted in reality.

josevalim · 2019-03-26T23:15:16Z

How are we sorting results?

Once you find the link please open a separate issue. :) I don't want to block this one on that since the behaviour you describe was also available before (but I guess it is somewhat worse here because we limit the results to only 5).

Seems we're only autocompleting a module or a function/type/callback/etc, what do you think about something like above?

I also spotted this but I opened a separate issue (since the code behaves like this already today): #986.

archdragon · 2019-03-26T23:20:28Z

How are we sorting results?

Currently it depends on the suggestion type:

  'Module': 3,
  'Child': 2,
  'Exception': 1,
  'Mix Task': 0

Higher number == higher on the list. Child means anything that belongs to a module (function/callback/type)

Seems we're only autocompleting a module or a function/type/callback/etc, what do you think about something like above?

That makes sense - the reason it works as it does right now is that I've used existing search functionality for finding matching elements. Now that we have the full-text search (and module/function search functionality is used by autocomplete only) I might be able to add that functionality, but I'll dig a bit and check!

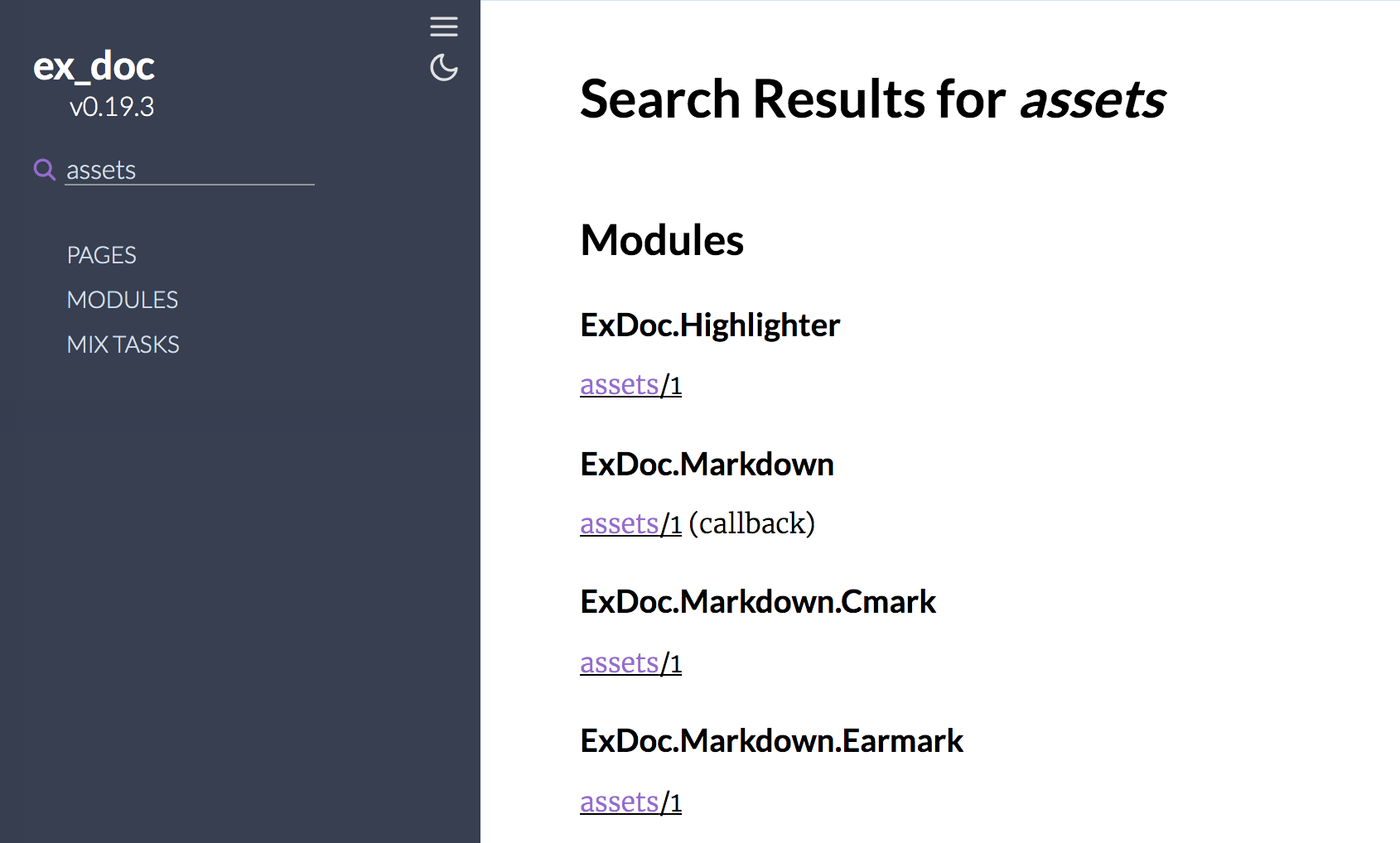

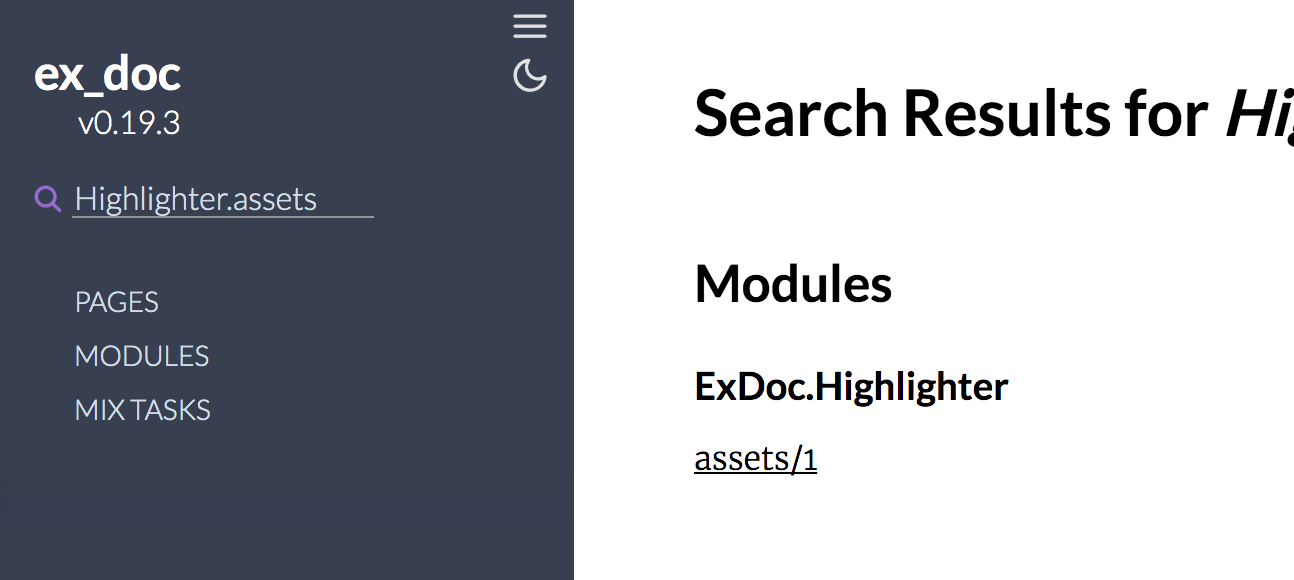

Slight correction: "Old search" had this functionality, but such results were not marked as "matched". Ie:

vs

and, since search was returning all functions if module name matches, autocomplete is only interested in highlighted ones and ignores all the rest.

archdragon · 2019-03-27T07:40:38Z

Awesome job @archdragon!

Thank you!

... I have one last question: should clicking on the "X" clean up the autocomplete/search field? That was my expectation but I am not sure if it is rooted in reality.

👍 This is how it's supposed to work - but looks like the input was sometimes triggering the animation/state change before the click event could register. Fixed! (and reuploaded the demo)

archdragon · 2019-03-27T23:37:46Z

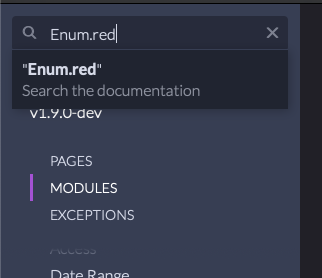

Demo link now includes the Mod.fun search. I left some extra info in the related issue: #986

Now cleaning up and refactoring the "old search" code.

josevalim · 2019-03-28T08:26:38Z

Demo link now includes the Mod.fun search. I left some extra info in the related issue: #986

Beautiful! ❤️

assets/less/sidebar.less

josevalim · 2019-03-28T20:24:10Z

lib/ex_doc/formatter/html/templates/footer_template.eex

+          </span>
+        </p>
+        <p>
+          <button class="line footer-button night-mode-toggle">


The "toggle night mode" is not working for me on the latest demo (autocomplete_mod_fun).

…ther

archdragon · 2019-03-28T22:58:43Z

I've added the sort we discussed in #987 to the demo. Since I was refactoring some of the "old search" code it was more or less a one-liner. :)

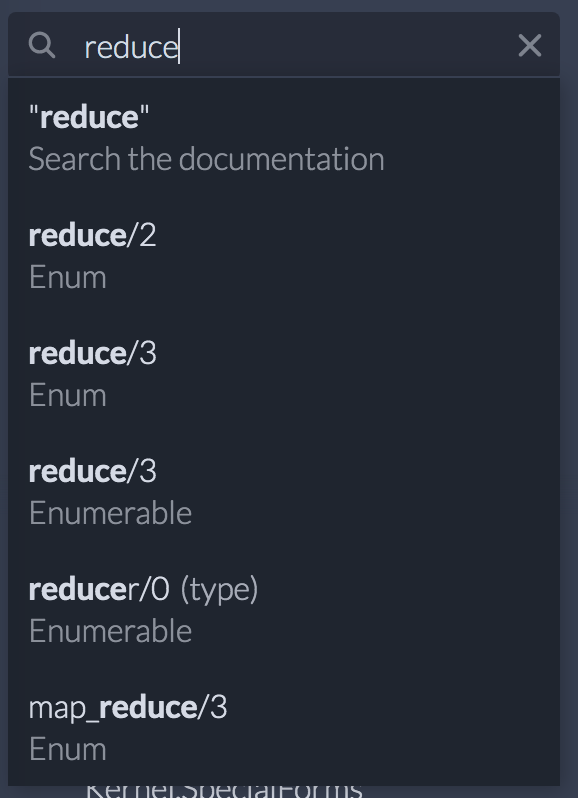

As we discussed, the results are now sorted based on match chars cout / total chars count. reduce (from the @wojtekmach 's example) now looks like this:

josevalim · 2019-03-29T08:08:42Z

As we discussed, the results are now sorted based on match chars cout / total chars count. reduce (from the @wojtekmach 's example) now looks like this:

This is glorious! Please let us know whenever it is ready to merge, as we are pretty much looking forward to it! :D

archdragon · 2019-03-29T11:48:03Z

This is glorious! Please let us know whenever it is ready to merge, as we are pretty much looking forward to it! :D

Thank you! Just wanted to do some manual cross-browser testing in the morning - I'm now done with that.

To sum up:

I've simplified the matches-finding code and added extra comments
Fixed issues with night mode button not triggering change on really long pages
Added better sorting
Added support for "Mad.fun" search

I've updated the demos and uploaded some examples for ex_unit, eex etc.

From my side the PR is ready for review/merge :)

josevalim · 2019-03-29T11:48:45Z

❤️ 💚 💙 💛 💜 ❤️ 💚 💙 💛 💜 ❤️ 💚 💙 💛 💜
