mongodb-js · mabaasit · May 19, 2022 · May 16, 2022 · May 17, 2022 · May 17, 2022
@@ -101,6 +101,7 @@
   },
   "dependencies": {
     "@mongodb-js/compass-logging": "^0.12.0",
+    "@mongodb-js/explain-plan-helper": "^0.9.0",
     "@mongodb-js/mongodb-redux-common": "^1.12.0",
     "acorn-loose": "^8.0.2",
     "astring": "^1.7.0",

@@ -0,0 +1,25 @@
+import React from 'react';
+import { Badge, BadgeVariant, Body } from '@mongodb-js/compass-components';
+import type { IndexInformation } from '@mongodb-js/explain-plan-helper';
+
+type ExplainIndexesProps = {
+  indexes: IndexInformation[];
+};
+
+export const ExplainIndexes: React.FunctionComponent<ExplainIndexesProps> = ({
+  indexes,
+}) => {
+  if (indexes.filter(({ index }) => index).length === 0) {
+    return <Body weight="medium">No index available for this query.</Body>;
+  }
+
+  return (
+    <div>
+      {indexes.map((info, idx) => (
+        <Badge key={idx} variant={BadgeVariant.LightGray}>
+          {info.index} {info.shard && <>({info.shard})</>}
+        </Badge>
+      ))}
+    </div>
+  );
+};
@@ -0,0 +1,64 @@
+import React from 'react';
+import { Body, Subtitle, css, spacing } from '@mongodb-js/compass-components';
+import type { IndexInformation } from '@mongodb-js/explain-plan-helper';
+
+import { ExplainIndexes } from './explain-indexes';
+
+type ExplainQueryPerformanceProps = {
+  executionTimeMillis: number;
+  nReturned: number;
+  usedIndexes: IndexInformation[];
+};
+
+const containerStyles = css({
+  display: 'flex',
+  gap: spacing[3],
+  flexDirection: 'column',
+});
+
+const statsStyles = css({
+  gap: spacing[1],
+  display: 'flex',
+  flexDirection: 'column',
+});
+
+const statItemStyles = css({
+  display: 'flex',
+  gap: spacing[1],
+});
+
+const statTitleStyles = css({
+  whiteSpace: 'nowrap',
+});
+
+export const ExplainQueryPerformance: React.FunctionComponent<ExplainQueryPerformanceProps> =
+  ({ nReturned, executionTimeMillis, usedIndexes }) => {
+    return (
+      <div
+        className={containerStyles}
+        data-testid="pipeline-explain-results-summary"
+      >

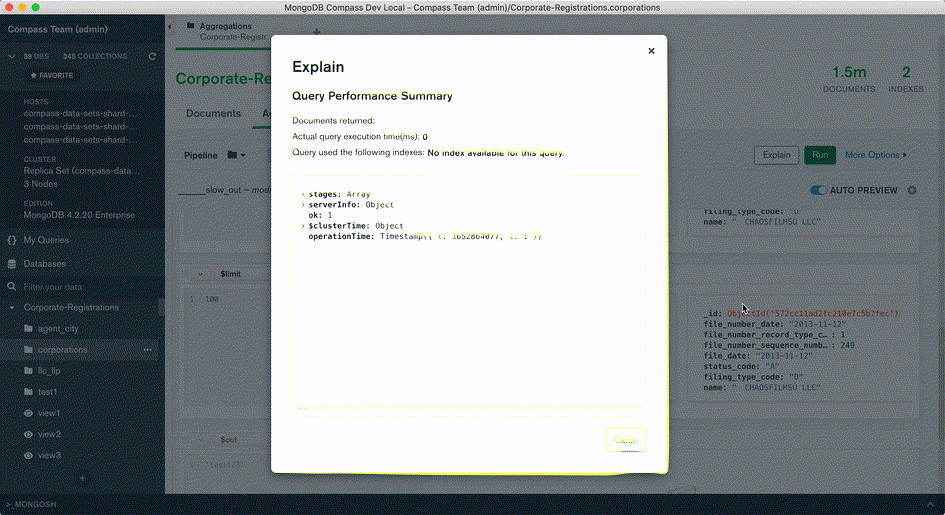

+        <Subtitle>Query Performance Summary</Subtitle>
+        <div className={statsStyles}>
+          {typeof nReturned === 'number' && (
+            <div className={statItemStyles}>
+              <Body>Documents returned:</Body>
+              <Body weight="medium">{nReturned}</Body>
+            </div>
+          )}
+          {executionTimeMillis > 0 && (
+            <div className={statItemStyles}>
+              <Body>Actual query execution time(ms):</Body>
+              <Body weight="medium">{executionTimeMillis}</Body>
+            </div>
+          )}
+          <div className={statItemStyles}>
+            <Body className={statTitleStyles}>
+              Query used the following indexes:
+            </Body>
+            <ExplainIndexes indexes={usedIndexes} />
+          </div>
+        </div>
+      </div>
+    );
+  };
@@ -0,0 +1,53 @@
+import React from 'react';
+import { css, spacing, Card } from '@mongodb-js/compass-components';
+import { Document } from '@mongodb-js/compass-crud';
+import HadronDocument from 'hadron-document';
+
+import type { ExplainData } from '../../modules/explain';
+import { ExplainQueryPerformance } from './explain-query-performance';
+
+type ExplainResultsProps = {
+  plan: ExplainData['plan'];
+  stats?: ExplainData['stats'];
+};
+
+const containerStyles = css({
+  display: 'flex',
+  flexDirection: 'column',
+  gap: spacing[4],
+});
+
+const cardStyles = css({
+  // 170px works with minimum-height of compass
+  // todo: handle height for bigger sized compass
+  height: '170px',
+  overflowY: 'scroll',
+});
+
+export const ExplainResults: React.FunctionComponent<ExplainResultsProps> = ({
+  plan,
+  stats,
+}) => {
+  return (
+    <div className={containerStyles} data-testid="pipeline-explain-results">
+      {stats && (
+        <ExplainQueryPerformance
+          nReturned={stats.nReturned}
+          executionTimeMillis={stats.executionTimeMillis}
+          usedIndexes={stats.usedIndexes}
+        />
+      )}
+      <Card className={cardStyles} data-testid="pipeline-explain-results-json">
+        <Document
+          doc={plan}
+          editable={false}
+          copyToClipboard={() => {
+            void navigator.clipboard.writeText(
+              new HadronDocument(plan).toEJSON()
+            );
+          }}
+        />
+      </Card>
+    </div>
+  );
+};
@@ -0,0 +1,109 @@
+import React from 'react';
+import type { ComponentProps } from 'react';
+import { render, screen, within } from '@testing-library/react';
+import userEvent from '@testing-library/user-event';
+import { spy } from 'sinon';
+import { expect } from 'chai';
+
+import { PipelineExplain } from './index';
+
+const renderPipelineExplain = (
+  props: Partial<ComponentProps<typeof PipelineExplain>> = {}
+) => {
+  render(
+    <PipelineExplain
+      isLoading={false}
+      isModalOpen={true}
+      onCancelExplain={() => {}}
+      onCloseModal={() => {}}
+      onRunExplain={() => {}}
+      {...props}
+    />
+  );
+};
+
+describe('PipelineExplain', function () {
+  it('renders loading state', function () {
+    const onCancelExplainSpy = spy();
+    renderPipelineExplain({
+      isLoading: true,
+      onCancelExplain: onCancelExplainSpy,
+    });
+    const modal = screen.getByTestId('pipeline-explain-modal');
+    expect(within(modal).getByTestId('pipeline-explain-cancel')).to.exist;
+    expect(onCancelExplainSpy.callCount).to.equal(0);
+
+    userEvent.click(within(modal).getByText(/cancel/gi), null, {
+      skipPointerEventsCheck: true,
+    });
+    expect(onCancelExplainSpy.callCount).to.equal(1);
+
+    expect(() => {
+      within(modal).getByTestId('pipeline-explain-footer-close-button');
+    }, 'does not show footer in loading state').to.throw;
+  });
+
+  it('renders error state', function () {
+    renderPipelineExplain({
+      error: 'Error occurred',
+    });
+    const modal = screen.getByTestId('pipeline-explain-modal');
+    expect(within(modal).getByTestId('pipeline-explain-error')).to.exist;
+    expect(within(modal).findByText('Error occurred')).to.exist;
+    expect(() => {
+      within(modal).getByTestId('pipeline-explain-retry-button');
+    }).to.throw;
+
+    expect(within(modal).getByTestId('pipeline-explain-footer-close-button')).to
+      .exist;
+  });
+
+  it('renders explain results - without stats', function () {
+    renderPipelineExplain({
+      explain: {
+        plan: {
+          stages: [],
+        },
+      },
+    });
+    const results = screen.getByTestId('pipeline-explain-results');
+    expect(within(results).getByTestId('pipeline-explain-results-json')).to
+      .exist;
+    expect(() => {
+      within(results).getByTestId('pipeline-explain-results-summary');
+    }).to.throw;
+
+    expect(screen.getByTestId('pipeline-explain-footer-close-button')).to.exist;
+  });
+
+  it('renders explain results - with stats', function () {
+    renderPipelineExplain({
+      explain: {
+        stats: {
+          executionTimeMillis: 20,
+          nReturned: 100,
+          usedIndexes: [{ index: 'name', shard: 'shard1' }],
+        },
+        plan: {
+          stages: [],
+        },
+      },
+    });
+    const results = screen.getByTestId('pipeline-explain-results');
+    expect(results).to.exist;
+    expect(within(results).getByTestId('pipeline-explain-results-json')).to
+      .exist;
+
+    const summary = within(results).getByTestId(
+      'pipeline-explain-results-summary'
+    );
+    expect(summary).to.exist;
+
+    expect(within(summary).getByText(/documents returned/gi)).to.exist;
+    expect(within(summary).getByText(/actual query execution time/gi)).to.exist;
+    expect(within(summary).getByText(/query used the following indexes/gi)).to
+      .exist;
+
+    expect(screen.getByTestId('pipeline-explain-footer-close-button')).to.exist;
+  });
+});
@@ -1,36 +1,103 @@
 import React from 'react';
-import { Modal, H3, Body } from '@mongodb-js/compass-components';
+import {
+  css,
+  spacing,
+  Modal,
+  CancelLoader,
+  H3,
+  ModalFooter,
+  Button,
+  ErrorSummary,
+} from '@mongodb-js/compass-components';
 import { connect } from 'react-redux';

 import type { RootState } from '../../modules';
-import { closeExplainModal } from '../../modules/explain';
+import type { ExplainData } from '../../modules/explain';
+import { closeExplainModal, cancelExplain } from '../../modules/explain';
+import { ExplainResults } from './explain-results';

 type PipelineExplainProps = {
   isModalOpen: boolean;
+  isLoading: boolean;
+  error?: string;
+  explain?: ExplainData;
   onCloseModal: () => void;
+  onCancelExplain: () => void;
 };

+const contentStyles = css({
+  marginTop: spacing[3],
+  marginBottom: spacing[3],
+});
+
+const footerStyles = css({
+  paddingRight: 0,
+  paddingBottom: 0,
+});
+
 export const PipelineExplain: React.FunctionComponent<PipelineExplainProps> = ({
   isModalOpen,
+  isLoading,
+  error,
+  explain,
   onCloseModal,
+  onCancelExplain,
 }) => {
+  let content = null;
+  if (isLoading) {
+    content = (
+      <CancelLoader
+        data-testid="pipeline-explain-cancel"
+        cancelText="Cancel"
+        onCancel={() => onCancelExplain()}
+        progressText="Running explain"
+      />
+    );
+  } else if (error) {
+    content = (
+      <ErrorSummary data-testid="pipeline-explain-error" errors={error} />
+    );
+  } else if (explain) {
+    content = <ExplainResults plan={explain.plan} stats={explain.stats} />;
+  }
+
+  if (!content) {
+    return null;
+  }
+
   return (
     <Modal
       setOpen={onCloseModal}
       open={isModalOpen}
       data-testid="pipeline-explain-modal"
     >
       <H3>Explain</H3>
-      <Body>Implementation in progress ...</Body>
+      <div className={contentStyles}>{content}</div>
+      {!isLoading && (
+        <ModalFooter className={footerStyles}>
+          <Button
+            onClick={onCloseModal}
+            data-testid="pipeline-explain-footer-close-button"
+          >
+            Close
+          </Button>
+        </ModalFooter>
+      )}
     </Modal>
   );
 };

-const mapState = ({ explain: { isModalOpen } }: RootState) => ({
-  isModalOpen: isModalOpen,
+const mapState = ({
+  explain: { isModalOpen, isLoading, error, explain },
+}: RootState) => ({
+  isModalOpen,
+  isLoading,
+  error,
+  explain,
 });

 const mapDispatch = {
   onCloseModal: closeExplainModal,
+  onCancelExplain: cancelExplain,
 };
 export default connect(mapState, mapDispatch)(PipelineExplain);
