Bug fix rotate bvec #543
Merged
Bug fix rotate bvec #543
Conversation
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
… without fieldmap files - Added use_fieldmap flag to create_dmri_preprocessing
…put rotated_bvecs file and offsetting the correction by one volume. Noted that the first two entries in the rotated_bvec files were 0,0,0 when the bvalues of the first two files were 0 and 1000. Plotting the original bvec against the rotated bvec (X component) showed what appeared to be a single volume offset (see black and red traces in attached plot) code issue: _rotate_bvec code initialised its output bvec array with the first entry of the input bvec array and then looped through FLIRT matrices starting at 1st position, but used a 0-based index for selecting the input from the bvec array solution : initialise output array filled with zeros, loop through FLIRT matrices from 0, use 0-based indexing for selecting input from the bvec array, set consecutive elements appropriately testing : nothing, other than plotting the X component for one subject
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
Add this suggestion to a batch that can be applied as a single commit.
This suggestion is invalid because no changes were made to the code.
Suggestions cannot be applied while the pull request is closed.
Suggestions cannot be applied while viewing a subset of changes.
Only one suggestion per line can be applied in a batch.
Add this suggestion to a batch that can be applied as a single commit.
Applying suggestions on deleted lines is not supported.
You must change the existing code in this line in order to create a valid suggestion.
Outdated suggestions cannot be applied.
This suggestion has been applied or marked resolved.
Suggestions cannot be applied from pending reviews.
Suggestions cannot be applied on multi-line comments.
Suggestions cannot be applied while the pull request is queued to merge.
Suggestion cannot be applied right now. Please check back later.
noted issues: FA files looked funny after processing with this pipeline, the first two entries in the rotated_bvec files were 0,0,0 when the bvalues of the first two files were 0 and 1000.
Plotting the original bvec against the rotated bvec (X component) showed what appeared to be a single volume offset (see black and red traces in attached plot)
code issue: _rotate_bvec code initialised its output bvec array with the first entry of the input bvec array and then looped through FLIRT matrices starting at 1st position, but used a 0-based index for selecting the input from the bvec array
solution : initialise output array filled with zeros, loop through FLIRT matrices from 0, use 0-based indexing for selecting input from the bvec array, set consecutive elements appropriately
testing : nothing, other than plotting the X component for one subject

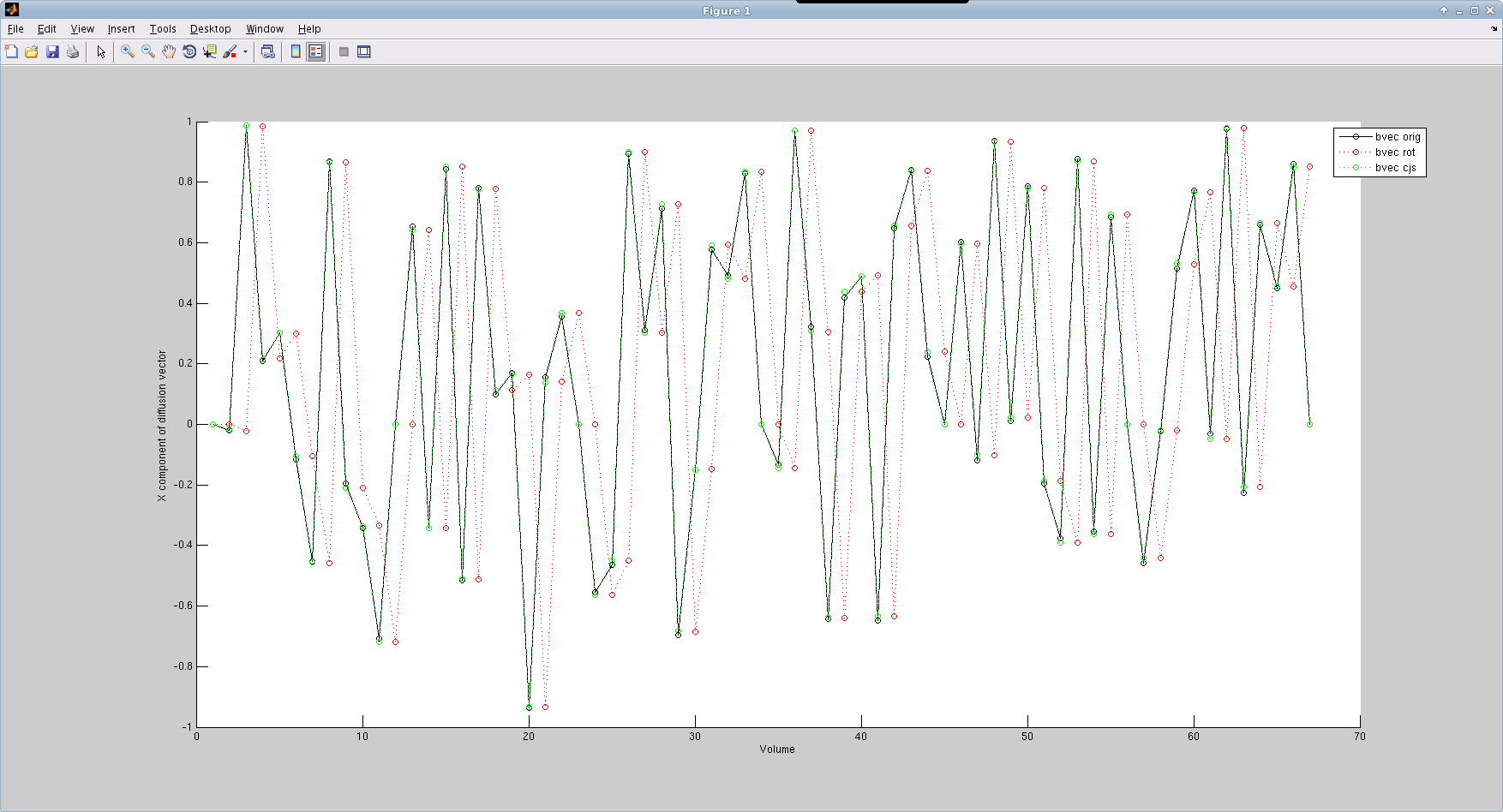

I attached the plot, where black = original bvec, red = rotated bvec, green = rotated bvec with my solution. The other thing that you can see in this plot is that there are regularly spaced x=0s in both the original and my version where the b=0 volumes were collected (7 in total).
(This also includes the changes that I made in the previous pull request.)
