add_layout_image doesn't work with a local image

[MaxGhenis]

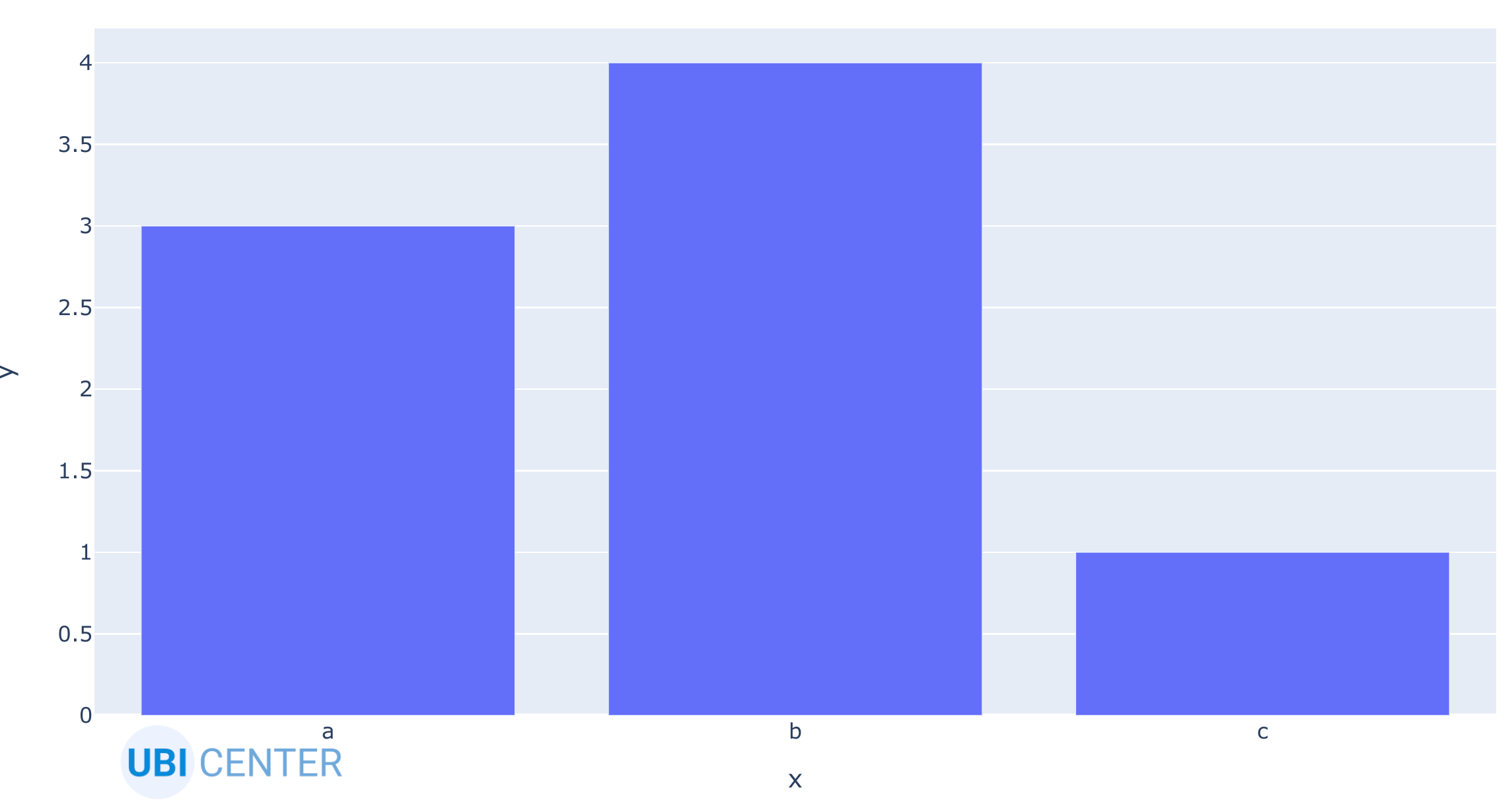

add_layout_image works for me with a web-hosted image, e.g.:

fig = px.bar(x=['a', 'b', 'c'], y=[3, 4, 1])
fig.add_layout_image(dict(
    source="https://raw.githubusercontent.com/UBICenter/blog/master/jb/_static/ubi_center_logo_wide_blue.png",
    sizex=0.2, sizey=0.2))

But when passing the identical image, stored locally, nothing shows up:

fig.add_layout_image(dict(
    source="../_static/ubi_center_logo_wide_blue.png",
    sizex=0.2, sizey=0.2))

I'm on plotly 4.14.1.

[Nemecsek]

It should works with

source=url_for('static', filename='ubi_center_logo_wide_blue.png)

I am not really into it, but I assume you cannot use _static but only the standard static as base dir.

[MaxGhenis]

That didn't work. Here's a notebook with a more reproducible example, it downloads the file into the working directory:

import plotly.express as px
import flask

!wget https://raw.githubusercontent.com/UBICenter/blog/master/jb/_static/ubi_center_logo_wide_blue.png

fig = px.bar(x=['a', 'b', 'c'], y=[3, 4, 1])
fig.add_layout_image(dict(
    source=flask.url_for("static", filename="ubi_center_logo_wide_blue.png"),
    sizex=0.2, sizey=0.2))

RuntimeError: Attempted to generate a URL without the application context being pushed. This has to be executed when application context is available.

[Nemecsek]

wget is not saving in the canonical /static folder which url_for will point to. You are downloading in the working dir, but asking to read it from /static.
The notebook works correctly if, instead of source=flask.url_for(..), you load the image with source="ubi_center_logo_wide_blue.png"

[MaxGhenis]

Moving the file into /static produced the same error above, and pointing to the file directly if it's in the working directory produces the initially reported issue: the image doesn't show up. Both cases are in the notebook.

[Nemecsek]

Hi Max. Activating the browser Inspector, you see that when you ask for your `source="ubi_center_logo_wide_blue.png"` it tries to download it from: ` https://colab.research.google.com/tun/m/m-s-34o95fke9keq5/ubi_center_logo_wide_blue.png?authuser=0`. This return "*404*: Not found". Accessing this address directly in the browser it returns "*400.* That’s an error. That’s all we know." When it fails, it tries again from ` https://localhost:8080/ubi_center_logo_wide_blue.png`, a local server that's not active, and "*500*: Not found" is returned. All together *it looks like it is Colab related*. When I tried on my local server and jupyter notebook I didn't see the problem. I gave a look around but couldn't find a workaround. Are you finally publishing it on Colab or on a local Jypiter notebook?

…

On Thu, Dec 24, 2020 at 5:15 AM Max Ghenis ***@***.***> wrote: Moving the file into /static produced the same error above, and pointing to the file directly if it's in the working directory produces the initially reported issue: the image doesn't show up. Both cases are in the notebook <https://colab.research.google.com/drive/1MfdPWmdGc2O-NquRYlXuC0cjaYnofzfY?usp=sharing#scrollTo=UOjURIl484fS> . — You are receiving this because you commented. Reply to this email directly, view it on GitHub <#2975 (comment)>, or unsubscribe <https://github.com/notifications/unsubscribe-auth/AGGGNKHQCZ5XQTTMWHSAFK3SWK54XANCNFSM4U3JW5PQ> .

[gvwilson]

Hi - we are trying to tidy up the stale issues and PRs in Plotly's public repositories so that we can focus on things that are still important to our community. Since this one has been sitting for several years, I'm going to close it; if it is still a concern, please add a comment letting us know what recent version of our software you've checked it with so that I can reopen it and add it to our backlog. Thanks for your help - @gvwilson
