WAV Trigger

WAV Trigger
WAV Trigger (WIG-12000)

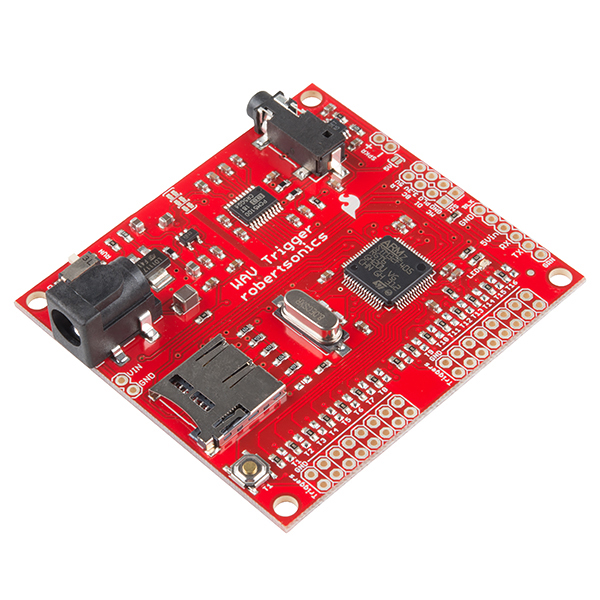

The WAV Trigger is similar to its cousin, the MP3 Trigger, however it plays .WAV files and allows them to be mixed on the fly.

This board was created in Eagle v6.0.5.

Repository Contents

  • /Hardware - Eagle PCB layout files (.brd, .sch)
  • /Production - Test bed files and production panel files

Version History

  • vH10 First production run.

License Information

All contents of this repository are released under Creative Commons Share-alike 3.0.


Jamie Robertson @ robertsonics Jordan McConnell @ SparkFun Electronics
