Don't reorder data during faceting. #2694

Merged
merged 3 commits into from Jul 10, 2018

Conversation

@clauswilke
Copy link
Member

@clauswilke clauswilke commented Jun 10, 2018

This addresses the underlying reason for #2693, data are reordered during faceting. With this patch, data order is not changed anymore in facet_grid() or facet_wrap(). This enables data vectors to be provided via aes() or as parameters.

library(ggplot2)

df <- data.frame(x = 1:4,
                 y = 1:4,
                 label1 = c("a", "b", "a", "b"),
                 label2 = c("c", "c", "d", "d"),
                 colour =  c("magenta", "green", "red", "cyan"))

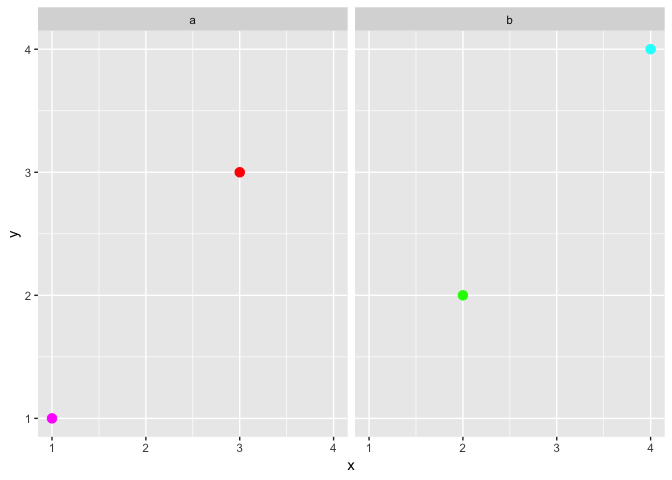

ggplot(df, aes(x, y, colour = df$colour)) +
  geom_point(size = 3) +
  facet_wrap(~label1) +
  scale_colour_identity()

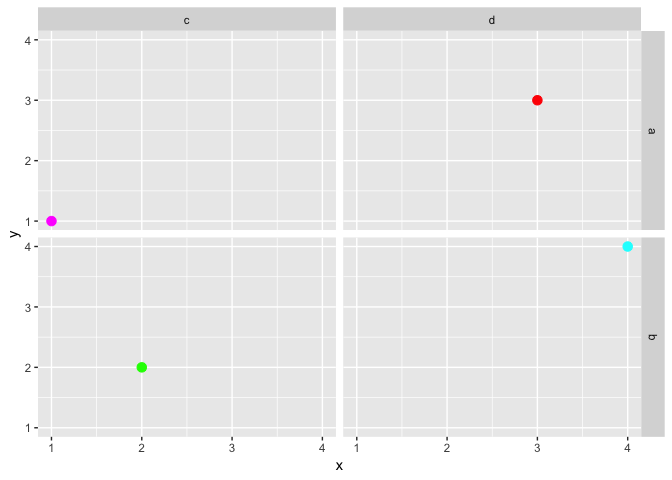

ggplot(df, aes(x, y, colour = df$colour)) +
  geom_point(size = 3) +
  facet_grid(label1~label2) +
  scale_colour_identity()

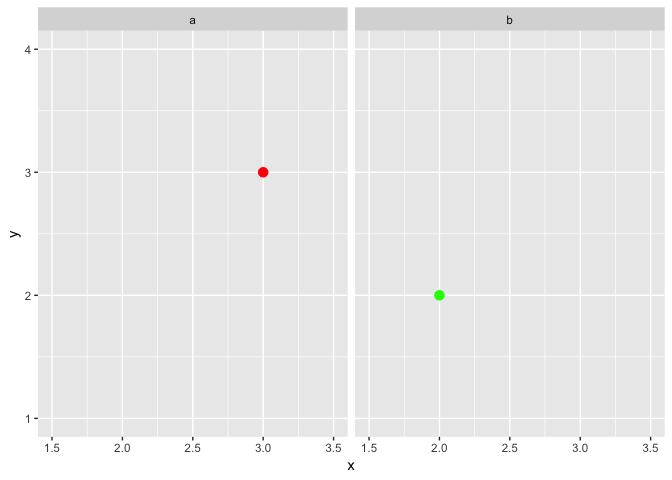

# things still work if some data points are removed by scale limits
ggplot(df, aes(x, y, colour = df$colour)) +
  geom_point(size = 3) +
  facet_wrap(~label1) +
  scale_x_continuous(limits = c(1.5, 3.5)) +
  scale_colour_identity()
#> Warning: Removed 2 rows containing missing values (geom_point).

ggplot(df, aes(x, y, colour = df$colour)) +
  geom_point(size = 3) +
  facet_grid(label1~label2) +
  scale_x_continuous(limits = c(1.5, 3.5)) +
  scale_colour_identity()
#> Warning: Removed 2 rows containing missing values (geom_point).

Created on 2018-06-10 by the reprex package (v0.2.0).

@hadley
Copy link
Member

@hadley hadley commented Jun 11, 2018

Let's hold of merging this until after the release.

@hadley
Copy link
Member

@hadley hadley commented Jul 8, 2018

Can you please add a news bullet?

Thanks for diagnosing this — it's going to fix a lot of broken plots in the wild!

@clauswilke clauswilke force-pushed the issue-2693-facets branch from 5f42807 to db34b88 Jul 9, 2018
@clauswilke clauswilke force-pushed the issue-2693-facets branch from db34b88 to 6460e56 Jul 10, 2018
@clauswilke
Copy link
Member Author

@clauswilke clauswilke commented Jul 10, 2018

News bullet added.

NEWS.md Outdated
(@mikmart, #2488).

# ggplot2 3.0.0
## Minor bug fixes and improvements
Copy link
Member

@hadley hadley Jul 10, 2018

Can you remove this heading please? It's easier to add these just before release. (http://style.tidyverse.org/news.html#news-bullets)

Copy link
Member Author

@clauswilke clauswilke Jul 10, 2018

Good you flagged that. I had also messed up the main heading in the rebase. Should be good now.

hadley
hadley approved these changes Jul 10, 2018
@clauswilke clauswilke merged commit 9b640c5 into tidyverse:master Jul 10, 2018
4 checks passed
@clauswilke clauswilke deleted the issue-2693-facets branch Jul 10, 2018
@lock
Copy link

@lock lock bot commented Jan 6, 2019

This old issue has been automatically locked. If you believe you have found a related problem, please file a new issue (with reprex) and link to this issue. https://reprex.tidyverse.org/

@lock lock bot locked and limited conversation to collaborators Jan 6, 2019
