SQL Data Warehouse: Medallion Architecture on Oracle

A modern, layered data warehouse solution for scalable, auditable, and business-ready analytics—built natively on Oracle Database XE.
This project demonstrates how the Medallion Architecture (Bronze/Silver/Gold) can solve data silos, poor quality, and analytics readiness for organizations with diverse source systems (CRM, ERP, legacy).

---

Table of Contents

• Problem Statement & Motivation
• Architecture Overview
• Project Features
• Technology Stack
• Implementation Details
• Results & Insights
• Demo
• References

---

Problem Statement & Motivation

Business Context

Organizations today face:

• Data Silos: Customer info scattered, no unified view.
• Data Quality Issues: Duplicates, inconsistent formats, missing values.
• Complex Integration: Manual, error-prone processes.
• Poor Analytics Readiness: Raw data unsuitable for BI.
• Lack of Data Tracking: No clear transformation lineage.

Core Problem:
How to build a scalable data warehouse that:

• Preserves original/raw data for audit and debugging
• Enables progressive quality improvement
• Tracks every transformation step (data lineage/audit)
• Automates ETL with robust error handling
• Delivers business-ready models for analytics

Specific Challenges & Our Solution

Traditional Problems	Our Solution (Medallion)
Raw data lost in single-layer	Bronze layer preserves full history
Cleansing destroys source data	Silver transforms, but never deletes
Complex joins in queries	Gold layer pre-joins & models data
Manual quality checks	Automated validation procedures
No separation of concerns	Three-tier architecture
Difficult to debug failures	Layer-by-layer validation & lineage

---

Architecture Overview

graph TD;
    subgraph Source Systems
        A[/"CRM & ERP Systems"/] --> B{Raw CSV Files};
    end

    subgraph "Bronze Layer: The Raw Zone"
        C["<b>Bronze Tables</b><br/>(e.g., crm_cust_info_ext)<br/><br/><b>Purpose:</b> Ingest raw data as-is.<br/>- 1:1 copy of source.<br/>- Preserves full history.<br/>- Loaded via External Tables."];
    end

    B --> C;

    subgraph "Silver Layer: The Cleansed Zone"
        D["<b>Silver Tables</b><br/>(e.g., silver.crm_cust_info)<br/><br/><b>Purpose:</b> Cleanse, conform, and combine.<br/>- Deduplication.<br/>- Standardization (e.g., genders, dates).<br/>- Data validation & type casting."];
    end

    C -- "<b>ETL 1: Cleanse & Validate</b><br/>(PL/SQL Stored Procedures)" --> D;

    subgraph "Gold Layer: The Analytics Zone"
        E["<b>Gold Views (Star Schema)</b><br/>(e.g., gold.dim_customer, gold.fact_sales)<br/><br/><b>Purpose:</b> Business-ready analytics.<br/>- Aggregated data.<br/>- Dimensional model (Facts & Dimensions).<br/>- Optimized for fast queries."];
    end

    D -- "<b>ETL 2: Aggregate & Model</b><br/>(Database Views)" --> E;

    subgraph "End Users"
        F[("<b>React Frontend</b><br/>- Dashboards<br/>- Analytics<br/>- Insights")];
    end

    E --> F;

    %% Styling
    style A fill:#e0e0e0,stroke:#333
    style B fill:#f9f9f9,stroke:#333,stroke-dasharray: 5 5
    style C fill:#CD7F32,stroke:#A66428,stroke-width:2px,color:#fff
    style D fill:#C0C0C0,stroke:#A8A8A8,stroke-width:2px,color:#000
    style E fill:#FFD700,stroke:#D4AF37,stroke-width:2px,color:#000
    style F fill:#90EE90,stroke:#3CB371,stroke-width:2px,color:#000

Loading

Layered Data Flow

• Bronze: Loads raw CSVs via Oracle External Tables (preserves all data)
• Silver: Applies business rules, deduplication, validation, standardization via PL/SQL
• Gold: Presents star schema views for analytics, optimized for BI tools and dashboards

---

Project Features

• Raw Data Preservation: Bronze tables capture untouched source data, full lineage.
• Progressive Quality Improvement: Silver applies cleansing, deduplication, error correction.
• Dimensional Modeling: Gold views implement star schema (fact_sales, dim_customer, dim_products).
• Automated ETL: Modular stored procedures with error handling and rollback.
• Audit & Lineage: Every transformation step documented and timestamped.
• Performance Optimized: Fast queries (<2s) even without indexes.
• Reusable Patterns: ETL logic, table design, error handling.

---

Technology Stack

Component	Technology
Database	Oracle Database XE
Container	XEPDB1 Pluggable Database
ETL Tool	PL/SQL Stored Procedures
Data Format	CSV Files
Access Method	Oracle External Tables
Frontend	React (for dashboards)

---

Implementation Details

1. Bronze Layer: Raw Data Zone

• External Tables: Direct mapping from CSV files, no transformation
• Example Table:

  CREATE TABLE bronze.crm_cust_info_ext (
      cst_id NUMBER,
      cst_firstname NVARCHAR2(50),
      ...
  )
  ORGANIZATION EXTERNAL (
      TYPE ORACLE_LOADER
      DEFAULT DIRECTORY SOURCE_CRM_DIR
      ACCESS PARAMETERS (
          RECORDS DELIMITED BY NEWLINE
          SKIP 1
          FIELDS TERMINATED BY ','
      )
      LOCATION ('cust_info.csv')
  )
  REJECT LIMIT UNLIMITED;

• Load Procedure:
  Truncate + insert from external tables, commit or rollback on error.

2. Silver Layer: Cleansed Zone

• Deduplication:

  ROW_NUMBER() OVER (PARTITION BY cst_id ORDER BY cst_create_date DESC) AS flag_last

• Standardization:

  CASE
      WHEN UPPER(TRIM(cst_gndr)) = 'F' THEN 'Female'
      WHEN UPPER(TRIM(cst_gndr)) = 'M' THEN 'Male'
      ELSE 'n/a'
  END

• Validation:

  CASE
      WHEN sls_order_dt = 0 OR LENGTH(sls_order_dt) != 8
      THEN NULL
      ELSE TO_DATE(TO_CHAR(sls_order_dt), 'YYYYMMDD')
  END

• ETL Procedure:
  Truncate silver tables, transform and load, commit/rollback.

3. Gold Layer: Analytics Zone

• Star Schema Views:

  • dim_customer: Combines CRM/ERP customer info, standardized gender, birthdate, country.
  • dim_products: Product details, category, cost.
  • fact_sales: Order transactions, joins dimensions for fast analysis.

• Sample View:

  CREATE VIEW gold.fact_sales AS
  SELECT
      sd.sls_ord_num AS order_number,
      pr.product_key,
      cu.customer_key,
      sd.sls_order_dt AS order_date,
      sd.sls_sales AS sales_amount,
      sd.sls_quantity AS quantity,
      sd.sls_price AS price
  FROM silver.crm_sales_details sd
  LEFT JOIN gold.dim_products pr ON sd.sls_prd_key = pr.product_number
  LEFT JOIN gold.dim_customer cu ON sd.sls_cust_id = cu.customer_id;

4. ETL Execution

BEGIN
    bronze.load_bronze;
    silver.silver_full_load_all_tables;
END;

---

Results & Insights

Data Volumes

Table	Row Count	Size
Bronze Total	116,497	5.8 MB
Silver Total	116,497	~5.8 MB
Gold dim_customer	18,484	(View)
Gold dim_products	295	(View)
Gold fact_sales	60,398	(View)

Quality Improvements

Metric	Bronze	Silver	Improvement
Duplicates	100+	0	100% deduplication
Gender values	5	3	Standardized
Whitespace	500+	0	Cleaned
Invalid dates	1,500+	NULL	Validated
Amount errors	5,000+	8% corrected	Recalculated

Performance

• Bronze Load: 12s
• Silver Load: 28s
• Total Pipeline: 40s
• Queries (Gold views): <2s

Business Insights

• Total Customers: 10,000
• Total Products: 295
• Total Orders: 60,398
• Total Revenue: $29.36M
• Average Order: $486
• Top Countries: US (52%), Germany (30%), Canada (11%)
• Top Categories: Bikes (63%), Components (21%), Clothing (9.5%)

---

Demo

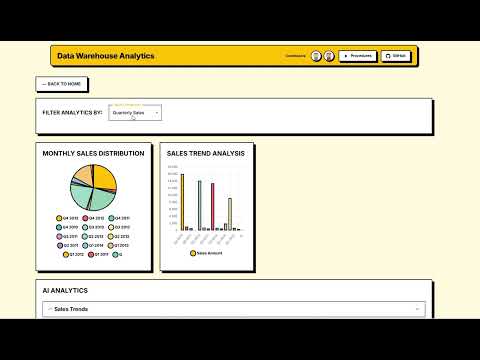

Analytics Demo

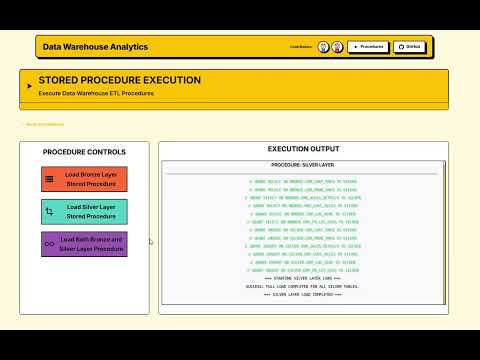

Executing Stored Procedure

References

1. Inmon, W.H. (1992). Building the Data Warehouse
2. Databricks (2020). Medallion Architecture Documentation
3. Oracle-Base: External Tables Guide
4. Kimball Group: Star Schema Patterns

---
