A development tool for visualizing DOMRect rectangles.
npm install -D rect-visualizer// while you import rect-visualizer, it will be assigned to window.rv
import rv from "rect-visualizer";

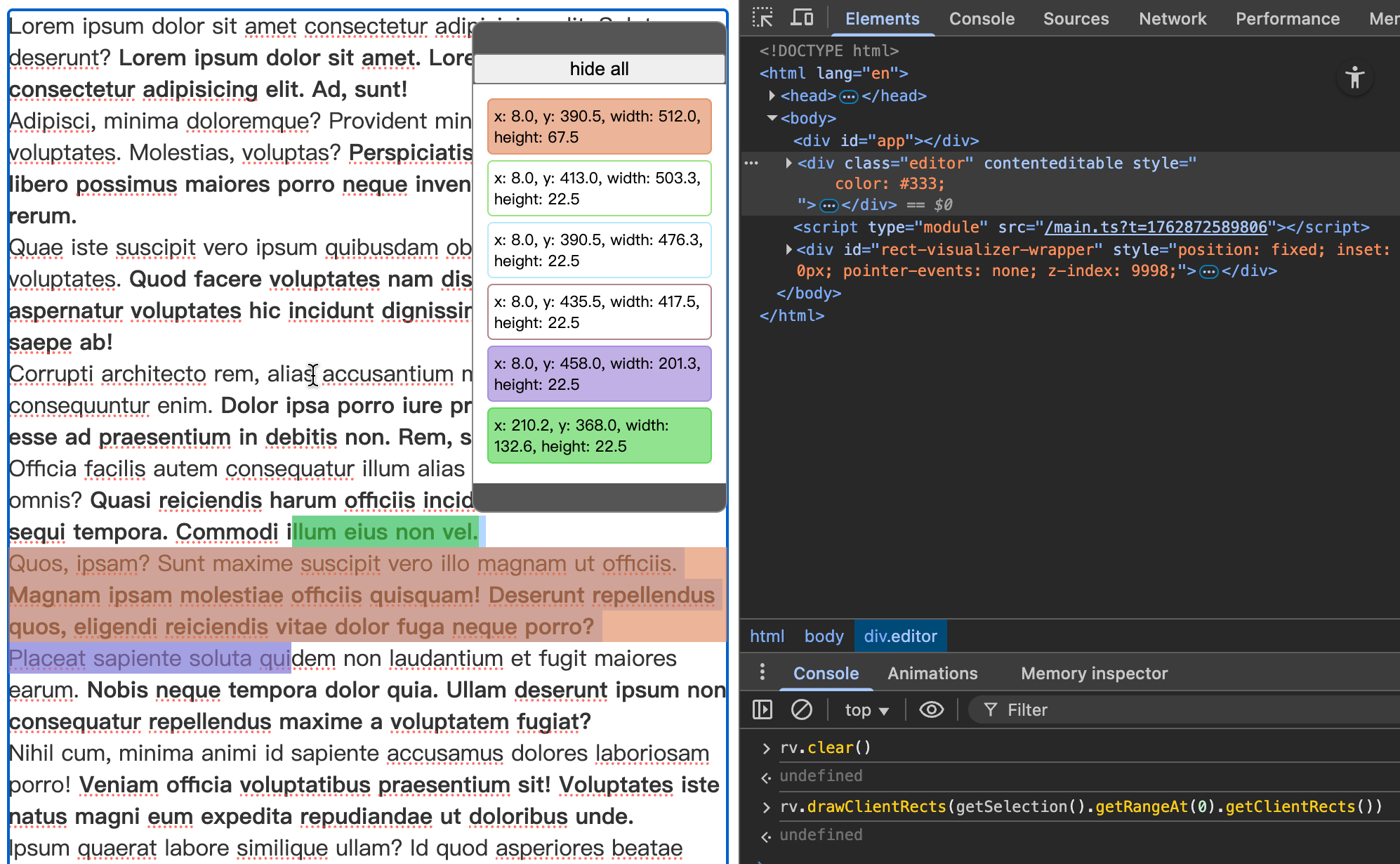

// you may get rects by Range.getClientRects while you have a selection
const rects = getSelection().getRangeAt(0)?.getClientRects() ?? [];
// draw rects, with 1px solid border to avoid invisible when width or height is 0
rv.drawClientRects(rects, {
// alpha: 0.6,
// clear: true,
// colors: ["red", "green", "blue"],
});
// or append a single rect (which can with a name).
rv.drawClientRect(someRect, {name: "SomeRect", color: "#239923aa"})
// clear all rects

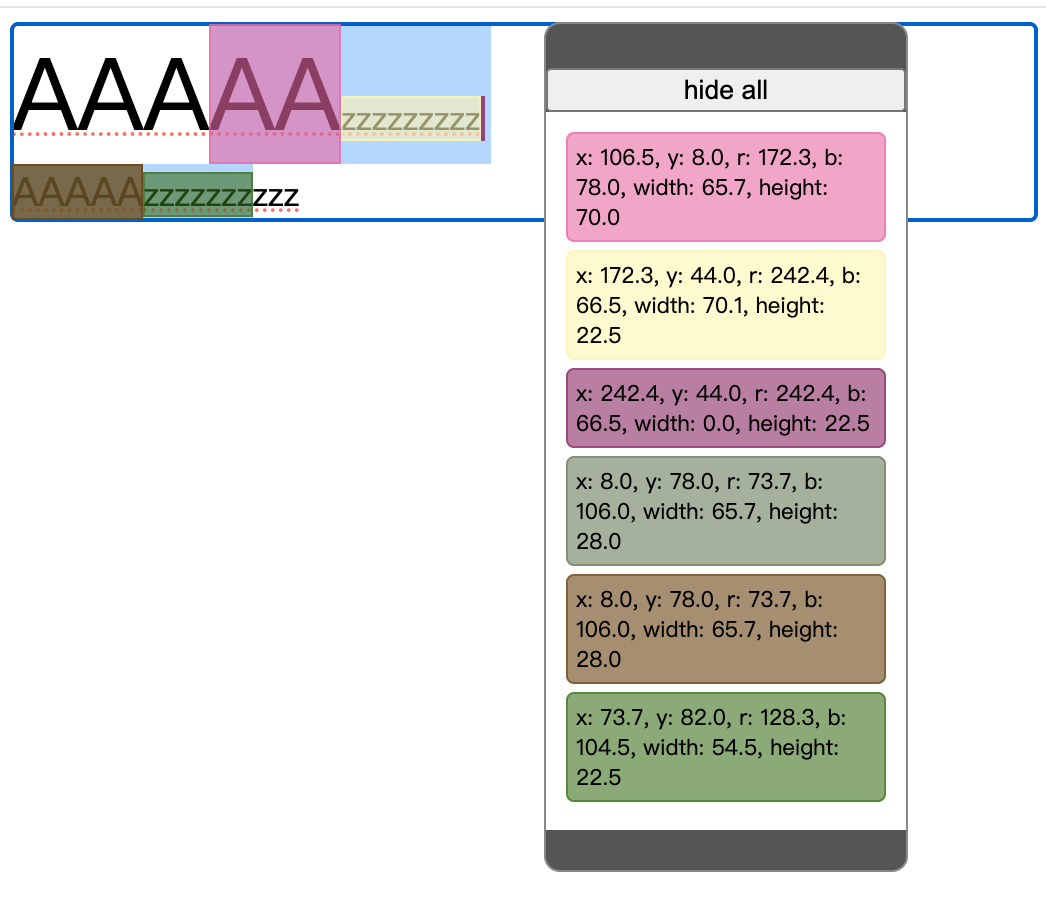

rv.clear();- click the item to toggle the visibility.
- double-click the item to remove it.
- drag at the top or bottom of the hover hub to move it.
