@MartinCupela MartinCupela commented Jul 7, 2022

🎯 Goal

Depends on GetStream/react-file-utils#69
Depends on GetStream/stream-chat-css#146
Fixes #1583

  1. Introduce class names used in V2 stylesheet by @stream-io/stream-chat-css and associated changes in markup. The goal is to keep the markup in sync with stream-chat-angular (see Message theme v2 stream-chat-angular#300)
  2. Create separate v1 and v2 components. This dichotomy is planned to be temporal. once the V1 styles are deprecated, the v1 components will be removed. Mainly:
    1. Audio (widget)
    2. Card
    3. FileAttachment
  3. Introduce grouping into attachment rendering - attachments of the same type are rendered together and not ad hoc. The groups are moreover ordered from top to bottom as follows:
    1. card (scraped content - only the first encountered scraped attachment)
    2. uploaded image (or gallery)
    3. uploaded video
    4. uploaded audio files
    5. uploaded text files
  4. Add refactor by @arnautov-anton where attachment components are not rendered by normal functions but by container components
  5. Scraped attachment rendered by the component called Card now renders as video, audio and image as follows:
    1. Og image + audio widget (og text info rendered within it)
    2. Video + og text info (title, text)
    3. Og image + og text info (this was the original implementation)
  6. FileAttachment component now uses new icon set from react-file-utils (see feat: add new set of file icons v2 react-file-utils#69)
  7. Parameter themeVersion has been added to the ChatContext to temporarily decide what component version to display
  8. Gallery and Image components have been refactored to allow rendering of custom image gallery in modal. New ModalGallery value has been added to the ComponentContext
  9. Gallery modal has in v2 background and overlay styling matching the styling of stream-chat-angular
  10. Date separator styles
  11. Long-term deprecated message components have been removed

🎨 UI Changes

What V1 V2 Figma

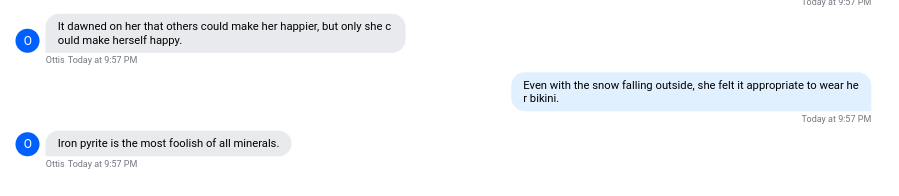

Message text image Screenshot 2022-06-07 at 14 56 14
Message error image Screenshot 2022-06-07 at 15 16 01
Message delivered status indicator (single checkmark) image image
Message read status image Screenshot 2022-06-07 at 15 10 58

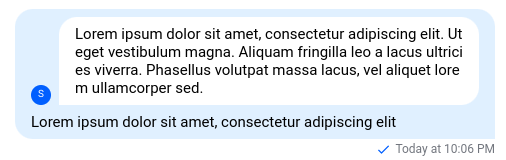

Quoted message image
Quoted message with attachment (does it make sense to keep the text to the side? What about readability?) image Screenshot 2022-06-07 at 15 19 37
Quoted message with scraped attachment image N/A

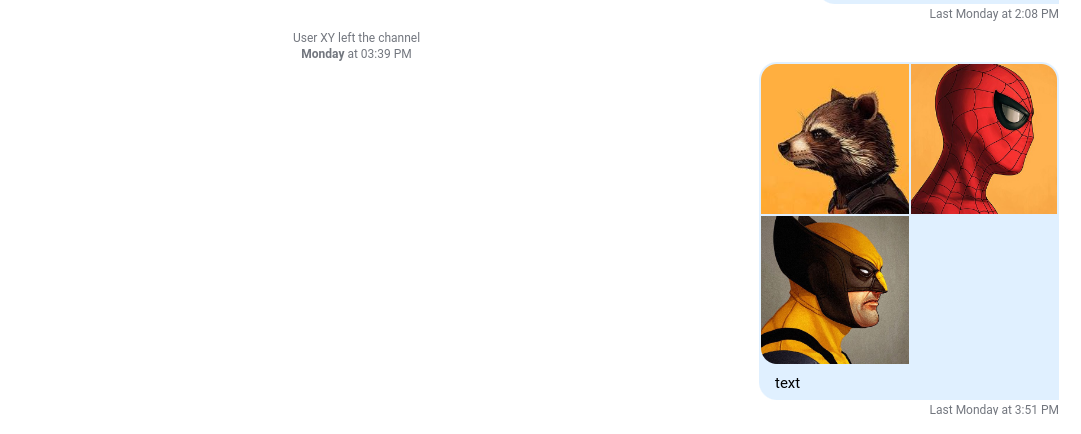

System message image Screenshot 2022-06-08 at 8 20 37
Date separator

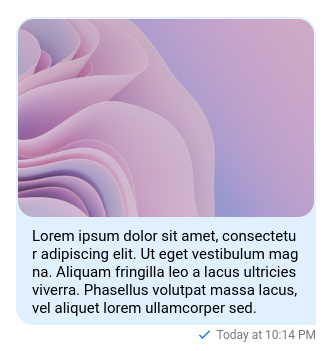

Uploaded single image attachment image image

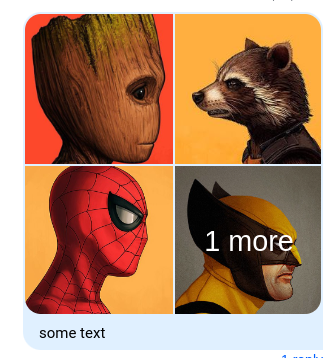

Uploaded multiple images attachment - gallery image image

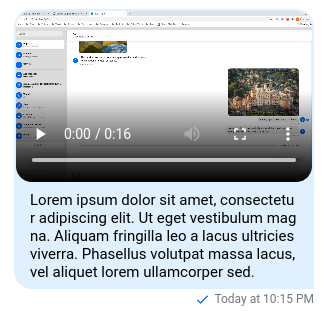

Uploaded video attachment image N/A

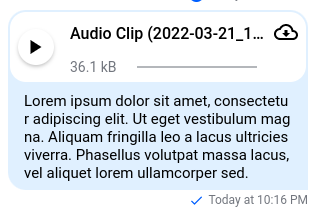

Uploaded audio attachment image image

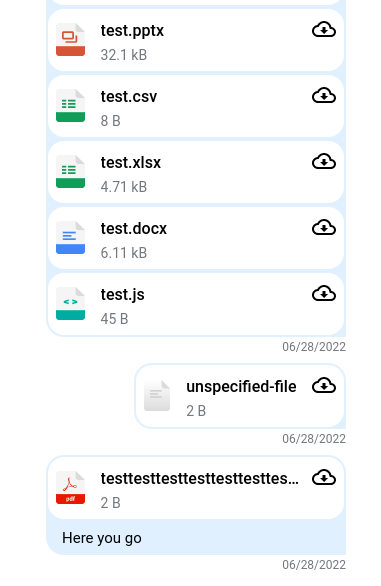

Uploaded file attachment image image

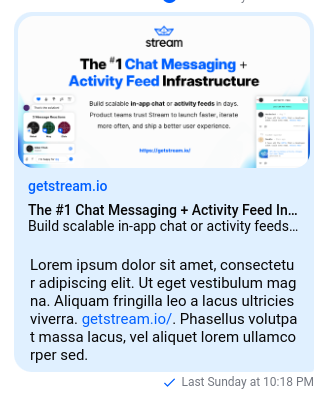

Scraped image attachment image image

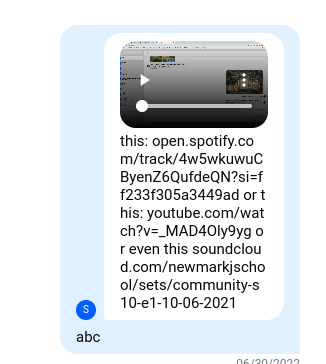

Scraped audio attachment image image

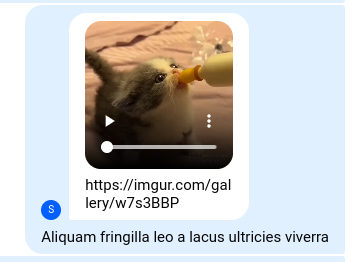

Scraped video attachment image image

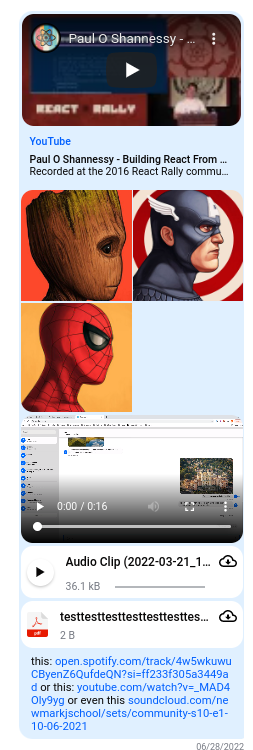

Combination of attachments in one massage image image
Giphy card with actions image Screenshot 2022-06-08 at 9 31 24
Giphy card sent image Screenshot 2022-06-08 at 9 31 37

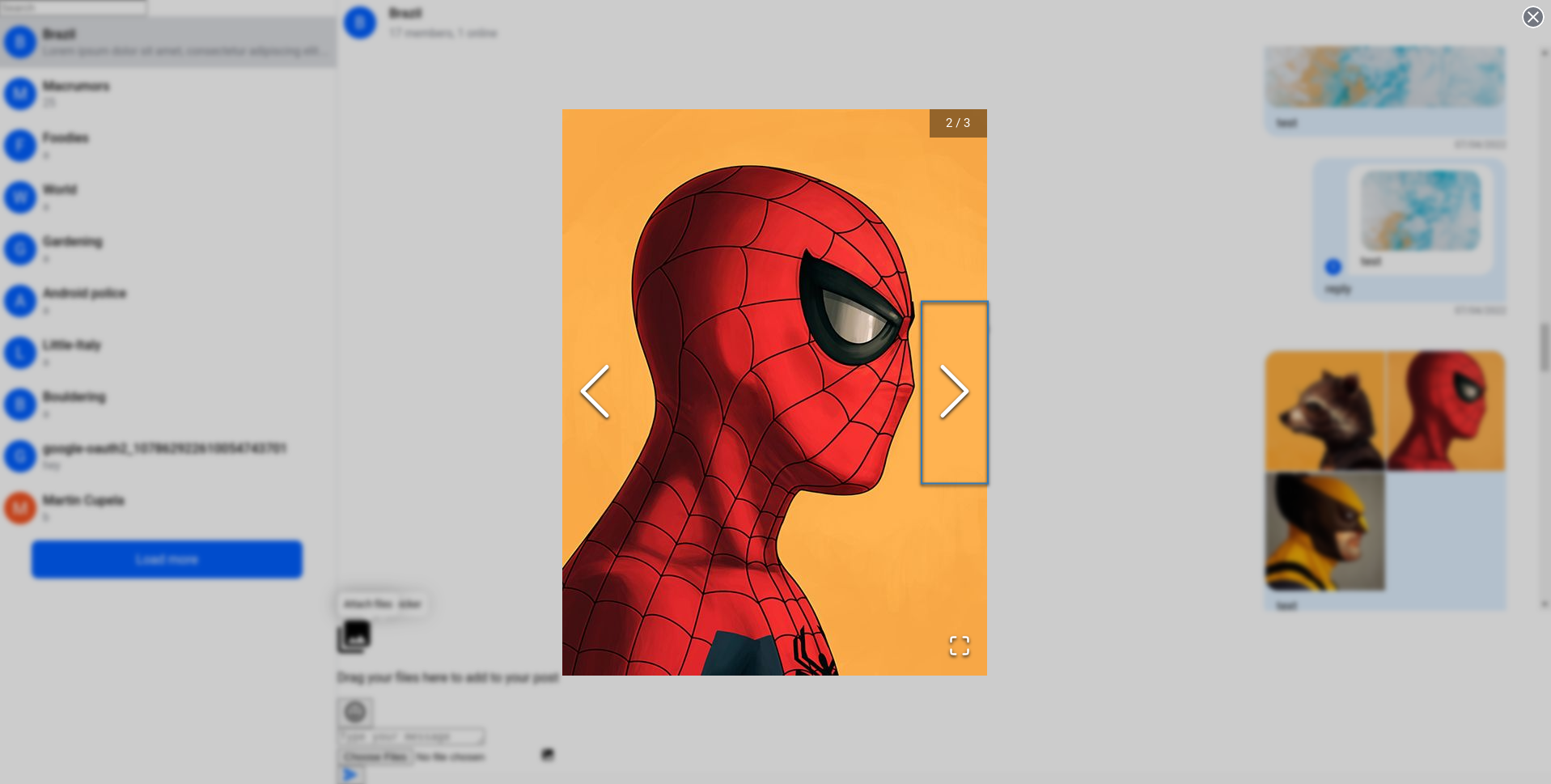

Modal gallery image N/A
Message actions menu image Screenshot 2022-06-08 at 8 25 14
Thread replies count button image Screenshot 2022-06-08 at 9 54 57

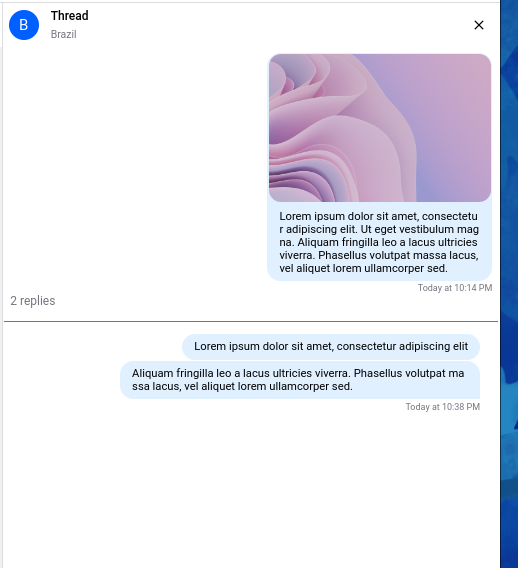

Thread header image image Screenshot 2022-06-08 at 9 58 36

Not implemented

Feature Figma design
Uploaded file attachment available locally (not implemented) - folder icon, audio length image

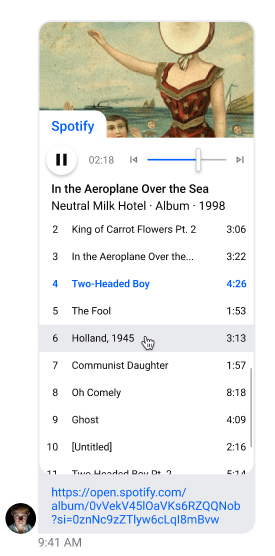

Audio playlist for scraped audio attachment image
Robust image carousel - solved in a separate PR N/A
Figma design missing for date separators - used the old styles N/A

MartinCupela and others added 25 commits June 24, 2022 19:44
@szuperaz
Copy link
Contributor

@szuperaz @arnautov-anton @oliverlaz When clicked on a download icon of a audio widget, the file is not downloaded but a new tab is opened with browser specific audio widget. There it is possible to also download the content. Is this a desired behavior or do we want the window.open() button click handler? That latter causes a page to blink and is more invasive I think. Or do you have some other suggestions?

Chrome audio widget in a new tab: image

I think it's ok to have this behavior

@codecov
Copy link

codecov bot commented Jul 22, 2022

Codecov Report

Merging #1665 (21152b5) into theming-v2 (430bf24) will increase coverage by 2.44%.
The diff coverage is 90.38%.

@@              Coverage Diff               @@
##           theming-v2    #1665      +/-   ##
==============================================
+ Coverage       79.54%   81.98%   +2.44%
==============================================
  Files             237      241       +4
  Lines            5851     5817      -34
  Branches         1643     1639       -4
==============================================
+ Hits             4654     4769     +115
+ Misses           1050      895     -155
- Partials          147      153       +6
Impacted Files Coverage Δ
src/components/Avatar/Avatar.tsx 100.00% <ø> (ø)
src/components/Channel/Channel.tsx 81.78% <ø> (ø)
src/components/Chat/hooks/useCreateChatContext.ts 100.00% <ø> (ø)
src/components/Message/MessageDeleted.tsx 100.00% <ø> (ø)
src/components/Message/MessageText.tsx 94.28% <ø> (ø)
src/components/Message/index.ts 100.00% <ø> (ø)
src/components/MessageInput/EditMessageForm.tsx 100.00% <ø> (ø)
src/components/MessageList/CustomNotification.tsx 100.00% <ø> (ø)
src/components/Thread/ThreadHead.tsx 100.00% <ø> (ø)
src/context/ChatContext.tsx 63.15% <ø> (ø)
... and 44 more

Continue to review full report at Codecov.

Legend - Click here to learn more
Δ = absolute <relative> (impact), ø = not affected, ? = missing data
Powered by Codecov. Last update 430bf24...21152b5. Read the comment docs.

@MartinCupela MartinCupela merged commit e5192d5 into theming-v2 Jul 22, 2022
@MartinCupela MartinCupela deleted the theming-v2-message-component branch July 22, 2022 13:17
@petyosi
Copy link
Contributor

petyosi commented Aug 18, 2022

🎉 This PR is included in version 10.0.0-theming-v2.1 🎉

The release is available on:

Your semantic-release bot 📦🚀

@petyosi
Copy link
Contributor

petyosi commented Sep 9, 2022

🎉 This PR is included in version 10.0.0 🎉

The release is available on:

Your semantic-release bot 📦🚀
