Your comment says:

...based on your feedback Jimi and IV. Maybe you have some extra pointers.

With that in mind, reading through the answer that you posted, it doesn't really capture my particular feedback of using a top level borderless form as a custom drop list for your combo box. So, I hoped that by laying out a basic implementation below maybe I could clarify what my suggestion would look like in code and on screen.

Sometimes we go to great lengths to do custom draws and such on ComboBox, trying to teach the proverbial pig to sing (which wastes your time and annoys the pig). In my own experience, it can be less painful to start from scratch, inheriting TableLayoutPanel instead of ComboBox (or any other control), and when the time comes to make the drop down visible, show a top level borderless Form containing a docked FlowLayoutPanel that in turn can hold "anything under the sun", making sure it tracks any movement of the TopLevelForm while it's visible.

---

The first thing out new control is going to need is an Items collection.

[DesignerSerializationVisibility(DesignerSerializationVisibility.Content)]
public BindingList<Item> Items { get; } = new BindingList<Item>();

Since the stated goal is adding some features, make a custom item that supports the functionality you intend. In this example, one such feature is individual drop down items that can be styled with ForeColor and BackColor, and can display with either a Button appearance or a CheckBox appearance.

public class Item
{
    public static implicit operator Item(string text) =>
        new Item { Text = text };
    public string Text { get; set; } = "Item";

    [Category("Appearance")]
    public Color BackColor { get; set; } = Color.White;

    [Category("Appearance")]
    public Color ForeColor { get; set; } = Color.Black;

    [Category("Style")]
    public ControlStyle ControlStyle { get; set; } = ControlStyle.Button;

    [Browsable(false)]
    internal CheckBox? Control { get; set; }

    public override string ToString() => Text;
}

Having a collection of items provides a more flexible alternative to the constructor you show in your answer:

public CustomComboBox(string initialDropDownButtonText, string[] itemsList){ ... }

Now, by exposing both the Items collection and perhaps a PlaceholderText property for when a selection has not been made, there are multiple ways to edit the items:

• Add the styled drop down items in the Designer so that they're compiled in.
• Modify the Items collection programmatically at runtime in the code.
• Provide the user with an interface to add or remove items dynamically at runtime.

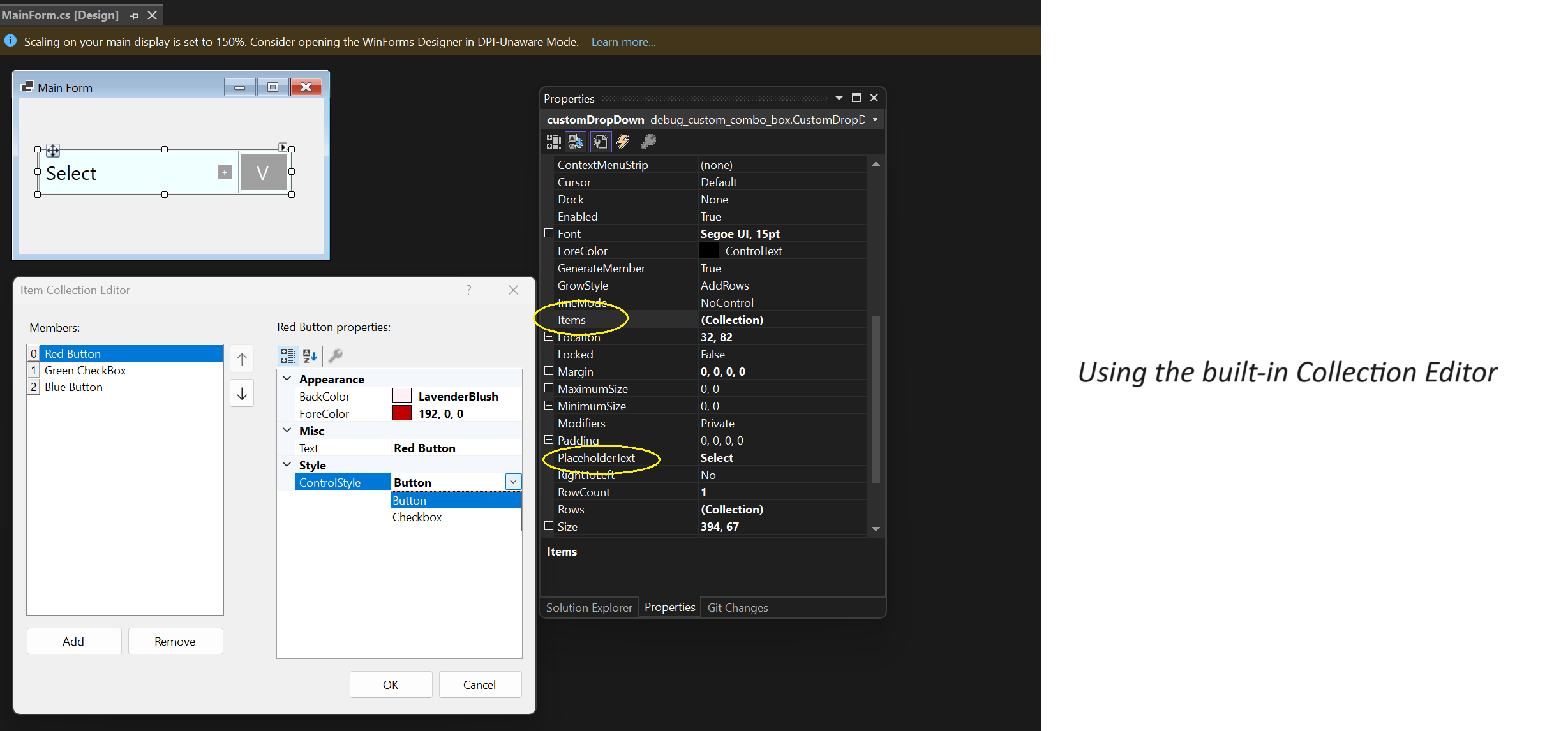

In the Designer

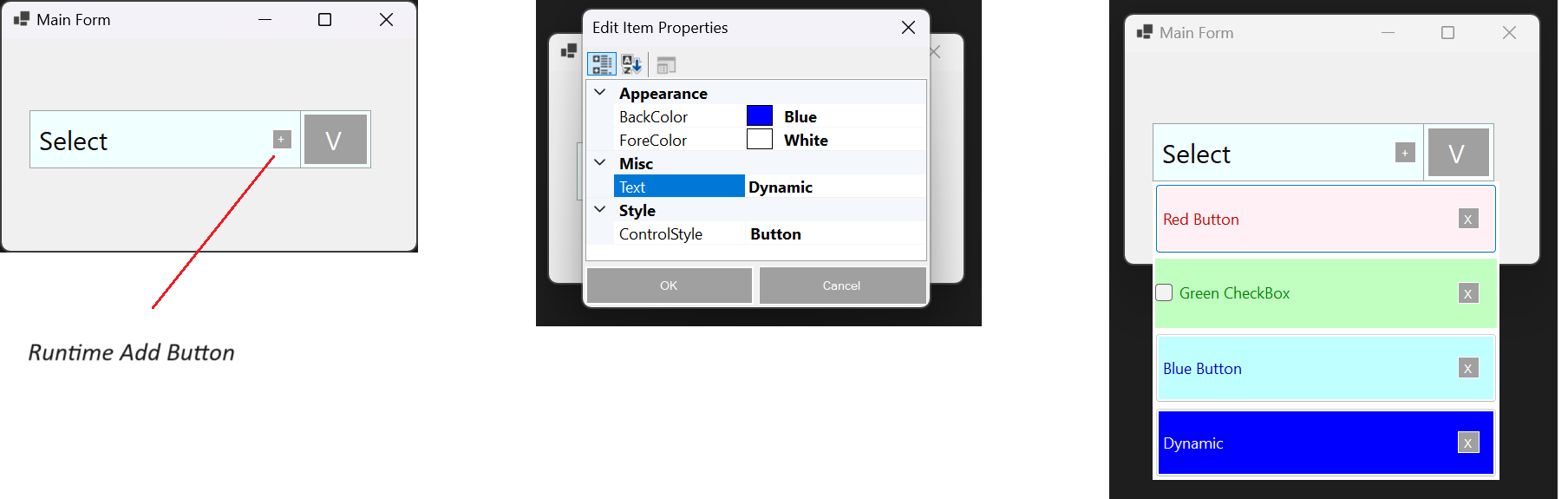

At runtime

---

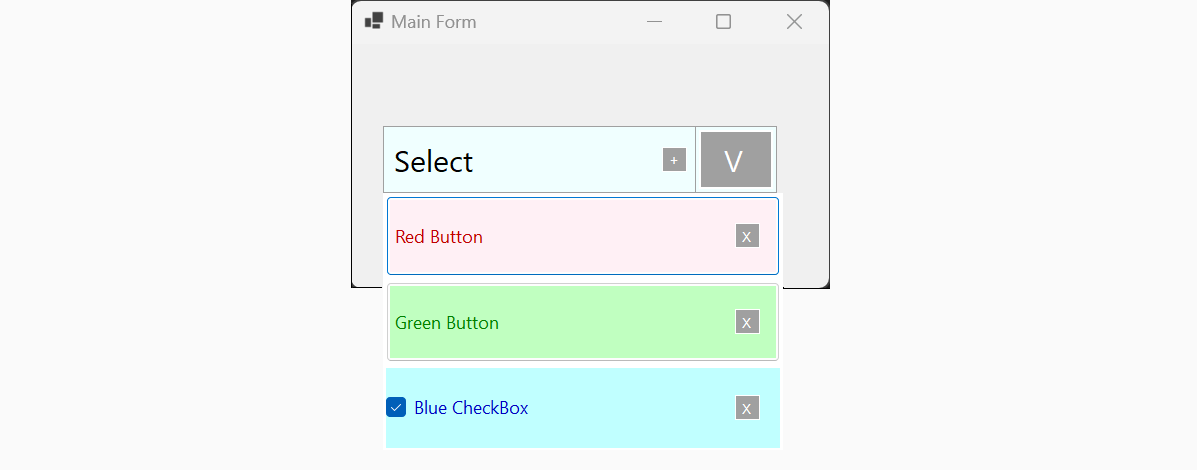

Here's how to "show a top-level borderless form..."

I had commented:

Start by inheriting TableLayoutPanel instead of ComboBox (or any other control), and when the time comes to make the drop down visible, show a top level borderless form with a docked FlowLayoutPanel that can contain "anything under the sun", making sure it tracks any movement of the TopLevelForm while it's visible.

Here's what a basic implementation of that comment looks like:

public class CustomDropDownListFromScratch : TableLayoutPanel, IMessageFilter
{
    public CustomDropDownListFromScratch()
    {
        AutoSize = true;
        Items.ListChanged += (sender, e) =>
        {
            CheckBox checkBox;
            Item item;
            switch (e.ListChangedType)
            {
                case ListChangedType.ItemAdded:
                    item = Items[e.NewIndex];
                    checkBox = new CheckBox
                    {
                        Text = item.Text,
                        Height = 80,
                        BackColor = item.BackColor,
                        ForeColor = item.ForeColor,
                        Appearance =
                            item.ControlStyle == ControlStyle.Checkbox ?
                            Appearance.Normal :
                            Appearance.Button,
                    };
                    checkBox.MouseDown += Any_ControlClick;
                    _flowLayoutPanel.Controls.Add(checkBox);
                    item.Control = checkBox;
                    break;
                case ListChangedType.ItemDeleted:
                    item = Items[e.OldIndex];
                    if(item.Control is Control control)
                    {
                        control.MouseDown -= Any_ControlClick;
                    }
                    break;
            }
        };
        _dropDownContainer.Controls.Add(_flowLayoutPanel);
        _dropDownContainer.VisibleChanged += (sender, e) =>
        {
            if (_dropDownContainer.Visible)
            {
                _dropDownContainer.Width = Width;
                foreach (var control in _flowLayoutPanel.Controls.OfType<Control>())
                {
                    control.Width = Width;
                }
            }
        };
        _dropDownContainer.FormClosing += (sender, e) =>
        {
            // Don't allow the drop down window to dispose!
            if (e.CloseReason == CloseReason.UserClosing)
            {
                e.Cancel = true;
                _dropDownContainer.Hide();
            }
        };
        _buttonDropDown.Click += (sender, e) =>
        {
            _dropDownContainer.Location = PointToScreen(new Point(0, this.Height));
            if(!_dropDownContainer.Visible) _dropDownContainer.Show(this);
        };
        Application.AddMessageFilter(this);
        Disposed += (sender, e) =>Application.RemoveMessageFilter(this);
    }

    private Form _dropDownContainer = new Form
    {
        StartPosition = FormStartPosition.Manual,
        TopLevel = true,
        MinimumSize = new Size(0, 80),
        FormBorderStyle = FormBorderStyle.None,
        BackColor= Color.White,
        AutoSize = true,
        AutoSizeMode = AutoSizeMode.GrowAndShrink
    };
    FlowLayoutPanel _flowLayoutPanel = new FlowLayoutPanel
    {
        Dock = DockStyle.Fill,
        AutoSize = true,
        AutoSizeMode = AutoSizeMode.GrowAndShrink,
        FlowDirection = FlowDirection.TopDown,
    };
    .
    .
    .
}

---

Full Example

My comment below provides a link to my GitHub repo where you can Browse or Clone how I added my extra features.

• Style drop down items with ForeColor and BackColor
• Display as either a Button appearance or a CheckBox appearance.
• Add or Remove styled items at runtime, with a custom PropertyGrid to edit new items.
• Make the dropdown, if visible, track movement of its parent form.
• Close the dropdown if [Escape] key is pressed, or if mouse is clicked "anywhere else".
• Toggle a checkbox without closing the dropdown.
• Toggle between Button appearance and CheckBox appearance at runtime using [Control] + Click.
• Reset to PlaceholderText if dynamic item removal makes it invalid.
