ZOrder not working properly for NumberPlane in 3D scenes #2447
Description
Description of bug / unexpected behavior

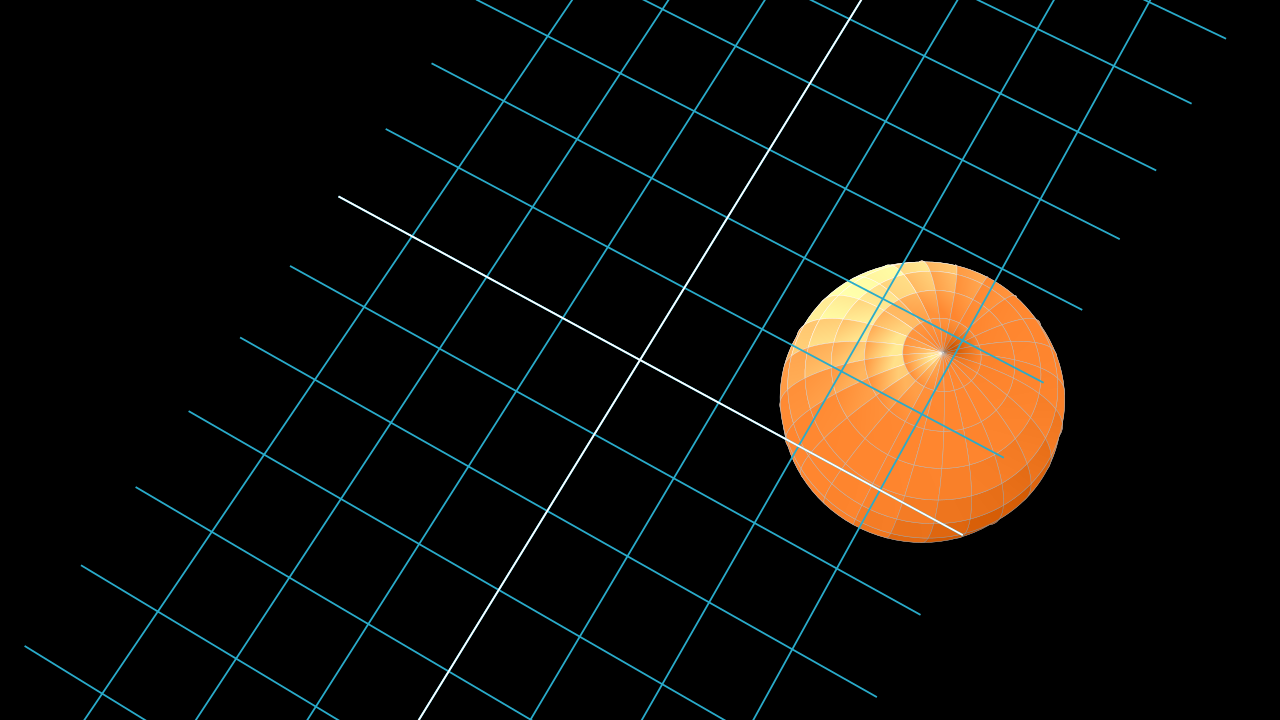

When plotting a sphere and a grid (NumberPlane) in a 3D scene, the NumberPlane is always rendered on top of the sphere (even when the sphere is over it). This does not happen with a ThreeDAxes object and a sphere, for example. Also setting the z_index has no effect.
(edit) Same wrong behavior when using Axes instead of ThreeDAxes. I understand that may happen due to mixing 2D and 3D Mobjects in the same scene, but I believe there are many good reasons to do this in animations (i.e.: using NumberPlane leads to much prettier results than using Surface to plot a simple 2D grid in 3D).
Expected behavior
The last added object should be rendered on top.
How to reproduce the issue
Code for reproducing the problem
from manim import *
config.media_width = "80%"%%manim -qm -v WARNING ExampleNumberPlaneError
class ExampleNumberPlaneError(ThreeDScene):
def construct(self):
axes = NumberPlane()
grid = Surface(
lambda u, v: np.array([u,v,0]),
u_range=[-4, 4],
v_range=[-4, 4],
resolution=8,
fill_opacity=0.0
)
self.set_camera_orientation(phi=PI / 9, theta=PI / 6)
sphere = Sphere(center=(0, 3, 3), radius=1.3)
sphere.set_fill(ORANGE)
self.add(axes,sphere)Additional media files
Images/GIFs
Logs
Terminal output
