trt-engine-explorer cannot load graph json files generated by trt8.6

[hhswgww]

Description

I was using trt8.5 before, and I can normally visualize the json file generated by the trtexec command （--loadEngine=$TRT_ENGINE --exportProfile=$PROFILE_JSON --exportLayerInfo=$GRAPH_JSON） through trt-engine-explorer, and get the corresponding svg map.

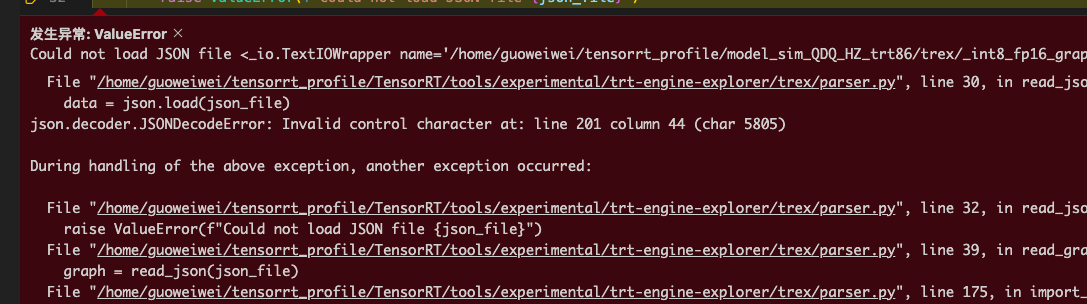

Now I have installed the new trt8.6 EA version through the tar installation package, but the json file it generates contains a lot of illegal characters, which makes the visualization process impossible.

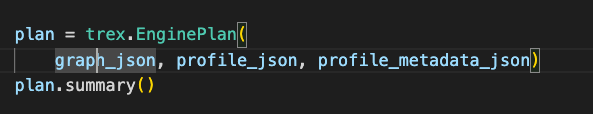

I visualize the calculation graph through the following python api

I also tried adding “static=false” to json.load() function,but the output svg picture is incomplete like this:

Environment

TensorRT Version: 8.6 EA
NVIDIA GPU: tried on A100 and 3080, consistent phenomenon
NVIDIA Driver Version:
CUDA Version: 11.4 on A100；11.7 on 3080

i don't think it is a cuda-related problem ; It is guessed that the root of the problem is that there is a certain error in the way trtexec exports the json file

Relevant Files

Steps To Reproduce

[hhswgww]

json from trt8.6 be like

from 8.5 be like

[zerollzeng]

Asked internally.

[zerollzeng]

We will fix this in the next OSS release. Thanks!

[ttyio]

Closing since no activity for more than 3 weeks, pls reopen if you still have question. thanks!
