[Button] Improve the disclosure API for button, allowing user to specify the direction the disclosure icon faces #2431

qq99 · 2019-11-14T15:31:02Z

WHY are these changes introduced?

We have a need to use a Button to control the collapsed/expanded state of a Collapsible. When the collapsible is collapsed, we want to say Show more with downwards caret. When expanded, we want to say Show less with upwards caret.

The previous API is respected, so this is purely an opt-in enhancement

The icon will animate via CSS transition

How to 🎩

🖥 Local development instructions
🗒 General tophatting guidelines
📄 Changelog guidelines

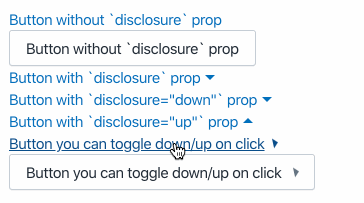

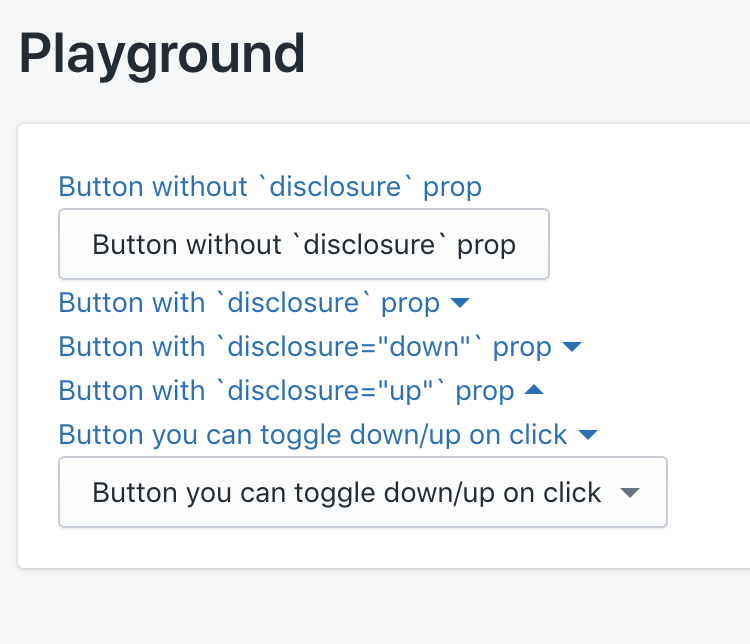

Copy-paste this code in playground/Playground.tsx:

import React from 'react';
import {Page, Card, Button} from '../src';

export function Playground() {
  const [expanded, setExpanded] = React.useState(false);

  return (
    <Page title="Playground">
      <Card sectioned>
        <Button plain>Button without `disclosure` prop</Button>
        <br />
        <Button>Button without `disclosure` prop</Button>
        <br />
        <Button plain disclosure>
          Button with `disclosure` prop
        </Button>
        <br />
        <Button plain disclosure="down">
          Button with `disclosure="down"` prop
        </Button>
        <br />
        <Button plain disclosure="up">
          Button with `disclosure="up"` prop
        </Button>
        <br />
        <Button
          plain
          disclosure={expanded ? 'up' : 'down'}
          onClick={() => setExpanded(!expanded)}
        >
          Button you can toggle down/up on click
        </Button>
        <br />
        <Button
          disclosure={expanded ? 'up' : 'down'}
          onClick={() => setExpanded(!expanded)}
        >
          Button you can toggle down/up on click
        </Button>
      </Card>
    </Page>
  );
}

🎩 checklist

Tested on mobile
Tested on multiple browsers
Tested for accessibility
Updated the component's README.md with documentation changes
Tophatted documentation changes in the style guide
For visual design changes, pinged one of @ HYPD, @ mirualves, @ sarahill, or @ ry5n to update the Polaris UI kit

github-actions · 2019-11-14T15:33:02Z

💦 Potential splash zone of changes introduced to src/**/*.tsx in this pull request:

Files modified	5
Files potentially affected	54

Details

All files potentially affected (total: 54)

📄 UNRELEASED.md (total: 0)

Files potentially affected (total: 0)

🎨 src/components/Button/Button.scss (total: 54)

Files potentially affected (total: 54)

🧩 src/components/Button/Button.tsx (total: 53)

Files potentially affected (total: 53)

📄 src/components/Button/README.md (total: 0)

Files potentially affected (total: 0)

🧩 src/components/Button/tests/Button.test.tsx (total: 0)

Files potentially affected (total: 0)

This comment automatically updates as changes are made to this pull request.
Feedback, troubleshooting: open an issue or reach out on Slack in #polaris-tooling.

qq99 · 2019-11-14T15:45:57Z

I think percy bugged out? 🤔 Showing visual diff that I can't see locally

src/components/Button/Button.tsx

dleroux · 2019-11-14T16:09:43Z

The code looks good. I just question the animation. Since we don't have this type of animation today it sort of took me by surprise. Maybe @sarahill or @johanstromqvist can share their thoughts.

UNRELEASED.md

qq99 · 2019-11-14T16:16:45Z

I'm cool without the animation too, just have it instantaneous, whichever most people prefer

The implementation on today's OrderDetails page has no animation

dleroux · 2019-11-14T16:19:07Z

I think percy bugged out? 🤔 Showing visual diff that I can't see locally

It's fine, it's because you added a new example.

dleroux · 2019-11-14T16:20:13Z

I'm cool without the animation too, just have it instantaneous, whichever most people prefer

The implementation on today's OrderDetails page has no animation

I lean towards no animation, but let's see what the people I pinged think.

BPScott · 2019-11-14T16:38:06Z

For the upwards caret I think we should use the proper icon CaretUpMinor instead of rendering CaretDownMinor upside down

qq99 · 2019-11-14T16:57:38Z

I chose to use the same icon (but rotate it) for the CSS transitions, otherwise it would be impossible

If we want to go static and no animations, we could use CaretUpMinor

johanstromqvist · 2019-11-14T17:06:41Z

I don't have any strong opinions on the animation. If it does a good job for the user, I don't think it's a problem that it's novel.

Is it necessary? No I don't think so.
Is it an improvement from immediate change? Yes, I think it does add some context and responsiveness to the UI.

The animation probably looks more prominent isolated in the GIF, than it would when implemented. If the caret rotates together and in sync with the expand/collapse, I think the eye will be drawn to the content, not the caret.

UNRELEASED.md

qq99 · 2019-11-18T16:10:19Z

Good to ship? Anyone 2nd ✅ ?

brandon-yetman · 2019-11-19T20:09:47Z

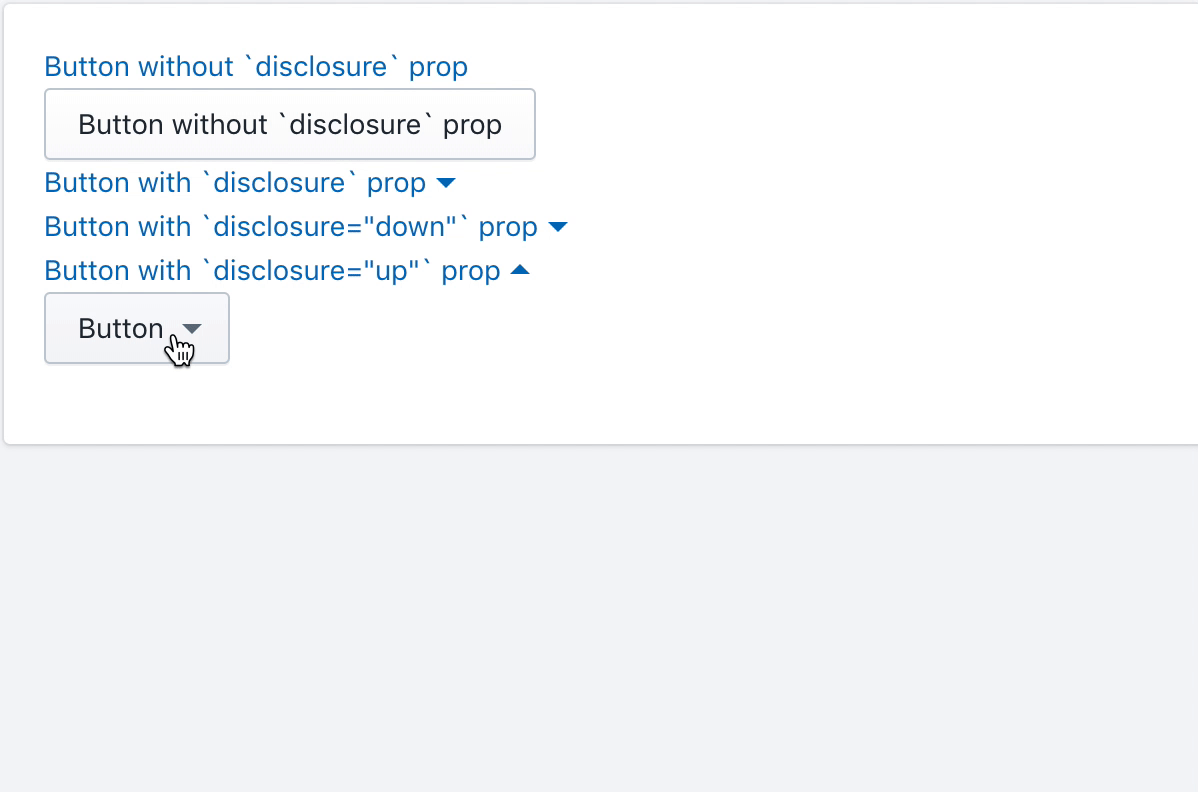

Small example of the animation with popover content. Definitely echo @johanstromqvist that at least for me, the eye is drawn to the content and the animation is not as prominent. Makes the whole interaction feel more "fluid" in my opinion.

…ify the direction the disclosure icon faces, CSS transition to animate when the prop changes

tmlayton

For posterity: 👍
