[Collapsible] functional component and no jank when opening #3606

alex-page · 2020-11-05T23:15:37Z

WHY are these changes introduced?

Fixes #3390

WHAT is this pull request doing?

Convert collapsible to a functional component
Fix janky movement when opening collapsible filters
Remove opacity from animation
Support nested collapsible elements

How to 🎩

Go to the collapsible example
Go to the filters example and open and close the filters

🎩 checklist

Tested on mobile
Tested on multiple browsers
Tested for accessibility
Updated the component's README.md with documentation changes
Tophatted documentation changes in the style guide
For visual design changes, pinged one of @ HYPD, @ mirualves, @ sarahill, or @ ry5n to update the Polaris UI kit

github-actions · 2020-11-05T23:17:52Z

🟡 This pull request modifies 6 files and might impact 6 other files. This is an average splash zone for a change, remember to tophat areas that could be affected.

Details:

All files potentially affected (total: 6)

📄 UNRELEASED.md (total: 0)

Files potentially affected (total: 0)

📄 scripts/build-validate.js (total: 0)

Files potentially affected (total: 0)

🎨 src/components/Collapsible/Collapsible.scss (total: 6)

Files potentially affected (total: 6)

🧩 src/components/Collapsible/Collapsible.tsx (total: 5)

Files potentially affected (total: 5)

📄 src/components/Collapsible/README.md (total: 0)

Files potentially affected (total: 0)

🧩 src/components/Collapsible/tests/Collapsible.test.tsx (total: 0)

Files potentially affected (total: 0)

BPScott · 2020-11-06T01:19:46Z

Yay hookification. Not reviewed this but could you update #1995 when it gets merged?

alex-page · 2020-11-13T16:27:41Z

src/components/Collapsible/Collapsible.tsx

+  useEffect(() => {
+    if (open === isOpen) {
      return;
    }

-    requestAnimationFrame(() => {
-      const heightNode = this.heightNode.current;
-      switch (animationState) {
-        case 'idle':
-          break;
-        case 'measuring':
-          this.setState({
-            animationState: wasOpen ? 'closingStart' : 'openingStart',
-            height: wasOpen && heightNode ? heightNode.scrollHeight : 0,
-          });
-          break;
-        case 'closingStart':
-          this.setState({
-            animationState: 'closing',
-            height: 0,
-          });
-          break;
-        case 'openingStart':
-          this.setState({
-            animationState: 'opening',
-            height: heightNode ? heightNode.scrollHeight : 0,
-          });
-      }
-    });
-  }
+    setHeight(collapisbleContainer.current.scrollHeight);
+  }, [open]);


This useEffect measured the component and applies the height. For open this is the only effect ran as it measures and applies, this causes the transition from 0 -> measured height. For closing we do the same thing but then use the second useEffect to transition to 0.

alex-page · 2020-11-13T16:28:29Z

src/components/Collapsible/Collapsible.tsx

-  if (animationState === 'idle' && open) {
-    return open ? 'none' : undefined;
-  }
+    getComputedStyle(collapisbleContainer.current).height;


This is needed otherwise the rendering engine measures and applies the height then set the new height causing no transition. This causes the rendering engine to apply the 0 height on the next cycle causing the transition to run.

alex-page · 2020-11-13T16:29:10Z

src/components/Collapsible/README.md

 }
 ```

+### Nested collapsible


Is there a way to exclude examples from the styleguide? This isn't best practice but is important that it works.

We'd need something like  but I don't think we have one at the moment

Would be great if we could grab context from the admin where nested collapsible are used to provide context on valid use cases. Unfortunately, I can't remember where it's being used, only that is it 😕

Add ../src/components/**/*.stories.tsx to https://github.com/Shopify/polaris-react/blob/master/.storybook/main.js#L18

Then create a Collapsible.stories.tsx and dump your storybook stories in there using the standard CSF format

alex-page · 2020-11-13T16:29:37Z

@AndrewMusgrave @kyledurand this should be good now.

kyledurand · 2020-11-13T21:03:28Z

Maybe the smallest regression. Not sure if it's a blocker https://screenshot.click/screencast_2020-11-13_16-02-48.mp4

kyledurand

Code looks good 👍

kyledurand · 2020-11-13T21:06:45Z

src/components/Collapsible/Collapsible.scss

+  overflow: hidden;
+  will-change: height;
+  transition-property: height;
+  transition-duration: duration(fast);


Do we want to use var(--p-duration-1-0-0) here instead?

Edit: nvm looks like we need to use tokens to match some JS below

kyledurand · 2020-11-13T21:13:25Z

src/components/Collapsible/README.md

 }
 ```

+### Nested collapsible


We'd need something like  but I don't think we have one at the moment

alex-page · 2020-11-13T21:17:11Z

Would we ever want it to finish the animation before closing? I think you would want it to respond instantly on click. I could be wrong though..

AndrewMusgrave

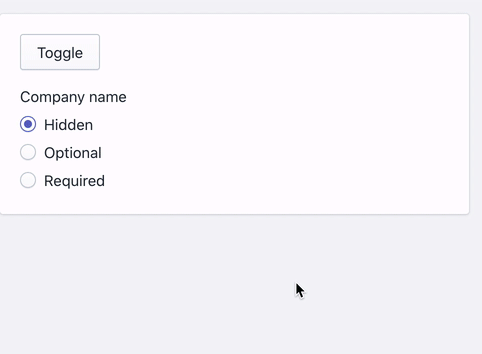

The animation was acting oddly when opening/closing the collapsible quickly. Sometimes it didn't do anything, other times the animation would jank. It's an edge case so, whatever you think is best. Keep in mind the animation is at 10% speed.

Left a note about rendering children. Some tests in web expect on that - not sure about their implementations though. Just something to keep in mind when releasing this.

AndrewMusgrave · 2020-11-20T16:28:57Z

src/components/Collapsible/README.md

 }
 ```

+### Nested collapsible


Would be great if we could grab context from the admin where nested collapsible are used to provide context on valid use cases. Unfortunately, I can't remember where it's being used, only that is it 😕

src/components/Collapsible/README.md

AndrewMusgrave · 2020-11-20T16:31:31Z

src/components/Collapsible/tests/Collapsible.test.tsx

-    expect(collapsible.contains('content')).toBe(false);
-  });
-
-  it('does not render its children when going from open to closed', () => {


Unfortunately, this is an important test. Some consumer implementations rely on this - I'm sure you're going to see some tests failing in web

Is it necessary to not render or tests will now fail?

Tests will probably fail (unless the code has been refactored 🤞 ) - it might be easier to release a rc and run CI with that branch. I don't think UI will break - but it would be worthwhile checking the failed tests.

I'd like to remind y'all about https://buildkite.com/shopify/polaris-react-system-integration-test which runs a pass of the web CI on arbitary polaris branches.

It runs by default on our master branch, but it'd be trivial to trigger a manual build that points at this branch.

No faffing with RCs needed if you just want to test unit tests.

src/components/Collapsible/Collapsible.scss

Co-authored-by: Andrew Musgrave <andrew.musgrave@shopify.com>

johanstromqvist · 2020-12-07T15:57:47Z

Looks great!! Thanks for the storyboard link @alex-page.

How is duration determined? If the value is fixed, a 500px collapse will be perceived as 10x the speed of a 50px collapse.

Dynamic containers benefit from dynamically determined durations. @AndrewMusgrave and I collaborated once to create a dynamic interpolation with normalized speed and clamped min/max values. Could that perhaps be applied?

alex-page · 2020-12-07T16:05:21Z

@johanstromqvist made a new issue for this #3682

johanstromqvist · 2020-12-07T16:33:11Z

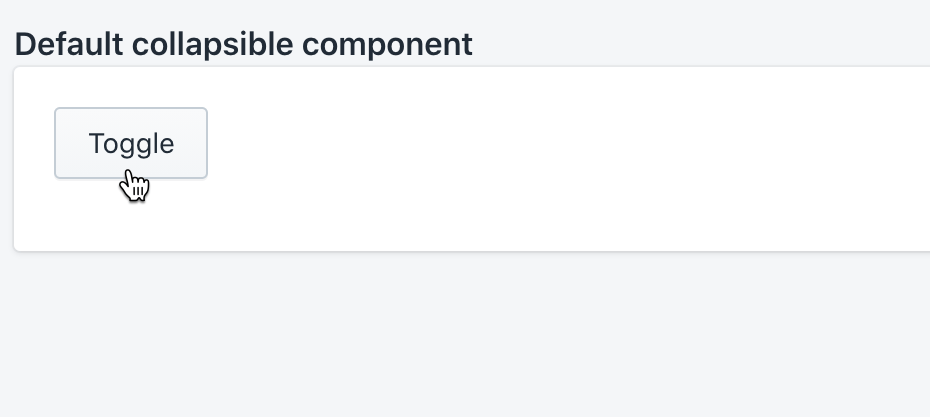

The interruptibility seems wonky when the transition is triggered a second time before it has finished. Only on collapse.
