Display Graph #377
Display Graph #377
Conversation
web/client/package.json
Outdated
There was a problem hiding this comment.
have you tried visjs?
There was a problem hiding this comment.
It was in example , so I used it just to make it work for now.
There was a problem hiding this comment.
let's not use dagre, even for an example
There was a problem hiding this comment.
so I used https://github.com/kieler/elkjs, since we only need a graph layout engine but vis-network seems like a draw library
mykalmax
force-pushed
the
max/ui_graph
branch
from
47fed35 to
e40c78e
Compare
|

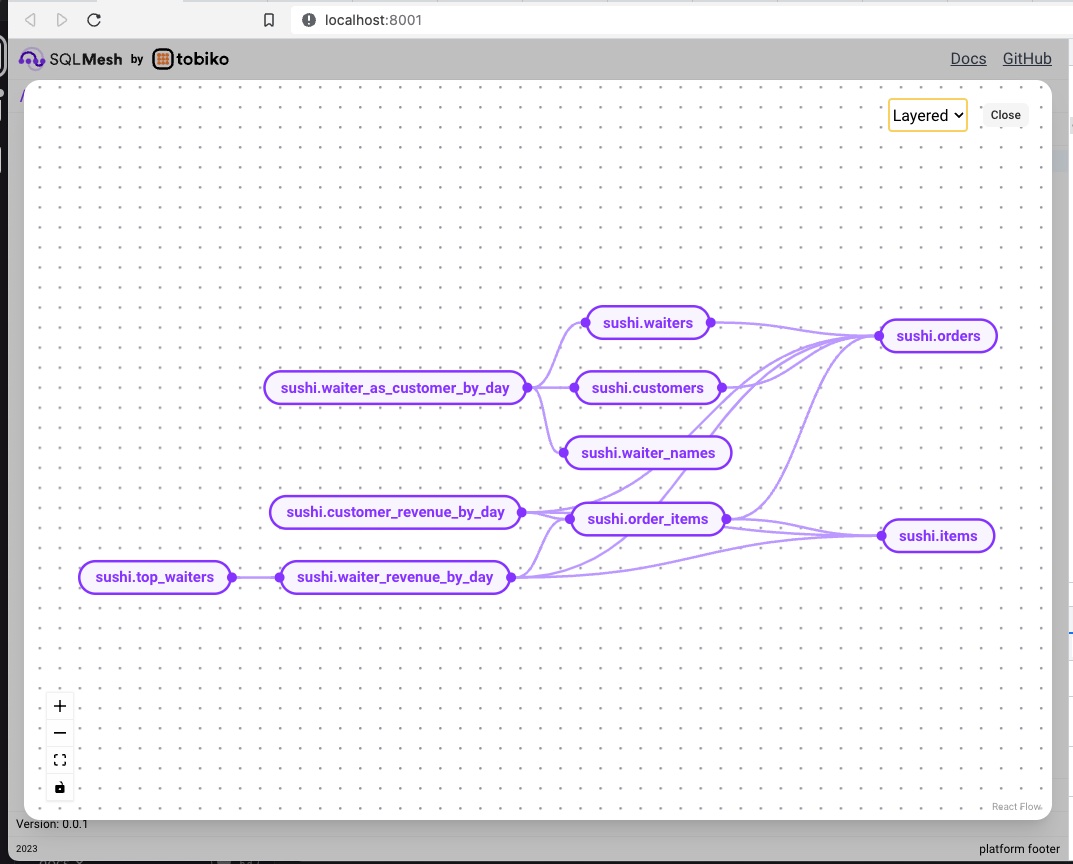

For these kind of UI changes, would it be possible to attach a screenshot, or even an animated GIF, of the changes to the PR? |
web/server/api/endpoints/commands.py
Outdated
| @router.get("/dag") | ||
| async def dag( | ||
| context: Context = Depends(get_loaded_context), | ||
| ) -> t.Dict[str, t.Any]: |
There was a problem hiding this comment.
| ) -> t.Dict[str, t.Any]: | |
| ) -> t.Dict[str, t.List[str]]: |
| } | ||
|
|
||
| async function load(): Promise<void> { | ||
| setGraph(undefined) |
There was a problem hiding this comment.
reset graph object in case getNodesAndEdges fails
There was a problem hiding this comment.
What happens when the graph object is reset? Is the effect hook below the only place that is affected?
There was a problem hiding this comment.
it should trigger re-render , so if getNodesAndEdges takes very long time to finish , we may want to show spinner (or skeleton) before new state for graph is set.
There was a problem hiding this comment.
When the graph object is set to undefined, it won't trigger a re-render because the effect hook below returns if graph is null/undefined, right?
|
|
||
| const graph = await getNodesAndEdges({ data, algorithm }) | ||
|
|
||
| if (isFalse(active)) return |
There was a problem hiding this comment.
Should this happen before calling getNodesAndEdges()?
There was a problem hiding this comment.
our load is async and runs off thread kinda, so if getNodesAndEdges takes too long and we close dag before it finished if (isFalse(active)) return will prevent from changing state after getNodesAndEdges done
There was a problem hiding this comment.
Got it. Thank you for the explanation.
