Realtime profiler (HDRP & URP) #5419

arttu-peltonen · 2021-08-24T09:20:30Z

Purpose of this PR

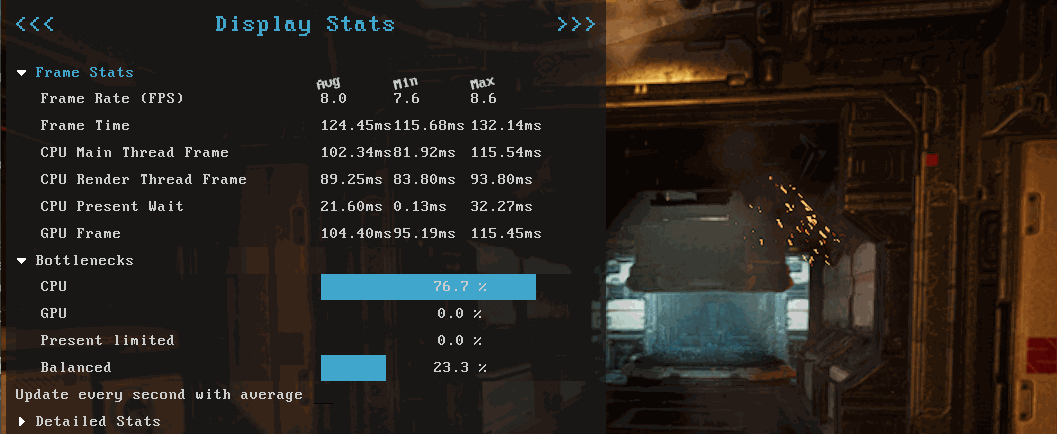

This PR introduces the Realtime Profiler, which allows users to see cpu/gpu frame timings and bottlenecks detected out of these timings.

Details

Full description of the features with screenshots in this document.

This PR depends on New FrameTiming Backend PR by @bandures, ~~which hasn't landed in trunk yet. Therefore all testing & Yamato runs are done with the latest commit from trunk/profiler/feature/universal-frame-timing-v3.~~ EDIT: Trunk PR has landed, works at latest trunk now.

Testing status (status mid-September)

Matrix describing what I've tested:

Platform	GFX API	Build type	Tested?	Status
Windows	DX11	Editor	✔️	👍
Windows	DX11	Player	✔️	👍
Windows	DX12	Editor	✔️	👍
Windows	DX12	Player	✔️	👍
Windows	Vulkan	Editor	✔️	👍
Windows	Vulkan	Player	✔️	👍
Mac	Metal	Editor	✔️	Render thread & GPU timing missing
Mac	Metal	Player	✔️	GPU timing missing
Mac	GL	Editor	✔️	GPU timing missing
Mac	GL	Player	✔️	GPU timing missing, intermittent invalid main thread times
Android	Vulkan	Player	✔️	👍
Android	GLES3	Player	✔️	GPU timing missing (Google Pixel 2)
iOS		Player	❌
PS4		Player	✔️	Render thread timing missing
PS5		Player	❌
X1		Player	❌
XSX		Player	❌
Switch		Player	❌
VR/XR		Editor	❌
VR/XR		Player	❌

Tested functionality on HDRP and URP, in editor, editor playmode and player builds.

- FrameTimingManager looks like the likely candidate where the frametime numbers would eventually come from. It required 3 things to start working: -- Switched gfx backend to D3D12 that has an implementation for FrameTimingManager (unlike D3D11) -- Enabled FrameTimingStats from project settings to see numbers. -- Made standalone build work, where we also get GPU numbers. - Upgraded project to use latest trunk version of Unity to make native debugging easier.

…iler-proto)

- Moved all code under com.unity.render-pipelines.core & renamed stuff - Removed all assets & prefabs from SRP_RealTimeProfiler project (gameobjects still manually placed in scene) - Test project now uses local packages instead of official ones. Temporarily removed com.unity.ui due to incompatibility with 2021.1

- Runtime components don't need com.unity.ui package anymore.

- All GOs are now created automatically through script, so profiling should work in any project. - Asset loading for builds still to be fixed.

- Removed UI Toolkit assets from project. - Added Theme & PanelSettings assets to Resources under the package, load using Resources.Load<>() to remove UnityEditor namespace use.

…nterValue API. - For this purpose, RT Core needs to temporarily depend on com.unity.profiling.core.

- Update test project to trunk version.

…rame-timing

…t for HDRP.

- Contains some hacks (workaround for Gfx tests leaking gameobjects, disabled in Player builds due to lack of "is FrameTiming enabled" API)

…neck. - Cleanup runtime UI.

…e timings.

… Foldouts. - Rearrange new Frame Stats in a column layout, show Avg/Min/Max for each value. - Rearrange HDRP detailed stats in a column layout, with CPU/CPUInline/GPU as the columns. - Pinning ValueTuples to PersistentCanvas is visualized by separating each column value with "/". Not ideal but needed something compact. - Fix a bug with Foldouts that allowed runtime and editor collapsed state getting out of sync.

- Duplicate profiler recorders were being added to the array which also messed up averages.

- Fix bug where RayCountManager would never get enabled.

- Use integer instead of string keys for Dictionary. 1.75ms -> 0.5ms (with deep profiling enabled, true cost is lower). - Also fixed bug where per-second average values were not updated unless runtime UI was active, meaning pinned values wouldn't update.

- Sometimes, backend may not provide a valid value for every counter, but provides 0 instead. These invalid values must be ignored when computing min/avg. - The refactor also hides implementation details better and reduces duplication. No performance impact (both old & new logic never exceeded 0.01ms).

jenniferd-unity

Approved! great job @arttu-peltonen !
I have added a few comments I am sure you will know how to tackle

TestProjects/HDRP_Tests/ProjectSettings/ProjectSettings.asset

com.unity.render-pipelines.core/Editor/Debugging/DebugUIDrawer.Builtins.cs

com.unity.render-pipelines.core/Runtime/Debugging/Prefabs/Scripts/DebugUIHandlerEnumHistory.cs

com.unity.render-pipelines.core/Runtime/Debugging/Prefabs/Scripts/DebugUIHandlerFoldout.cs

com.unity.render-pipelines.core/Runtime/Debugging/Prefabs/Scripts/DebugUIHandlerValue.cs

com.unity.render-pipelines.core/Runtime/Debugging/Prefabs/Scripts/DebugUIHandlerValueTuple.cs

com.unity.render-pipelines.core/Tests/Runtime/RuntimeProfilerTests.cs

- Fix 15KB per frame alloc caused by compiler generating a new Func<float,float,float> every frame from a local function. Made them static Func objects directly to avoid this. - Avoid new(struct) in DebugFrameTimings.cs. Not sure why this causes an allocation, but use member variables to avoid it regardless. - Don't access Input.touches (which allocates) on old InputManager, unless touches are present.

arttu-peltonen · 2021-09-14T08:37:30Z

Update: Added Performance Analysis section to the PR notes doc.

Skiri-ki · 2021-09-16T12:33:45Z

com.unity.render-pipelines.core/Runtime/Debugging/DebugUI.cs

+            /// <returns>The formatted value string.</returns>
+            public virtual string FormatString(object value)
+            {
+                return string.IsNullOrEmpty(formatString) ? $"{value}" : string.Format(formatString, value);


I guess this would be a good place to switch to MutableString once available...

Yes, absolutely. I've spent some time trying to eliminate allocs but this was the one place I couldn't easily fix without removing support for format strings altogether, which I would like to keep. Great to hear that there's work for a non-allocating StringBuilder/String.Format that I could use in the future!

fabien-unity · 2021-09-23T17:06:58Z

I quickly tried with XR and the report seems accurate.
However, the debug display is only visible in the mirror view (desktop). This is something not related to this PR but we should think about improving the debug render to be compatible with XR inside the headset.

arttu-peltonen · 2021-09-28T06:09:34Z

I quickly tried with XR and the report seems accurate.
However, the debug display is only visible in the mirror view (desktop). This is something not related to this PR but we should think about improving the debug render to be compatible with XR inside the headset.

Thanks! Yeah, I agree. I have only tested with MockHMD, not headset, and haven't investigated how XR is supported with uGUI.

# Conflicts: # com.unity.render-pipelines.core/Runtime/Debugging/DebugUpdater.cs # com.unity.render-pipelines.core/Runtime/Debugging/Prefabs/Resources/DebugUICanvas.prefab # com.unity.render-pipelines.high-definition/Runtime/Debug/DebugDisplay.cs

# Conflicts: # com.unity.render-pipelines.core/Runtime/Debugging/IDebugDisplaySettingsData.cs # com.unity.render-pipelines.universal/Runtime/Debug/DebugDisplaySettingsCommon.cs

…ta change introduced earlier.

arttu-peltonen · 2021-09-29T05:55:21Z

Note: there's a new version of the trunk PR now, so please use profiler/feature/universal-frame-timing-v3 branch for testing.

eh-unity

Looks good to me.

aleksandrasdzikia

Looks good to me. Tested on two different macs (intel and apple silicon). Both behaved as expected. Apple silicon on Rosetta had issues, but not related to this PR. tested both Metal and GL. Different URP projects were used - Universal Rendering Examples, URP Template, Viking Village. Behaviour of the frame stats were accurate to the Display stats.

Overall, very useful tool. Only one suggestion I have is from UI/UX perspective. It would make sense to not hide "Display Stats" if it's not in Play Mode. I would add some info there like: "Please, press play to display the stats" or something similar. Otherwise, it might look confusing if it's the first time of using it. Other than that, looks good!

arttu-peltonen · 2021-10-21T07:01:52Z

Profiling backend PR has landed in trunk, running some yamato tests against trunk 71d43f7a9c283602dfa9ca30d1612a5f96669ce6 now as a sanity check.

arttu-peltonen · 2021-10-22T06:55:11Z

Yamato status before merge:

Nightly URP is green (except 035_Shader_TerrainShaders, unrelated failure)
PR HDRP is green (except 1550_3dsMax, fixed on master)

phi-lira

Approving on yamato state. Terrain failures are known issue on master.

Verasl

LGTM

# Conflicts: # com.unity.render-pipelines.high-definition/CHANGELOG.md

# Conflicts: # com.unity.render-pipelines.universal/CHANGELOG.md # com.unity.render-pipelines.universal/Runtime/Debug/DebugDisplaySettingsCommon.cs # com.unity.render-pipelines.universal/Runtime/Debug/DebugDisplaySettingsLighting.cs # com.unity.render-pipelines.universal/Runtime/Debug/DebugDisplaySettingsMaterial.cs # com.unity.render-pipelines.universal/Runtime/Debug/DebugDisplaySettingsRendering.cs

This PR fixes https://jira.unity3d.com/browse/UUM-13827. Sometimes after a build, DebugManager can fail to register debug systems in the editor because of the way `Debug.IsDebugBuild` works. To avoid crashes because of this, we shouldn't use `Debug.IsDebugBuild` but instead use conditional compilation. This has been fixed in 2022+ but a backport was never done. This was originally fixed in [an earlier PR](#5419) ([commit](5e4f2dd)). This PR only takes the relevant parts of the original PR required to fix the bug because the entire PR cannot be backported.

arttu-peltonen added 30 commits February 3, 2021 10:59

Initial commit for first realtime profiler prototype.

8989e11

Change project from URP to HDRP where DebugDisplay is available.

5cd4cfa

Rearrange document structure to be closer to current design.

2223ee2

Show new FrameTimings in UI (requires trunk/srp/graphics/realtimeprof…

7d61278

…iler-proto)

Fix runtime UI. Create RealtimeProfilerModel automatically.

4b2f967

- Runtime components don't need com.unity.ui package anymore.

Remove dependencies on scene GOs.

d667a8b

- All GOs are now created automatically through script, so profiling should work in any project. - Asset loading for builds still to be fixed.

Fix UI in Player builds.

e15c2c8

- Removed UI Toolkit assets from project. - Added Theme & PanelSettings assets to Resources under the package, load using Resources.Load<>() to remove UnityEditor namespace use.

For debugging purposes, plot frame times in Profiler with ProfilerCou…

246c150

…nterValue API. - For this purpose, RT Core needs to temporarily depend on com.unity.profiling.core.

Align UI with new native frametimings.

9a4a208

Add sample averaging & history size option to UI.

8df1dde

Draft bottleneck detection.

48e3fed

Merge branch 'master' into srp/realtimeprofiler-proto

892b711

Add bottleneck progress bars.

5276e95

- Update test project to trunk version.

Make proto compatible with engine branch profiler/feature/universal-f…

851c3e2

…rame-timing

Add ProgressBarValue type to debug display.

758d800

Remove prototype UITK UI, move it under Rendering Debugger + implemen…

b90d84f

…t for HDRP.

Make test scene with bottleneck simulation for CPU & GPU.

f165eae

Unit tests for RuntimeProfiler

0697812

- Contains some hacks (workaround for Gfx tests leaking gameobjects, disabled in Player builds due to lack of "is FrameTiming enabled" API)

Show progressbar values as percentages in persistent runtime UI.

03dc0e9

Use new MainThreadCPUPresentWaitTime to detect present limited bottle…

bf62e35

…neck. - Cleanup runtime UI.

Add numeric format support for DebugUI.Value, use 2 decimals for fram…

028c51a

…e timings.

Fix assertion when toggling Count Rays option at runtime.

c916aae

- Duplicate profiler recorders were being added to the array which also messed up averages.

Rearrange ray tracing debug UI.

f8f1f31

- Fix bug where RayCountManager would never get enabled.

Remove foreach usage because it allocates.

5c1b346

Optimize frametime stats calculation & remove allocs.

1933e07

Move FrameTimingData update to render pipeline update.

74f2444

arttu-peltonen added 2 commits September 9, 2021 08:35

Code review feedback + better handling of invalid frametime values.

1be2ac6

jenniferd-unity approved these changes Sep 10, 2021

View reviewed changes

arttu-peltonen added 2 commits September 13, 2021 14:38

Review feedback

b9fe1c2

Skiri-ki reviewed Sep 16, 2021

View reviewed changes

sebastienlagarde approved these changes Sep 16, 2021

View reviewed changes

aleksandrasdzikia self-requested a review September 21, 2021 13:05

arttu-peltonen added 3 commits September 28, 2021 13:29

Merge branch 'master' into srp/realtimeprofiler-proto

83a4e46

# Conflicts: # com.unity.render-pipelines.core/Runtime/Debugging/IDebugDisplaySettingsData.cs # com.unity.render-pipelines.universal/Runtime/Debug/DebugDisplaySettingsCommon.cs

Adapt to new debugdisplay API changes, revert IDebugDisplaySettingsDa…

98aa73f

…ta change introduced earlier.

eh-unity approved these changes Sep 29, 2021

View reviewed changes

aleksandrasdzikia approved these changes Oct 7, 2021

View reviewed changes

arttu-peltonen mentioned this pull request Oct 14, 2021

Enable FrameTimingManager tests in standalone builds #6019

Merged

arttu-peltonen added 2 commits October 21, 2021 14:06

Merge branch 'master' into srp/realtimeprofiler-proto

dbedc16

Changelogs

84d4ca6

arttu-peltonen requested a review from a team as a code owner October 21, 2021 11:21

phi-lira approved these changes Oct 22, 2021

View reviewed changes

Verasl approved these changes Oct 22, 2021

View reviewed changes

arttu-peltonen added 2 commits October 22, 2021 11:23

Merge branch 'master' into srp/realtimeprofiler-proto

c29d651

# Conflicts: # com.unity.render-pipelines.high-definition/CHANGELOG.md

arttu-peltonen merged commit 86f0904 into master Oct 22, 2021

arttu-peltonen deleted the srp/realtimeprofiler-proto branch October 22, 2021 09:21
