Purpose of this PR

Fix for https://fogbugz.unity3d.com/f/cases/1352662/

2022.1:

2021.2 backport:

[ShaderGraph] [backport] [2021.2] Use VPOS for fragment stage screenspace calculations #5817

The issue is that the calculation for screenspace position is calculated from world space position via applying the matrix transforms. However, the calculation is prone to floating point error, that is exacerbated greatly when the camera is far from the origin and the pipeline is not using camera-relative "world" space.

You can see in the examples below that the error can easily grow to be larger than a pixel.

This PR fixes this by changing the calculation in the fragment shader, to be based on the value returned by the VPOS fragment input. This value is not based on the projection matrices, independent of camera position, and much more accurate overall.

Docs ticket: https://jira.unity3d.com/browse/GSG-593
Console Test PR: https://github.cds.internal.unity3d.com/unity/ScriptableRenderPipelinePrivate/pull/239

Test example:
Left sphere visualizes frac(screenspace pixel coordinate) using a gradient (red, black, green) where 0.5 is black.
Right sphere shows a screenspace checkerboard alphatest pattern

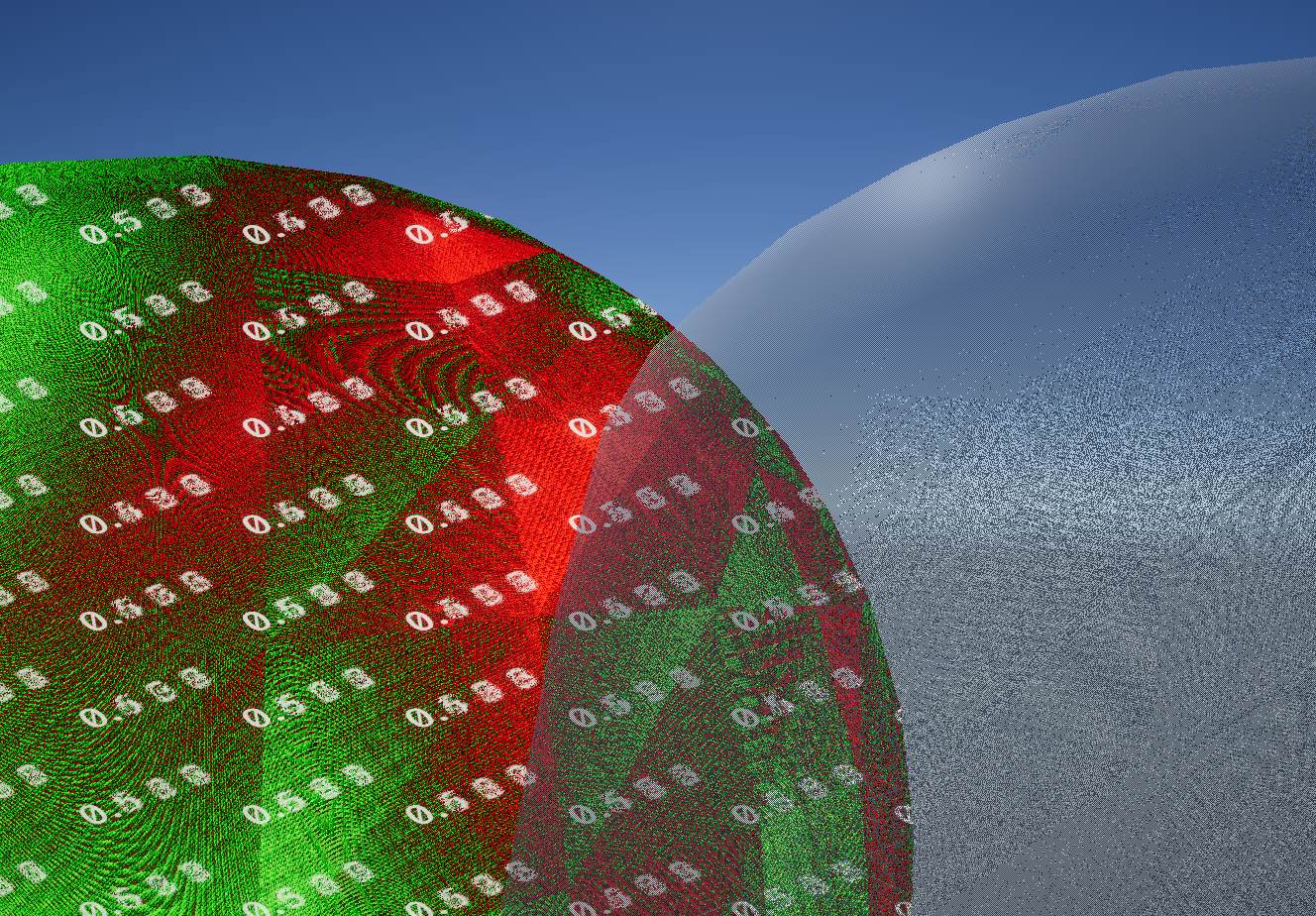

Before: (at 20000 distance from origin) -- quite a bit of inaccuracy

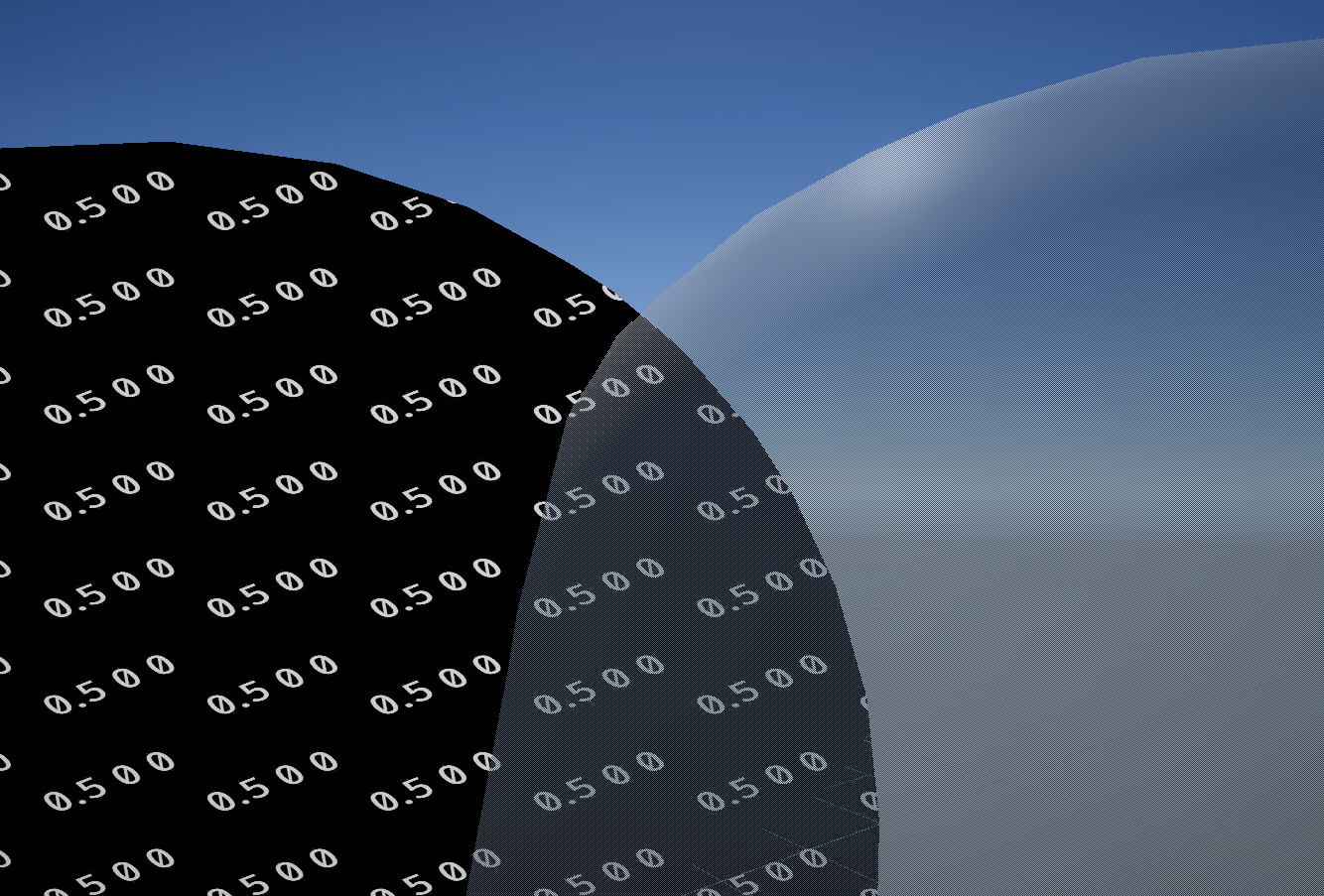

After: (at 20000 distance from origin) -- perfect 0.5 centered pixel coordinates everywhere!

Implementation Details:
We introduce two new global values that ShaderGraph can produce, and nodes can request, in addition to ScreenPosition.
The values are defined as:
PixelPosition 2D pixel coordinate of the current fragment or vertex. Pixels are centered at 0.5.
NDCPosition 2D coordinate (0,1) across the viewport; equal to PixelPosition / ScreenResolution.
ScreenPosition (raw) 4D Clip Space homogenous coordinates of the current fragment or vertex.

Both PixelPosition and NDCPosition are calculated from VPOS in the fragment stage, and are calculated from ScreenPosition in other stages.

Testing status

Tested in both HDRP and URP:

Tested that Screen Position node and slots work correctly in both fragment and vertex shader.
Validated that "Raw" mode works identically to previous, returning clip space ZW.
Tested that the other modes return exact values in the fragment shader, based off of the VPOS value.
Tested that VFX screen position works.

Added a Yamato test to validate screen position accuracy in fragment shader. Previously you would have a good amount of error in the screen position from the floating point roundoff on the matrix transform calculations. Now it gives exact pixel coordinate values out to at least 3 fractional digits.

Updated reference images. Note that the new accuracy actually changes the test results for the dither node, because the position is slightly different (now more accurate), and the specific test we use is extremely position sensitive.

Master base branch: 35e38b1

Yamato:
ShaderGraph: 🟢
https://yamato.cds.internal.unity3d.com/jobs/902-Graphics/tree/sg%252Ffix%252F1352662/.yamato%252Fall-shadergraph.yml%2523ShaderGraph_2021.2/8408772/job/pipeline
master:
https://yamato.cds.internal.unity3d.com/jobs/902-Graphics/tree/master/.yamato%252Fall-shadergraph.yml%2523ShaderGraph_2021.2/8364150/job/pipeline

HDRP: 🟢
https://yamato.cds.internal.unity3d.com/jobs/902-Graphics/tree/sg%252Ffix%252F1352662/.yamato%252Fall-hdrp.yml%2523PR_HDRP_trunk/8681927/job/pipeline

URP: 🟡 -- failures match master
https://yamato.cds.internal.unity3d.com/jobs/902-Graphics/tree/sg%252Ffix%252F1352662/.yamato%252Fall-urp.yml%2523PR_URP_trunk/8702585/job/pipeline
master:
https://yamato.cds.internal.unity3d.com/jobs/902-Graphics/tree/master/.yamato%252Fall-urp.yml%2523PR_URP_trunk/8678639/job/pipeline

Failing jobs:
Build URP_Terrain on iPhone_Metal_il2cpp_Linear_Standalone_build_Player on version trunk -- both failed non-test-related 🟡
Build URP_Terrain on Android_Vulkan_il2cpp_Linear_Standalone_build_Player on version trunk -- both failed non-test-related 🟡
Build URP_Terrain on Android_OpenGLES3_il2cpp_Linear_Standalone_build_Player on version trunk -- both failed non-test-related 🟡
Build URP_Terrain on Linux_Vulkan_mono_Linear_Standalone_build_Player on version trunk -- both failed non-test-related 🟡
Build URP_Terrain on Win_Vulkan_mono_Linear_Standalone_build_Player on version trunk -- both failed non-test-related 🟡
Build URP_Terrain on Win_DX12_mono_Linear_Standalone_XR_build_Player on version trunk -- both failed non-test-related 🟡
Build URP_Terrain on Win_DX12_mono_Linear_Standalone_build_Player on version trunk -- both failed non-test-related 🟡
Build URP_Terrain on Win_DX11_mono_Linear_Standalone_XR_build_Player on version trunk -- both failed non-test-related 🟡
Build URP_Terrain on Win_DX11_mono_Linear_Standalone_build_Player on version trunk -- both failed non-test-related 🟡
URP_Foundation on iPhone_Metal_Standalone_il2cpp_Linear on version trunk -- both failed same 4 tests 🟡
URP_Lighting on iPhone_Metal_Standalone_il2cpp_Linear on version trunk -- both failed same 1 test 🟡
URP_Lighting on Android_Vulkan_Standalone_il2cpp_Linear on version trunk -- both failed on re-run (nondeterministic) 🟡
URP_Terrain on OSX_Metal_playmode_mono_Linear on version trunk -- both failed same 19 tests 🟡
URP_Terrain on Win_DX11_playmode_XR_mono_Linear on version trunk -- both failed same 13 tests 🟡
URP_PostPro on Win_DX11_playmode_XR_mono_Linear on version trunk -- both failed on re-run (nondeterministic) 🟡
ShaderGraph on OSX_Metal_playmode_mono_Linear on version trunk -- success on re-run 🟢

Console Tests: 🟡 -- failures match master

Console Test PR: https://github.cds.internal.unity3d.com/unity/ScriptableRenderPipelinePrivate/pull/239

Comments to reviewers
