failed to create vm from ISO on v 4.17.0

[lijinlongpq]

ISSUE TYPE

• Bug Report

COMPONENT NAME

Compute Instance

CLOUDSTACK VERSION

4.17.0.0

CONFIGURATION

N/A

OS / ENVIRONMENT

Management server on Ubuntu 20.04

SUMMARY

Previously I was able to create VM using ISOs. After upgrade to latest version which is 4.17.0.0 there is error prompt up when creating VM using ISO. The error is :
Request failed. (431)
VM Creation failed. Volume size: -1GB is out of allowed range. Max: 1024 Min:1

Below is the log:
2022-07-23 15:32:53,223 DEBUG [c.c.a.ApiServlet] (qtp1850777594-3316:ctx-715a5e90) (logid:2e732721) ===START=== 127.0.0.1 -- POST command=deployVirtualMachine&response=json
2022-07-23 15:32:53,230 DEBUG [c.c.a.ApiServer] (qtp1850777594-3316:ctx-715a5e90 ctx-c19e21bc) (logid:2e732721) CIDRs from which account 'Acct[00f6ff47-9094-11ec-a1ef-005056931d8a-admin] -- Account {"id": 2, "name": "admin", "uuid": "00f6ff47-9094-11ec-a1ef-005056931d8a"}' is allowed to perform API calls: 0.0.0.0/0,::/0
2022-07-23 15:32:53,241 DEBUG [c.c.u.AccountManagerImpl] (qtp1850777594-3316:ctx-715a5e90 ctx-c19e21bc) (logid:2e732721) Access granted to Acct[00f6ff47-9094-11ec-a1ef-005056931d8a-admin] -- Account {"id": 2, "name": "admin", "uuid": "00f6ff47-9094-11ec-a1ef-005056931d8a"} to org.apache.cloudstack.quota.vo.ServiceOfferingVO$$EnhancerByCGLIB$$6d2c4d16@6dfe26b by AffinityGroupAccessChecker
2022-07-23 15:32:53,242 DEBUG [c.c.u.AccountManagerImpl] (qtp1850777594-3316:ctx-715a5e90 ctx-c19e21bc) (logid:2e732721) Access granted to Acct[00f6ff47-9094-11ec-a1ef-005056931d8a-admin] -- Account {"id": 2, "name": "admin", "uuid": "00f6ff47-9094-11ec-a1ef-005056931d8a"} to com.cloud.storage.DiskOfferingVO$$EnhancerByCGLIB$$15f5ca09@40092078 by AffinityGroupAccessChecker
2022-07-23 15:32:53,247 INFO [c.c.a.ApiServer] (qtp1850777594-3316:ctx-715a5e90 ctx-c19e21bc) (logid:2e732721) VM Creation failed. Volume size: -1GB is out of allowed range. Max: 1024 Min:1
2022-07-23 15:32:53,247 DEBUG [c.c.a.ApiServlet] (qtp1850777594-3316:ctx-715a5e90 ctx-c19e21bc) (logid:2e732721) ===END=== 127.0.0.1 -- POST command=deployVirtualMachine&response=json

STEPS TO REPRODUCE

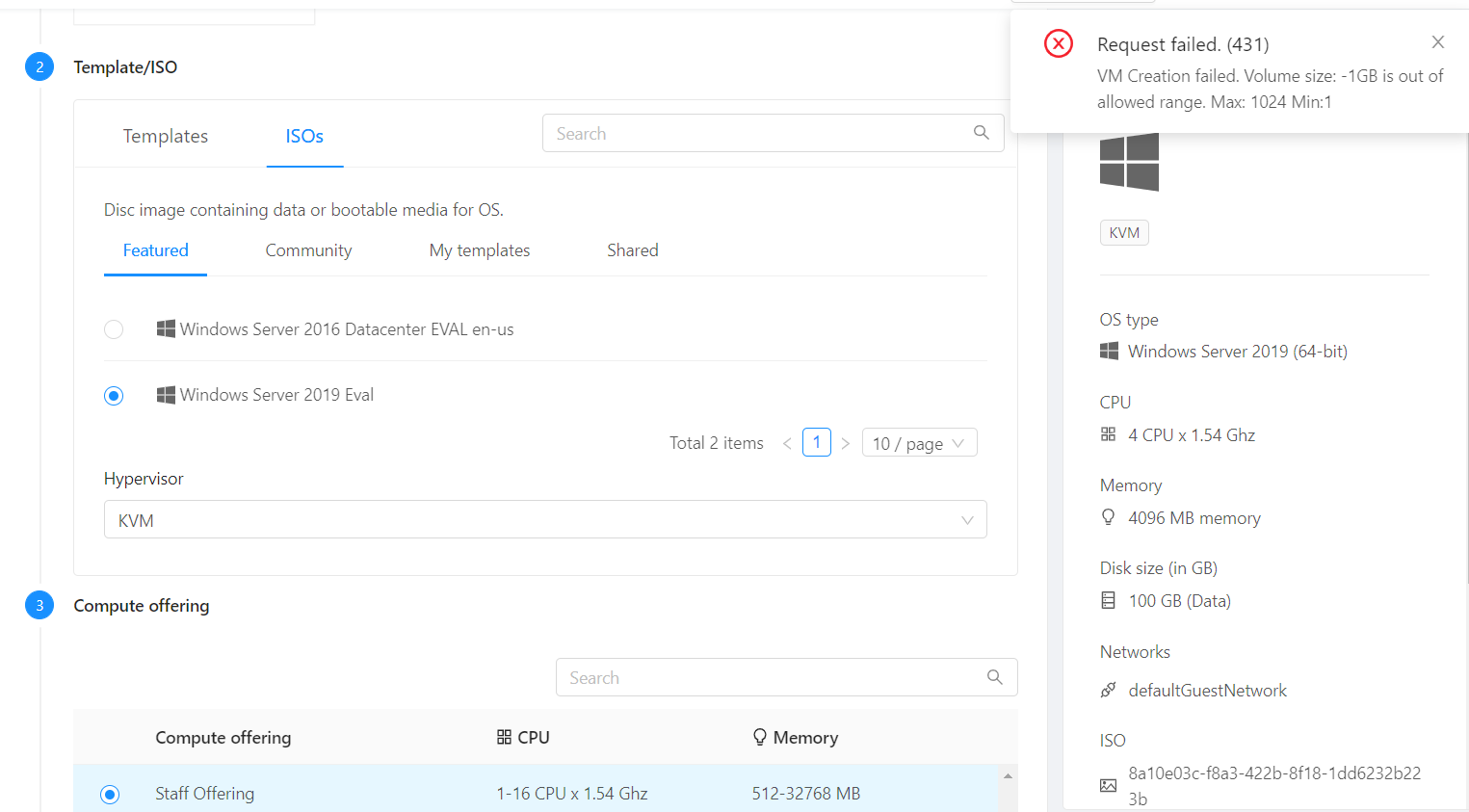

![image](https://user-images.githubusercontent.com/9441400/180660270-37dac278-20fb-439c-a176-34b090151f83.png)

EXPECTED RESULTS

ACTUAL RESULTS

[nvazquez]

Hi @lijinlongpq this is a duplicate of the issue: #6447 - it will be fixed on 4.17.1.

For 4.17.0 there are some workarounds, can you please consider one of these?

• Using the API and specifying the rootdisksize parameter as well. An example on cloudmonkey: deploy virtualmachine networkids=<NETWORKID> templateid=<ISOID> serviceofferingid=<OFFERINGID> diskofferingid=<CUSTOM_OFFERING_ID> zoneid=<ZONEID> hypervisor=<HW> size=<SIZE> rootdisksize=<SIZE>
• Using the UI: create a fixed offering matching the requested resources and create a VM from ISO using the fixed offering
