YARN-11398 DelegationTokenRenewer timeout feature may cause high utilization of CPU and memory leak

[Daniel-009497]

ResourceManager DelegationTokenRenewer timeout feature may cause high utilization of CPU and object leak.
1-If yarn cluster is in idle state, that is almost no token renewer event triggered, the DelegationTokenRenewerPoolTracker thread will do nothing but dead loop, it will cause high CPU utilization.

2-The renewer event is hold in a map named futures, will has no remove logic , that is the map will become increasingly great with time going by.

[hadoop-yetus]

💔 -1 overall

Vote	Subsystem	Runtime	Logfile	Comment
+0 🆗	reexec	0m 53s		Docker mode activated.
			_ Prechecks _
+1 💚	dupname	0m 0s		No case conflicting files found.
+0 🆗	codespell	0m 0s		codespell was not available.
+0 🆗	detsecrets	0m 0s		detect-secrets was not available.
+1 💚	@author	0m 0s		The patch does not contain any @author tags.
-1 ❌	test4tests	0m 0s		The patch doesn't appear to include any new or modified tests. Please justify why no new tests are needed for this patch. Also please list what manual steps were performed to verify this patch.
			_ trunk Compile Tests _
-1 ❌	mvninstall	41m 1s	/branch-mvninstall-root.txt	root in trunk failed.
+1 💚	compile	1m 3s		trunk passed with JDK Ubuntu-11.0.17+8-post-Ubuntu-1ubuntu220.04
+1 💚	compile	0m 55s		trunk passed with JDK Private Build-1.8.0_352-8u352-ga-1~20.04-b08
+1 💚	checkstyle	0m 52s		trunk passed
+1 💚	mvnsite	1m 1s		trunk passed
-1 ❌	javadoc	0m 53s	/branch-javadoc-hadoop-yarn-project_hadoop-yarn_hadoop-yarn-server_hadoop-yarn-server-resourcemanager-jdkUbuntu-11.0.17+8-post-Ubuntu-1ubuntu220.04.txt	hadoop-yarn-server-resourcemanager in trunk failed with JDK Ubuntu-11.0.17+8-post-Ubuntu-1ubuntu220.04.
+1 💚	javadoc	0m 41s		trunk passed with JDK Private Build-1.8.0_352-8u352-ga-1~20.04-b08
+1 💚	spotbugs	2m 10s		trunk passed
+1 💚	shadedclient	24m 18s		branch has no errors when building and testing our client artifacts.
			_ Patch Compile Tests _
+1 💚	mvninstall	0m 52s		the patch passed
+1 💚	compile	0m 59s		the patch passed with JDK Ubuntu-11.0.17+8-post-Ubuntu-1ubuntu220.04
+1 💚	javac	0m 59s		the patch passed
+1 💚	compile	0m 49s		the patch passed with JDK Private Build-1.8.0_352-8u352-ga-1~20.04-b08
+1 💚	javac	0m 49s		the patch passed
+1 💚	blanks	0m 0s		The patch has no blanks issues.
-0 ⚠️	checkstyle	0m 39s	/results-checkstyle-hadoop-yarn-project_hadoop-yarn_hadoop-yarn-server_hadoop-yarn-server-resourcemanager.txt	hadoop-yarn-project/hadoop-yarn/hadoop-yarn-server/hadoop-yarn-server-resourcemanager: The patch generated 1 new + 33 unchanged - 0 fixed = 34 total (was 33)
+1 💚	mvnsite	0m 54s		the patch passed
-1 ❌	javadoc	0m 37s	/patch-javadoc-hadoop-yarn-project_hadoop-yarn_hadoop-yarn-server_hadoop-yarn-server-resourcemanager-jdkUbuntu-11.0.17+8-post-Ubuntu-1ubuntu220.04.txt	hadoop-yarn-server-resourcemanager in the patch failed with JDK Ubuntu-11.0.17+8-post-Ubuntu-1ubuntu220.04.
+1 💚	javadoc	0m 35s		the patch passed with JDK Private Build-1.8.0_352-8u352-ga-1~20.04-b08
+1 💚	spotbugs	2m 6s		the patch passed
+1 💚	shadedclient	24m 9s		patch has no errors when building and testing our client artifacts.
			_ Other Tests _
+1 💚	unit	102m 10s		hadoop-yarn-server-resourcemanager in the patch passed.
+1 💚	asflicense	0m 33s		The patch does not generate ASF License warnings.
		207m 4s

Subsystem	Report/Notes
Docker	ClientAPI=1.41 ServerAPI=1.41 base: https://ci-hadoop.apache.org/job/hadoop-multibranch/job/PR-5233/1/artifact/out/Dockerfile
GITHUB PR	#5233
Optional Tests	dupname asflicense compile javac javadoc mvninstall mvnsite unit shadedclient spotbugs checkstyle codespell detsecrets
uname	Linux b379aecae3f7 4.15.0-200-generic #211-Ubuntu SMP Thu Nov 24 18:16:04 UTC 2022 x86_64 x86_64 x86_64 GNU/Linux
Build tool	maven
Personality	dev-support/bin/hadoop.sh
git revision	trunk / 4ed67fe
Default Java	Private Build-1.8.0_352-8u352-ga-1~20.04-b08
Multi-JDK versions	/usr/lib/jvm/java-11-openjdk-amd64:Ubuntu-11.0.17+8-post-Ubuntu-1ubuntu220.04 /usr/lib/jvm/java-8-openjdk-amd64:Private Build-1.8.0_352-8u352-ga-1~20.04-b08
Test Results	https://ci-hadoop.apache.org/job/hadoop-multibranch/job/PR-5233/1/testReport/
Max. process+thread count	917 (vs. ulimit of 5500)
modules	C: hadoop-yarn-project/hadoop-yarn/hadoop-yarn-server/hadoop-yarn-server-resourcemanager U: hadoop-yarn-project/hadoop-yarn/hadoop-yarn-server/hadoop-yarn-server-resourcemanager
Console output	https://ci-hadoop.apache.org/job/hadoop-multibranch/job/PR-5233/1/console
versions	git=2.25.1 maven=3.6.3 spotbugs=4.2.2
Powered by	Apache Yetus 0.14.0 https://yetus.apache.org

This message was automatically generated.

[slfan1989]

Set sleep 1000ms, what is the effect of this?

[Daniel-009497]

Set sleep 1000ms, what is the effect of this?

Give up CPU

[slfan1989]

Can we give data? The CPU ratio before and after the modification. Why did we choose 1000ms? there seems to be no data support for this.

[Daniel-009497]

@slfan1989
Thanks for review.
The CPU utilization statistics is as follows:

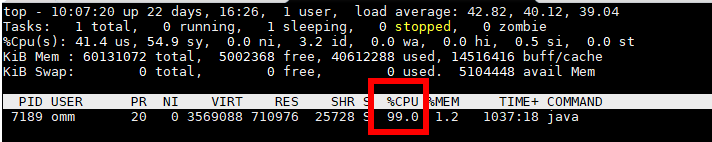

Before optimize:

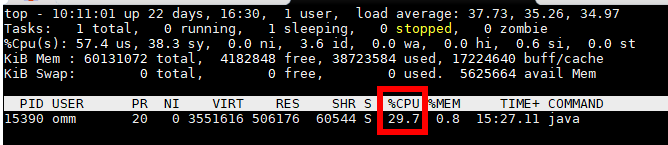

After optimize:

[slfan1989]

This does not seem to be a good way to deal with it through thread sleep.

[ayushtkn]

Not convinced with the sleep either as @slfan1989 mentioned and it looks very arbitrary to me, worked for you but might cause issues for others

[Daniel-009497]

@ayushtkn Could you pls help to review this PR?

[bitterfox]

Hi, any update on this PR? We're suffering high CPU usage in low-spec clusters like alpha and beta environments with yarn too.

WDYT to wait for some signal in run() while loop when futures is empty instead of sleeping if you don't like sleep?
We can fire signal from

hadoop/hadoop-yarn-project/hadoop-yarn/hadoop-yarn-server/hadoop-yarn-server-resourcemanager/src/main/java/org/apache/hadoop/yarn/server/resourcemanager/security/DelegationTokenRenewer.java

Line 230 in 55e8301

futures.add(new DelegationTokenRenewerFuture(evt, future));

[github-actions]

We're closing this stale PR because it has been open for 100 days with no activity. This isn't a judgement on the merit of the PR in any way. It's just a way of keeping the PR queue manageable.
If you feel like this was a mistake, or you would like to continue working on it, please feel free to re-open it and ask for a committer to remove the stale tag and review again.
Thanks all for your contribution.
