CMS Web relies on a role-based workflow to process maintenance complaints efficiently.

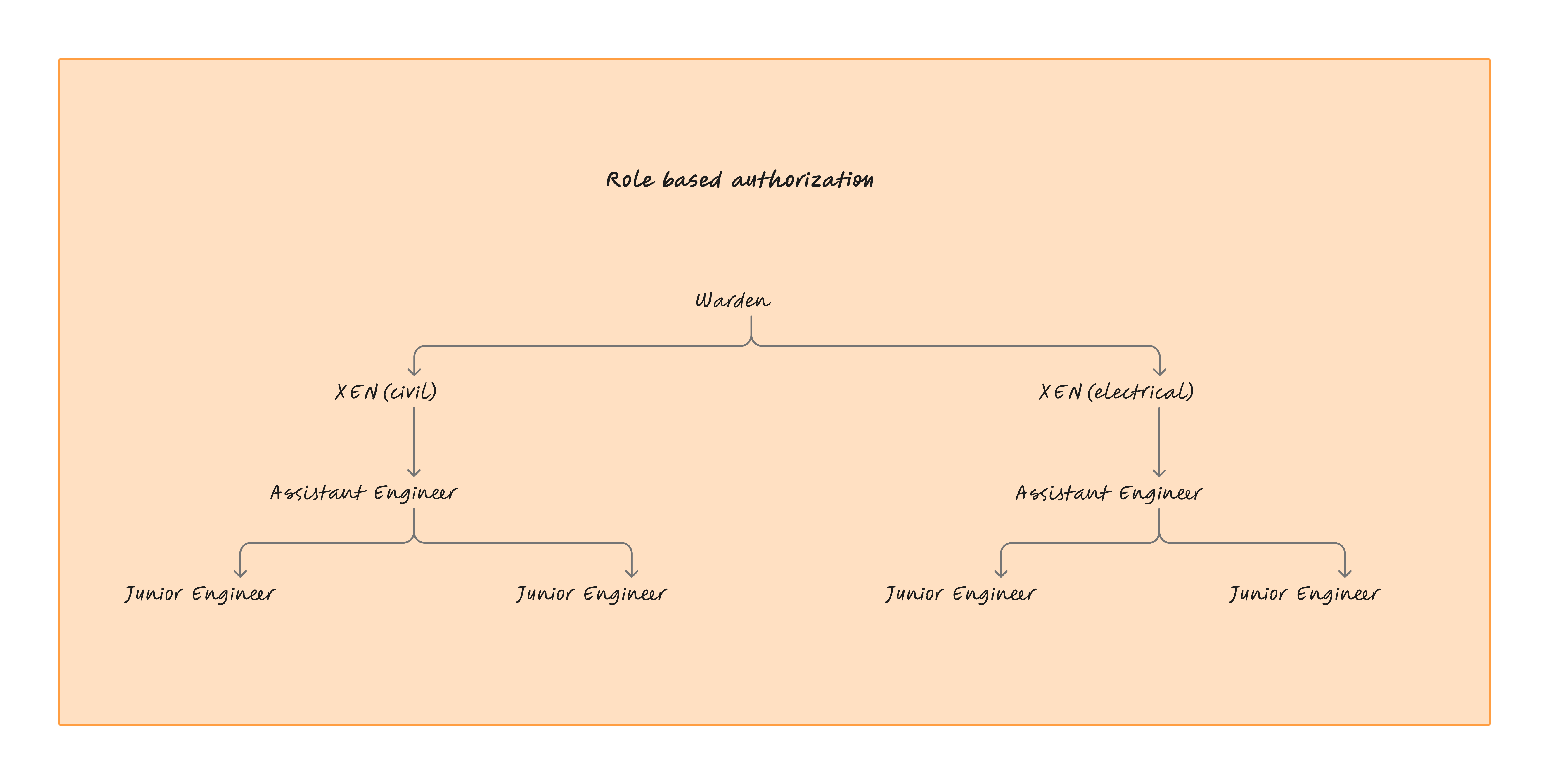

1. Role-Based Authorization

The system classifies users into distinct roles, each having specific privileges:

• Faculty: Submits departmental or residential complaints. Can comment, edit, or delete posts within a 30-minute window.
• Warden: Submits hostel-related complaints. Can comment, edit, or delete posts within a 30-minute window.
• Centrehead: Submits administrative/building-related complaints. Can comment, edit, or delete posts within a 30-minute window.
• Admin (XEN, AE, JE):
  • XEN (Executive Engineer): Oversees all pending posts, assigns Junior Engineers (JE), and manages post statuses.
  • AE (Assistant Engineer): Reviews posts pending AE review and manages them.
  • JE (Junior Engineer): Resolves assignments directly or reports progress.

---

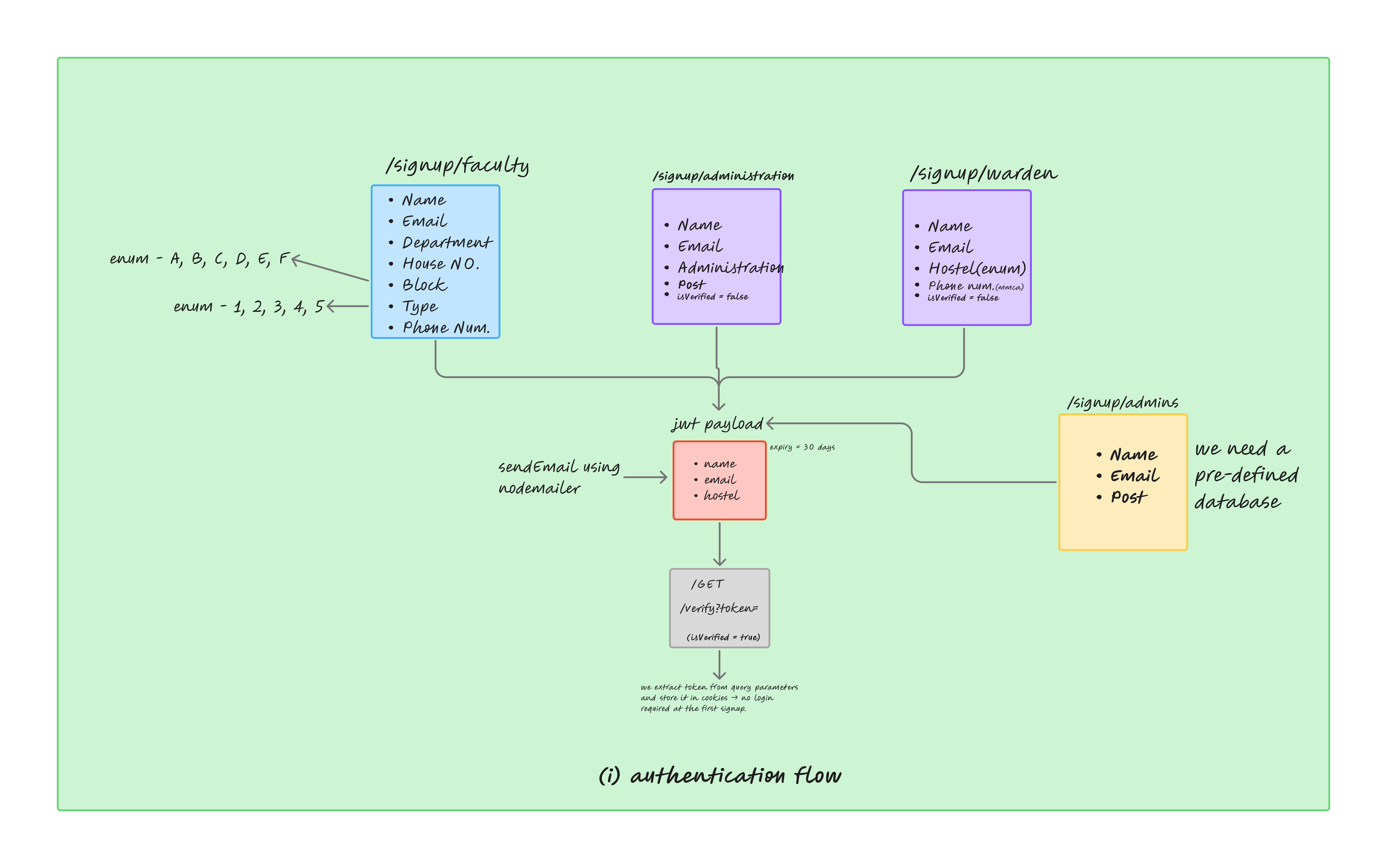

2. Authentication Flow

Authentication is session or token-based, verifying credentials (login) and checking positions/roles on protected routes via custom Gin middleware.

---

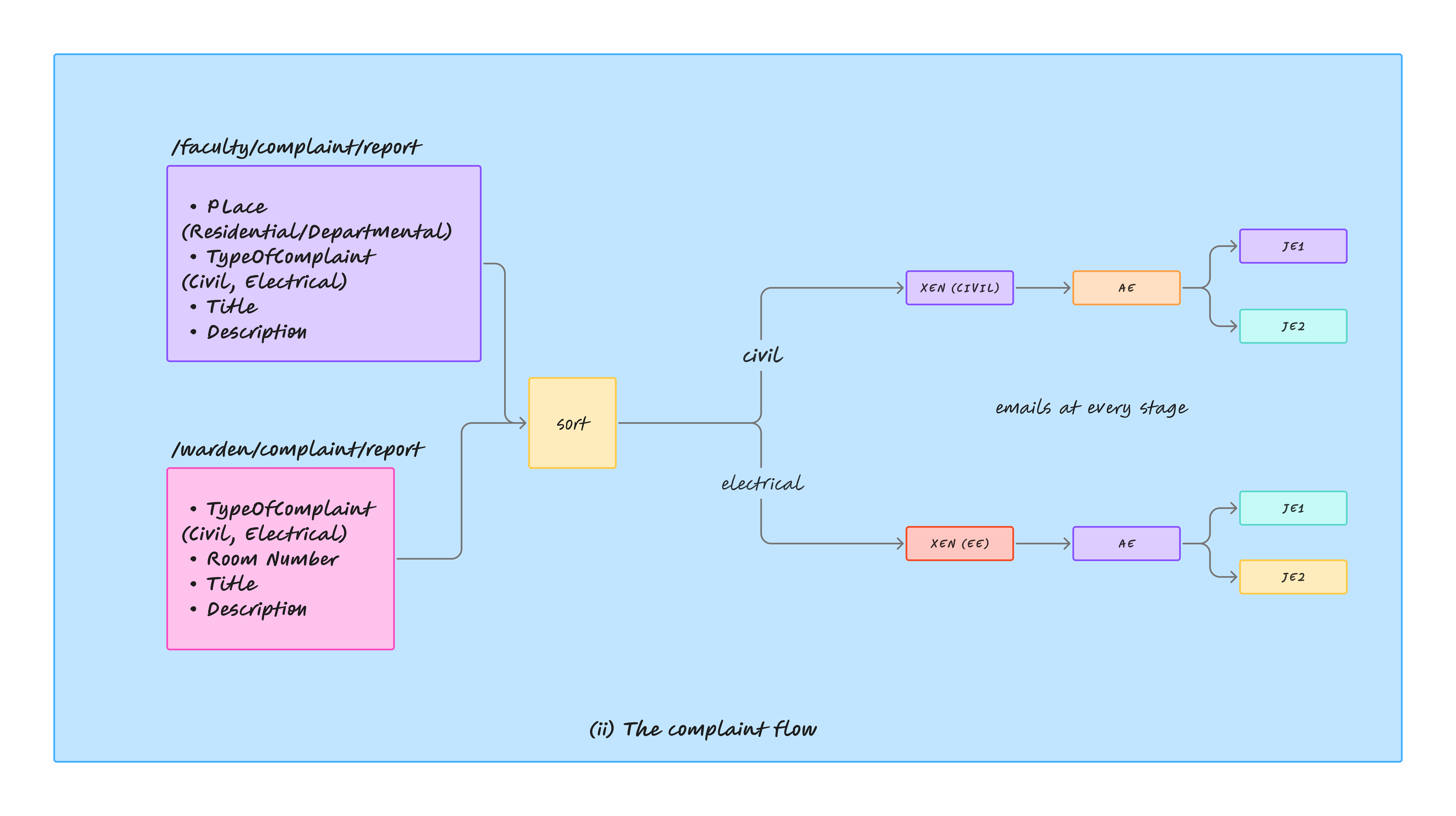

3. Complaint Lifecycle Flow

The typical flow of a complaint from submission to closure:

1. Creation: Submissions by Faculty, Warden, or Centrehead default to the Pending_XEN status.
2. Review/Assignment: The XEN reviews and delegates it to a Junior Engineer (Pending_JE).
3. Execution: The JE performs the work and updates the status to Resolved_JE.
4. Resolution: The complaint progresses through administrative checks (AE / XEN) until it reaches Resolved or Closed.

---

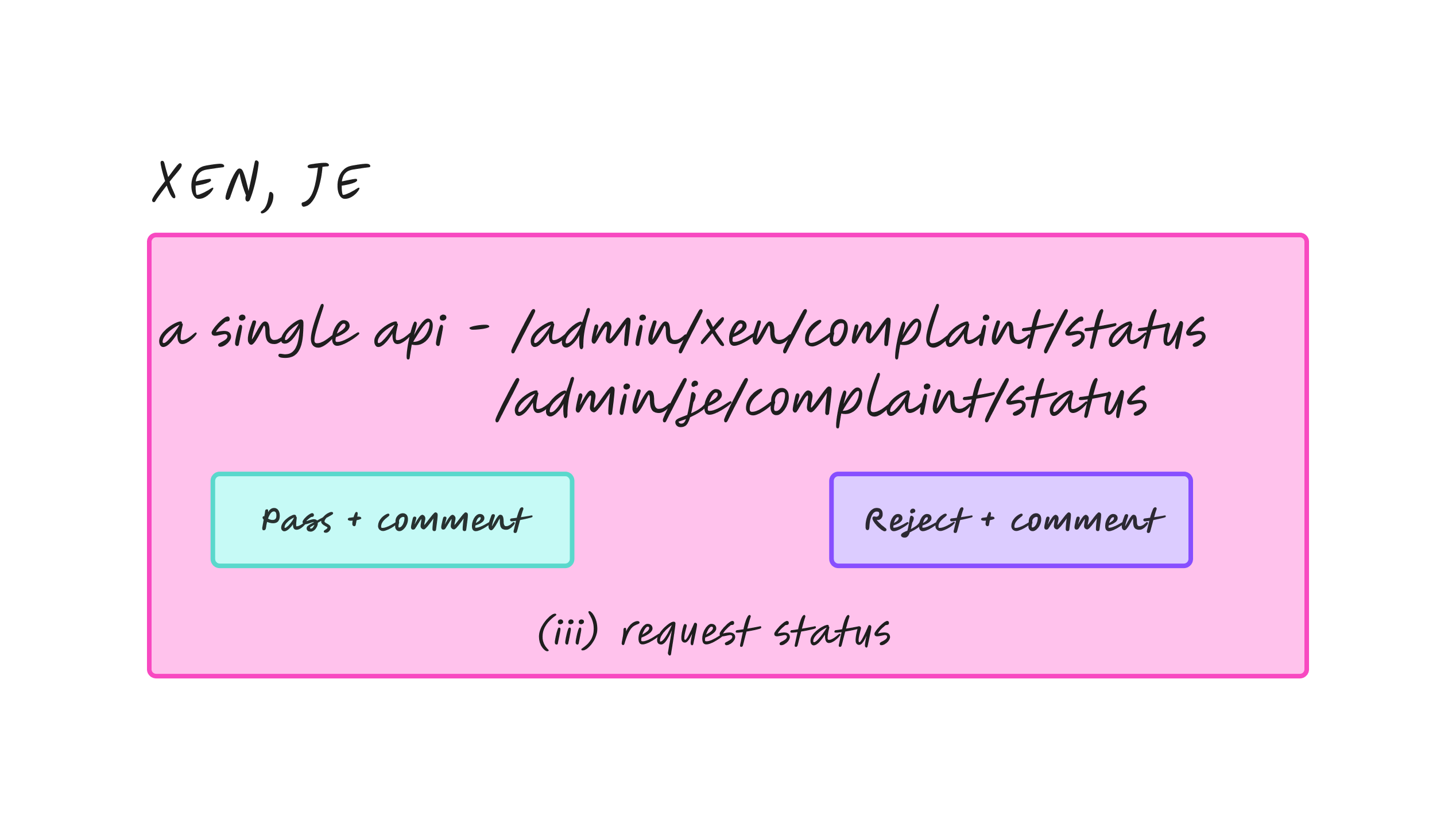

4. Request Status Matrix (XEN, JE)

A quick matrix showing how request statuses transition between the Executive Engineer (XEN) and the Junior Engineer (JE):

---

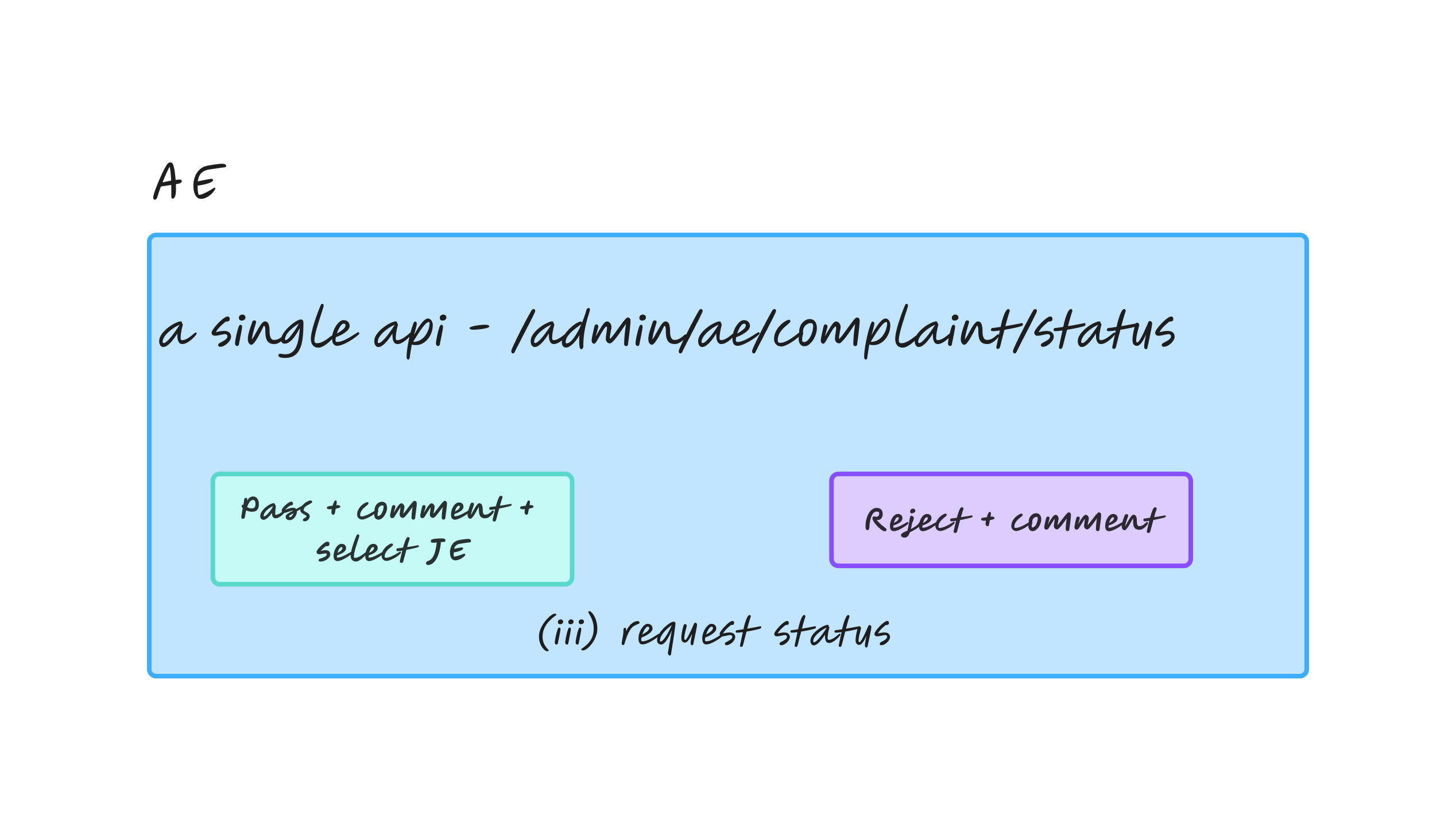

5. Request Status (AE)

How Assistant Engineers (AE) intervene in the verification process for specific complaints:
