Integration and Acceptance Testing in Spring

Learning Goals

• Create integration tests in Spring.
• Define acceptance testing.

Introduction

Now that we've seen how to create unit testing that is completely independent of the Spring Framework, there are 2 additional levels of testing we need to explore.

Integration Testing

We will start with basic integration testing, which will allow us to test whether our endpoints are properly exposed, but will stop short of testing all the infrastructure that the Spring Framework provides.

Let's start by creating a new Test class - this time, we will add Integration to the name of the test class to differentiate it from our previous UnitTest class:

package com.flatiron.spring.FlatironSpring;

import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.web.servlet.WebMvcTest;
import org.springframework.test.web.servlet.MockMvc;

import static org.hamcrest.Matchers.equalTo;
import static org.springframework.test.web.servlet.request.MockMvcRequestBuilders.get;
import static org.springframework.test.web.servlet.result.MockMvcResultHandlers.print;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.content;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.status;

@WebMvcTest(HelloController.class)
class HelloControllerIntegrationTest {

    @Autowired
    private MockMvc mockMvc;

    @Test
    void hello() throws Exception {
        mockMvc.perform(get("/hello"))
                .andDo(print())
                .andExpect(status().isOk())
                .andExpect(content().string(containsString("Invalid Message")));
    }
}

As before, the initial version of our test is intentionally written to fail by checking for the wrong return from our controller method.

But before we run this test, let's inspect what it does:

• @WebMvcTest annotation:
  • We are asking the Spring Framework to initialize its Web Context only and we're asking that Web Context to only include this specific controller. This is helpful because it a) does not initialize other aspect of Spring Framework (database connections, ...) and b) does not initialize other controllers - in a real-life application, you may have a large number of controllers associated with your application context.
• With the @WebMvcTest annotation, we get a bean that can get autowired by Spring to give us access to a MockMvc instance that we can then use to make actual http calls to our end points
• You'll notice that we are chaining multiple calls on the mockMvc instance we created - this makes it easier and more readable than assigning the return value of each method call and then using that value to make the next method call
  • The perform() method lets us pass in an http verb, along with the appropriate parameters for that call. In this case, we are asking for a GET request to be executed and we pass in the URL to which it should be submitted. Spring will then take that URL and find the endpoint we have defined in the hello() method of our controller
  • The andDo(print()) call asks mockMvc to results of the perform() call to the console - we can use this to diagnose potential issues.
  • The andExpect(status().isOk()) call tells mockMvc that we want an HTTP status code of 200 to be returned as a result of the perform() call
  • The andExpect(content().string(containsString("Invalid Message"))) tells mockMvc that we want the content of the response of the perform() call to contain the string "Invalid Message".

Note: containsString() is a tricky assertion to use for testing because it will return true (and therefore the corresponding test will pass) even if the text does not match exactly. This can be very helpful in cases where we only care about part of the message, but should not be substituted for cases where we actually need the strings to be exactly the same. In a later example, we will use the equalTo() assertion for a precise match.

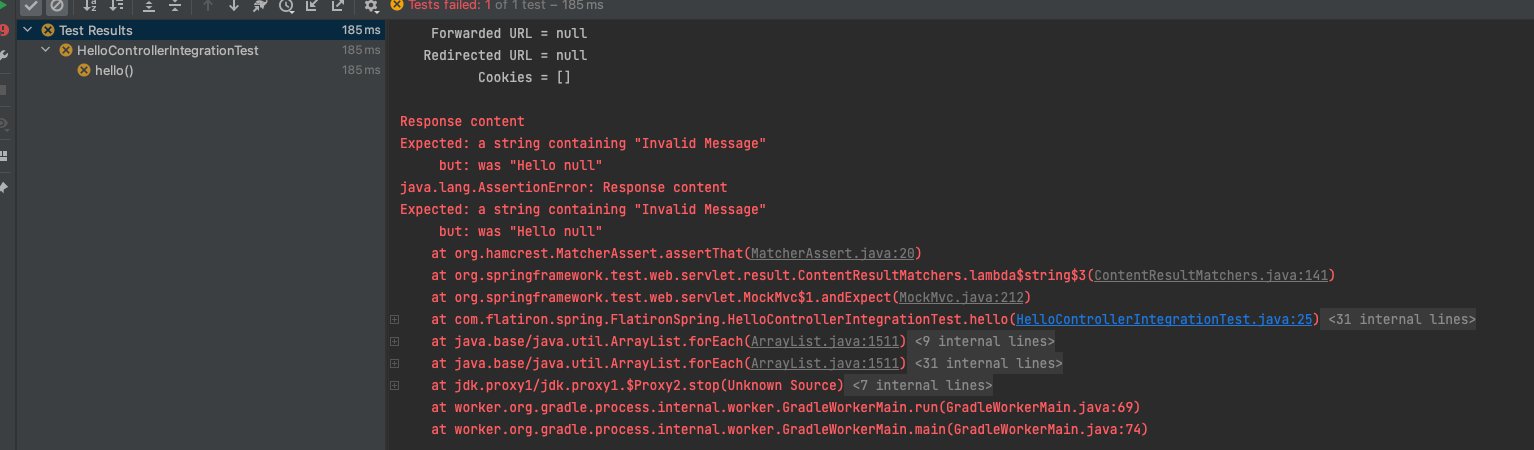

Running this integration test in its current form will give the following error:

Which indicates 2 problems:

1. As expected, the String returned by the endpoint does not match the string we told the test to expect
2. But there is also another issue: the actual string returned is also not the "Hello " that we expected , it's actually "Hello null", which indicates an issue with how our parameter is passed in

This second issue shows the value of integration testing vs unit testing. Our unit test passes because the hello(String name) method is able to correctly receive the name parameter and use it to construct its response. However, this integration test clearly shows that the name parameter is not correctly being received by the hello(String name) method when that method is called as an endpoint by the Spring Framework. We wouldn't have found this problem until we manually tested the endpoint if we didn't have this integration test.

The actual issue here is that we need an annotation to tell the Spring Framework how to get the value of the name parameter from an incoming web request, so we need to change the hello() method as follows:

package com.flatiron.spring.FlatironSpring;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class HelloController {

    @GetMapping("/hello")
    public String hello(@RequestParam(name = "targetName", defaultValue = "Stephanie") String name) {
        return String.format("Hello %s", name);
    }

}

We've added the RequestParam annotation to the String name parameter, which tells Spring to look for a parameter in the incoming web request with the name targetName and set the variable name to the value of that variable. It also tells Spring to use "Stephanie" as the default value for that parameter if it's not passed into the web request.

Note: we are intentionally using a different name for the web request parameter name from the name of the variable in the hello() method signature, just to emphasize that they do not need to be the same, and they are indeed 2 different things that are defined in different places, and that the value of targetName is read Spring and used to initialize name.

With that change, we can now run our integration test again, and see it fail with a "better" error message this time:

Our integration test is still not sending a parameter in, but since we're now defaulting the value of name to "Stephanie", the string we're getting back no longer has null in it, and instead has "Stephanie" in it. This is the valid behavior when no parameter is passed in through the web request.

Let's modify our integration test to recognize that this is desired behavior:

package com.flatiron.spring.FlatironSpring;

import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.web.servlet.WebMvcTest;
import org.springframework.test.web.servlet.MockMvc;

import static org.hamcrest.Matchers.equalTo;
import static org.springframework.test.web.servlet.request.MockMvcRequestBuilders.get;
import static org.springframework.test.web.servlet.result.MockMvcResultHandlers.print;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.content;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.status;

@WebMvcTest(HelloController.class)
class HelloControllerIntegrationTest {

    @Autowired
    private MockMvc mockMvc;

    @Test
    void shouldGreetDefault() throws Exception {
        mockMvc.perform(get("/hello"))
                .andDo(print())
                .andExpect(status().isOk())
                .andExpect(content().string(equalTo("Hello Stephanie")));
    }
}

This test will pass, which is great. But our test suite is incomplete, as we have not yet tested passing in an actual value for the name that should be greeted. Let's do that now:

    @Test
    void shouldGreetByName() throws Exception {
        String greetingName = "Jamie";
        mockMvc.perform(get("/hello")
                .param("targetName", greetingName))
                .andDo(print())
                .andExpect(status().isOk())
                .andExpect(content().string(equalTo("Hello " + greetingName)));
    }

Here is what we've done differently:

• We have changed the perform() call to chain it with a param() call
• The param() call allows us to set up request parameter on the request
• Here we are telling the request that it should have a request parameter named targetName and that its value should be the value of the greetingName variable

Note that we are using 3 different variable names to refer to basically the same thing, i.e. the name that we want the hello() method to use in its greeting. In a normal application, all these variables would have the same name to make it easier for people to follow the code. We're making them different names here intentionally, however, so that it is as clear as possible where each variable is used and how the corresponding values make their way through the Spring Framework.

Start Integration Testing

We have now gotten to the point where the web part of the Spring Framework is exercised with our latest test, which gives us confidence that our endpoints are exposed properly and that we are able to get data to them as we expected.

The next step is to initialize the entire Spring Framework and make a request as we were truly coming from an external client.

Since our current endpoint doesn't actually integrate with anything else, we will start by adding some functionality to it, so we can look at a slightly more complicated scenario.

Dad Jokes

Let's extend our existing hello() endpoint by making it return a random Dad joke in addition to the greeting it currently returns. Don't worry, we don't have to come up with our own lame but somehow still funny jokes for this exercise - we will use an existing API from https://icanhazdadjoke.com/api. This is a free API that doesn't require authentication, so it will be give us a simple (and fun) example to work with.

You can test the joke API with this simple command:

curl https://icanhazdadjoke.com/

It will return a random, but always kind of lame, joke:

Velcro… What a rip-off.

We could implement the functionality to interface with this API inside of our existing hello() method, but that would a) make this one method be responsible for more than one thing and b) consequently make it more difficult to unit test. So instead, we will create a new service class that will be responsible for interfacing with the API:

package com.flatiron.spring.FlatironSpring;

import org.springframework.context.annotation.Bean;
import org.springframework.stereotype.Service;

@Service
public class JokeService {
    public String getDadJoke() {
        return null;
    }
}

The @Service annotation associated with the class defines this class as a service component within the Spring Framework.

Note that this current implementation doesn't actually interface with our target API. Before we implement that functionality, let's first introduce the service into our hello() method in our controller class and update our unit test accordingly:

@RestController
public class HelloController {

    private JokeService jokeService;

    public HelloController(JokeService jokeService) {
        this.jokeService = jokeService;
    }

    @GetMapping("/hello")
    public String hello(@RequestParam(name = "targetName", defaultValue = "Stephanie") String name) {
        String greeting = "Hello " + name;
        greeting += "<br/>";
        greeting += "Dad joke of the moment: " + jokeService.getDadJoke();
        return greeting;
    }

}

Here is a breakdown of the updates to the controller:

1. We create a private instance variable jokeService to get access to the service's methods
2. Since our JokeService class has the @Service annotation, the Spring framework will take care of passing in an instance of the joke service into the HelloController() constructor
3. We use the jokeService object to get the random joke and build a return String that includes it

Now we need to update our Unit test because it's still trying to build an instance of the HelloController class without passing it a JokeService instance. Here is the updated unit test:

package com.flatiron.spring.FlatironSpring;

import org.junit.jupiter.api.Test;
import org.mockito.Mockito;

import static org.junit.jupiter.api.Assertions.*;
import static org.mockito.Mockito.when;

class HelloControllerUnitTest {

    @Test
    void shouldReturnGreeting() {
        JokeService jokeService = Mockito.mock(JokeService.class);
        String dadJoke = "Did you hear about the new restaurant on the moon? The food is great, " +
                "but there’s just no atmosphere.";
        HelloController helloController = new HelloController(jokeService);
        when(jokeService.getDadJoke()).thenReturn(dadJoke);
        String name = "Jamie";
        String expected = "Hello " + name + "<br/>" +
                "Dad joke of the moment: " +
                dadJoke;
        String actual = helloController.hello(name);
        assertEquals(expected, actual);
    }
}

Let's break it down:

1. We define a jokeService object of type JokeService
2. We use Mockito to mock the behavior of the getDadJoke() method in that service (more on this below)
3. We set values for the actual and expected variables and assert that they match to complete our unit test

Mockito is a framework that lets us "mock" the behavior of methods that the method we are testing are dependent on. This is important for unit testing because we are only interested in testing the behavior of one method, not the behavior of the other methods that this one method might depend on.

In our example, we want to test the behavior of the hello() method, not the behavior of the getDadJoke() method that the hello() method depends on. Mockito lets us create a "fake" service and hard code what we want the getDadJoke() method to return, so that we know that no matter what happens to the actual implementation of that method , our unit test will not break:

1. Mockito.mock() allows us to specify the class for which we need to create an instance, in this case it's JokeService.class
2. when().thenReturn(): this construct allows us to tell Mockito what to return when a specific method of our mock object is called - this is what hardcodes that specific response for every time that method is called

There are a couple of crucial things to note here:

1. The Mockito framework is able to substitute a "mock"/"fake" implementation of the JokeService in the instance of the HelloController we are using in our unit test because we have defined JokeService as a Spring Framework service and the Spring Framework is the one responsible for initializing the service. This is dependency injection in action, and is very important for managing the complexity of larger systems.
2. Remember that our actual getDadJoke() method in our actual JokeService class does not actually do anything (yet). This is a great example of unit testing in action - the unit testing we are currently focused on, shouldReturnGreeting() does not, and should not, care about the implementation of the getDadJoke() method. The fact that we can make this unit test before we even implement that service method is proof that our unit test is properly isolated from any of the dependencies of the method it tests.

You should now be able to run your unit test and have it pass.

Let's now turn our attention to our existing integration test. It does not directly instantiate the controller since it actually uses our mockMvc object to make a request into the endpoint and exercise the Spring Framework to let it deliver that request to the controller. This means it will compile successfully. However, it will not run because the Spring Framework will look for a JokeService to initialize the application with, but cannot find one in this version of the integration test:

package com.flatiron.spring.FlatironSpring;

import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.web.servlet.WebMvcTest;
import org.springframework.test.web.servlet.MockMvc;

import static org.hamcrest.Matchers.equalTo;
import static org.springframework.test.web.servlet.request.MockMvcRequestBuilders.get;
import static org.springframework.test.web.servlet.result.MockMvcResultHandlers.print;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.content;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.status;

@WebMvcTest(HelloController.class)
class HelloControllerIntegrationTest {

    @Autowired
    private MockMvc mockMvc;

    @Test
    void shouldGreetDefault() throws Exception {
        mockMvc.perform(get("/hello"))
                .andDo(print())
                .andExpect(status().isOk())
                .andExpect(content().string(equalTo("Hello Stephanie")));
    }

    @Test
    void shouldGreetByName() throws Exception {
        String greetingName = "Jamie";
        mockMvc.perform(get("/hello")
                .param("targetName", greetingName))
                .andDo(print())
                .andExpect(status().isOk())
                .andExpect(content().string(equalTo("Hello " + greetingName)));
    }
}

Running the version above as is will give you a long output where you will find an error message to this effect:

No qualifying bean of type 'com.flatiron.spring.FlatironSpring.JokeService' available: expected at least 1 bean which qualifies as autowire candidate.

Let's add a private member variable for the JokeService:

package com.flatiron.spring.FlatironSpring;

import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.web.servlet.WebMvcTest;
import org.springframework.boot.test.mock.mockito.MockBean;
import org.springframework.test.web.servlet.MockMvc;

import static org.hamcrest.Matchers.equalTo;
import static org.springframework.test.web.servlet.request.MockMvcRequestBuilders.get;
import static org.springframework.test.web.servlet.result.MockMvcResultHandlers.print;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.content;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.status;

@WebMvcTest(HelloController.class)
class HelloControllerIntegrationTest {

    @Autowired
    private MockMvc mockMvc;
    // adding a JokeService here
    @MockBean
    private JokeService jokeService;

    @Test
    void shouldGreetDefault() throws Exception {
        mockMvc.perform(get("/hello"))
                .andDo(print())
                .andExpect(status().isOk())
                .andExpect(content().string(equalTo("Hello Stephanie")));
    }

    @Test
    void shouldGreetByName() throws Exception {
        String greetingName = "Jamie";
        mockMvc.perform(get("/hello")
                .param("targetName", greetingName))
                .andDo(print())
                .andExpect(status().isOk())
                .andExpect(content().string(equalTo("Hello " + greetingName)));
    }
}

We can now run the integration test and it will fail with a different message that indicates that the output of the hello() method is no longer what we expected it to be before:

Response content
Expected: "Hello Stephanie"
     but: was "Hello Stephanie<br/>Dad joke of the moment: null"
java.lang.AssertionError: Response content
Expected: "Hello Stephanie"
     but: was "Hello Stephanie<br/>Dad joke of the moment: null"

Since the Joke API is a) an API we do not control and b) an API that returns a random joke every time we call it, we do not want to test its actual return value, even in this integration test. So we will use the containsString() matcher instead of the equalTo() to make sure we have what we need in the response, ignoring the rest of the return value:

package com.flatiron.spring.FlatironSpring;

import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.web.servlet.WebMvcTest;
import org.springframework.boot.test.mock.mockito.MockBean;
import org.springframework.test.web.servlet.MockMvc;

import static org.hamcrest.Matchers.containsString;
import static org.springframework.test.web.servlet.request.MockMvcRequestBuilders.get;
import static org.springframework.test.web.servlet.result.MockMvcResultHandlers.print;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.content;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.status;

@WebMvcTest(HelloController.class)
class HelloControllerIntegrationTest {

    @Autowired
    private MockMvc mockMvc;
    @MockBean
    private JokeService jokeService;

    @Test
    void shouldGreetDefault() throws Exception {
        mockMvc.perform(get("/hello"))
                .andDo(print())
                .andExpect(status().isOk())
                .andExpect(content().string(containsString("Hello Stephanie")));
    }

    @Test
    void shouldGreetByName() throws Exception {
        String greetingName = "Jamie";
        mockMvc.perform(get("/hello")
                .param("targetName", greetingName))
                .andDo(print())
                .andExpect(status().isOk())
                .andExpect(content().string(containsString("Hello " + greetingName)));
    }
}

You should have now noticed that we still have a potential gap, which is that all the tests we've written so far could pass even if the getDadJoke() method never actually interfaced with the Dad Joke API.

Let's fix that with an integration test of the Joke Service:

package com.flatiron.spring.FlatironSpring;

import org.junit.jupiter.api.Test;

import static org.assertj.core.api.Assertions.assertThat;
import static org.junit.jupiter.api.Assertions.*;

class JokeServiceIntegrationTest {

    @Test
    void shouldReturnRandomDadJoke() {
        JokeService jokeService = new JokeService();
        String firstRandomDadJoke = jokeService.getDadJoke();
        assertThat(firstRandomDadJoke).isNotNull();
        String secondRandomDadJoke = jokeService.getDadJoke();
        assertThat(secondRandomDadJoke).isNotNull();
        assertThat(firstRandomDadJoke).isNotEqualTo(secondRandomDadJoke);
    }
}

Let's break it down:

1. Create this test the same way you've created previous tests by generating a new test for the JokeService class
2. Since the jokes are random, we cannot test for a specific value back from the service, so we do 2 things instead:
   1. Test that the return value from the joke service is not null
   2. Make sure that we don't get the same joke on 2 consecutive calls, ensuring that the joke is indeed "random"

Note: with a true random service, it's possible that the same return value could be returned from 2 consecutive calls. If we wanted to guard against this, we could conditionally make a third call if the 2 first calls resulted in the same value being returned. The more consecutive calls we make, the less likely they are to all return the same value.

Running this test with our current implementation of the getDadJoke() method will fail, since it always returns null:

public class JokeService {
    public String getDadJoke() {
        return null;
    }
}

Note: as discussed and seen before, this is a great way to make sure your integration test is actually testing what you want it to test - it should fail when your method doesn't yet do what you need it to do.

Let's now implement the actual interface with the Joke API:

public class JokeService {
    public String getDadJoke() {
        String apiURL = "https://icanhazdadjoke.com/";
        RestTemplate restTemplate = new RestTemplate();
        String result = restTemplate.getForObject(apiURL, DadJoke.class).joke;

        return result;
    }
}

class DadJoke {
  public String id;
  public String joke;
  public String status;
}

Let's examine this code:

1. We use the RestTemplate class to make a request to the URL for the Joke API
2. We use the getForObject() method and tell it to take the return of the call to the URL and convert its JSON return to a Java object
3. We define the Java object as a simple POJO that has 3 properties that match the JSON that the API returns
4. The getForObject method takes care of converting JSON to Java and returns an object of type DadJoke
5. We can then take the joke property of the DadJoke object and return it to the caller

Note: this is not a "unit" test because it actually lets the real service (not mocked) make a request to the real API and tests the actual response (albeit not the actual precise value, for the reasons we discussed)

You should now be able to rerun your integration test and have it pass successfully.

Acceptance (end-to-end) testing in Spring

For end-to-end "acceptance" testing, we want to validate that our functionality works in just the same way as our users will end up using it. This means different things for different types of functionality and applications, but in the case of our API endpoints, it means we want to initialize the entire Spring Framework:

package com.flatiron.spring.FlatironSpring;

import org.junit.jupiter.api.Test;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.autoconfigure.web.servlet.AutoConfigureMockMvc;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.web.servlet.MockMvc;

import static org.hamcrest.Matchers.containsString;
import static org.junit.jupiter.api.Assertions.*;
import static org.springframework.test.web.servlet.request.MockMvcRequestBuilders.get;
import static org.springframework.test.web.servlet.result.MockMvcResultHandlers.print;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.content;
import static org.springframework.test.web.servlet.result.MockMvcResultMatchers.status;

@SpringBootTest
@AutoConfigureMockMvc
class HelloControllerAcceptanceTest {

    @Autowired
    private MockMvc mockMvc;

    @Test
    void shouldGreetDefault() throws Exception {
        mockMvc.perform(get("/hello"))
                .andDo(print())
                .andExpect(status().isOk())
                .andExpect(content().string(containsString("Hello Stephanie")));
    }

    @Test
    void shouldGreetByName() throws Exception {
        String greetingName = "Jamie";
        mockMvc.perform(get("/hello")
                        .param("targetName", greetingName))
                .andDo(print())
                .andExpect(status().isOk())
                .andExpect(content().string(containsString("Hello " + greetingName)));
    }
}

The main differences between this "Acceptance" test and our earlier "Integration" test are:

1. We are now initializing the entire Spring Framework with the annotation @SpringBootTest, which means the request we make through these test methods will actually go through all the layers of the framework, as if they were coming from an actual external client
2. We have asked Spring to auto-wire the mockMvc variable we'll be using to make the http request into our controller
3. We do not mock the actual service, and instead will be using the real service that Spring initializes for the controller

Compare run times

Now that we have a set of Unit, Integration and Acceptance tests, let's run all our tests together and compare run times. In my environment, the results are as follows:

As you can see, the unit tests are the "cheapest" to run (in terms of time that it takes for them to run), then the integration tests are second and then the acceptance tests.

As we move up on the testing pyramid, tests are more and more costly to run, and therefore should be a) run less frequently because they cost the developers more time, b) be less numerous, because the more of them there are, the longer the whole test suite will need to run and c) cover less scenarios/permutations of input for the same reasons.

This is why we try to cover as much functionality as possible with our unit tests and focus our integration and acceptance tests on the specific integration points that our unit tests could not (and should not) cover.

Conclusion

We have learned how to learn integration testing in this lesson. Now we can make sure our Spring application is working correctly and can make changes with confidence since we can test them immediately afterwards.
