Owned Entity Type Requires Primary Key to be defined when the Parent Entity has relationship with Asp.Net Core Identity User

[fingers10]

I have two context in my application. One is AppIdentityDbContext for identity related works and other is AppContext for app related works.

I have an identity user class - ApplicationUser - which has a relation to Profile entity from AppContext and the Profile entity in turn owns a value object ProfileContact.

Steps to reproduce

ApplicationUser

public class ApplicationUser : IdentityUser<Guid>
{
    public string FirstName { get; set; }
    public string LastName { get; set; }
    public string Designation { get; set; }

    public Guid ProfileId { get; set; }
    public Profile Profile { get; set; }
}

Profile

public class Profile : BaseEntity<Guid>, IAggregateRoot
{
    private Profile()
    {
        // required by EF
    }

    public Profile(string brandName, ProfileContact profileContact)
    {
        BrandName = brandName;
        ProfileContact = profileContact;
    }

    public string BrandName { get; set; }

    public ProfileContact ProfileContact { get; private set; }
}

ProfileContact

public class ProfileContact // ValueObject
{
    private ProfileContact()
    {
        // required by EF
    }

    public ProfileContact(string email, string phone, string mobile)
    {
        Email = email;
        Phone = phone;
        Mobile = mobile;
    }

    public string Email { get; private set; }
    public string Phone { get; private set; }
    public string Mobile { get; private set; }
}

Here is the AppContext.

public class AppContext: DbContext
{
    private readonly IHttpContextAccessor _httpContextAccessor;

    private ILoggerFactory GetLoggerFactory()
    {
        IServiceCollection serviceCollection = new ServiceCollection();
        serviceCollection.AddLogging(builder =>
            builder.AddConsole()
                .AddFilter(DbLoggerCategory.Database.Command.Name,
                    LogLevel.Information));
        return serviceCollection.BuildServiceProvider()
            .GetService<ILoggerFactory>();
    }

    public AppContext(DbContextOptions<AppContext> options, IHttpContextAccessor httpContextAccessor) : base(options)
    {
        _httpContextAccessor = httpContextAccessor;
    }

    public DbSet<Profile> Profiles { get; set; }

    protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder)
    {
        if (!optionsBuilder.IsConfigured)
        {
            optionsBuilder
                .UseLoggerFactory(GetLoggerFactory())
                .EnableSensitiveDataLogging(true);
        }
    }

    protected override void OnModelCreating(ModelBuilder builder)
    {
        base.OnModelCreating(builder);

        builder.Entity<Profile>(ConfigureProfile);
        builder.Entity<ProfileContact>(ConfigureProfileContact);
    }

    private void ConfigureProfile(EntityTypeBuilder<Profile> builder)
    {
        builder.Property(p => p.BrandName)
            .IsRequired()
            .HasMaxLength(50);

        builder.OwnsOne(p => p.ProfileContact);
    }

   private void ConfigureProfileContact(EntityTypeBuilder<ProfileContact> builder)
    {
        builder.Property(pc => pc.Email)
            .IsRequired()
            .HasMaxLength(50);

        builder.Property(pc => pc.Phone)
            .IsRequired()
            .HasMaxLength(10);

        builder.Property(pc => pc.Mobile)
            .IsRequired()
            .HasMaxLength(10);
    }

}

I have configured ProfileContact as owned by Profile entity.

Here is the AppIdentityDbContext.

public class AppIdentityDbContext : IdentityDbContext<ApplicationUser, ApplicationRole, Guid>
{
    public AppIdentityDbContext(DbContextOptions<AppIdentityDbContext> options)
        : base(options)
    {
    }

    protected override void OnModelCreating(ModelBuilder builder)
    {
        base.OnModelCreating(builder);
        // Customize the ASP.NET Identity model and override the defaults if needed.
        // For example, you can rename the ASP.NET Identity table names and more.
        // Add your customizations after calling base.OnModelCreating(builder);
        builder.Entity<ApplicationUser>().ToTable("Users", "Account");
        builder.Entity<ApplicationRole>().ToTable("Roles", "Account");
        builder.Entity<IdentityUserRole<Guid>>().ToTable("UserRoles", "Account");
        builder.Entity<IdentityUserClaim<Guid>>().ToTable("UserClaims", "Account");
        builder.Entity<IdentityUserLogin<Guid>>().ToTable("UserLogins", "Account");
        builder.Entity<IdentityUserToken<Guid>>().ToTable("UserTokens", "Account");
        builder.Entity<IdentityRoleClaim<Guid>>().ToTable("RoleClaims", "Account");
    }
}

Whenever I try to run seeding, I'm getting the same error when user logs in.

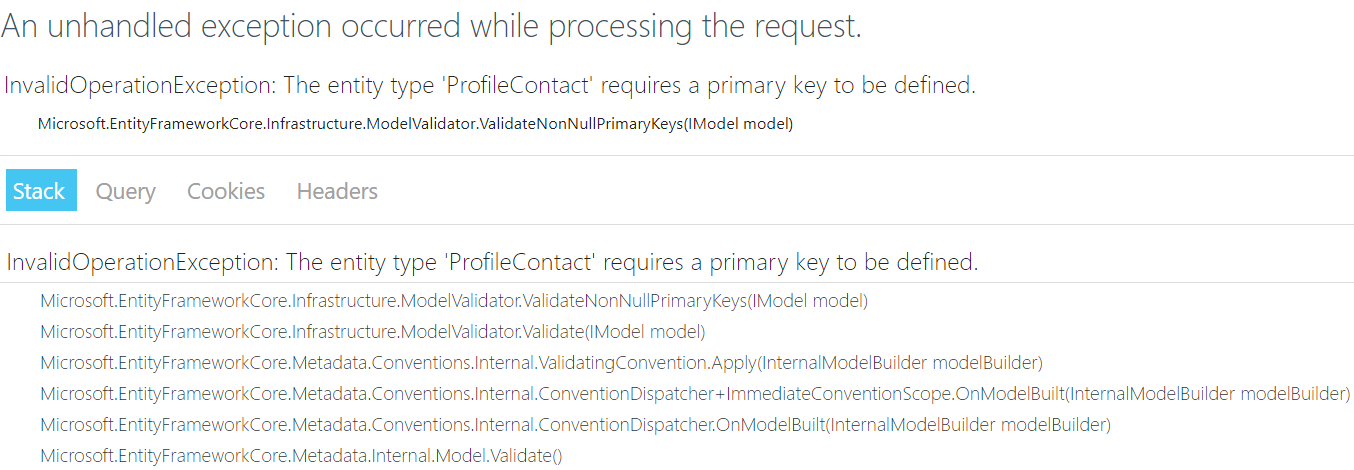

Now whenever user logs in, I get this error:

Here is my login Post method. I'm using Asp.Net Core Identity scaffolded template.

Login - OnPostAsync

public async Task<IActionResult> OnPostAsync(string returnUrl = null)
{
   returnUrl = returnUrl ?? Url.Content("~/");

   if (ModelState.IsValid)
   {
       // This doesn't count login failures towards account lockout
       // To enable password failures to trigger account lockout, set lockoutOnFailure: true
       var result = await _signInManager.PasswordSignInAsync(Input.MobileNumber, Input.Password, Input.RememberMe, lockoutOnFailure: true);
       if (result.Succeeded)
       {
         ....

    // If we got this far, something failed, redisplay form
    return Page();
}

Does the value object/owned type needs an key to be defined? What I read and understood about OwnedTypes is that they belong to the same table but can be used as object. Am I doing anything wrong? or I need to add Id property to ProfileContact. If so why? Please assist.

Further technical details

EF Core version: 2.2.6
Database provider: Microsoft.EntityFrameworkCore.SqlServer
Target framework: ASP.NET Core 2.2
Operating system: Windows 10 x64
IDE: Visual Studio 2017 15.9.16

[smitpatel]

@fingers10 - Can you try with 3.0 release of asp.net core & Ef core?

[fingers10]

@smitpatel - Meanwhile from Stack Overflow Adding base.OnModelCreating(builder) fixed the issue. Any clues on why?. I need to know the why part.

[smitpatel]

@fingers10 - I read the stack overflow post also. I am not able to reproduce the issue you are seeing based on all the snippets. If your AppContext is deriving from DbContext directly then base call may not be necessary. But without looking at full code, I cannot say why it works or does not work.
If you can share a full repro code, we can investigate.

[AndriySvyryd]

@fingers10 When deriving from IdentityDbContext base.OnModelCreating(builder) should always be called to apply the base configuration: https://docs.microsoft.com/en-us/aspnet/core/security/authentication/customize-identity-model?view=aspnetcore-3.0#customize-the-model

[fingers10]

@AndriySvyryd I have two context. One is AppContext and another one is AppIdentityDbContext. I have base.OnModelCreating(builder) called in AppIdentityDbContext. I'm having a relationship of IdentityUser in AppIdentityDbContext with a Profile in AppDbContext.

@smitpatel I'll post more code related to this.

[fingers10]

@smitpatel I have updated the question with AppDbContext and AppIdentityDbContext. Can you please look on if there is something wrong with my code?

[smitpatel]

builder.Entity<ProfileContact>(ConfigureProfileContact);

You are configuring ProfileContact as regular entity & also as owned entity.

[fingers10]

@smitpatel I'm following eShopOnWeb sample reference and developing my project. If you see in the given link, You can see Address is a owned type of Order and both are configured in OnModelCreating.

Also if calling this builder.Entity<ProfileContact>(ConfigureProfileContact); is the mistake I'm doing then how can I configure the properties of my ProfileContact like .IsRequired(),.HasMaxLength(50). ? Please assist.

[smitpatel]

@fingers10 - This article will help you understand how to configure facets on an owned type.
