N4JS IDE product built for macOS on Eclipse servers cannot be launched

[mor-n4]

The macOS version of the N4JS IDE built on Eclipse's Jenkins can no longer be launched. The following error message is shown (even before the workspace selection dialog appears):

To reproduce:

1. download n4jside-macosx.cocoa.x86_64.dmg from
   https://download.eclipse.org/n4js/products/nightly/201910102301/
   (commit cbd64b7)
2. install and launch
3. the above error should show up.

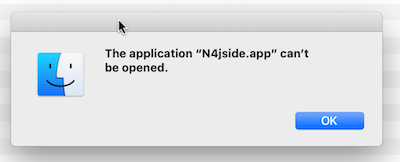

The file n4jside-macosx.cocoa.x86_64.zip from the above download location is also producing an error, but with a different dialog/message:

NOTE: I have tried to reproduce this with local maven builds, but this error does not occur when the product is being built locally (tested both with and without the -DexcludeJRE flag and in both cases the problem does not occur when built locally).

[lbeurerkellner]

I have also encountered this issues. I can confirm that the following build still works: https://archive.eclipse.org/n4js/products/nightly/201907162301/

[mmews-n4]

Linux version under Ubuntu works.

[mmews-n4]

On my machine I can start the macos version of the n4jsIDE after I made a trivial change (added new line) to the info.plist file within the Contents folder of the product. Reverting the change will again result in the error above.

Also I built a version that contains the following two keys in the info.plist file, which didn't solve the issue:

<key>JVMCapabilities</key>
<string>JNI</string>

@mor-n4 A note to opening the zip: It worked for me when right-clicking on the app and then chose Open in the dialog. After that, the same issue regarding JNI_CreateJavaVM symbol appears.

[lbeurerkellner]

This is speculation, but since it works fine when build locally or after local modification, this could be a signing issues?

[mmews-n4]

@lbeurerkellner 💯

Just tried to start it on the console and got the following message:

$ ./n4jsIDE.app/Contents/MacOS/n4js_ide
2019-10-31 12:13:08.324 n4js_ide[67586:993016] Error loading /Library/Java/JavaVirtualMachines/jdk-12.0.1.jdk/Contents/MacOS/libjli.dylib:  dlopen(/Library/Java/JavaVirtualMachines/jdk-12.0.1.jdk/Contents/MacOS/libjli.dylib, 265): no suitable image found.  Did find:
	/Library/Java/JavaVirtualMachines/jdk-12.0.1.jdk/Contents/MacOS/libjli.dylib: code signature in (/Library/Java/JavaVirtualMachines/jdk-12.0.1.jdk/Contents/MacOS/libjli.dylib) not valid for use in process using Library Validation: mapped file has no cdhash, completely unsigned? Code has to be at least ad-hoc signed.

[mor-n4]

This was caused by the update to Eclipse 2019-09.

As of this update, certain entitlements have to be specified when signing the product for macOS, which was missing.

The other problem with the zip archive producing a broken app-bundle was caused by incorrect/missing file mode information in the zip-archive created by the Eclipse signing service for macOS.

These two should be fixed by the above PR.

There is another open issue, that I won't fix as part of this ticket: as of macOS Catalina an additional step is required in addition to signing: notarization. Created #1762 for that.
