Enable test coverage calculation for integrations #1344

mtojek · 2021-07-22T12:31:23Z

Fixes: #755

This PR updates Jenkinsfile to enable test coverage calculation for integrations (all test types).

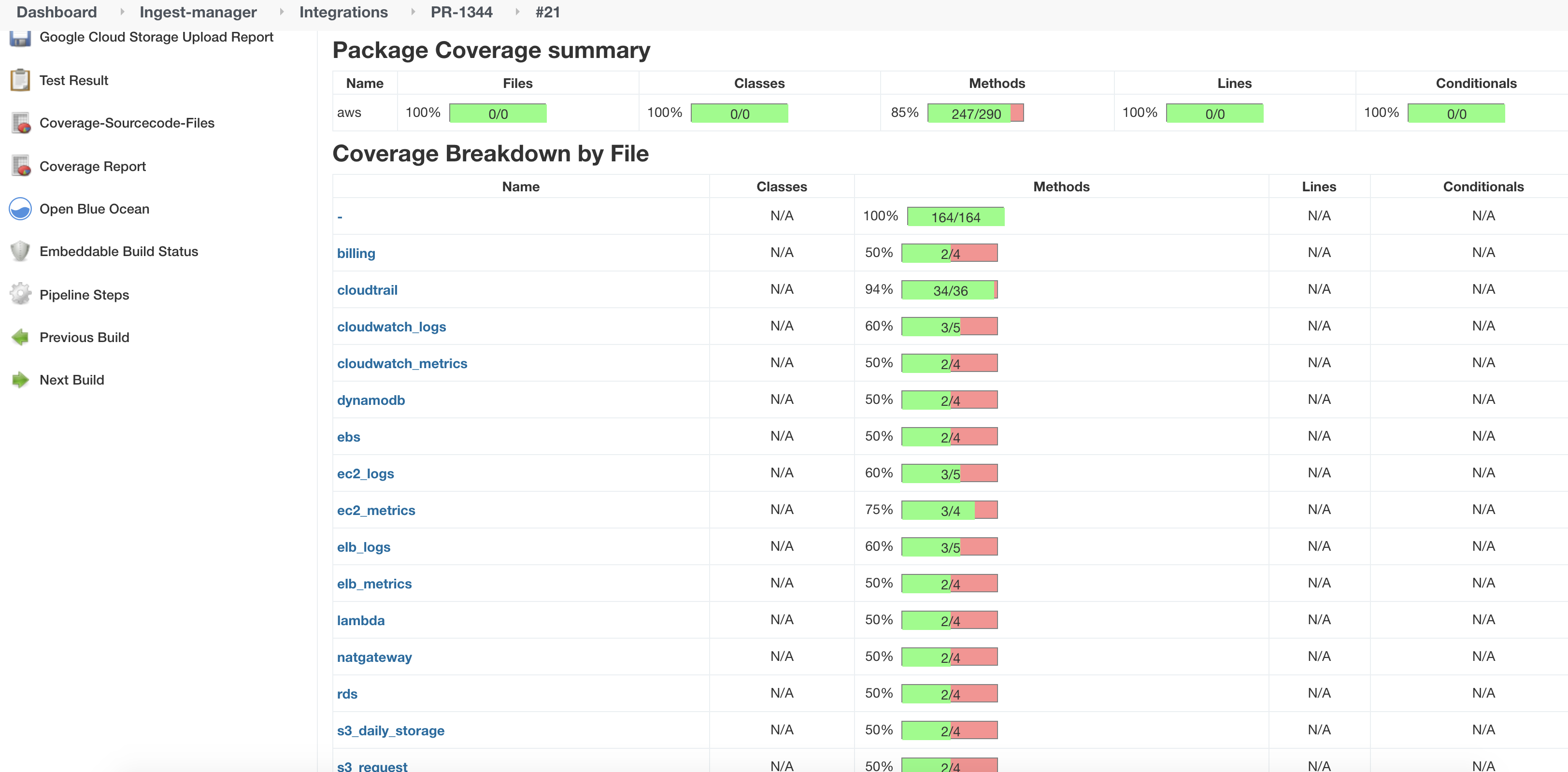

Coverage report for AWS:

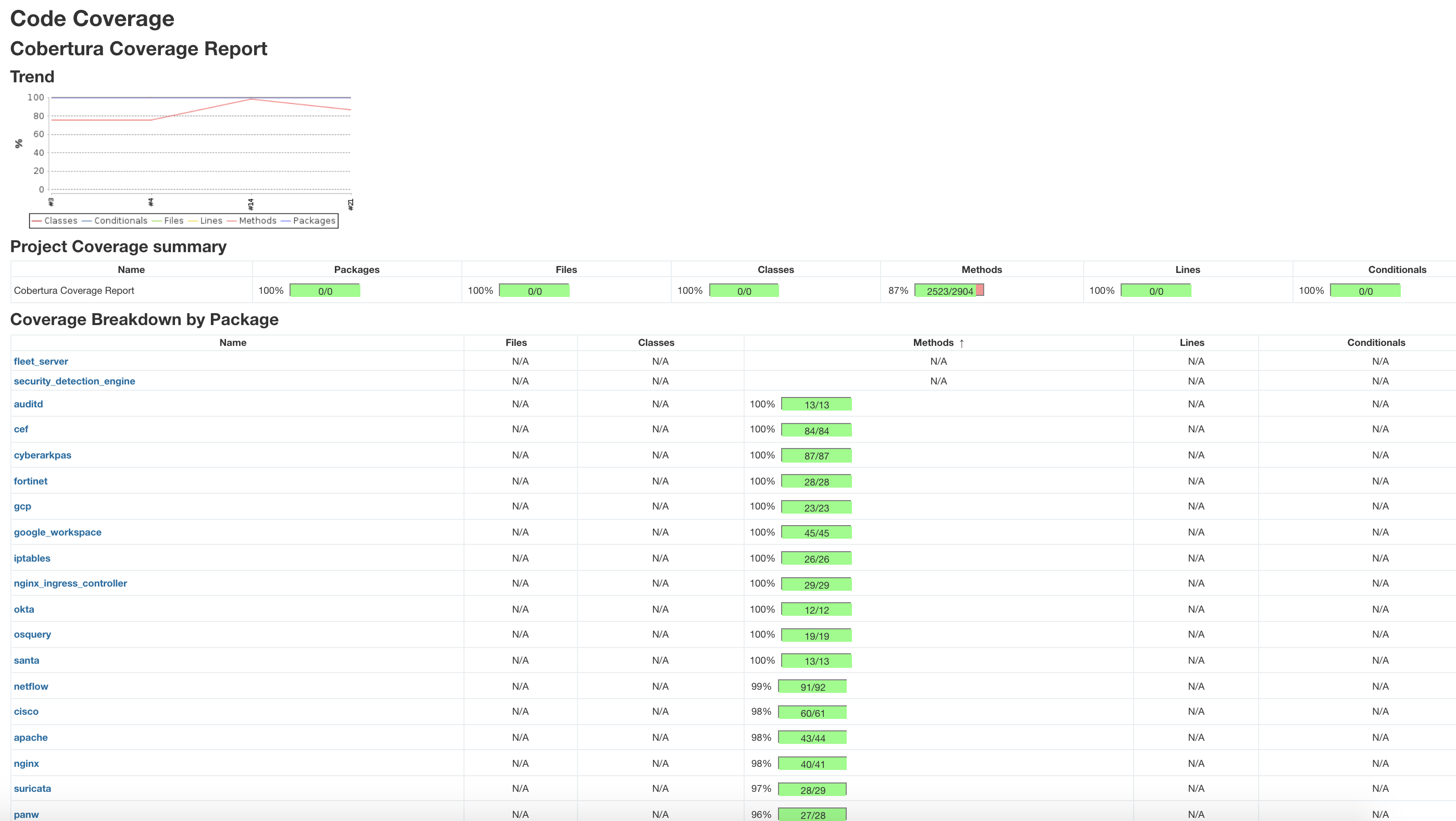

Coverage report for packages:

elasticmachine · 2021-07-22T13:41:12Z

💚 Build Succeeded

the below badges are clickable and redirect to their specific view in the CI or DOCS

Expand to view the summary

Build stats

Start Time: 2021-07-26T15:33:27.889+0000
Duration: 70 min 10 sec
Commit: 161b033

Test stats 🧪

Test	Results
Failed	0
Passed	2600
Skipped	3
Total	2603

Trends 🧪

mtojek · 2021-07-22T14:06:21Z

/test

mtojek · 2021-07-22T14:11:33Z

Some weird exceptions appeared. I'm verifying if they are reproducible:

[2021-07-22T13:55:26.157Z] [Cobertura] Publishing Cobertura coverage report...
[2021-07-22T13:55:26.157Z]
[2021-07-22T13:55:26.415Z] [Cobertura] Publishing Cobertura coverage results...
[2021-07-22T13:55:26.415Z]
[2021-07-22T13:55:26.444Z] FATAL: Unable to parse /var/lib/jenkins/jobs/Ingest-manager/jobs/integrations/branches/PR-1344/builds/2/coverage1.xml
[2021-07-22T13:55:26.444Z] hudson.util.IOException2: Cannot parse coverage results
[2021-07-22T13:55:26.444Z] 	at hudson.plugins.cobertura.CoberturaCoverageParser.parse(CoberturaCoverageParser.java:86)
[2021-07-22T13:55:26.444Z] 	at hudson.plugins.cobertura.CoberturaCoverageParser.parse(CoberturaCoverageParser.java:52)
[2021-07-22T13:55:26.444Z] 	at hudson.plugins.cobertura.CoberturaPublisher.perform(CoberturaPublisher.java:594)
[2021-07-22T13:55:26.444Z] 	at jenkins.tasks.SimpleBuildStep.perform(SimpleBuildStep.java:123)
[2021-07-22T13:55:26.445Z] 	at org.jenkinsci.plugins.workflow.steps.CoreStep$Execution.run(CoreStep.java:99)
[2021-07-22T13:55:26.445Z] 	at org.jenkinsci.plugins.workflow.steps.CoreStep$Execution.run(CoreStep.java:69)
[2021-07-22T13:55:26.445Z] 	at org.jenkinsci.plugins.workflow.steps.SynchronousNonBlockingStepExecution.lambda$start$0(SynchronousNonBlockingStepExecution.java:47)
[2021-07-22T13:55:26.445Z] 	at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511)
[2021-07-22T13:55:26.445Z] 	at java.util.concurrent.FutureTask.run(FutureTask.java:266)
[2021-07-22T13:55:26.445Z] 	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149)
[2021-07-22T13:55:26.445Z] 	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624)
[2021-07-22T13:55:26.445Z] 	at java.lang.Thread.run(Thread.java:748)
[2021-07-22T13:55:26.445Z] Caused by: org.xml.sax.SAXParseException; lineNumber: 21; columnNumber: 12; Content is not allowed in trailing section.
[2021-07-22T13:55:26.445Z] 	at com.sun.org.apache.xerces.internal.util.ErrorHandlerWrapper.createSAXParseException(ErrorHandlerWrapper.java:203)
[2021-07-22T13:55:26.445Z] 	at com.sun.org.apache.xerces.internal.util.ErrorHandlerWrapper.fatalError(ErrorHandlerWrapper.java:177)
[2021-07-22T13:55:26.445Z] 	at com.sun.org.apache.xerces.internal.impl.XMLErrorReporter.reportError(XMLErrorReporter.java:400)
[2021-07-22T13:55:26.445Z] 	at com.sun.org.apache.xerces.internal.impl.XMLErrorReporter.reportError(XMLErrorReporter.java:327)
[2021-07-22T13:55:26.445Z] 	at com.sun.org.apache.xerces.internal.impl.XMLScanner.reportFatalError(XMLScanner.java:1473)
[2021-07-22T13:55:26.445Z] 	at com.sun.org.apache.xerces.internal.impl.XMLDocumentScannerImpl$TrailingMiscDriver.next(XMLDocumentScannerImpl.java:1431)
[2021-07-22T13:55:26.445Z] 	at com.sun.org.apache.xerces.internal.impl.XMLDocumentScannerImpl.next(XMLDocumentScannerImpl.java:602)
[2021-07-22T13:55:26.445Z] 	at com.sun.org.apache.xerces.internal.impl.XMLDocumentFragmentScannerImpl.scanDocument(XMLDocumentFragmentScannerImpl.java:505)
[2021-07-22T13:55:26.445Z] 	at com.sun.org.apache.xerces.internal.parsers.XML11Configuration.parse(XML11Configuration.java:842)
[2021-07-22T13:55:26.445Z] 	at com.sun.org.apache.xerces.internal.parsers.XML11Configuration.parse(XML11Configuration.java:771)
[2021-07-22T13:55:26.445Z] 	at com.sun.org.apache.xerces.internal.parsers.XMLParser.parse(XMLParser.java:141)
[2021-07-22T13:55:26.445Z] 	at com.sun.org.apache.xerces.internal.parsers.AbstractSAXParser.parse(AbstractSAXParser.java:1213)
[2021-07-22T13:55:26.445Z] 	at com.sun.org.apache.xerces.internal.jaxp.SAXParserImpl$JAXPSAXParser.parse(SAXParserImpl.java:643)
[2021-07-22T13:55:26.445Z] 	at com.sun.org.apache.xerces.internal.jaxp.SAXParserImpl.parse(SAXParserImpl.java:327)
[2021-07-22T13:55:26.446Z] 	at javax.xml.parsers.SAXParser.parse(SAXParser.java:195)
[2021-07-22T13:55:26.446Z] 	at hudson.plugins.cobertura.CoberturaCoverageParser.parse(CoberturaCoverageParser.java:78)
[2021-07-22T13:55:26.446Z] 	... 11 more
[Cobertura] Unable to parse /var/lib/jenkins/jobs/Ingest-manager/jobs/integrations/branches/PR-1344/builds/2/coverage1.xml

mtojek · 2021-07-22T14:12:52Z

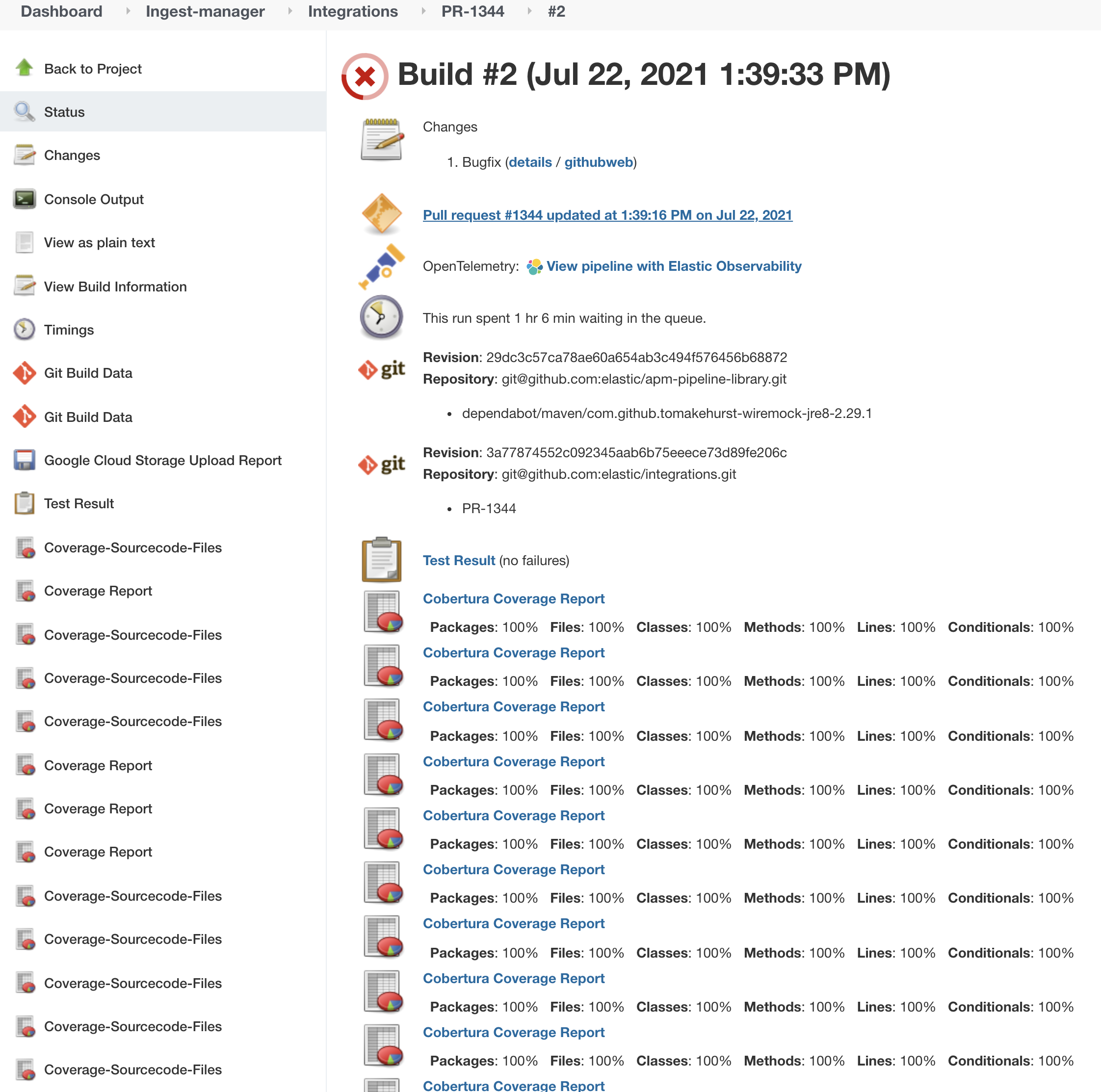

Another issue - as we run isolate tests of every package on separate hosts, results aren't concatenated properly:

mtojek · 2021-07-22T14:19:53Z

I'm not sure if the exception isn't related to overriding coverage reports (will try to solve this one first). @v1v Do you know if there is any argument for coverageReport() to properly this use case or should I use any temporary bucket to store coverage results.

EDIT:

It looks like we need to involve stashV2 and unstashV2.

v1v · 2021-07-22T14:52:10Z

It looks like we need to involve stashV2 and unstashV2.

Exactly stashV2 is an adhoc temporary stash implementation with google storage, while stash is the built-in that stores in the jenkins controller, this latter doesn't scale well I'm afraid with parallel stages.

If you can use that approach most likely it should work :)

mtojek · 2021-07-22T14:59:26Z

Thank you for quick response, Victor!

Actually I'm considering to use googleStorageUpload and googleStorageDownload directly, so that I can store all files in the same bucket ("drop point" for coverage results, every parallel job uploads coverage results with googleStorageUpload) and then in post/cleanup just call googleStorageDownload with an asterisk (TBC?), so that with one call to Google Storage I can download all coverage files and publish them with coverageReport(). Please let me know what do you think.

I'm happy to switch to magic from apm-pipeline-library if there is a better implementation hidden :)

v1v · 2021-07-22T15:53:38Z

Actually I'm considering to use googleStorageUpload

Don't use googleStorageUpload if the pipeline runs in parallel multiple stages, there is a known bug with that plugin. You can use the googleStorageUploadExt step instead. See https://github.com/elastic/apm-pipeline-library/blob/master/vars/googleStorageUploadExt.txt

googleStorageDownload works fine.

This reverts commit 7db603f.

This reverts commit 88dd12e.

mtojek · 2021-07-26T15:42:14Z

I think we can review calculation rules and adjust weights if necessary. I understand it's a bit misleading that it assumes "lack of tests" as 0 and N tests as N.

Currently it's possible to have:

package with 4 tests (1 pipeline, 1 system, 1 asset, 1 static) = 100% coverage
another package only with 97 pipeline tests = 97% coverage.

EDIT:

Maybe we should consider only binary rates (0 vs 1) for presence of any tests? Package examples above would be considered as:

4 (all) different test types used = 100% coverage
only pipeline tests present = 25% coverage

Asset tests for package (not data streams), marked as "-" would be skipped in the calculation.

WDYT?

v1v

💯

jsoriano · 2021-07-27T12:25:57Z

Regarding calculations, I think I like more the second option, but thinking on the files covered by the tests instead of based on the presence of tests, so a data stream without pipelines can have 100% coverage without pipeline tests.

Update dependency on elastic-package

83e4dad

mtojek self-assigned this Jul 22, 2021

Bugfix

3a77874

mtojek marked this pull request as draft July 22, 2021 14:31

Merge branch 'master' into update-ep-0722

3fba3ad

mtojek changed the title ~~Update dependency on elastic-package~~ Enable test coverage calculation for integrations Jul 26, 2021

mtojek added 16 commits July 26, 2021 09:20

Stubs for stash/unstash

46762a7

For testing only

7db603f

Use Google Storage to save coverage files

bc45cb8

JOB_GCS_EXT_CREDENTIALS

218f21c

Fix

9bf3ac4

bucketUri

dbd9edb

Fix

5ac56ab

Fix

727dd14

More path fixes

5e56878

WIP

a43e77f

Missing credentials

24a9448

Try: test not executed

88dd12e

Try: publish coverage reports

3c18304

Try

7bcce8a

Refactoring

469f2c5

isCoverageReportPresent

ee84304

mtojek added 5 commits July 26, 2021 14:50

Comment

8e7b735

Revert "For testing only"

63d1f95

This reverts commit 7db603f.

Revert "Try: test not executed"

9bc01bf

This reverts commit 88dd12e.

Add missing coverageReport call

25ff4d6

Cleanup

161b033

mtojek requested review from jsoriano and v1v July 26, 2021 15:33

mtojek marked this pull request as ready for review July 26, 2021 15:36

v1v approved these changes Jul 27, 2021

View reviewed changes

jsoriano approved these changes Jul 27, 2021

View reviewed changes

mtojek merged commit 72696fb into elastic:master Jul 27, 2021
